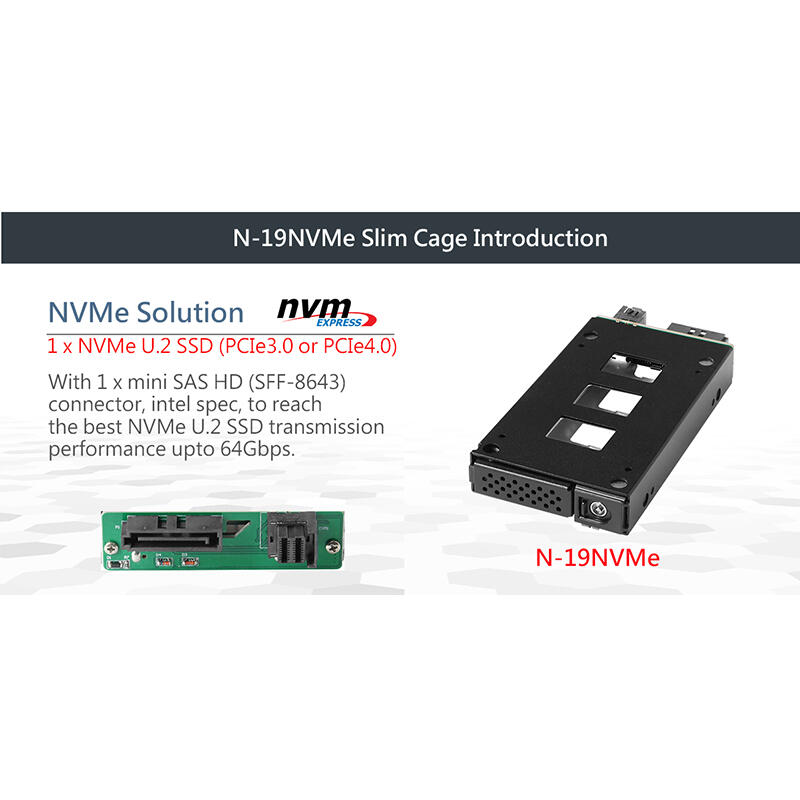

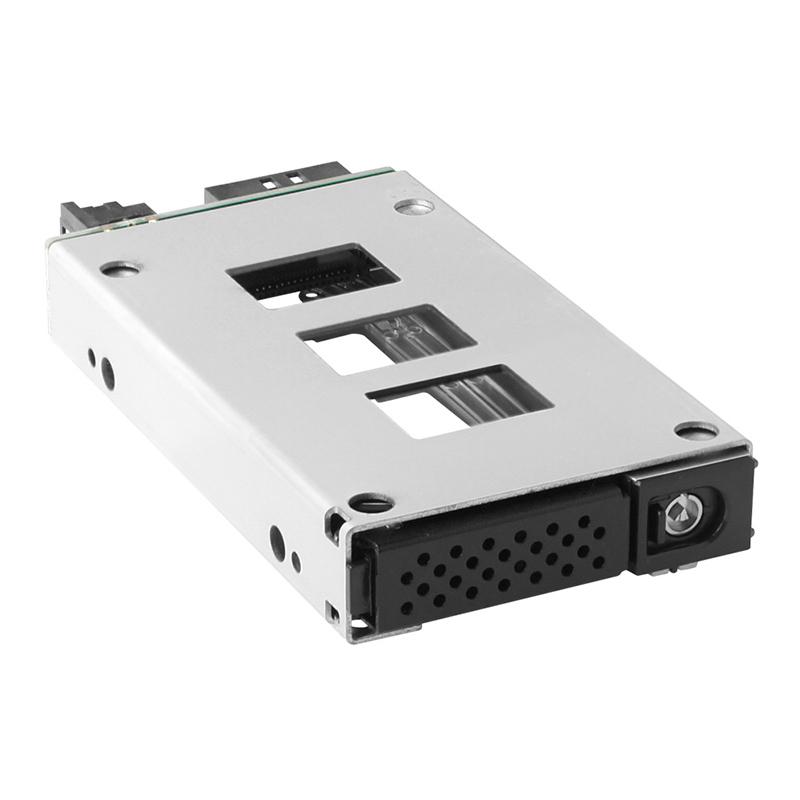

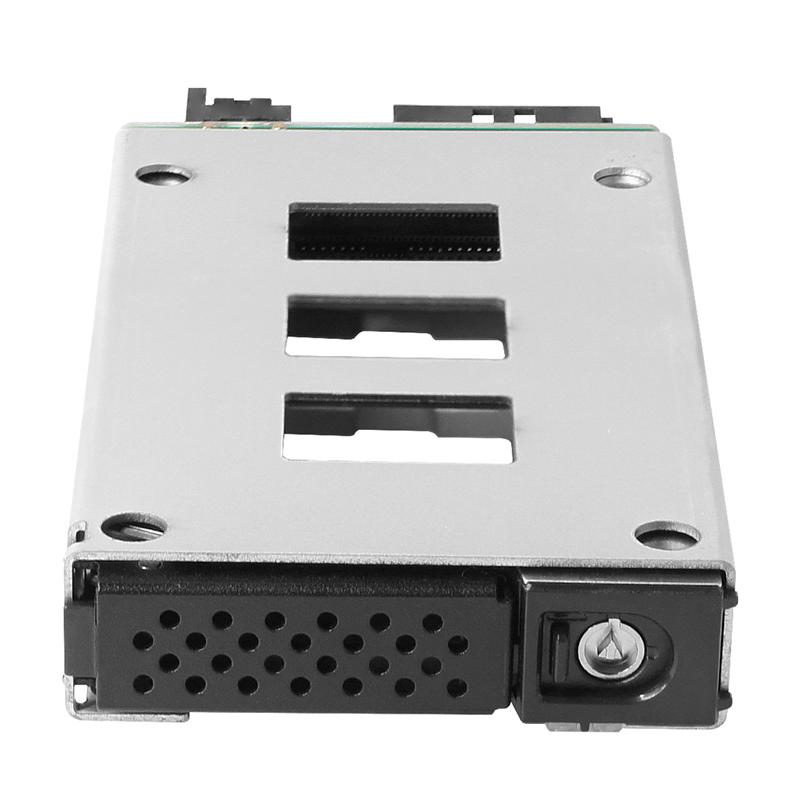

1/2 5.25 Drive Bay to 1 x 2.5" NVMe U.2 (up to 15mm)

PCICASE Model No: N-19NVMe
Manufacturer Model No: N-19NVMe
Please Call Sales

Form Factor
Half 5.25" Drive Bay Width Size

Support HDD Type
1 X 2.5” NVMe U2 SSD (32Gbps)

(PCIe3.0/4.0  X4  32/64Gbps)

Interface

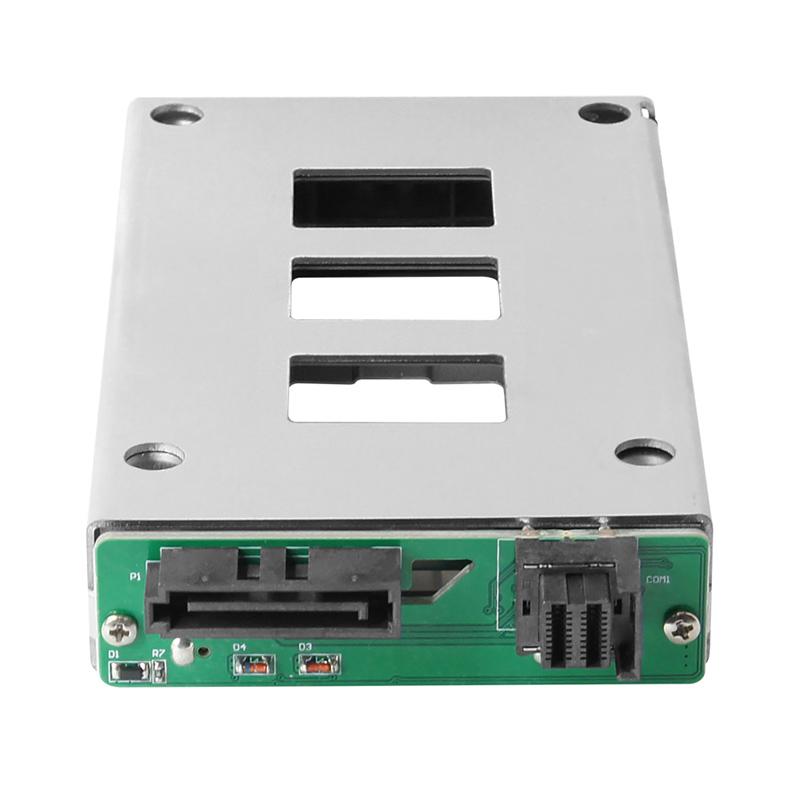

Mini SAS SFF-8643 Connector X 1
15pin Power Connector X 1

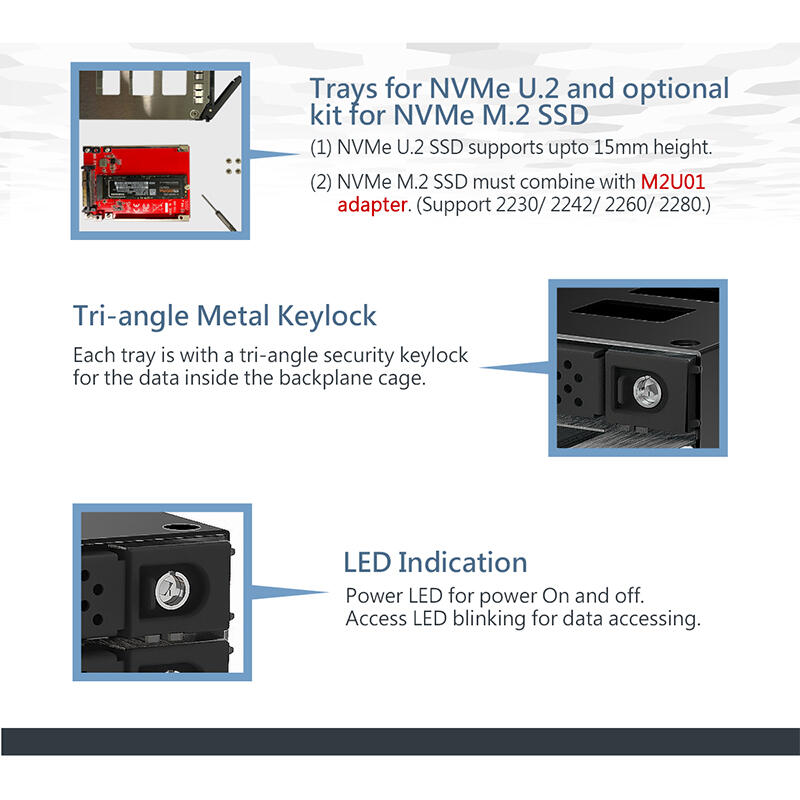

LED Indication
Power On- Green
HDD Access- Orange Blinking

Security Design
Metal Key Lock

Material
Metal Frame & Stainless HDD Tray

Fan
N/A

Operating System

Windows/ Linux/Mac
Product Dimension

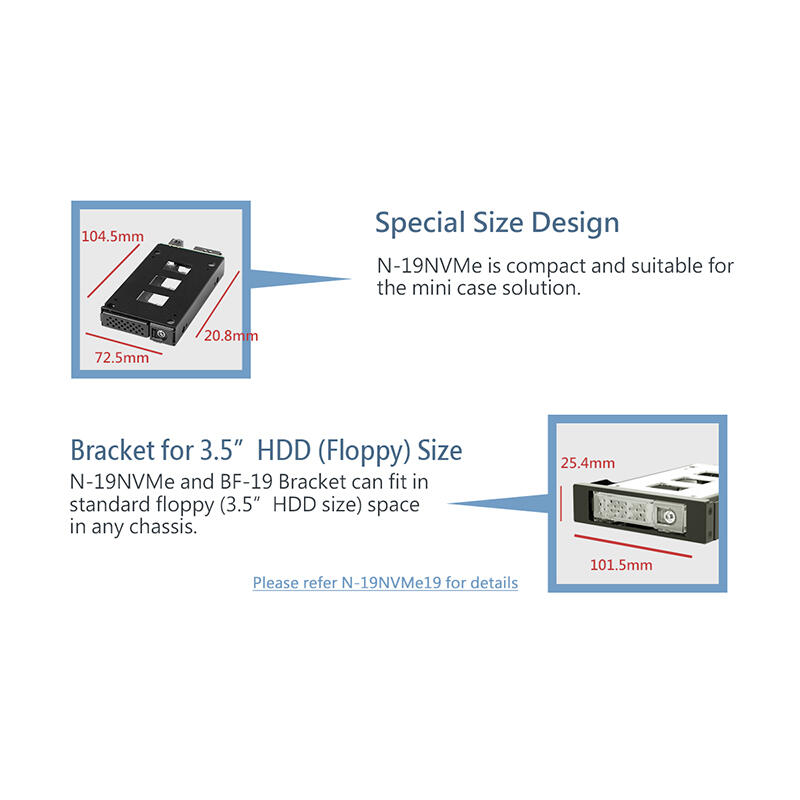

104.5(L) X 72.5(W) X 20.8(H) mm

Product Weight
0.3kg
