1/2 5.25" Drive Bay to 2 x 2.5" NVMe U.2 (up to 15mm),with OCuLink Connector

PCICASE Model No: N-29NVMO

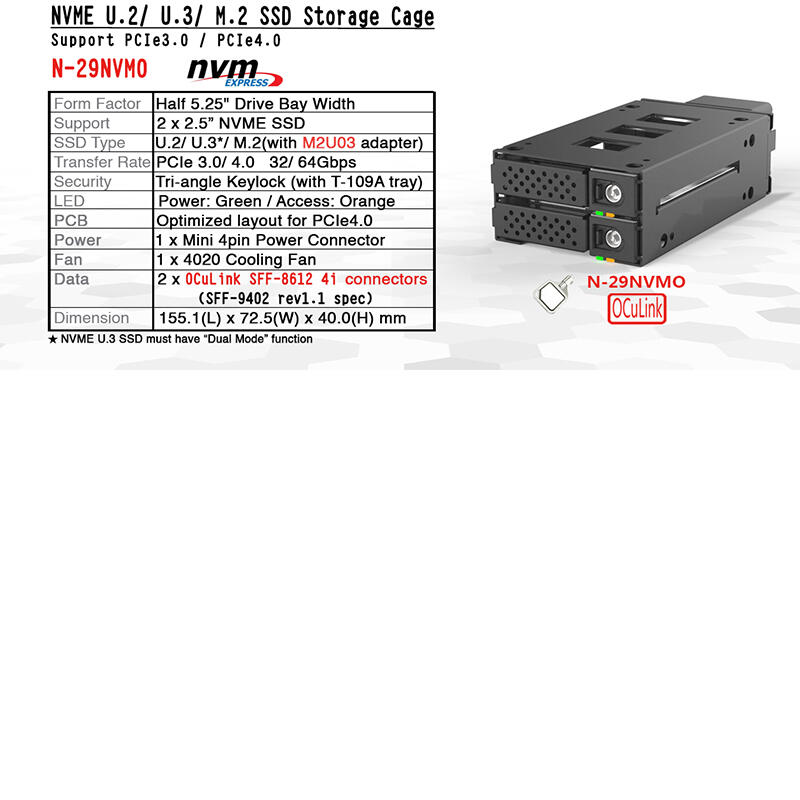

N-29NVMO Specification

Form Factor	Half 5.25" Drive Bay Width Size
Support SSD	2 X 2.5" NVME SSD(Up To 15mm)

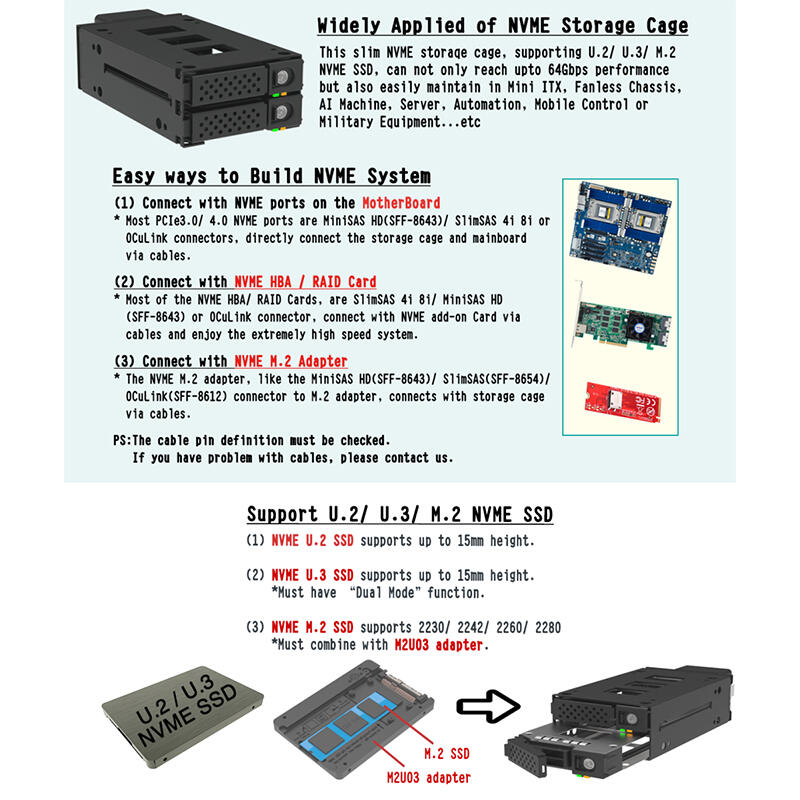

SSD Type	U.2/ U.3(With Dual Mode) M.2(With M2U03 Adapter), 2230/ 2242/ 2260/ 2280

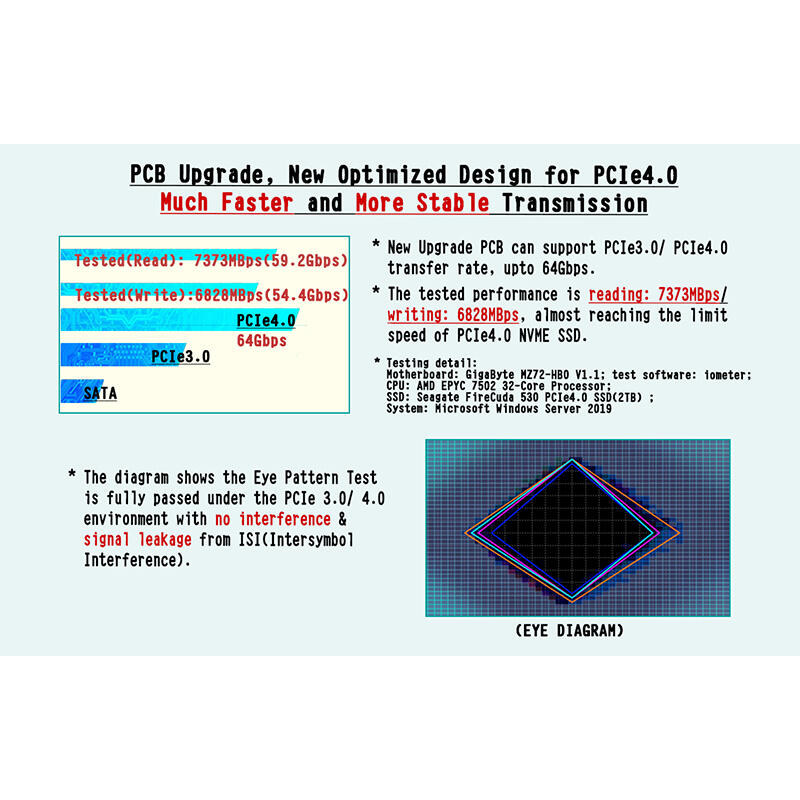

Transfer Rate	PCIe3.0/ 4.0 32/ 64Gbps
Interface	OCuLink(SFF-8612) Connector X 2 Mini 4pin Power Connector X 1 3pin Cooling Fan Jumper X 1

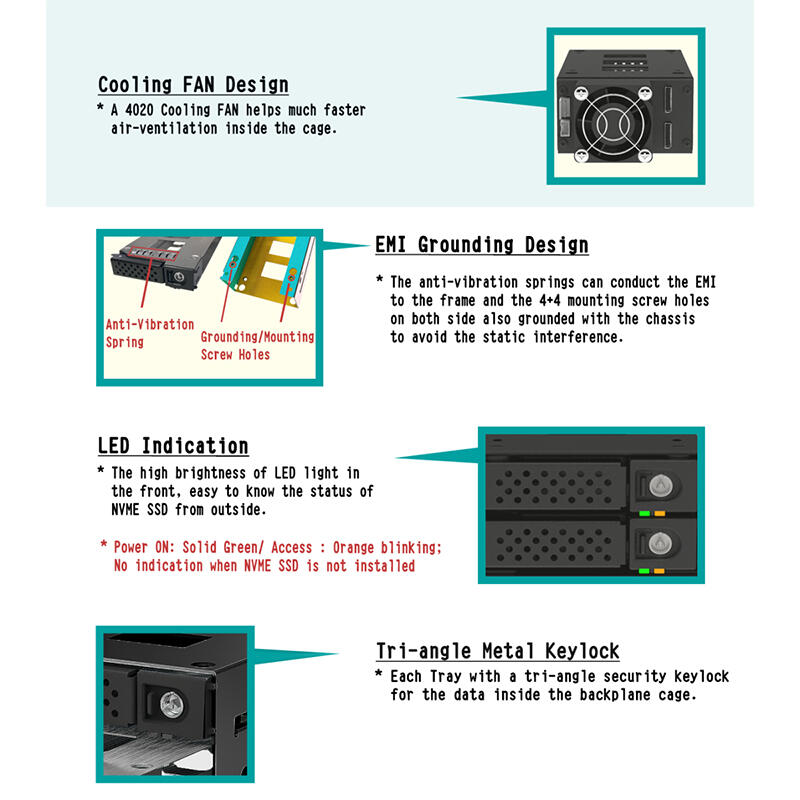

LED Indication	Power On- Green HDD Access- Orange Blinking
Security Design	Metal Key Lock
Material	Metal Frame & Stainless HDD Tray
Fan	N/A
Operating System	Windows/ Linux/Mac

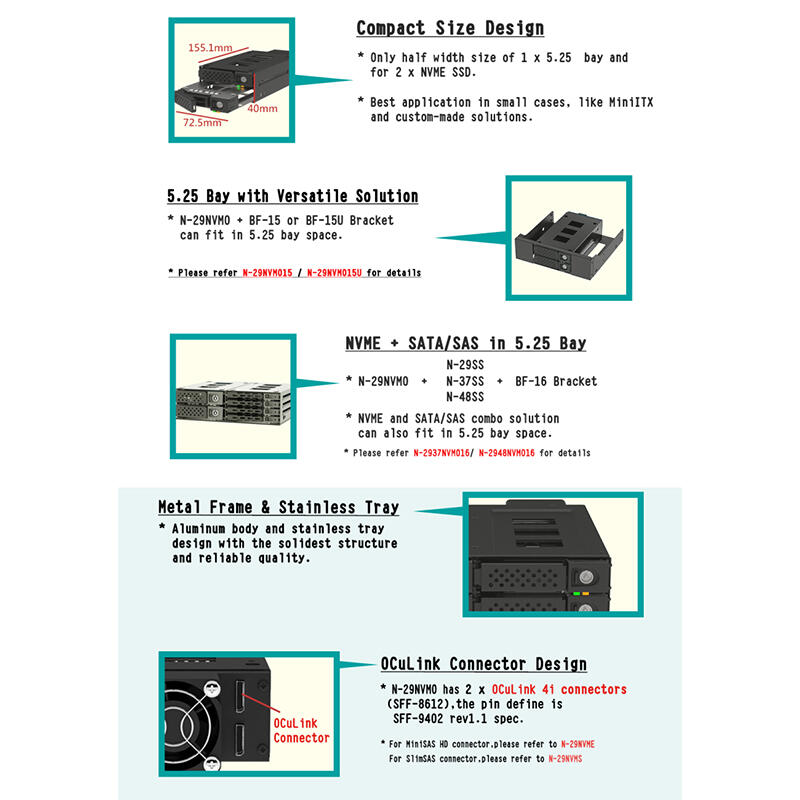

Product Dimension	155.1(L) X 72.5(W) X 40.0(H) Mm
Product Weight	0.35kg
