1/2 5.25" Drive Bay to 2 x 2.5" NVMe U.2 (up to 15mm) ,with SlimSAS connector

PCICASE Model No: N-29NVMS
Please Call Sales

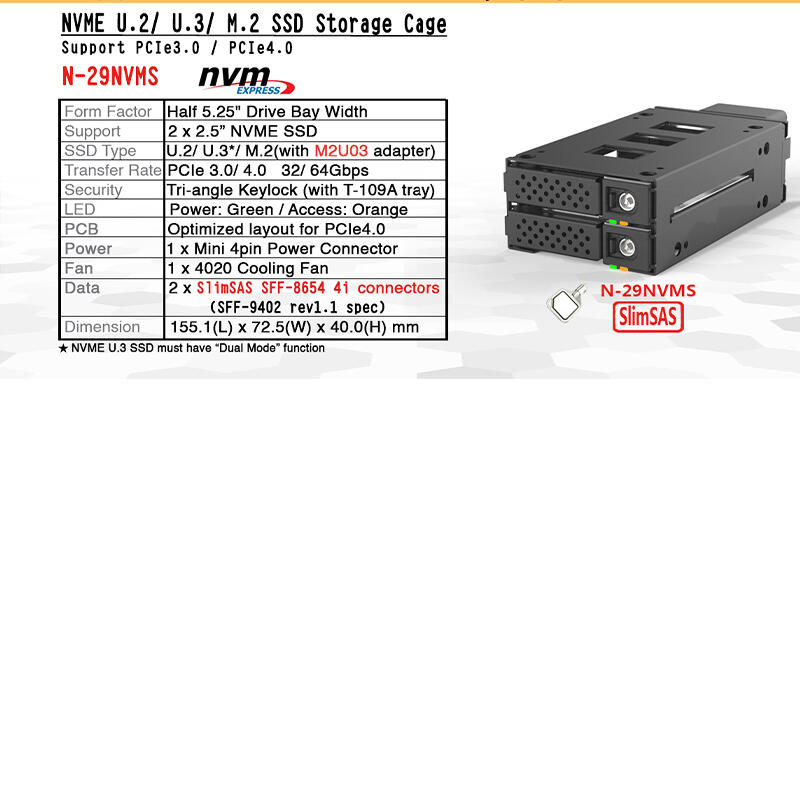

N-29NVMS Specification

Form Factor Half 5.25" Drive Bay Width Size
Support SSD

2 X 2.5" NVME SSD(Up To 15mm)

SSD Type

U.2/ U.3(With Dual Mode)

M.2(With M2U03 Adapter), 2230/ 2242/ 2260/ 2280

Transfer Rate

PCIe3.0/ 4.0 32/ 64Gbps

Interface

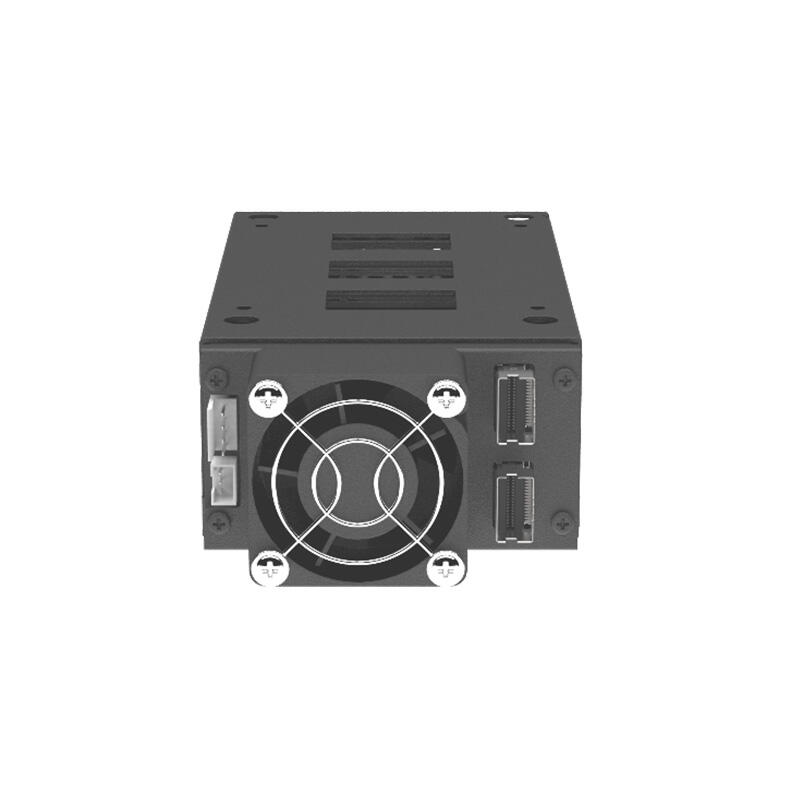

SlimSAS(SFF-8654) Connector X 2

Mini 4pin Power Connector X 1

3pin Cooling Fan Jumper X 1

LED Indication

Power On- Green

HDD Access- Orange Blinking

Security Design

Metal Key Lock

Material Metal Frame & Stainless HDD Tray
Fan N/A
Operating System Windows/ Linux/Mac
Product Dimension 155.1(L) X 72.5(W) X 40.0(H) Mm
Product Weight 0.35kg
