1x3.5" Bay to 2x NVME SSD ( up to 9.5mm) with OCuLink Connector

PCICASE Model No: N-22NVMO

Manufacturer Model No: N-22NVMO

Please Call Sales

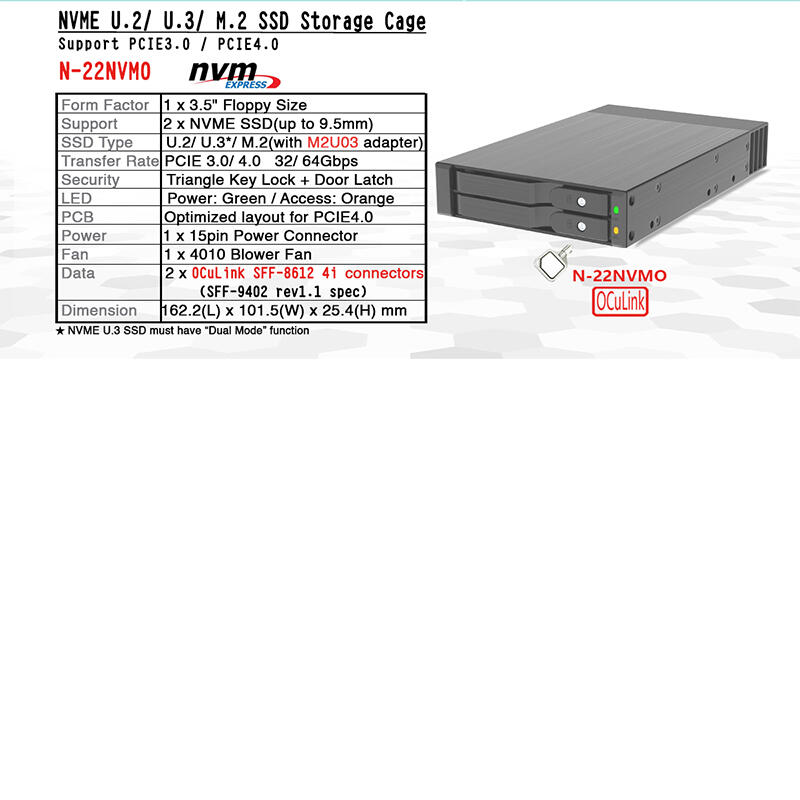

N-22NVMO Specification

Form Factor	1 X 3.5" Floppy Size
Support SSD	2 X NVME SSD(Up To 9.5mm)

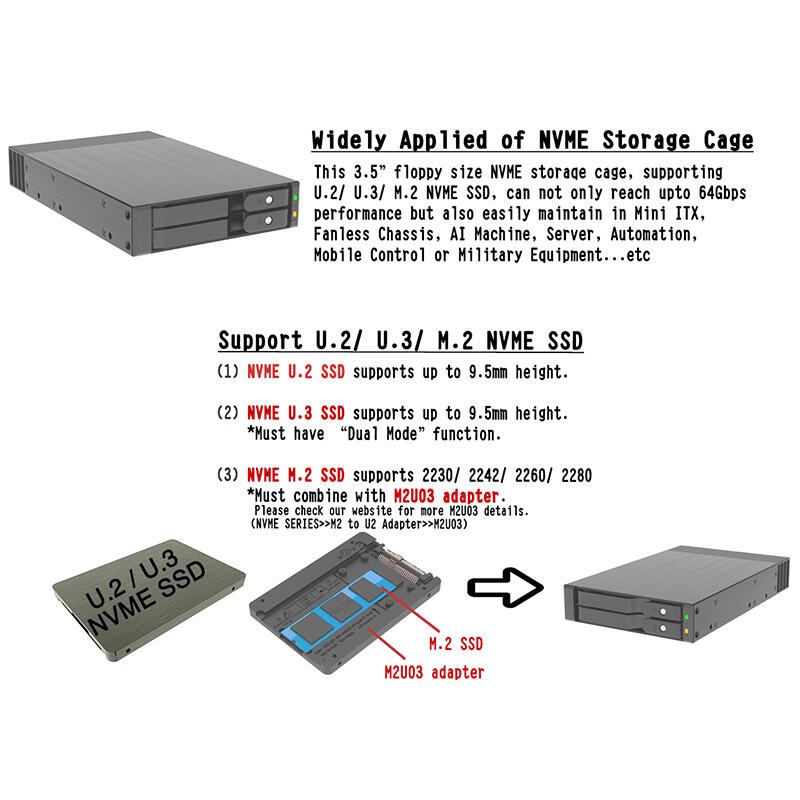

SSD Type	U.2/ U.3(With Dual Mode) M.2(With M2U03 Adapter), 2230/ 2242/ 2260/ 2280

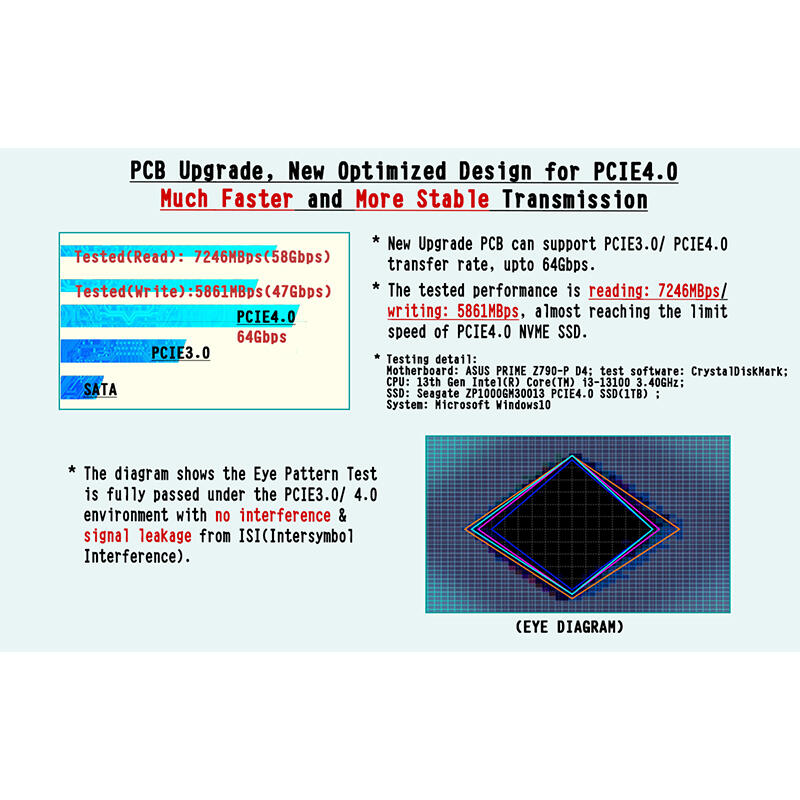

Transfer Rate	PCIe3.0/ 4.0 32/ 64Gbps
Interface	OCuLink(SFF-8612) Connector X 2 15pin Power Connector X 1

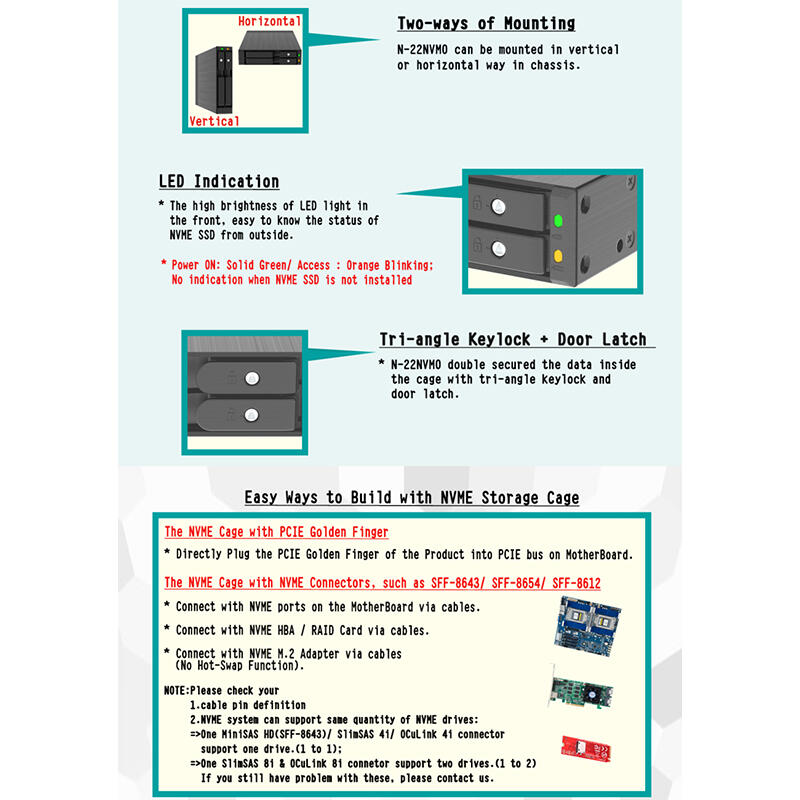

LED Indication	Power On- Green HDD Access- Orange Blinking
Security Design	Triangle Key Lock
Material	Metal Frame & Handle
Fan	1 X 4010 Blower Fan
Operating System	Windows/ Linux/Mac
Product Dimension	162.2(L) X 101.5(W) X 25.4(H) Mm
Product Weight	0.25kg
