1xM.2 NVMe SSD Backplane Cage with PCI Slot ,OCuLink Connector

PCICASE Model No: GOP-101M2r

Manufacturer Model No: GOP-101M2r

Please Call Sales

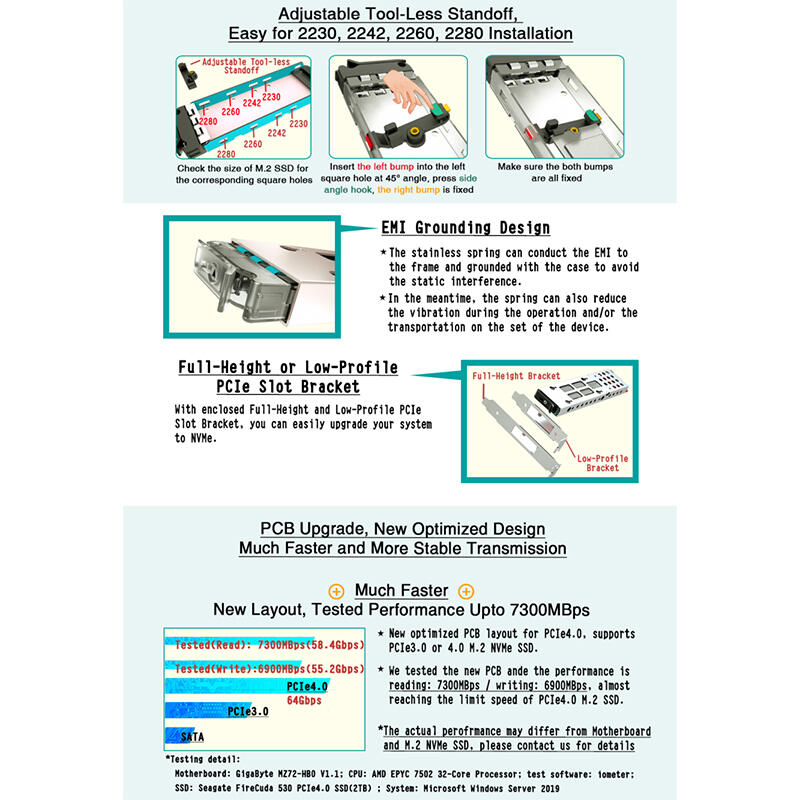

GOP-101M2r Specification

Form Factor	PCI Slot For M.2 SSD
Support HDD Type	1 X M.2 NVMe SSD (SSD Length 30/42/60/80 Mm)
Interface	Body: OCuLink(SFF-8612)X4 Connector X 1 Small 4pin Power Connector X 1 2pin Fan Jumper X 1 Tray: Slimline SAS X8 Connector
LED Indication	Power On- Green HDD Access- Orange Blinking
Installation	Tool-Less Installation Or Build-In Screw
Security	Mini Metal Keylock
HDD Tray	G-101Tr
Transfer Rate	Up To 32/64Gbps
Material	Aluminum Body + SSD Tray
Thermal Design	With Heat Sink & Grease Pad
Operating System	Windows/ Linux/Mac
Product Dimension	159.5(L) X 120.5(W) X 18.5(H) Mm
Product Weight	0.16kg
