SB101-TU, a 1U 4-bay storage server solution. It supports 3rd Gen Intel® Xeon® Scalable Processors with PCIe 4.0 extension design

PCICASE Model No: SB101-TU

Manufacturer Model No: SB101-TU(XP1-S101TU01)

7-28 Day Delivery

Key Features
• Supports 3rd Gen Intel® Xeon® Scalable Processors for highest server performance and improved power efficiency
• Supports 16 DDR4 DIMM slots for maximum memory performance
• Supports up to 3 x16 lanes, 2 x8 lanes, 4 slimline x8, 1 OCP 3.0 of PCIe Gen4
• Onboard Baseboard Management Controller for system management and IPMI control
• Embedded components for 5+ year long life
• Rackmount Technology Extension (RTX) form factor utilizes full internal chassis volume for optimum I/O configurations

Features & Benefits

SB101-TU, a 1U 4-bay storage server solution. It supports 3rd Gen Intel® Xeon® Scalable Processors with PCIe 4.0 extension design. It has Rackmount Technology Extension (RTX) form factor utilizes and Onboard Baseboard Management Controller for system management and IPMI control.

Dimensions (W x D x H)

• mm : 438 x 678.7 x 44.4
• inches : 17.2 x 26.7 x 1.7

Motherboard

Code Name - Tucana

Processor

Processor Support :
• 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake)
• Supports CPU TDP up to 270W*
*Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.

UPI Speeds: 10.4 / 11.2 GT/s

Socket Type : Socket P+ (LGA-4189)

Chipset Support

Intel® C621A Chipset

System Memory

• 8 x memory channels per CPU (1DPC)
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® Optane™ DC Persistent Memory (Barlow Pass) support

Front Panel

• System power on/off
• System reset
• 2 x USB 3.0 Type A

LEDs

• Power status
• HDD activity
• LAN activity
• Warning

Drive Bays

• External : 3.5”/2.5” hot-swap x 4 (6G SATA/12G SAS/PCIe x4 NVMe)
• Internal : 2 x 2.5” OS
• M.2 : 1 x M.2(NGFF)/M-Key/2280 (SATA/PCIe)

Backplane

1 x 4-port SATA/SAS/NVMe backplane with 1 x SFF-8643 + 2 x SFF-8654 (Slimline 8i) connectors

Expansion Slots (PCIe 4.0)

CPU0: 2 x PCIe Gen4 x16 slots + 1 x OCP V3.0

System BIOS

BIOS Type :
AMI UEFI BIOS

BIOS Features :
• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe Hotplug

On-board Devices

SATA :
Lewisburg PCH on-chip solution supports 10 x SATA 6.0 Gb/s
• 2 x SATA 7pin
• 8 x SATA by slimline
(supports both SATA/PCIe by PCH HSIO)

IPMI :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish

Network Controllers :
• Realtek RTL8211E GbE for BMC dedicated management port (NCSI shared NIC - reserved for OCP & I210 by jumper setting)

Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

Rear I/O

LAN:
• 1 x GbE RJ45 dedicated to BMC management

USB:
2 x USB 3.0 double-stack Type A connectors
• 2 x USB pin headers support USB3.0/2.0

VGA:
1 x internal VGA pin-header

Serial Port:
• 1 x external COM port
• 1 x COM2 box header
• 1 x COM1 box header share with rear I/O phone jack

TPM Support

2.0 onboard

Power Supply

750W/1100W 1+1 redundant power supply 80+ Platinum

System Cooling

• 6 x 40x56mm easy swap fans
• 1 x 40x28mm fan

System Management

• IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support

Environmental Specifications

• Storage temperature: -10°C(14°F) ~ 60°C(140°F)
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing

Gross Weight (w/PSU & Rail)

• kgs : 20
• lbs : 44

Packaging Dimensions (W x D x H)

• mm : 615 x 1025 x 274
• inches : 24 x 40 x 10.8

Mounting

Standard : 28" tool-less slide rail

SKU Information	Description
XP1-S101TU01 (Standard)	1U 4x 3.5"/2.5" SAS/SATA hot-swap, 2x 2.5" 7mm SATA internal, 6x 4056 & 1x 4028 FAN, 750W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 28" slide rail, w/o bezel
XP1-S101TU02 (Optional)	1U 4x 3.5"/2.5" tri-mode hot-swap, 2x 2.5" 7mm SATA internal, 6x 4056 & 1x 4028 FAN, 750W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 28" slide rail, w/o bezel
XP1-S101TU04 (Optional)	1U 4x 3.5"/2.5" tri-mode hot-swap, 4x 2.5" 7mm NVMe internal, 6x 4056 & 1x 4028 FAN, 1100W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (270W), 28" slide rail, w/o bezel

SKU Information

Description

XP1-S101TU01

(Standard)

1U 4x 3.5"/2.5" SAS/SATA hot-swap, 2x 2.5" 7mm SATA internal, 6x 4056 & 1x 4028 FAN, 750W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 28" slide rail, w/o bezel

XP1-S101TU02

(Optional)

1U 4x 3.5"/2.5" tri-mode hot-swap, 2x 2.5" 7mm SATA internal, 6x 4056 & 1x 4028 FAN, 750W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 28" slide rail, w/o bezel

XP1-S101TU04

(Optional)

1U 4x 3.5"/2.5" tri-mode hot-swap, 4x 2.5" 7mm NVMe internal, 6x 4056 & 1x 4028 FAN, 1100W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (270W), 28" slide rail, w/o bezel

FRU Information
Standard Parts List	Part Number	Description
Backplane	BBP-FB10009AB01	4-port Gen 4 NVMe backplane
Power housing	PH-A00000122	1U/750W/1+1 REDUNDANT/PMBUS 1.2
Power module	PM-C00000009	750W/MODULE/80PLUS PLATINUM
Fan	FC-A00000567	4056/2510H(1X4)(1,3)/L200MM
Fan	FC-A00000502	4028/E.C.I 2501CH-04(1X4/2.5)/L100MM

* All specifications are subject to change without notice.

Datasheet	SB101-TU Datasheet
	SB101-TU Datasheet.pdf

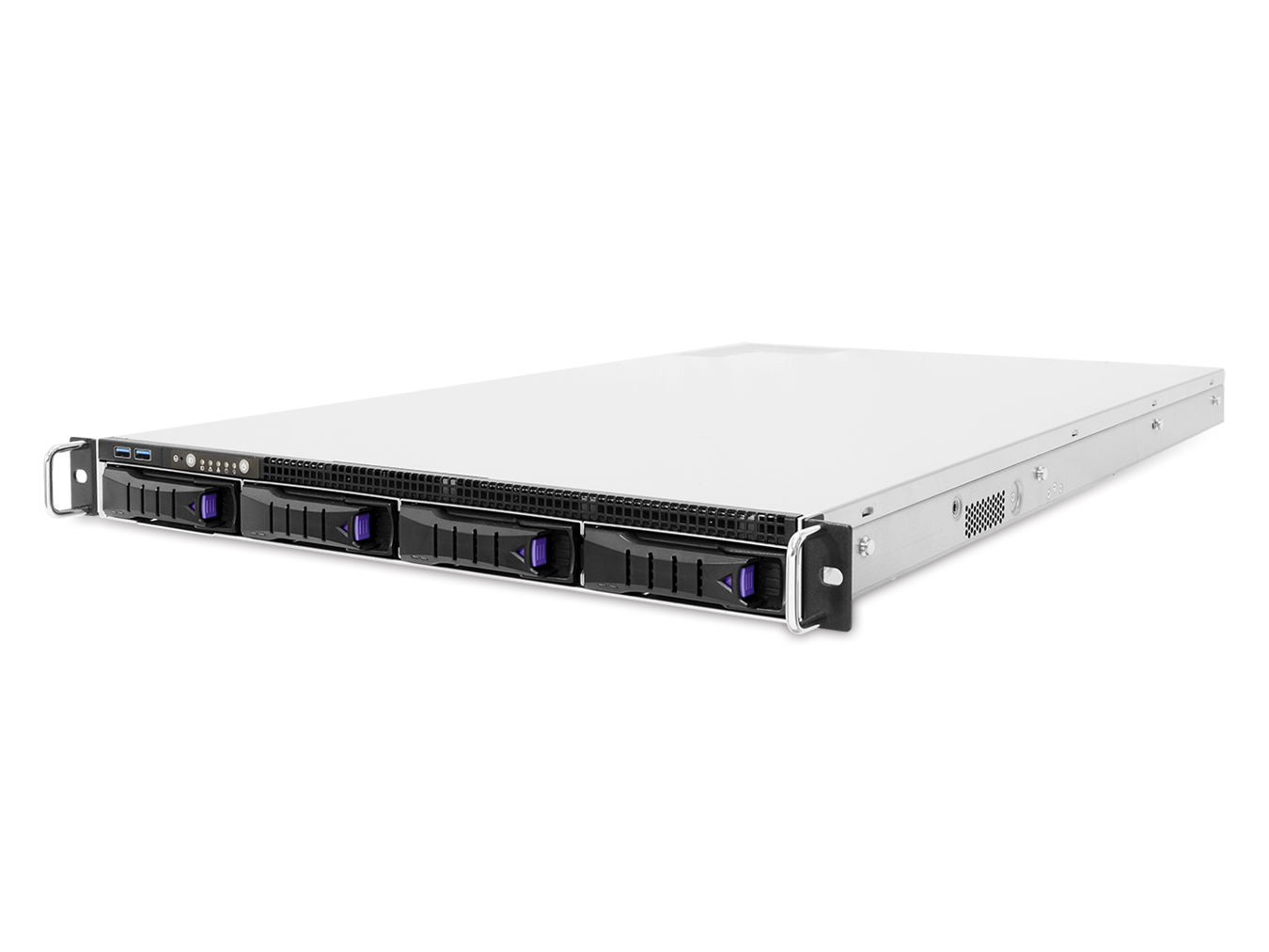

Product Images	SB101-TU (Front 45 Degrees)

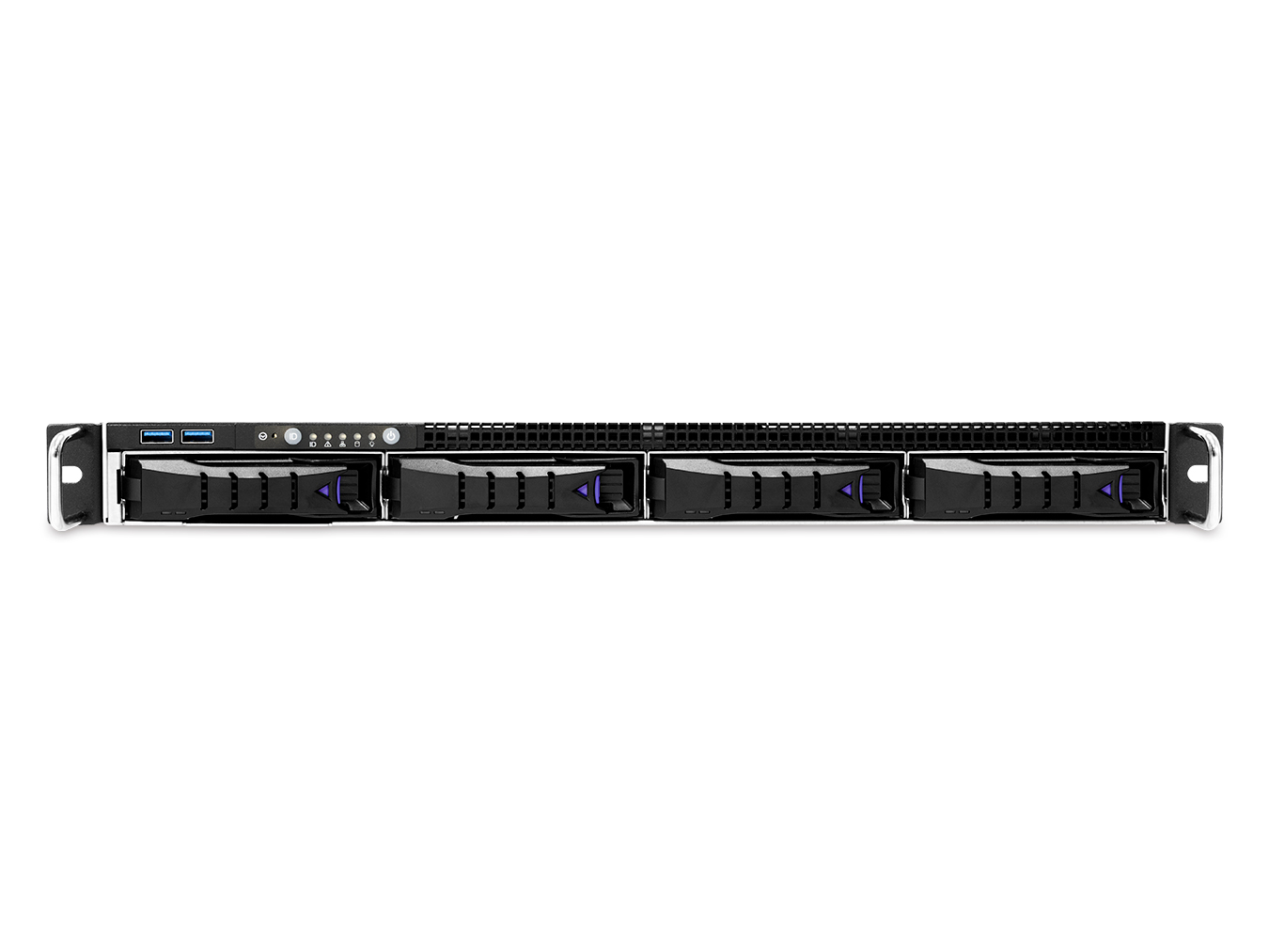

Product Images	SB101-TU (Front)

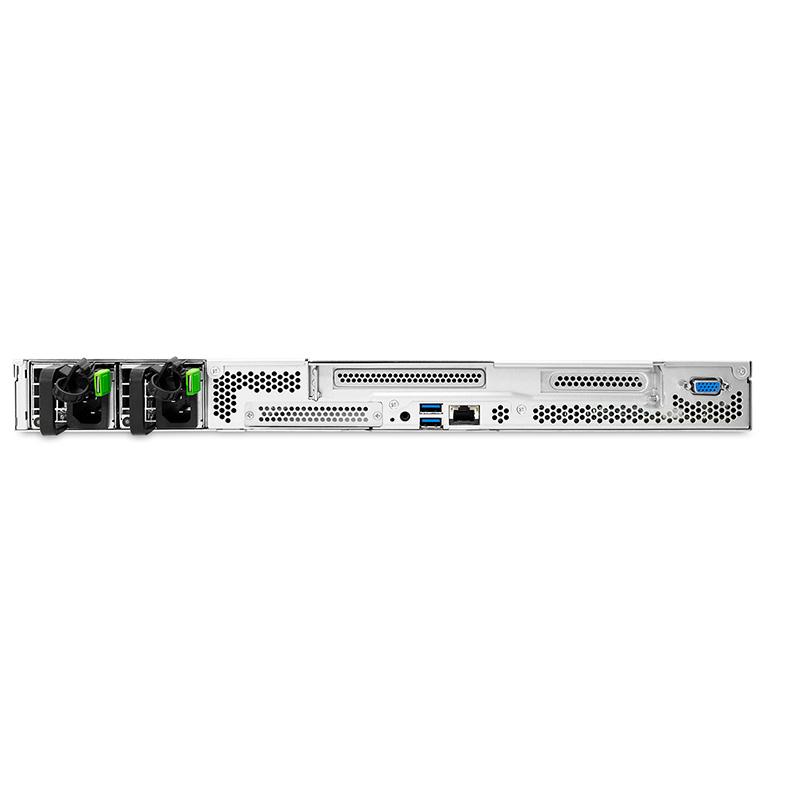

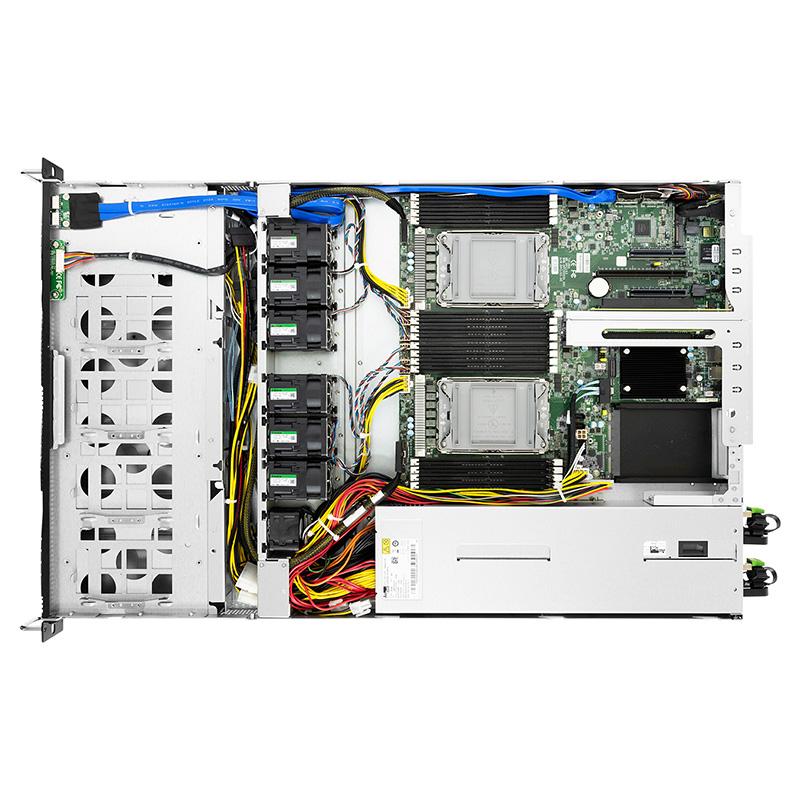

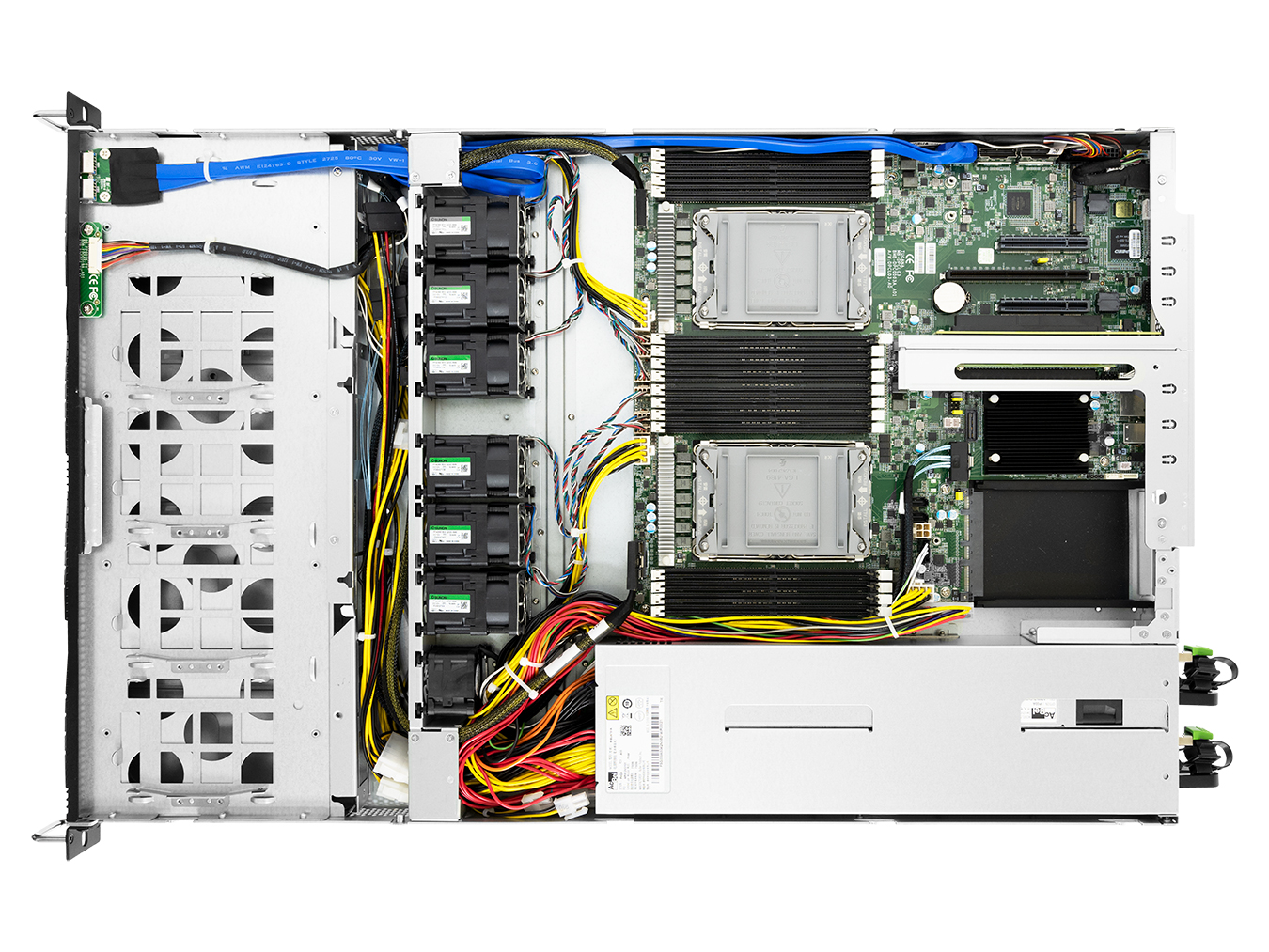

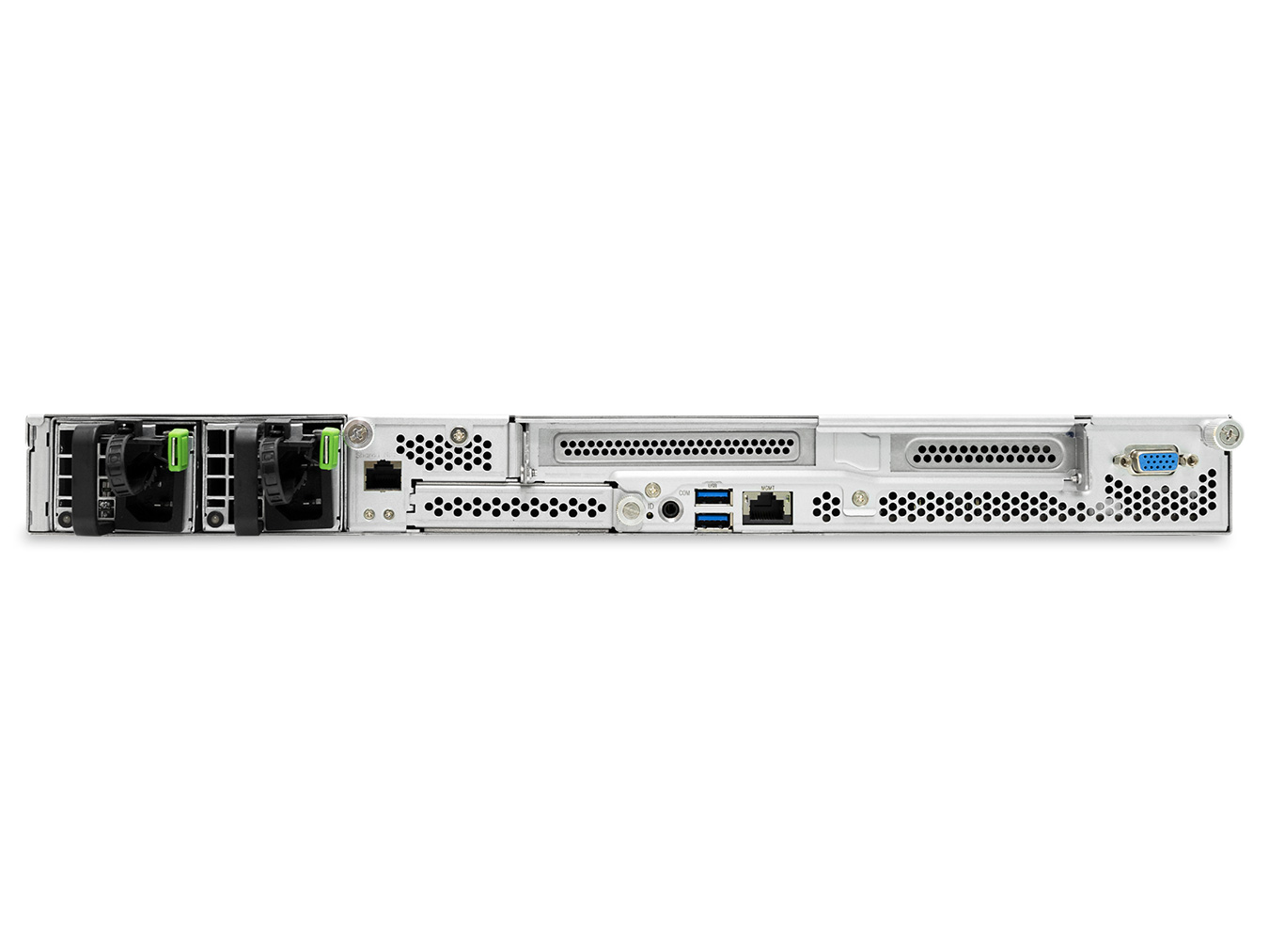

Product Images	SB101-TU (Top&Rear)
