Key Features
• 1U single GPU/FPGA server supports 2x 2.5” hot-swappable SATA/NVMe drive bays
• Supports two 2nd Gen Intel® Xeon® Scalable processor product family
• Three PCIe Gen.3 X16 expansion slots for add-in cards
• With Intel® C621 Series Chipset to provide 5+ years product life cycle
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and easy swap fans to provide optimal thermal conditions
• Compact system size to fit short 800mm depth cabinet
CB121-VL, a 1U 1x double-width + 1x FHHL + 1x OCP v2.0 PCIe Gen.3 slots, supports dual 2nd Gen Intel® Xeon® Scalable Processors and 2 x 2.5” hot-swappable drive bays to provide a GPU server solution in compact size.
Key Features
• 1U single GPU/FPGA server supports 2x 2.5” hot-swappable SATA/NVMe drive bays
• Supports two 2nd Gen Intel® Xeon® Scalable processor product family
• Three PCIe Gen.3 X16 expansion slots for add-in cards
• With Intel® C621 Series Chipset to provide 5+ years product life cycle
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and easy swap fans to provide optimal thermal conditions
• Compact system size to fit short 800mm depth cabinet
| Dimensions (W x D x H) |
| • mm : 438 x 650 x 44.4 • inches : 17.2 x 26.5 x 1.75 |
| Motherboard |
| AIC Server Board Vela |
| Processor |
| • 2nd Generation Intel® Xeon® Scalable Processor product family (Cascade Lake Refresh/Cascade Lake/Skylake) • Support CPU TDP up to 165W *Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system. QPI Speeds: 10.4 GT/s, 9.6 GT/s Socket Type: Socket P0 (LGA-3647 Socket) |
| Chipset Support |
| Intel® Lewisburg C620 PCH |
| System Memory |
| • 6 x memory channels per CPU 2 channels with 2DPC + 4 channels with 1DPC • 16 x DIMM slots support: DDR4 2933/2666/2400MHz RDIMM/LRDIMM • Intel® Optane™ DC Persistent Memory (Apache Pass) support |
| Front Panel |
| • System power on/off • System ID • System reset • USB 2.0 Type A connector |
| LEDs |
| • Power • System ID • Alert - Power (Secondary) - Warning |
| Expansion Slots (PCIe 3.0) |
| • 1 x OCP • 1 x FHFL, PCIe X16 • 1 x FHHL, PCIe X16 |
| System BIOS |
| BIOS Type : • Insyde UEFI BIOS BIOS Features : • ACPI • PXE • WOL • AC loss recovery • IPMI 2.0 KCS interface • SMBIOS • Serial console redirection • BIOS Boot Specification • BIOS Recovery Mode • SRIOV • iSCSI • TPM |
| On-board Devices |
|
SATA : |
| Rear I/O |
| LAN: 1 x RJ45 dedicated to BMC management USB: 2 x USB 3.0 VGA: 1 x external DB-15 VGA port Serial Port: 1 x external COM port by 3.5mm phone jack |
| Storage / HDD Bays |
| External: • 2 x 2.5" SAS/SATA hot-swap -Standard , or 2x2.5" NVMe ( SkU:XP1-C121VL02) Internal: • 2 x M.2(NGFF)/M-Key/2280 |
| Power Supply |
| AC 750W 1+1 redundant high-efficiency power supply 80+ • 90~264VAC, 47~63 Hz |
| System Cooling |
| 5 x 40x56mm easy swap fans |
| Environmental Specifications |
| • Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF) • Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF) • Storage operating humidity: 5%~95% non-condensing |
| Gross Weight |
| w/ PSU, Rail, Pallet: • 22 • 48 |
| Packaging Dimensions (W x D x H) |
| • mm : 615 x 980 x 274 • inches : 24.2 x 38.6 x 10.8 |
| Mounting |
| Standard : 30" tool-less slide rail |
| SKU Information | Description |
|
XP1-C121VL01 (Standard) |
1U single GPU/FPGA server support 2 hot-swap 2.5” SATA drive bays |
|
XP1-C121VL02 (Optional) |
1U single GPU/FPGA server support 2 hot-swap 2.5” NVMe drive bays |
| FRU Information | |
| Part Number | Description |
|
PM-000000009 |
750W/module/80 plus platinum |
|
G2-000000368 |
ATX 8pin cable for GPU power cable |
|
G2-A00000801 |
2x PCIe 6+ 2pin to ATX 8pin for GPU power cable |
|
FC-A00000538 |
4056/2005H(2x 4/2.0)/L550MM (for GPU) |
|
FC-A00000484 |
4056/2005H(2x 4/2.0)/L200MM (for system) |
|
H5541T200002 |
RAIL_AA61-762/1U/900MM RACK |
|
M06-00376-08 |
Front Bezel / 1DT DOOR ASSEMBLY/MCB |
* All specifications are subject to change without notice.
| Datasheet | CB121-VL Datasheet |
|
|
|
| Product Images | SB121-VL (Front 45 Degrees) |
|
|
|

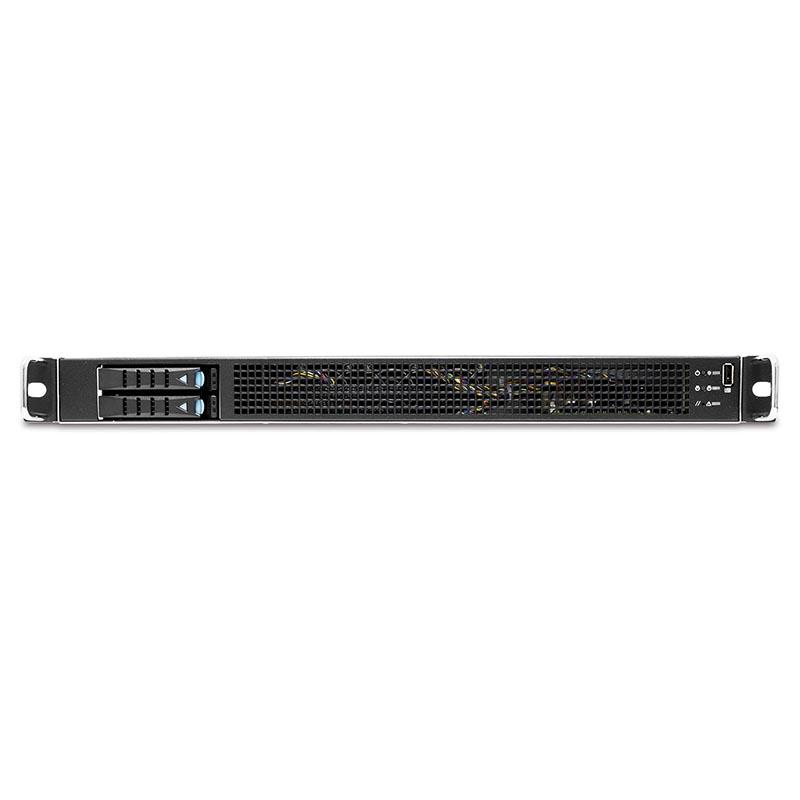

| Product Images | CB121-VL (Front) |
|
|
|

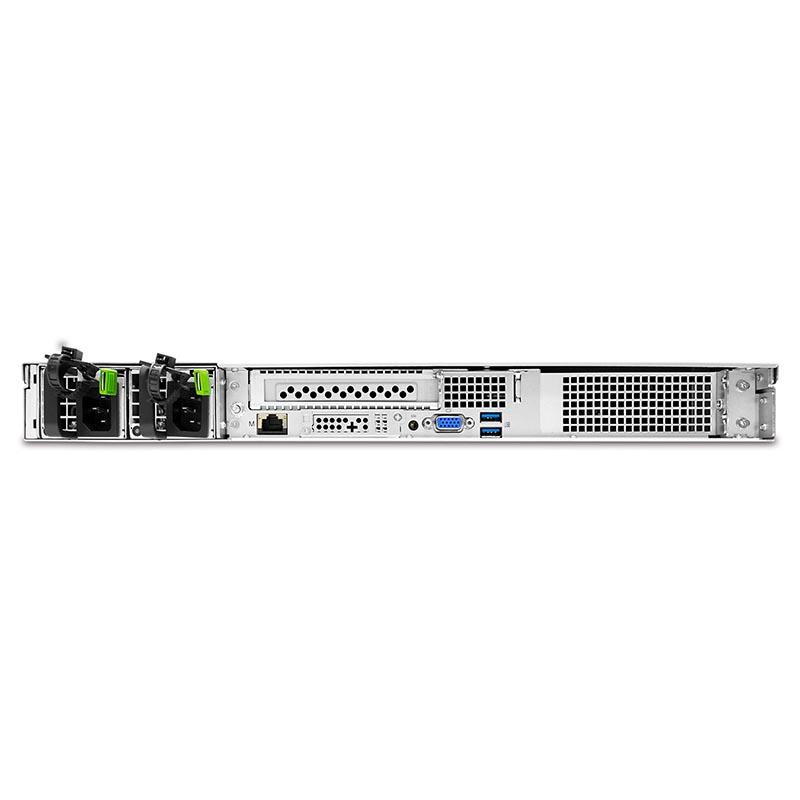

| Product Images | CB121-VL (Top &Rear) |
| Product Manual/AVL/Firmware | CB121-VL |
|
|
