1 x 5.25" drive bay, supporting 4 x 2.5" NVMe U.2 HDD (up to 15mm) with OCuLink Connector

PCICASE Model No: N-49NVMO

Manufacturer Model No: N-49NVMO

Please Call Sales

N-49NVMO Specification

Form Factor	1 X 5.25" Drive Bay
Support SSD	4 X 2.5" NVME SSD(Up To 15mm)
SSD Type	U.2/ U.3(With Dual Mode) M.2(With M2U03 Adapter), 2230/ 2242/ 2260/ 2280
Transfer Rate	PCIe3.0/ 4.0 32/ 64Gbps
Interface	OCuLink (SFF-8612) Connector X 4 15pin Power Connector X 2
LED Indication	Power On- Green HDD Access- Orange Blinking
Security Design	Metal Key Lock
Material	Metal Frame & Stainless HDD Tray

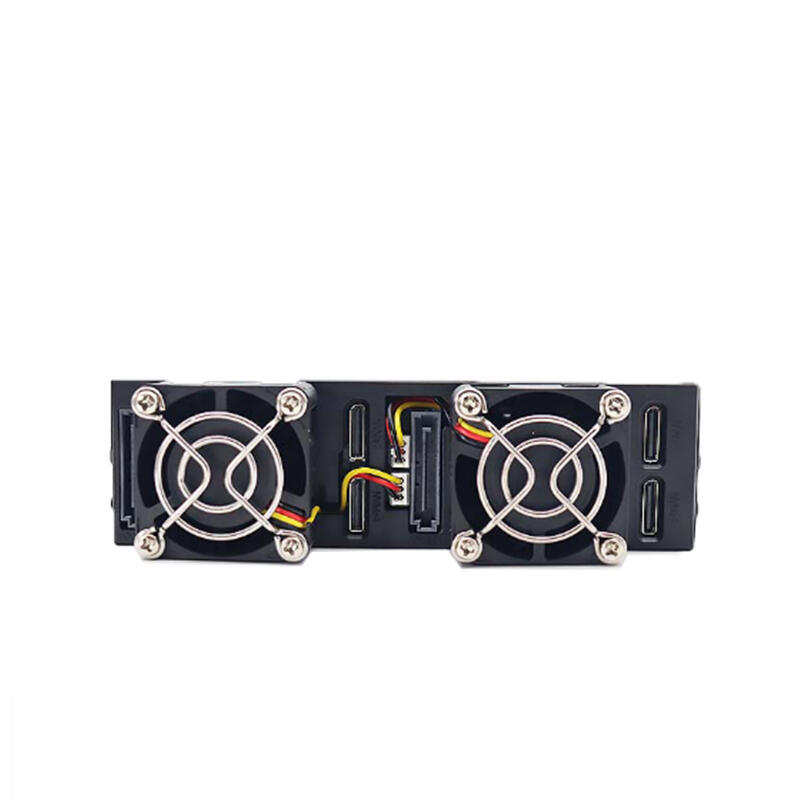

Fan	4cm Fan X 2
Operating System	Windows/ Linux/Mac
Product Dimension	161.5(L) X 145.8(W) X 41.6(H) Mm
Product Weight	0.65kg
