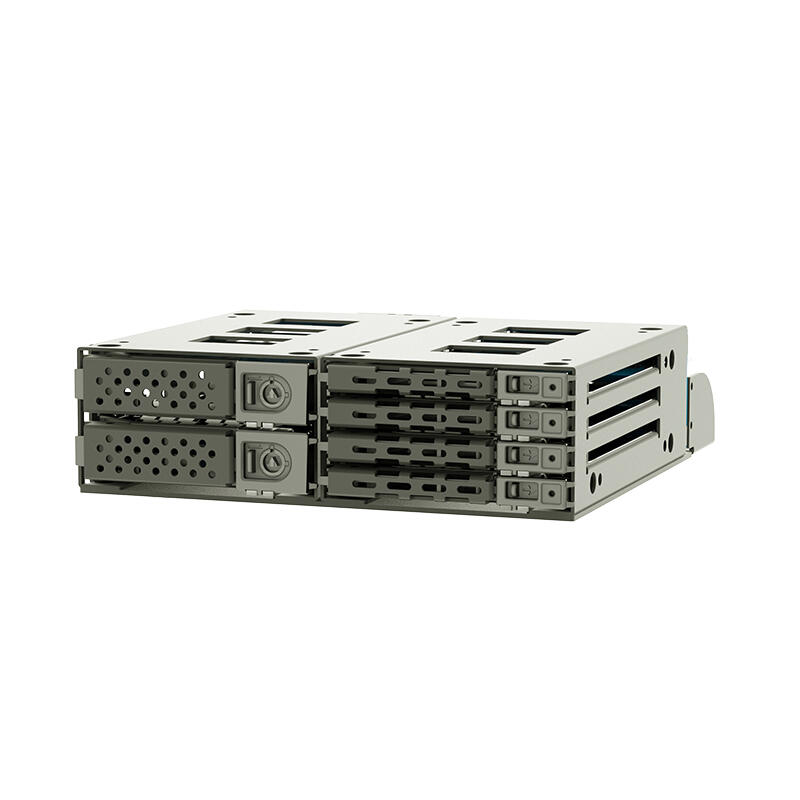

1x5.25 Drive Bay to 2 x 2.5" NVMe U.2 + 4x 2.5" SATA/SAS SSD

PCICASE Model No: N-2948NVMe16

Manufacturer Model No: N-2948NVME16

Please Call Sales

N-2948NVME16 Specification

Form Factor	1 X 5.25" Drive Bay Size
Support HDD Type	2 X 2.5” U.2/ U.3/ M.2(With M2U03 Adapter) Up To 15mm (PCIe3.0/4.0 X4 32/64Gbps) 4 X 2.5” SATA I, II, III & SAS I, II, III (12Gbps) HDD/SSD( Up To 7mm)
Interface	MiniSAS HD (SFF8643) Connector X 2 7pin SATA Connector X 4 15pin Power Connector X 2 3pin Cooling Fan Jumper X 2
LED Indication	Power On- Green HDD Access- Orange Blinking
Security Design	Metal Key Lock Mechanical Lock Classified Digital Number For Choice
Material	Metal Frame & Stainless HDD Tray
Fan	N/A
Operating System	Windows/ Linux/Mac
Product Dimension	145.8(L) X 163.8(W) X 41.8(H) Mm
Product Weight	1.1kg
