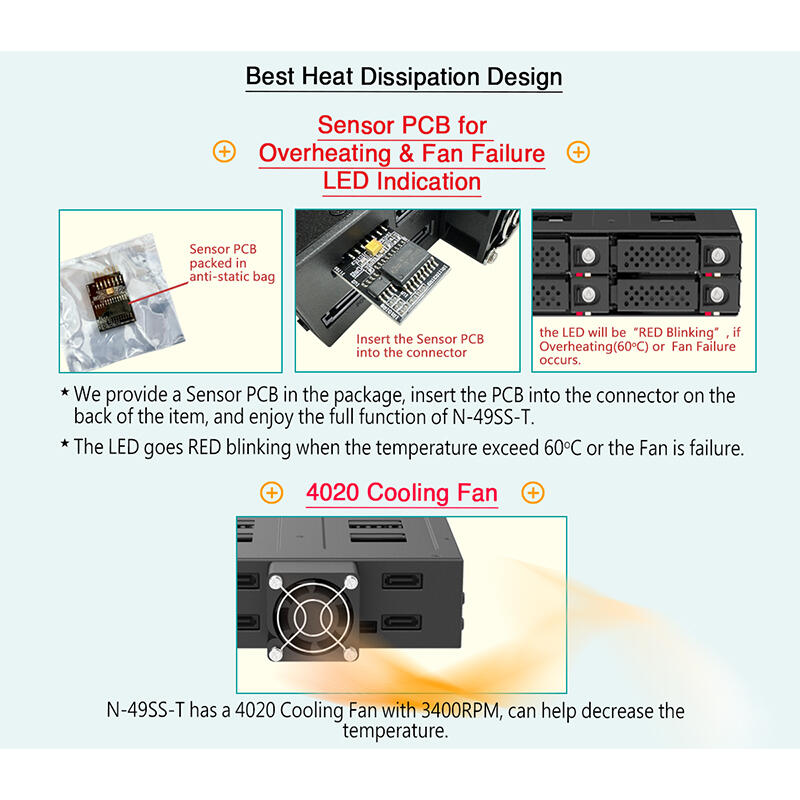

1 x 5.25" to 4 x 2.5" 12G + 6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design, with Sensor PCB for Overheating&Fan Failure LED Indication

PCICASE Model No: N-49SS-T

Please Call Sales

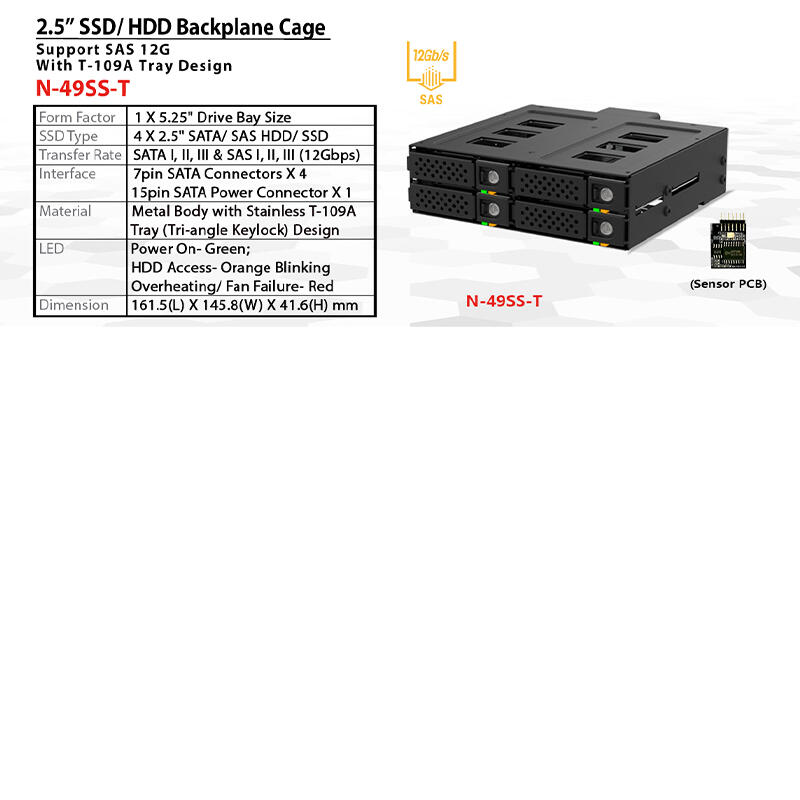

N-49SS-T Specification

Form Factor	1 X 5.25" Drive Bay

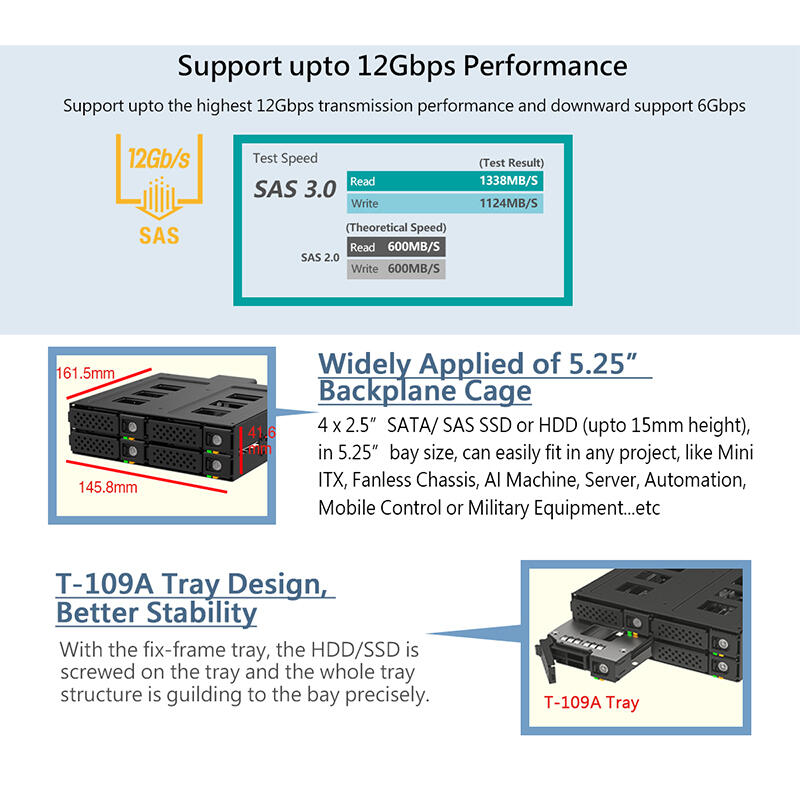

Support HDD Type	4 X 2.5” SATA I, II, III & SAS I, II, III (12Gbps) HDD/SSD (* Height Up To 15mm)
Interface	7pin SATA Connector X 4 15pin SATA Power Connector X 1
LED Indication	Power On- Green HDD Access- Orange Blinking Fan Failure- Red Blinking (Slow) Overheating- Red Blinking (Fast)
Security Design	Metal Key Lock
Material	Aluminum Body & Stainless HDD Tray
Fan	4 Cm Fan X 2
Operating System	Windows/ Linux/Mac
Product Dimension	145.8(L) X 159.0(W) X 41.6(H) Mm
Product Weight	0.65kg

Data Sheet : N-49SS-T
