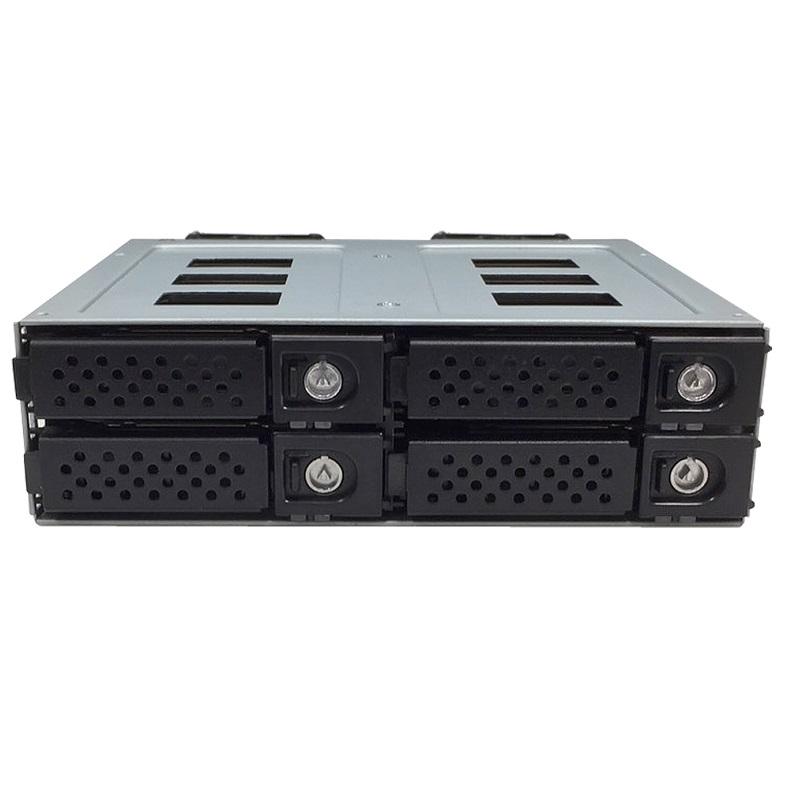

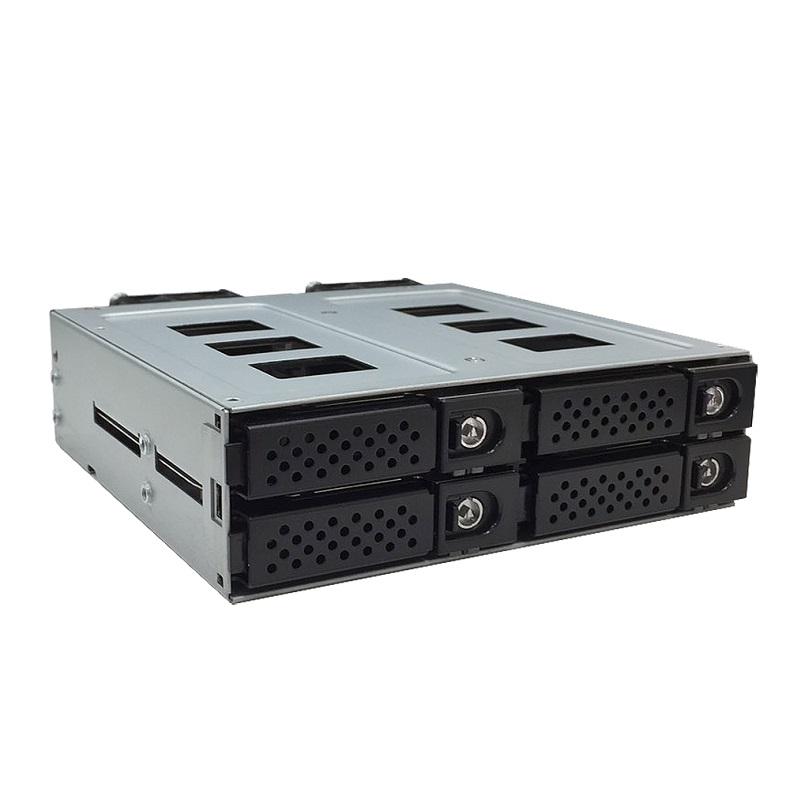

1 x 5.25" to 4 x 2.5" 12G + 6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design with MiniSAS Connector

PCICASE Model No: N-49MS
Manufacturer Model No: N-49MS
UK Stock
Key Features
  • Converts 1 x 5.25" Bay for 4 x 2.5" HDD into a Hot-Swap Bay
  • Key Locking For Added Security
  • 6 Gb/s Transfer Rate via SATA
  • 12Gb/s Transter MiniSAS versionVia SATA - 8643 Fly Out Cable
  • 40 x 40 x 20mm Fans for cooling

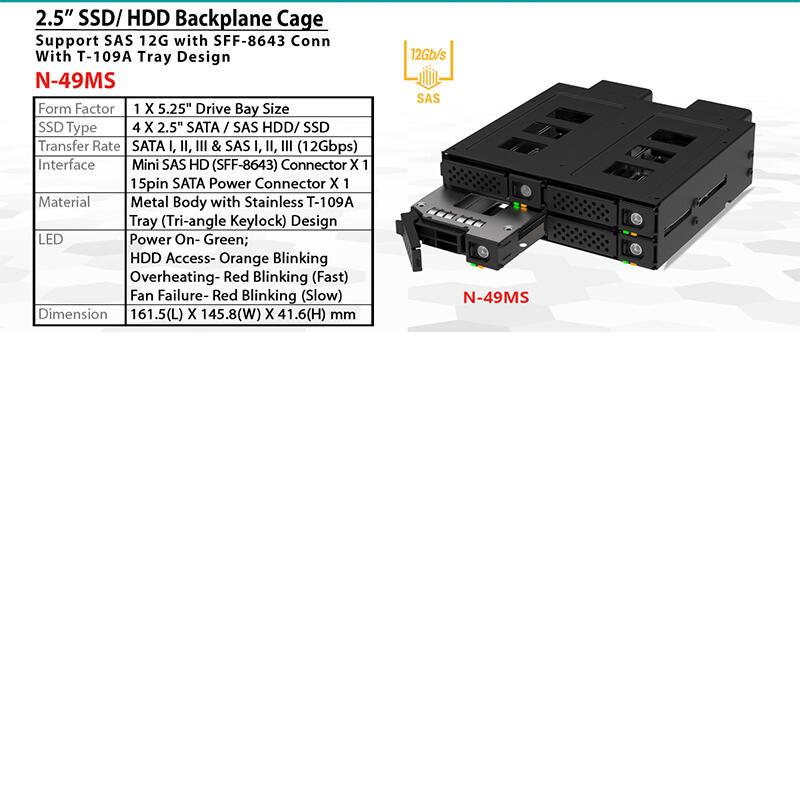

N-49MS Specification

Form Factor 1 X 5.25" Drive Bay
Support HDD Type

4 X 2.5” SATA I, II, III & SAS I, II, III (12Gbps) HDD/SSD

(* Height Up To 15mm)
Interface

Mini SAS SFF-8643 Connector X 1

15pin SATA Power Connector X 1
LED Indication

Power On- Green

HDD Access- Orange Blinking

Fan Failure- Red Blinking (Slow)

Overheating- Red Blinking (Fast)
Security Design Metal Key Lock
Material Aluminum Body & Stainless HDD Tray
Fan 4 Cm Fan X 2
Operating System Windows/ Linux/Mac
Product Dimension 145.8(L) X 159.0(W) X 41.6(H) Mm
Product Weight 0.65kg
