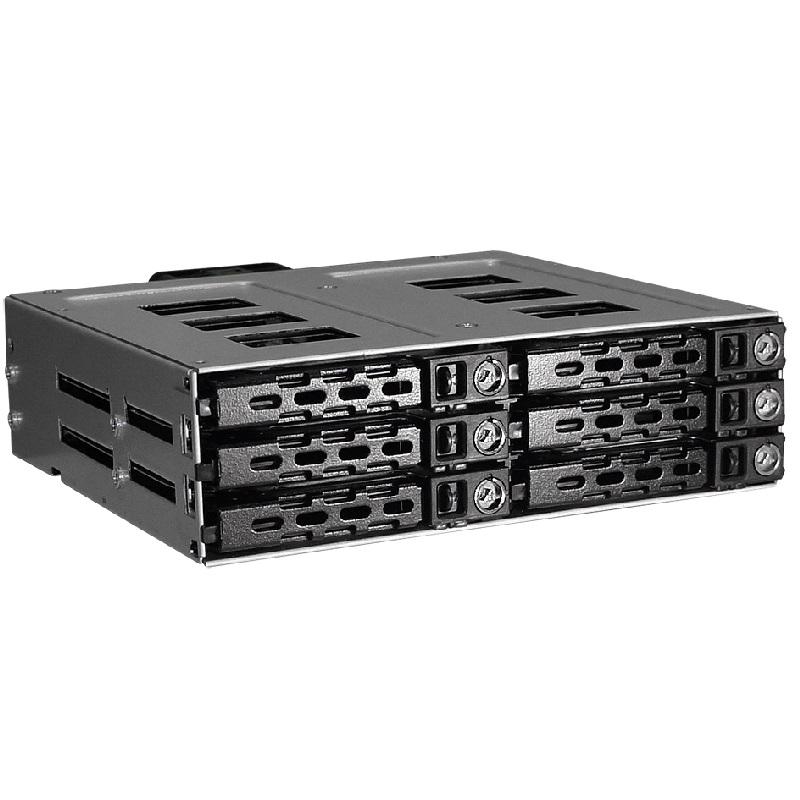

1 x 5.25" to 6 x 2.5" 12G + 6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design (up to 10mm)

PCICASE Model No: N-67SS
Manufacturer Model No: N-67SS
Please Call Sales
Key Features
  • Converts 1 x 5.25" Bay for 6 x 2.5" HDD Hot-Swap (7mm)
  • Key Locking For Added Security
  • 1 x 7x7cm Fan For Effective Cooling
  • 6Gb/s via SATA Cable

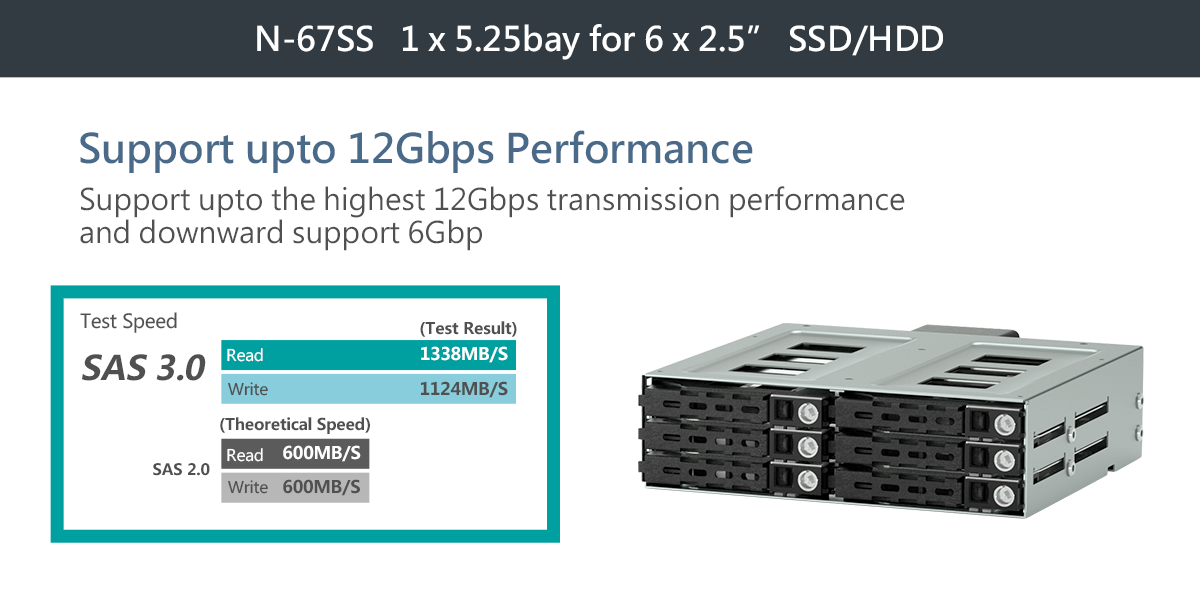

  • 12Gb/s via SATA to 8643 Fly-out Cable

Form Factor
1 x 5.25"

Support HDD Type
6 X 2.5” SATA I, II, III & SAS I, II, III (12Gbps) HDD/SSD  (* Height Up To 10mm)

Interface
7pin SATA Connector X 6
15pin SATA Power Connector X 1

Indictors
Power On- Green
HDD Access- Orange Blinking
Fan Failure- Red (*Need Optional Sensor Kit)
Overheating- Red (*Need Optional Sensor Kit)

Security
Metal Key Lock & sliding lock

Material
Aluminum Body + Stainless HDD Tray

Cooling Fan
1x 4cm Fan

Compatibility
Windows/Linux/Mac

Dimension
159(L) X 145.8(W) X 41.6(H) Mm

Weight
0.68kg
