1/2 5.25 Drive Bay to 4 x 2.5" U.2/U.3/M.2 NVME SSD Storage Cage (up to 7 mm), OCuLink Connector

PCICASE Model No: N-48NVMOr
Manufacturer Model No: N-48NVMOr
Please Call Sales

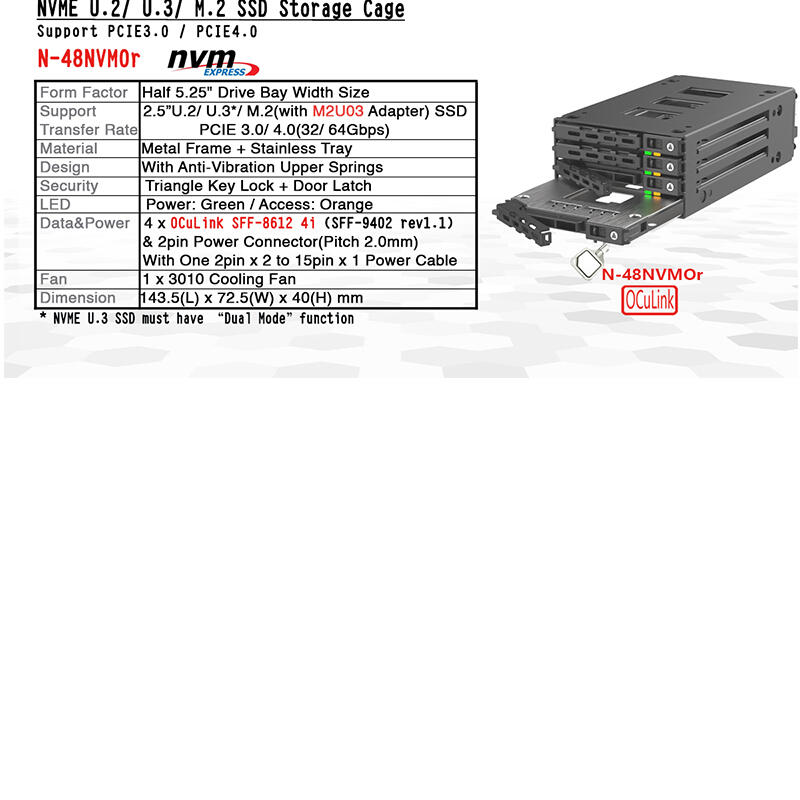

N-48NVMOr Specification

Form Factor Half 5.25" Drive Bay

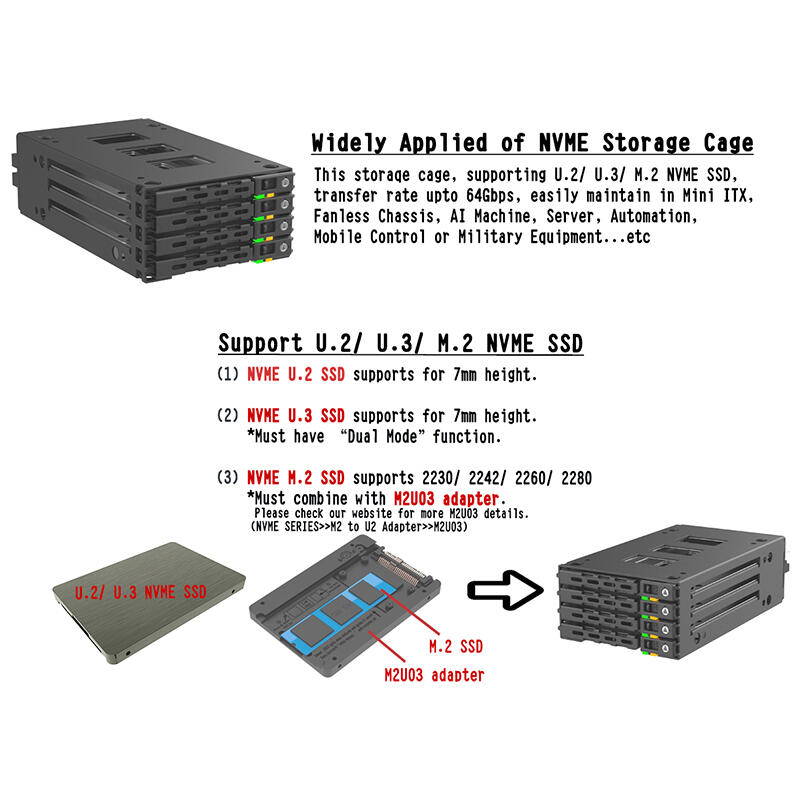

Support SSD

4 X 2.5" NVME SSD(7mm Only)

SSD Type

U.2/ U.3(With Dual Mode)

M.2(With M2U03 Adapter), 2230/ 2242/ 2260/ 2280

Transfer Rate

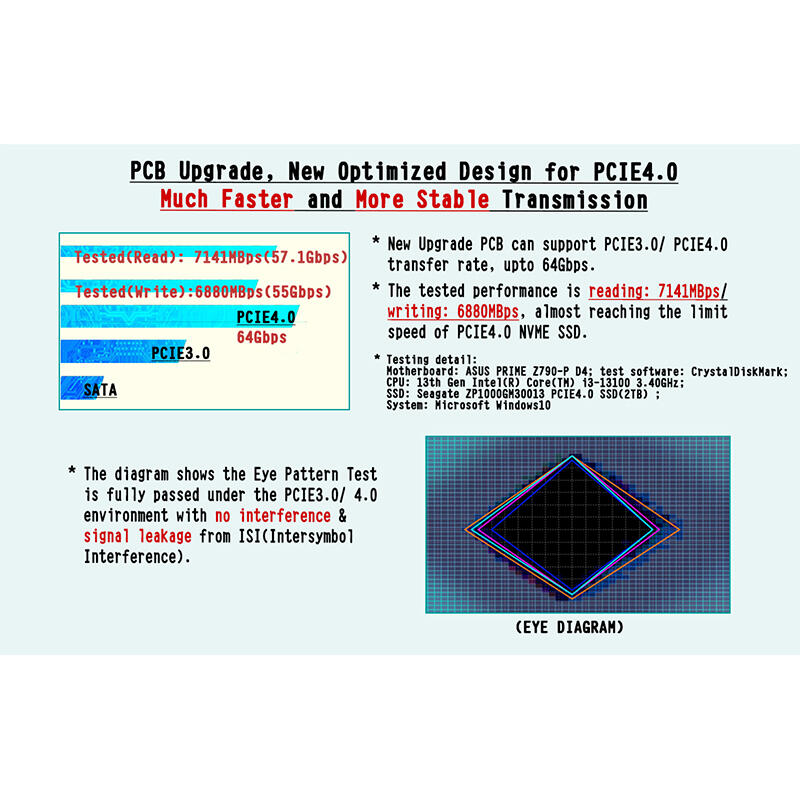

PCIe3.0/ 4.0 32/ 64Gbps

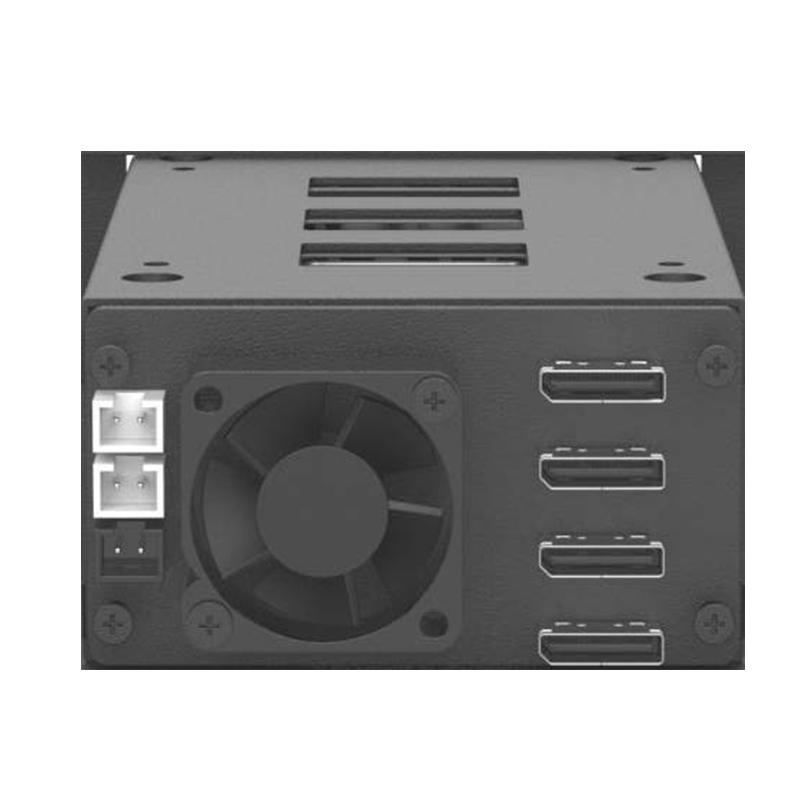

Interface

OCuLink (SFF-8612) Connector X 4

One 2pin X 2 To 15pin X 1  Power Connector

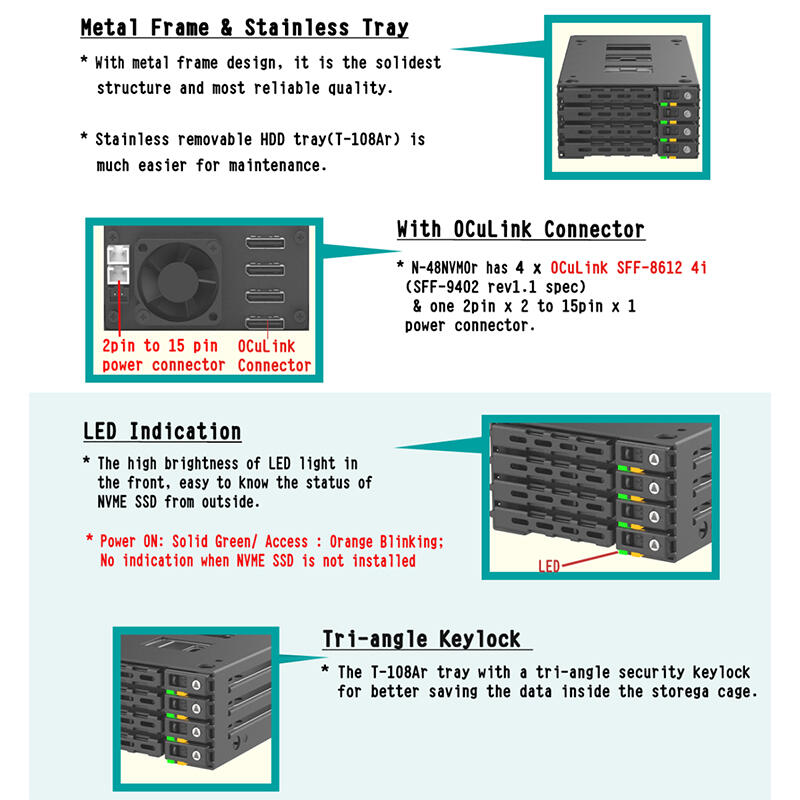

LED Indication

Power On- Green

HDD Access- Orange Blinking

Security Design

Metal Key Lock

Material Metal Frame & Stainless HDD Tray
Fan 3cm Fan X 1
Operating System Windows/ Linux/Mac
Product Dimension 143.5(L) X 72.5(W) X 40(H) Mm
Product Weight 0.42kg
