SB102-TU, a 1U 10-Bay Storage Server Solution, supports dual 3rd Gen Intel® Xeon® Scalable Processors .

PCICASE Model No: SB102-TU

Manufacturer Model No: SB102-TU (XP1-S102TU01)

7-28 Day Delivery

Key Features
• Supports 3rd Gen Intel® Xeon® Scalable Processors for highest server performance and improved power efficiency
• Supports 16 DDR4 DIMM slots for maximum memory performance
• Supports up to 3 x16 lanes, 2 x8 lanes, 4 slimline x8, 1 OCP 3.0 of PCIe Gen4
• Onboard Baseboard Management Controller for system management and IPMI control
• Embedded components for 5+ year-long life
• Rackmount Technology Extension (RTX) form factor utilizes full internal chassis volume for optimum I/O configurations

SB102-TU

Features & Benefits

• Supports 3rd Gen Intel® Xeon® Scalable Processors for highest server performance and improved power efficiency
• Supports 16 DDR4 DIMM slots for maximum memory performance
• Supports up to 3 x16 lanes, 2 x8 lanes, 4 slimline x8, 1 OCP 3.0 of PCIe Gen4
• Onboard Baseboard Management Controller for system management and IPMI control
• Embedded components for 5+ year-long life
• Rackmount Technology Extension (RTX) form factor utilizes full internal chassis volume for optimum I/O configurations

Dimensions (W x D x H)

• mm : 438 x 678.7 x 44.4
• inches : 17.2 x 26.7 x 1.7

Motherboard

Code Name - Tucana

Processor

Processor Support :
3rd Gen Intel® Xeon® Scalable Processors (Ice Lake)
*Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.

CPU Interconnection: UPI Speeds 10.4 / 11.2 GT/s

Socket Type : Socket P+ (LGA-4189)

Chipset Support

Intel® C621A Chipset

System Memory

• 8 x memory channels per CPU (1DPC)
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® Optane™ DC Persistent Memory (Barlow Pass) support

Front Panel

• System power on/off
• System reset
• 2 x USB 3.0 Type A

LEDs

• Power status
• HDD activity
• LAN activity
• Warning

Drive Bays

External :
• 10 x 2.5"
2 x (6G SATA/PCIe Gen4 NVMe) + 8 x (6G SATA/12G SAS*/PCIe Gen4 NVMe)
*Additional SAS HBA/RAID card required to support. Supported drives will be different according to the four backplane options.
Internal :
• 2 x M.2 (NGFF)/M-Key/2280

Expansion Slots (PCIe 4.0)

• 1 x PCIe Gen4 x16 slots via riser card (HHHL Add-in Card)
• 1 x PCIe Gen4 x16 slots via riser card (FHHL add-in Card)
• 1 x OCP V3.0

System BIOS

BIOS Type :
• AMI UEFI BIOS

BIOS Features :
• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe Hotplug

On-board Devices

SATA :
Lewisburg-R PCH on-chip solution supports 10 x SATA 6.0 Gb/s
• 2 x SATA 7pin
• 8 x SATA by slimline
(supports both SATA/PCIe by PCH HSIO)

Network Controller :
• Realtek RTL8211E GbE for BMC dedicated management port (NCSI shared NIC - reserved for OCP & I210 by jumper setting)
• Intel I210 GbE for BMC shared NIC management port by onboard connector (NCSI shared NIC - reserved for OCP V3.0)

Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

Rear I/O

LAN: 1 x GbE RJ45 dedicated to BMC management

USB:
2 x USB 3.0 double-stack Type A connectors

VGA:
1 x VGA DB15

Serial Port:
1 x external COM port phone jack

Power Supply

750W/1100W 1+1 redundant power supply 80+ Platinum

System Cooling

• 6 x 40x56mm easy swap fans
• 1 x 40x28mm fan

System Management

• IPMI: Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support

Environmental Specifications

• Storage temperature: -10°C(14°F) ~ 60°C(140°F)
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing

Gross Weight (w/PSU & Rail)

• kgs : 20
• lbs : 44

Packaging Dimensions (W x D x H)

• mm : 615 x 1025 x 274
• inches : 24 x 40 x 10.8

Mounting

Standard : 28" tool-less slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XP1-S102TU01 (Standard)	1U 10-bay 2.5" hot-swap, 2x 12G 4-port backplane, 1x 2-port SATA backplane, 6x 4056 & 1x 4028 FAN, 750W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink, 28 slide rail, riser card x2, w/o bezel, for 195W CPU
XP1-S102TU03 (Optional)	1U 10-bay 2.5" hot-swap, 2x tri-mode 4-port backplane, 1x 2-port SATA backplane, 6x 4056 & 1x 4028 FAN, 750W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink, 28 slide rail, riser card x2, w/o bezel, for 195W CPU
XP1-S102TU05 (optional)	1U 10-bay 2.5" hot-swap, 2x tri-mode 4-port backplane, 1x 2-port SATA backplane, 6x 4056 (NIDEC) & 1x 4028 FAN, 1100W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink, 28 slide rail, riser card x2, w/o bezel, for 195W CPU

SKU Information

Description

XP1-S102TU01

(Standard)

1U 10-bay 2.5" hot-swap, 2x 12G 4-port backplane, 1x 2-port SATA backplane, 6x 4056 & 1x 4028 FAN, 750W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink, 28 slide rail, riser card x2, w/o bezel, for 195W CPU

XP1-S102TU03

(Optional)

1U 10-bay 2.5" hot-swap, 2x tri-mode 4-port backplane, 1x 2-port SATA backplane, 6x 4056 & 1x 4028 FAN, 750W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink, 28 slide rail, riser card x2, w/o bezel, for 195W CPU

XP1-S102TU05

(optional)

1U 10-bay 2.5" hot-swap, 2x tri-mode 4-port backplane, 1x 2-port SATA backplane, 6x 4056 (NIDEC) & 1x 4028 FAN, 1100W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink, 28 slide rail, riser card x2, w/o bezel, for 195W CPU

* All specifications are subject to change without notice.

Datasheet	SB102-TU Datasheet
	SB102-TU Datasheet.pdf
Product Images	SB102-TU (Front 45 Degrees)
Product Images	SB102-TU(Front)
Product Images	SB102-TU (Top&Rear)

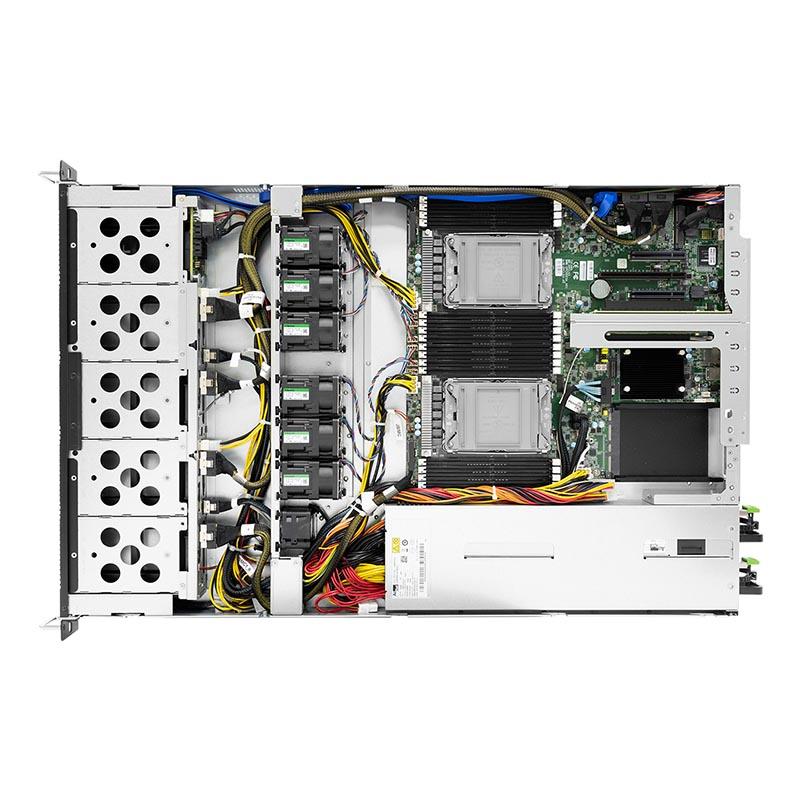

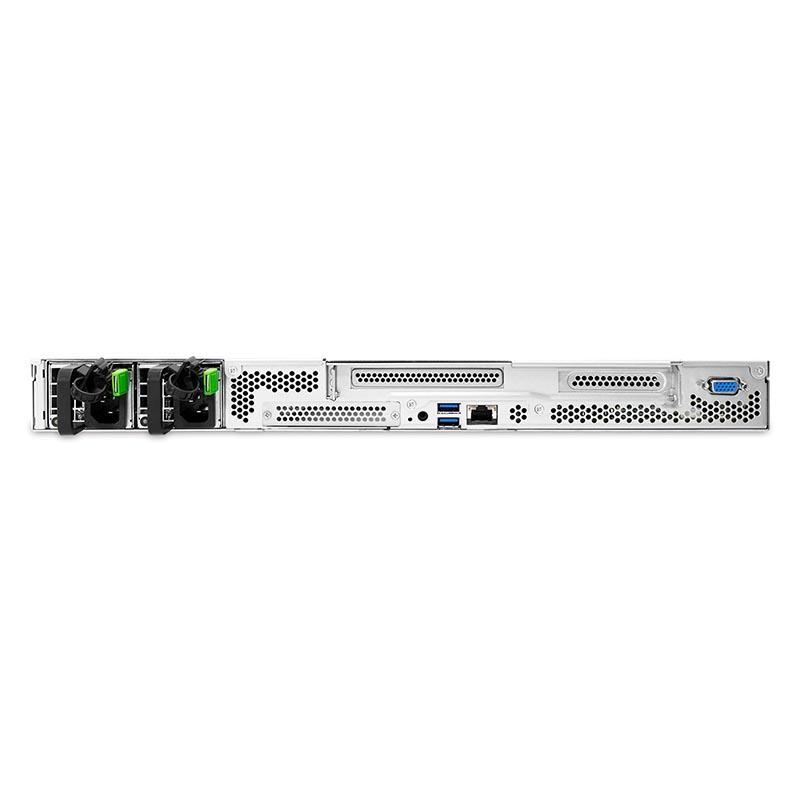

	SB102-TU_Topopen.jpg SB102-TU_Rear.jpg
Product Manual/AVL	SB102-TU
	SB102-TU_User's Manual SB102-TU_MB AVL
