1U 1000W OEM Fitted PSU Module

PCICASE Model No: CPR-1021-6M1
Manufacturer Model No: CPR-1021-6M1
Build To Order
Key Features
  • 80 PLUS Titanium
  • Support PMBus 1.2
  • Internal ORing
  • N+1 Redundant
  • Digital Power Supply
  • Cold Redundancy
  • Smart Ride Through
  • Black Box Recorder
  • Intel Standard CRPS Form Factor
  • Active Power Factor Correction
  • High Power Density 30.13 W/in3
  • Closed Loop System Protection (CLST)
  • Automatic Firmware Update

Dimension:185 x 73 x 40 mm(D x W X H)
Total Max Power:
800 W @ 100 - 127 Vac
1000 W @ 200 - 240 Vac



INPUT SPECIFICATIONS

Input voltage 90 - 264 Vac
Input frequency 47 - 63 Hz
GENERAL SPECIFICATIONS

Hold-up time 11 ms @ 70% Load
Efficiency at least 96% @ 50% load
MTBF 200,000 hours at 25 degree C


ENVIRONMENTAL SPECIFICATIONS

Temperature 0 to 50 degree C Operating
Altitude 10,000 feet Operating
Relative humidity To 85% RH Operating

OUTPUT SPECIFICATIONS

Voltage +12V +12Vsb
Regulation ±5% ±5%
Max Load 800W : 66.7A
1000W : 83A 2.1A
Ripple & Noise 120mVp-p 120mVp-p
SAFETY & REGULATIONS
UL 、 cUL 、 BSMI 、 CCC 、 CB 、 CE 、 FCC Class A 、 CISPR Class A 、 ROHS

P.S. Price listed is based on Single module, please contact sales for the Cage price.

Datasheet Datasheet
  CPR-1021-6M1.pdf

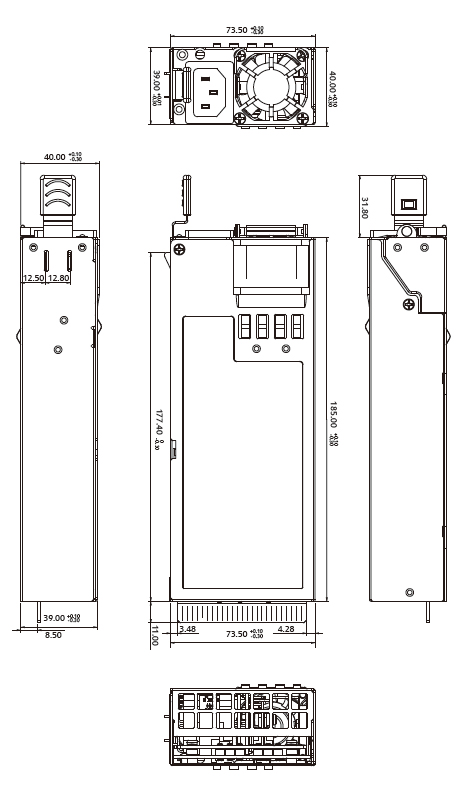

Power Supply Datasheet   Drawing





CompuWare Building Blocks           Building Block Application


 Compuware Building Block Application.pdf
