• 1U general purpose storage server supports 4 hot swap 3.5"/2.5” universal SATA/SAS/NVMe U.2 drive bays
• Supports 3rd Gen. Intel® Xeon® Scalable processors (codename Ice Lake)
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and easy swap redundant fans to provide optimal thermal conditions
• Dedicated BMC management port
SB101-A6, a 1U 4-Bay Storage Server Solution, supports dual 3rd Gen Intel® Xeon® Scalable Processors (codename Ice Lake). SB101-A6 has 4 x 3.5” (front) hot-swappable and 2x 2.5" internal OS HDD/SSD bays to provide high storage density.
| Dimensions (W x D x H) | ||||
| • mm : 438 x 800 x 43.5 • inches : 17.2 x 31.5 x 1.7 |
||||
| Motherboard | ||||
| AIC Server Board-A6 | ||||
| Processor | ||||
| Processor Support : • Intel® Ice Lake-SP Processors • Supports CPU TDP up to 270W *Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system. |
||||
| UPI Speeds: 10.4 GT/s, 9.6 GT/s | ||||
| Socket Type : Socket P0 (LGA-4189 Socket) | ||||
| Chipset Support | ||||
| Intel® C621A series PCH | ||||
| System Memory | ||||
| • DDR4 3200/2933/2666/2400 (1DPC/2DPC) MHz • Total 16+16 DIMM slots (2DPC)) • Up to 12TB 3DS ECC RDIMM/LRDIMM • Intel® Optane™ Persistent Memory 200 Series support |
||||
| Front Panel | ||||
| • System power on/off • System reset • 2 x USB 3.2 Gen1 Type A • System ID |
||||
| LEDs | ||||
| • Power status • System alert • System ID |
||||
| Drive Bays | ||||
| • External : 3.5”/2.5” hot swap x 4 (6G SATA/12G SAS/ PCIe x4 NVMe) • Internal : 2 x 2.5” OS |
||||
| Backplane | ||||
| 1 x 4-port SATA/SAS/NVMe backplane with 1 x SFF-8643 + 2x SFF-8654(Slimline 8i) connectors | ||||
| Expansion Slots (PCIe 4.0) | ||||
| • 2 PCIe4.0 x16 • 1 OCP NIC 3.0 |
||||
| Riser Card (included) | ||||
| RC-PE1U02-Z2 : 1 x16 PCIe slot | ||||
| System BIOS | ||||
|
BIOS Type : |
||||
| BIOS Features : • ACPI • PXE • AC loss recovery • IPMI KCS interface • SMBIOS • Serial console redirection • BIOS Boot Specification • BIOS Recovery Mode |
||||
| On-board Devices | ||||
| SATA : Intel® Lewisburg PCH on-chip solution • 14 x SATA 6.0 Gb/s; 3 Mini-SAS HD, SATA DOM, SATA DOM or M.2 • RAID 0, 1, 5, 10 support by Intel RSTe |
||||
| IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support • HTML5 • Redfish |
||||
| Network Controller : • Networking options provided via OCP Mezzanine extension |
||||
| Graphics : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Process • PCIe VGA/2D Controller • 1920x1200@60Hz 32bpp |
||||
| Rear I/O | ||||
|
||||
| Power Supply | ||||
| • 800W 1+1 redundant power supply 80+ Platinum • AC INPUT : 100~240V, 50/60Hz, 7-3.5A |
||||
| System Cooling | ||||
| 8 x 40x56mm easy swap fans | ||||
| System Management | ||||
| • IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support |
||||
| Environmental Specifications | ||||
| • Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF) • Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF) • Storage operating humidity : 5%~95% non-condensing |
||||
| Gross Weight (w/PSU & Rail) | ||||
| • kgs : 20 • lbs : 44 |
||||
| Packaging Dimensions (W x D x H) | ||||
| • mm : 615 x 1135 x 273 • inches : 24.2 x 44.7 x 10.7 |
||||
| Mounting | ||||
| Standard : 28" tool-less slide rail |
| SKU Information | Description |
|---|---|
|
XP1-S101A601 (Standard) |
1U 4x 3.5"/2.5" tri-mode hot-swap, 2x 2.5" 9mm SATA internal, 8x 4056 fans, 800W redundant power supply platinum, A6, 32x DDR4 RDIMM, Intel PCH C621A, WATX, dedicated 1GbE BMC, AST2500, 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x CPU heatsinks(195W), 28" slide rail, w/o bezel |
|
XP1-S101A602 (Optional) |
1U 4x 3.5"/2.5" tri-mode hot-swap, 2x 2.5" 9mm SATA internal, 8x 4056 fans, 1200W redundant power supply platinum, A6, 32x DDR4 RDIMM, Intel PCH C621A, WATX, dedicated 1GbE BMC, AST2500, 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x CPU heatsinks(270W), 28" slide rail, w/o bezel |
| FRU Information | ||
| Standard Parts List | Part Number | Description |
| Backplane | BBP-FB10009AB | 4-port Gen 4 NVMe backplane |
| Power Supply | PM-A00000117 | 800W redundant power supply module |
| Power Supply | PM-A00000118 | 1200W redundant power supply module |
| Fan | FC-A00000552 | 4056 fan 195W L100MM |
| Fan | FC-A00000551 | 4056 fan 270W L100MM |
| Slide rail | H5541T100005 | Tool-less slide |
| Screw | M15-00027-18 | Screw kit/24 x 2.5“ HDD, Bottom, F(+), M3X4L, NI*96pcs (for 3.5" tray with 2.5" device mounting) |
* All specifications are subject to change without notice.
| Datasheet | SB101-A6 Datasheet |
|
|
|

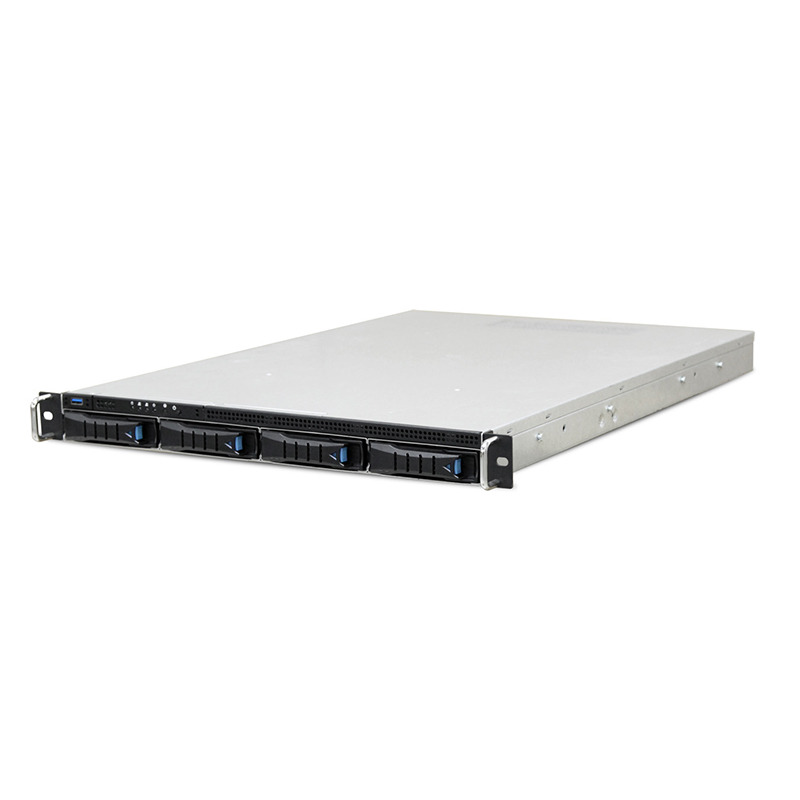

| Product Images | SB101-A6 (Front 45 Degrees) |
|
|
|

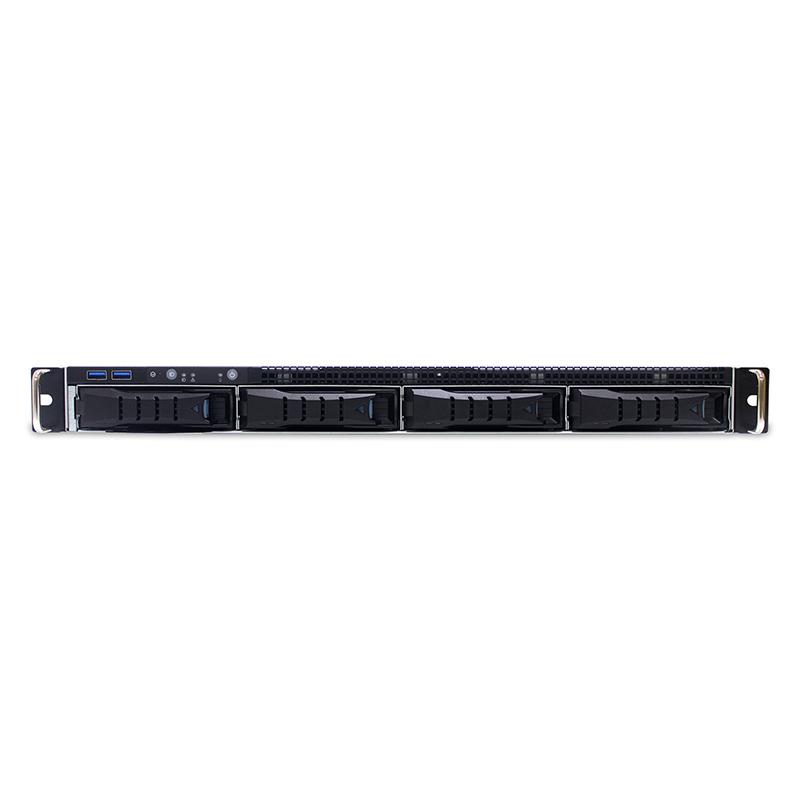

| Product Images | SB101-A6(Front) |
|
|
|

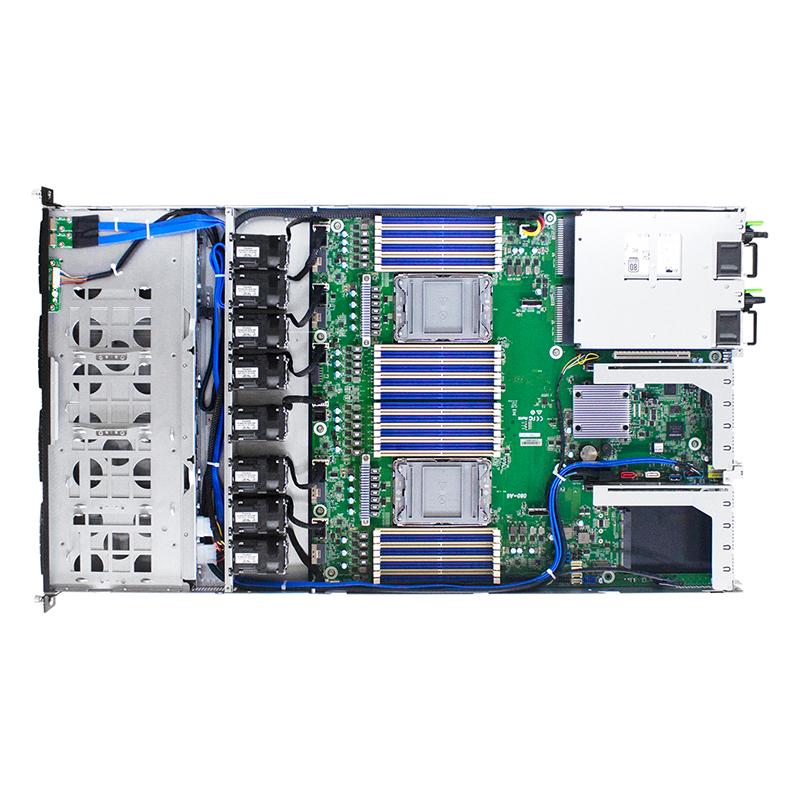

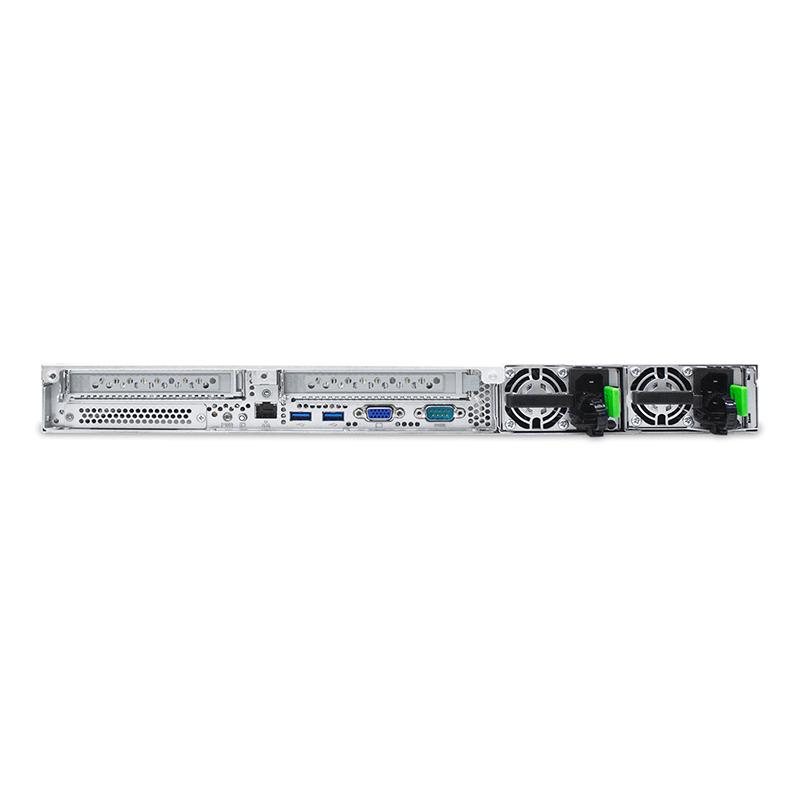

| Product Images | SB101-A6(Top&Rear) |
| Product Manual/AVL/Firmware | SB101-A6 |
|
|
