1U 12G storage server chassis supports external 4 x 12G 3.5" SATA/SAS/NVMehot swap and internal 2 x 2.5" drive bays, with 750W 1+1 redundant PSU (rails included)

Key Features
• 1U 4-Bay tri-mode/SATA 3.5” hot swap HDD
• Two internal 2.5” 7mm device
• Supports 1 full-height expansion slot
• Supports redundant power supplies
• Supports EATX motherboard
• Two front-access USB 3.0 ports

Dimensions (W x D x H)
• mm: 438 x 680 x 43.5
• inches: 17 x 26.8 x 1.72
Industry Standard
EIA-RS310D
Material
SGCC
Color
Front Panel: Black
Cooling
6 x 40x56mm easy swap fans
Power Supply
750W 1+1 redundant power supply
Expansion Slot
1 full height
Front Panel
System power on/off and system reset, 2 x USB 3.0 ports
LED Indicators
Power, HDD, LAN
System Board
Up to 12”(W) x 13”(D) EATX MB
Drive Bays
• External: 3.5" hot swap x 4
• Internal: 2.5" x 4
Backplanes
• SKU03: 1 x 4-port SATA/SAS/NVMe backplane with 1 x SFF-8643 + 2 x SFF-8654 (Slimline 8i) connectors
• Optional SKU: 1 x 4-port SATA/SAS backplane
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail)
• kgs: 17
• lbs: 37.5
Package Dimension (W x D x H)
• mm: 890 x 670 x 210
• inches: 35 x 26.4 x 8.3
Mounting
Standard: 28” tool-less slide rail
* All specifications are subject to change without notice.

SKU Information
XE1-1DT04-01
1U 4x3.5" hot-swap SATA/SAS, 2x 2.5" 7mm internal, 750W redundant power supply Platinum, CPU TDP 195W (conditional pass with air duct solution), 28" slide rail, w/o bezel
XE1-1DT04-03- Standard UK Stock
1U 4x 3.5"/2.5" tri-mode hot-swap, 2x 2.5" 7mm internal, 6x 4056 FAN, 750W redundant power supply Platinum, CPU TDP 195W (conditional pass with air duct solution), 28" slide rail, w/o bezel

 Datasheet
RSC-1DT3_Datasheet
Size : 1 MB
 Download
 Product Images
RSC-1DT3_Front45
Size : 81 KB
 Download

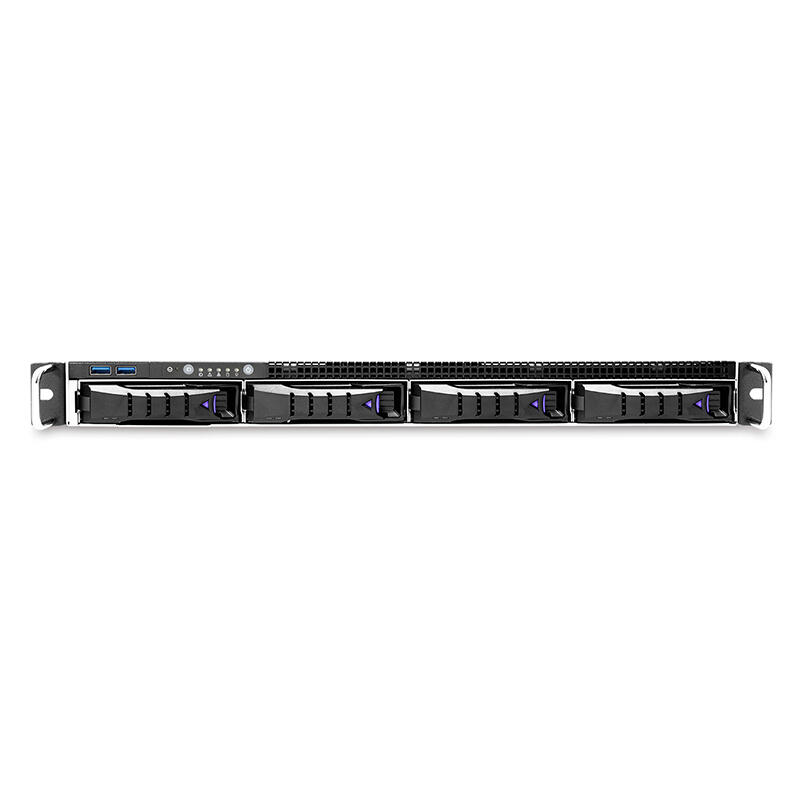

RSC-1DT3_Front
Size : 86 KB
 Download

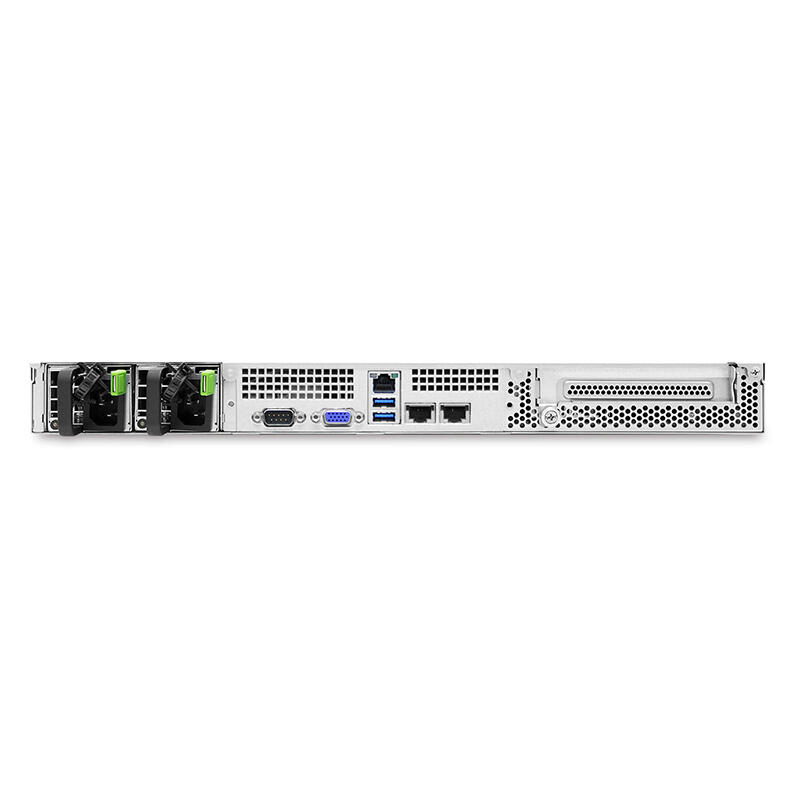

RSC-1DT3_Rear
Size : 99 KB
 Download

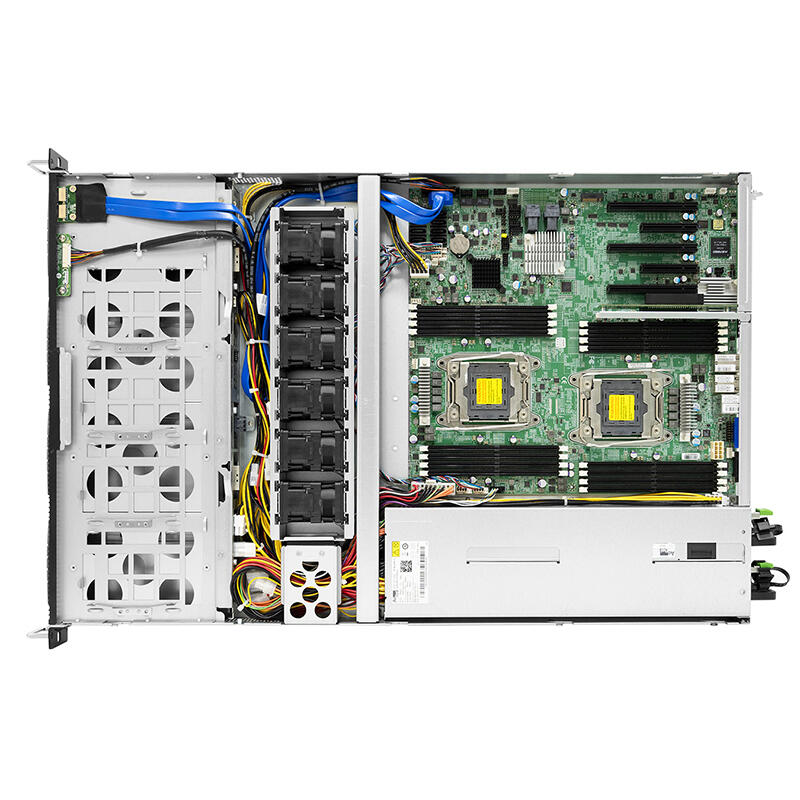

RSC-1DT3_TopOpen
