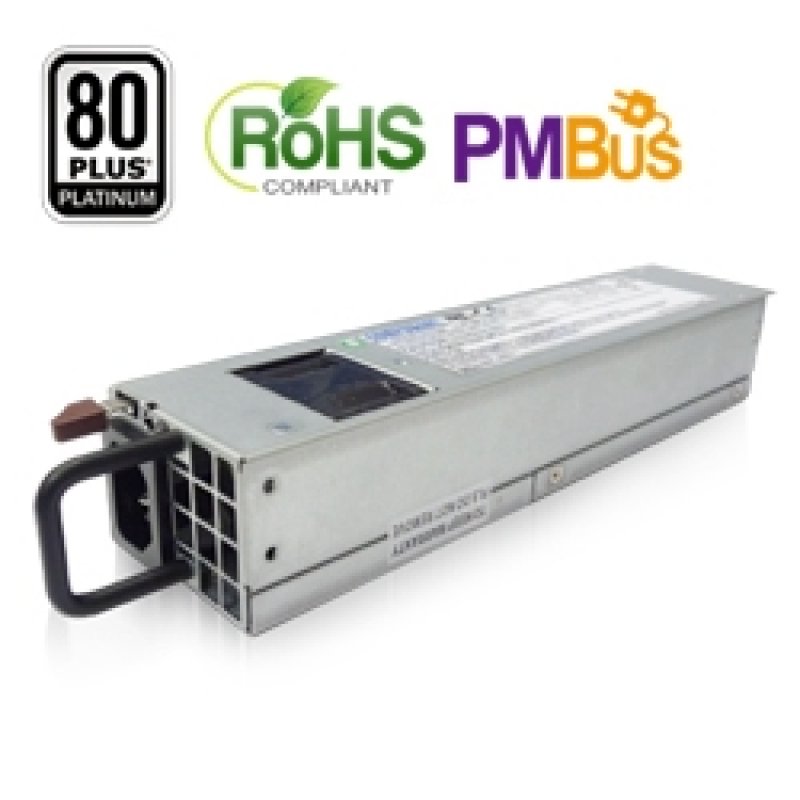

1U 600W OEM Fitted Redundant Module

Total Max Power：600 W
Input Voltage：90 V to 264 V
Outputs：Single-output
Dimension (D x W x H)：220 x 54.5 x 40 mm

GENERAL SPECIFICATIONS
Hold-up time 12ms @ 100% Load
Efficiency at least 92% @ 50% Load
MTBF 50,000 hours at 100% load and 50 degree C

ENVIRONMENTAL SPECIFICATIONS
Temperature 0 to 50 degree C Operating
Altitude 10,000 feet Operating
Relative humidity 20% to 90% RH Operating

INPUT SPECIFICATIONS
Input voltage 90 - 264 V
Input frequency 47 - 63 Hz
Input current 7.0 - 2.5 A

OUTPUT SPECIFICATIONS
Voltage Regulation Max Load Ripple & Noise
+12V ± 5% 50A 120mV
+5Vsb ± 5% 4A 50mV
Note：
1. The total output power can not exceed 600W continuously for 90 to 264VAC input
2. During load changes from minimum to maximum or maximum to minimum the unit must
　 not shut down
3. Under no load or minimum load condition, the power supply must be able to power on or
　 off successfully
4.Please call for PDB(Power Distribution Board) price & model for your application,refer to attached Building Block Instruction.
