The IPC-C1E-BAS25-RH-N1 is an entry-level 1U appliance chassis with 15” depth for space-sensitive applications, such as Network & Security appliance, firewall, VPN, Telephony and military applications. Standard ATX size (9.6” x 12”) motherboard can be populated into this appliance chassis. The IPC-C1E-BAS25-RH-N1 is i a cost-effective appliance chassis that provide lower TCO (total cost of ownership) to IT professionals for higher ROI.
Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 381 x 44.4
• inches : 19 x 15 x 1.75
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel : Black
Cooling
Standard :
• Front : 1 x 40x40x28 mm fan ( 4P)
Options :
• 2 x 40x40x28 mm fans (PCICASE SKU: IPC-SF4028-4P)
Power Supply
Standard :
• 250W single Flex ATX PSU, 80+ Gold (PIZ1025S-90-ACB)
Optional:
• 400W single Flex ATX PSU, 80+Gold (PIZ1040S-90-ACB)
Expansion Slot
1 x Full Height Via Riser Card (Please See Optional Product For Details)
Front Panel
• Power on/off
• System reset
• 2 x USB 3 ports
LED Indicators
• Power
• LAN
• Drive
System Board
Up to 12”(W) x 9.6”(D) ATX compliant MB
Drive Bays
• Internal : 2x3.5" + 2 x 2.5”
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU; w/o Rail)
• kgs : 7
• lbs : 15.4
Package Dimension (W x D x H)
• mm : 548 x 574 x 173
• inches : 21.6 x 22.6 x 6.8
Cubic Feet
1.9
Container Load Quantity
• 20’ : 500
• 40’ : 1025
• 40’ H : 1235
Mounting
Slider Rails: PCICASE SKU IPC-SY034-1
(Please See Optional Product For Details)
* All specifications are subject to change without notice.
Datasheet | IPC-C1E-BAS25-RH-N1 Datasheet |
Product Images | IPC-C1E-BAS25-RH-N1 (Front 45 Degrees) |
IPC-C1E-BAS25-RH-N1_Fr
|
|
Product Images | IPC-C1E-BAS25-RH-N1 (Front) |
IPC-C1E-BAS25-RH-N1_Fr
|
|

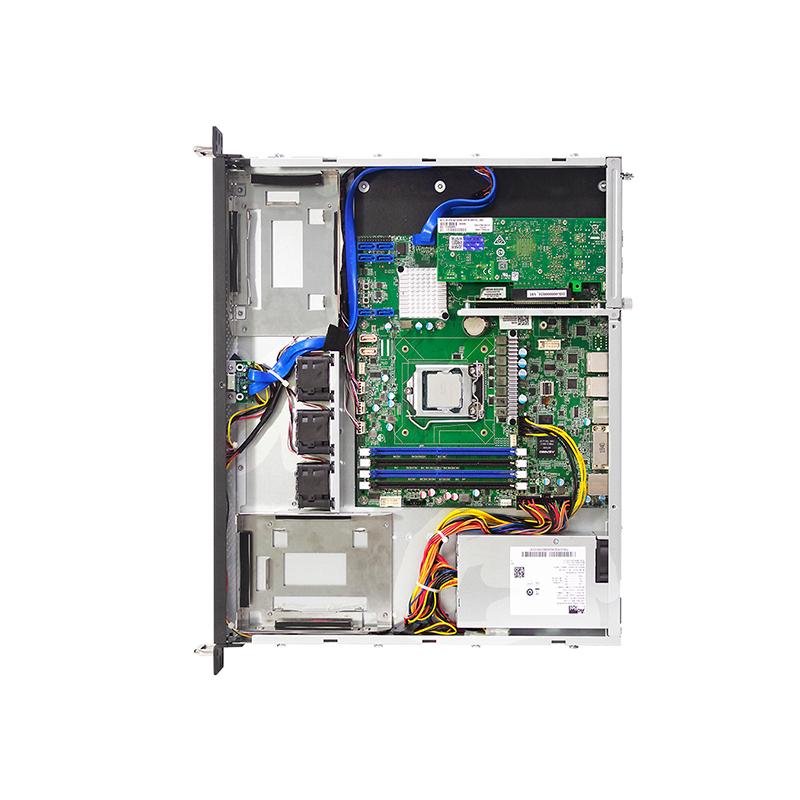

Product Images | IPC-C1E-BAS25-RH-N1 (Top) |
IPC-C1E-BAS25-RH-N1_To
|
|

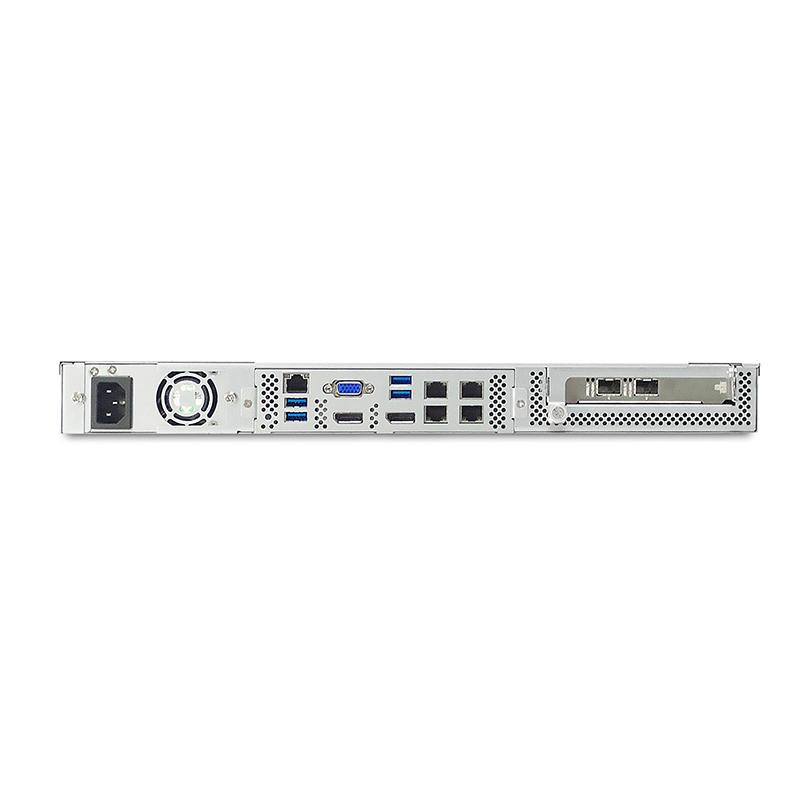

Product Images | IPC-C1E-BAS25-RH-N1 (Rear) |
IPC-C1E-BAS25-RH-N1_Re
|
RAILS |
RISERCARDS
|
I/O SHIELDS
|
HEATSINKS
|

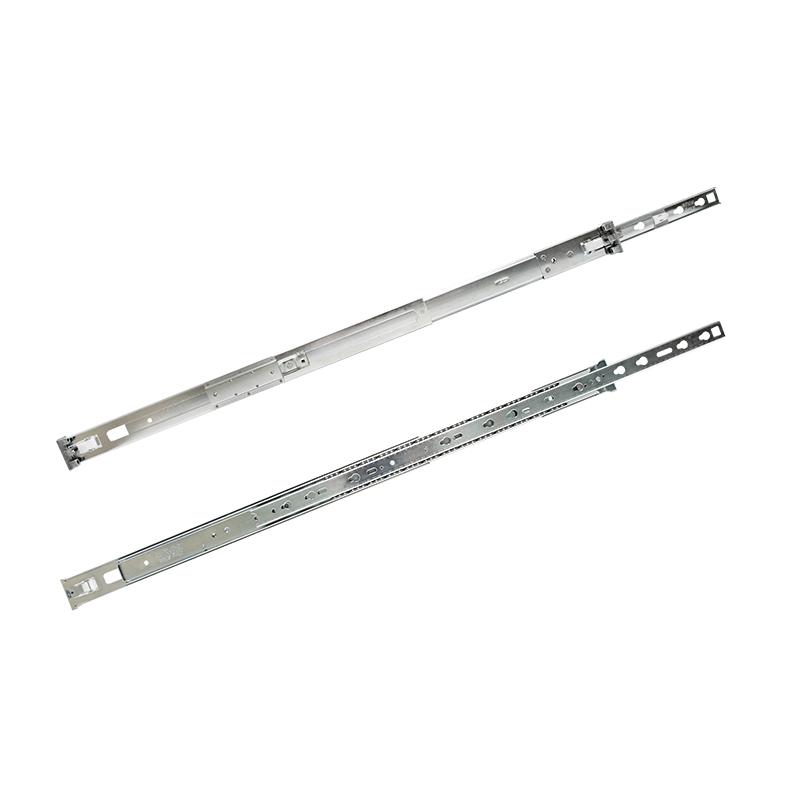

AIC 1U 26" Slider Rails for Short/Medsize Chassis
Part code: IPC-SY034-1
AIC 1U 18" Friction Rails for 600mm depth cabinet
Part code : IPC-SY034-F
1U FIXED RISER CARDS
1U 32bit Fixed Risercard
Part code: IPC-SSC004
1U PCI-E x 16 Fixed Risercard
Part code: IPC-SSC038
1U PCI-E x 8 Fixed Risercard
Part code: IPC-SSC045
1U RIBBON RISER CARDS
1U 32bit Ribbon Risercard
Part code: IPC-SSC006-5H
OEM 1U I/O Shield (Minimum Order Quantity 50 Units)
Part code: IPC-IO####

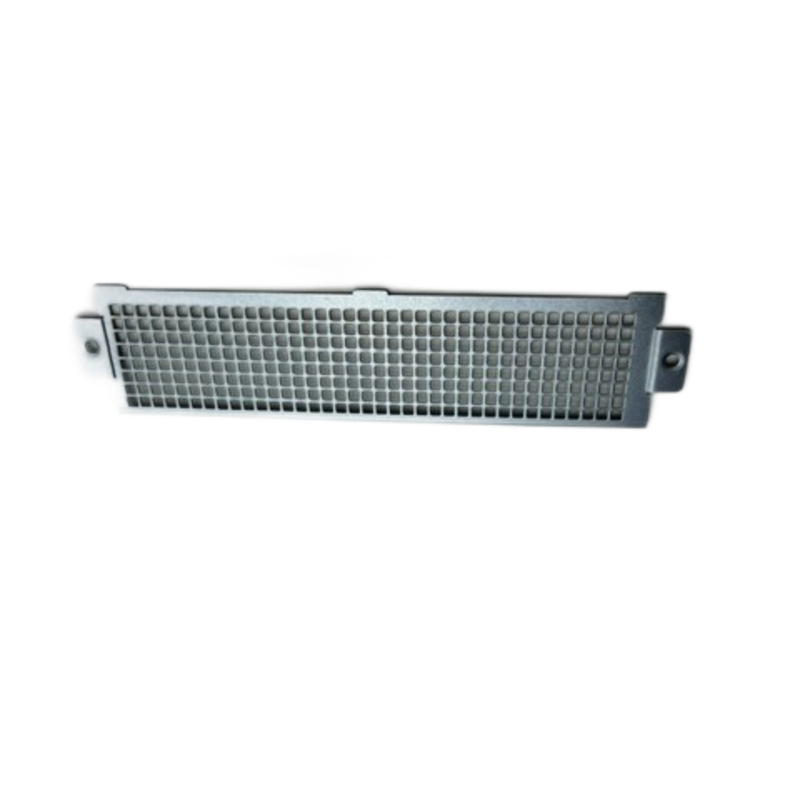

Universal 1U IO shield
Part code: IPC-IO-1U-UNI-T
1U Active CPU Cooler (AM2/AM3 Socket)
Part code: CJ-JAC7209C
1U Passive CPU Cooler (K8)
Part code: CJ-JAC0807C
1U Passive CPU Cooler (LGA 1150/1151/1155/1156)
Part code: CJ-BK1156P
1U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B04C
1U Passive Heatsink (LGA-775)
Part code: CJ-950918-1
