2U 12x 3.5"/2.5" SAS/SATA/NVMe hot-swap (EOB BP) Chassis, 2x 2.5" 15 mm SATA hot-swap, 3x 8038 fan, Acbel 1200W redundant power supply Platinum, Low profile rear panel, 28" slide rail, w/o bezel

Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less slide rails
• Flexible backplane support
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans
minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Comes with a redundant PSU 80+ Platinum
• Two front-access USB 3.0 ports

Dimensions (W x D x H)
• mm: 430 x 680 x 88
• inches: 17 x 26.8 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel : Black
Cooling
• 3 x 80x38mm easy swap fans
Power Supply
1200W 1+1 redundant PSU PMBus 1.2 80+ Platinum
Expansion Slots
7 low profile
Front Panel
• System power on/off
• System ID
• System reset
• 2 x USB 3.0 port
LED Indicators
• Power
• LAN
• Drive
• Alert
System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays
External :
• 12 x 3.5” hot swap
• 2 x 2.5” (7mm) hot swap
Backplane
• SKU1: 1 x 12-port 12Gb SAS 28-PHY expander backplane
• SKU2: 1 x 4-port 12G SAS/ PCIe Gen4 NVMe tri-mode backplane + 2 x 4-port 12G SAS backplane
• SKU3: 2 x 4-port 12G SAS / PCIe Gen4 NVMe tri-mode backplane + 1 x 4-port 12G SAS backplane
• SKU4: 3 x 4-port 12G SAS/PCIe Gen4 NVMe tri-mode backplane
Storage Temperature
0ºC(32ºF) ~ 50ºC(122ºF)
Humidity
5%~95% non-condensing
Gross Weight (w/ PSU & Rail)
• kgs: 23.5
• lbs: 51.8
Package Dimension (W x D x H)
• mm: 645 x 835 x 230
• inches: 25.4 x 32.9 x 9.06
Cubic Feet
4.37
Container Load Quantity
• 20’: 200
• 40’: 420
• 40’ H: 450
Mounting
Standard: 28” tool-less slide rail
* All specifications are subject to change without notice.

SKU Information
XE1-2ET01-05-Standard
2U 12x 3.5"/2.5" SAS/SATA hot-swap (EOB BP) Chassis, 2x 2.5" 7mm SATA hot-swap, 3x 8038 fan, Acbel 1200W redundant power supply Platinum, Low profile rear panel, 28" slide rail, w/o bezel
XE1-2ET01-06
2U 4x 3.5"/2.5" SAS/SATA/NVMe + 8x 3.5"/2.5" SAS/SATA hot-swap (Passive BP) Chassis, 2x 2.5" 7mm SATA hot-swap, 3x 8038 fan, Acbel 1200W redundant power supply Platinum, Low profile rear panel, 28" slide rail, w/o bezel
XE1-2ET01-07
2U 8x 3.5"/2.5" SAS/SATA/NVMe + 4x 3.5"/2.5" SAS/SATA hot-swap (Passive BP) Chassis, 2x 2.5" 7mm SATA hot-swap, 3x 8038 fan, Acbel 1200W redundant power supply Platinum, Low profile rear panel, 28" slide rail, w/o bezel
XE1-2ET01-08
2U 12x 3.5"/2.5" SAS/SATA/NVMe hot-swap (Passive BP) Chassis, 2x 2.5" 7mm SATA hot-swap, 3x 8038 fan, Acbel 1200W redundant power supply Platinum, Low profile rear panel, 28" slide rail, w/o bezel

RSC-2ET3_Datasheet
Size : 1 MB
 Download
 Product Images
RSC-2ET3_Front45
Size : 198 KB
 Download
RSC-2ET3_Front
Size : 131 KB
 Download
RSC-2ET3_Rear
Size : 268 KB
 Download

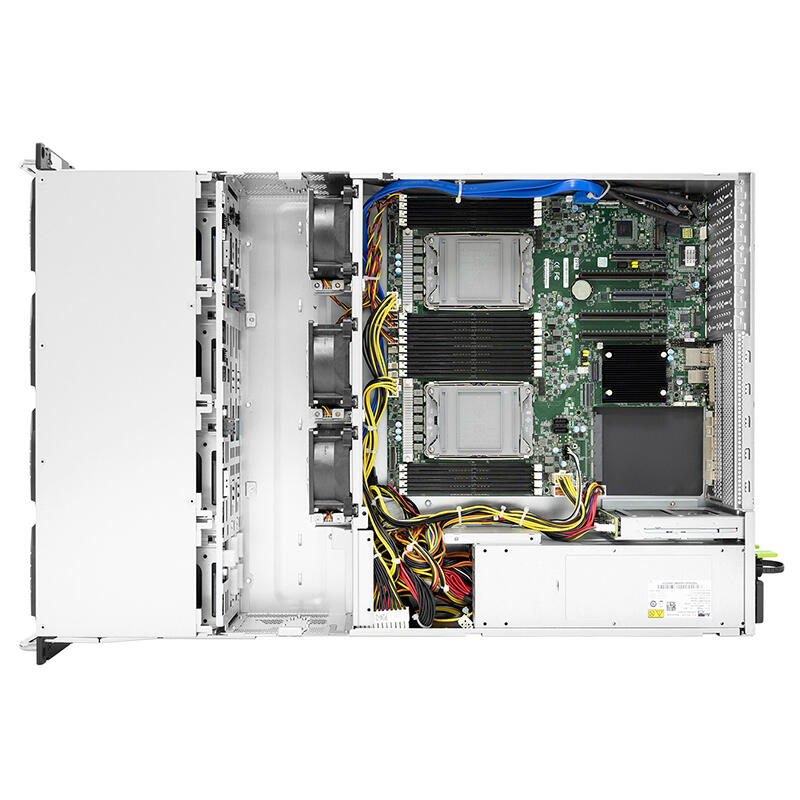

RSC-2ET3_Top Open
