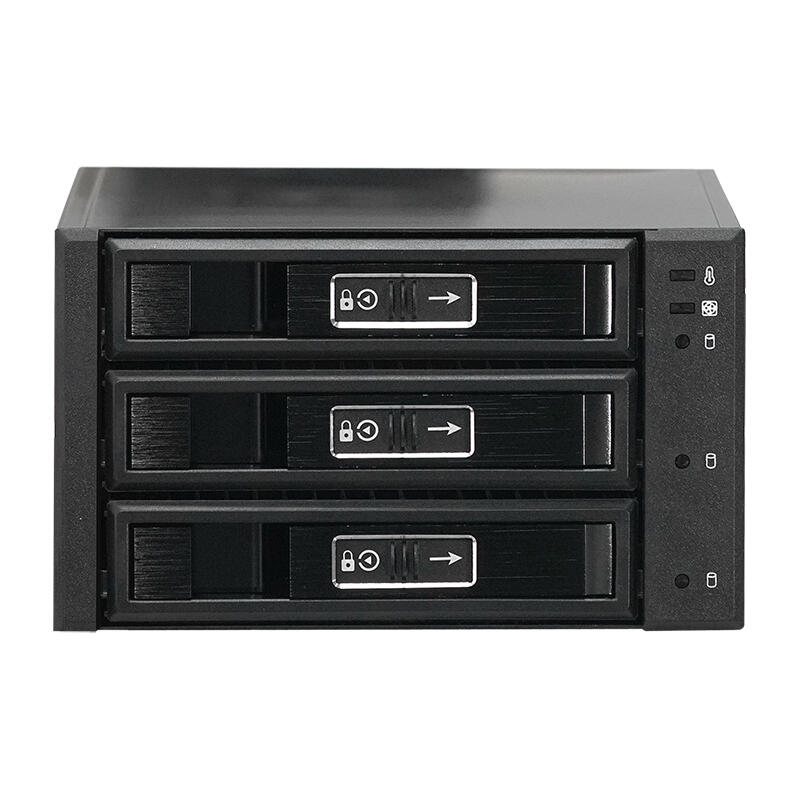

2 x 5.25" to 3 x 3.5" 12G + 6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design.

PCICASE Model No: N-36TM
UK Stock
Key Features
  • Converts 2 x 5.25" Bay for 3 x 3.5" HDD Hot-Swap
  • Key Locking For Added Security
  • 1 x 7x7cm Fan For Effective Cooling
  • 6Gb/s via SATA Cable

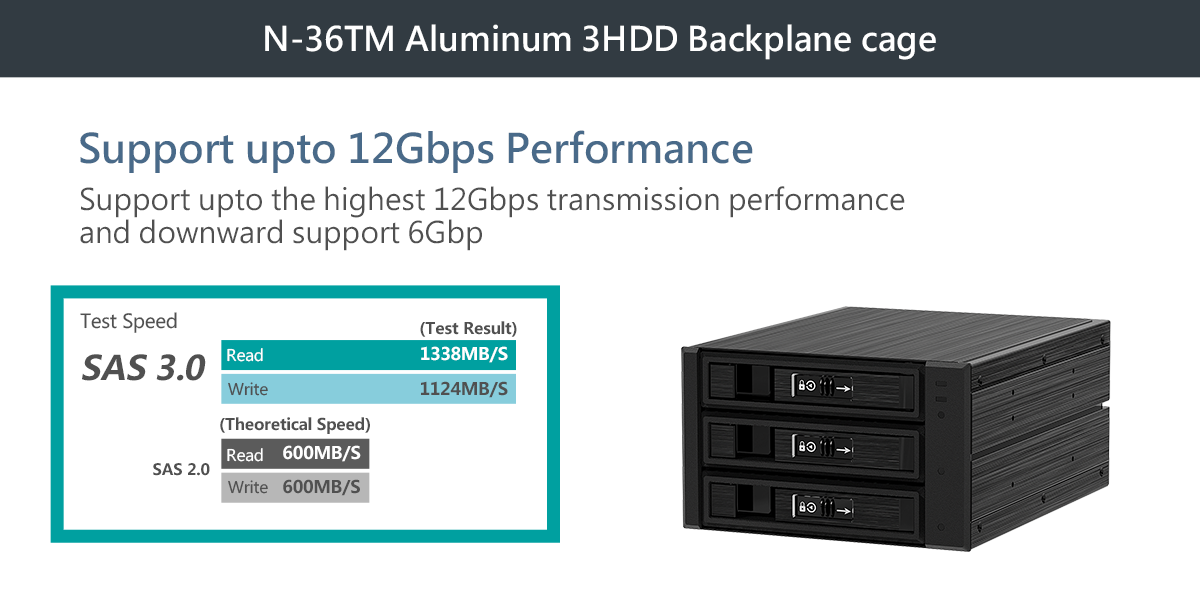

  • 12Gb/s via SATA to 8643 Fly-out Cable


N-36TM Specification

Form Factor 2 X 5.25 Drive Bay
Support HDD Type 3 X 3.5” SATA I, II, III & SAS I, II, III (12Gbps) HDD/ SSD
Interface

7pin SATA Connector X 3

15pin SATA Power Connector X 2

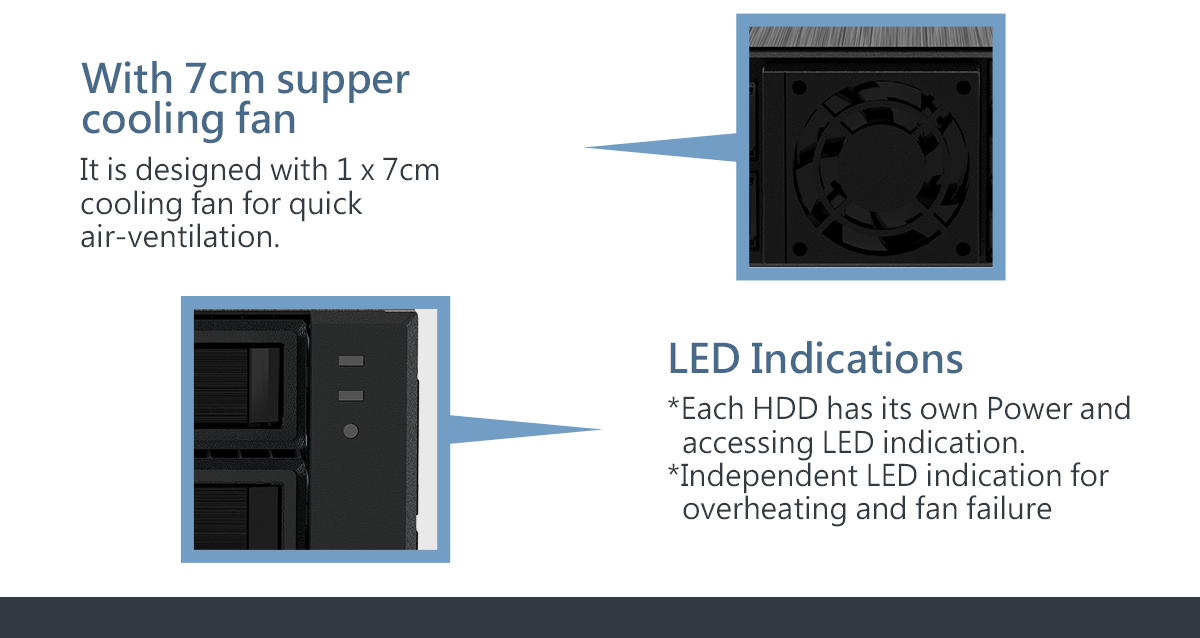

LED Indication

Power On- Green

HDD Access- Orange Blinking

Fan Failure- Red

Overheating- Red

LED Indicating On/Off Switch

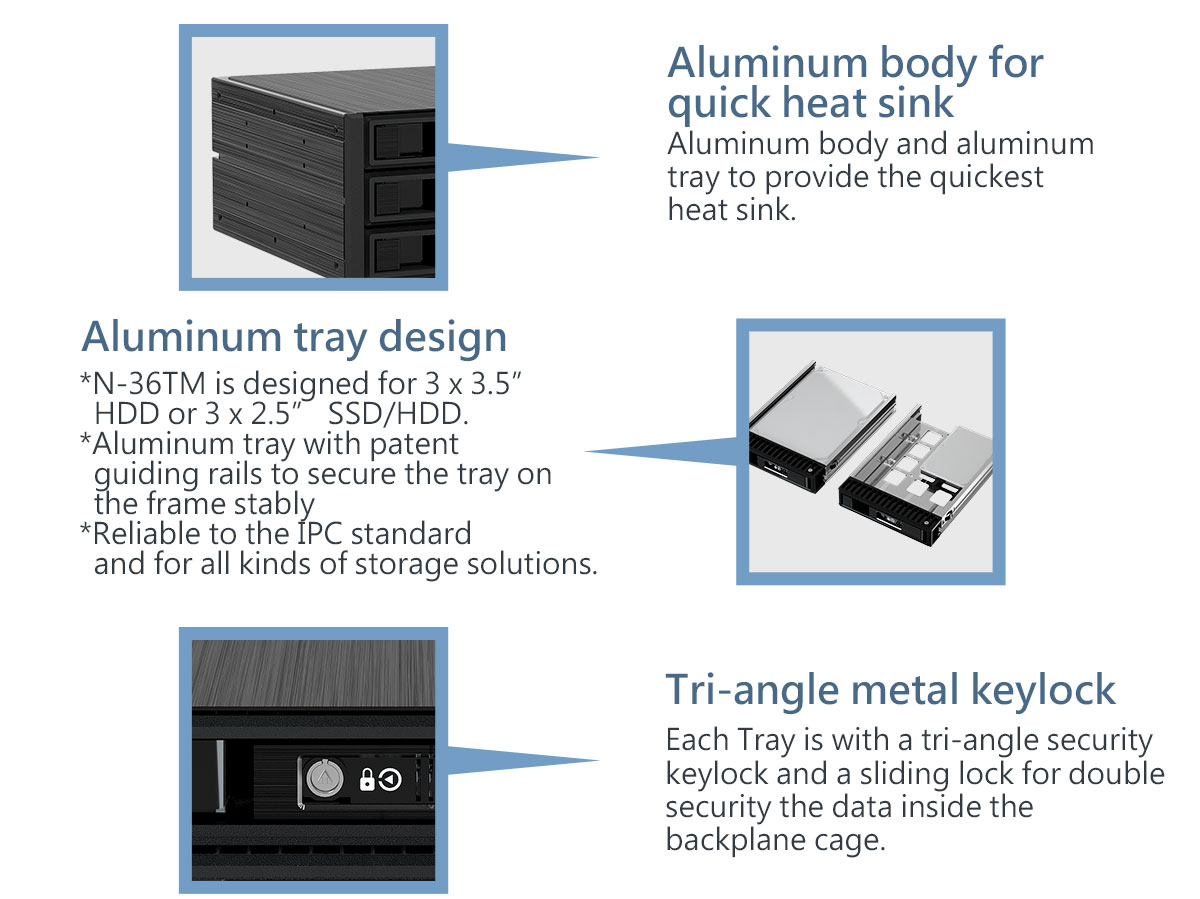

Security Design Metal Key Lock
Material Aluminum Body And HDD Tray
Fan 7 Cm Fan X 1
Operating System Windows/ Linux/Mac
Product Dimension 145.8(L) X 207.0(W) X 85.6(H) Mm
Product Weight 1.17kg
