Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less slide rails
• Supports power cycling on single drive
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Comes with a redundant PSU 80+ Platinum
• One front access USB 3.0 port
IPC-C2KTS-R55-12G-LP is a T-series 2U 8-bay SAS/SATA storage server chassis. IPC-C2KTS-R55-12G-LP structure form are based on quick installation, easy maintenance and cost competitive, with tool-less design 3.5” and 2.5” hard drive carriers and top cover. Fan are Easy swap design X3 with low-power consumption, SPGC pre-plated steel with minimal paint , offering a cost- effective solution ideally suited for a broad range of application. (Power supply is included. Motherboard is not included).
Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less slide rails
• Supports power cycling on single drive
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Comes with a redundant PSU 80+ Platinum
• One front access USB 3.0 port
| Dimensions (W x D x H) |
| • mm: 430 x 560 x 88 • inches: 17 x 22 x 3.5 |
| Industry Standard |
| EIA-RS310D |
| Material |
| Heavy-duty preplated SPGC cold-rolled steel |
| Color |
| Front Panel: Black |
| Cooling |
| 3 x 80x25mm PWM cooling fans |
| Power Supply |
| 2U 550W single Options: • 2U 550W 1+1 redundant power supply Platinum • 2U 800W 1+1 redundant power supply Platinum |
| Expansion Slots |
| 7 low profile |
| Front Panel |
| System power on/off, system reset, 1 x USB 3.0 port and UID S/W |
| LED Indicators |
| Power, LAN, Drive, Alert and UID |
| System Board |
| Up to 12” x 9.6” ATX / SSI EEB 3.6 compliant MB |
| Drive Bays |
|
• External: |
| Backplane |
| 2 x 4-port SATA/SAS backplanes with SFF-8643 connector |
| Storage Temperature |
| 0ºC(32ºF) ~ 50ºC(122ºF) |
| Humidity |
| 5%~95% non-condensing |
| Gross Weight (w/ PSU & Rail) |
| • kgs: 23.5 • lbs: 51.8 |
| Package Dimension (W x D x H) |
| • mm: 645 x 835 x 224 • inches: 25.4 x 32.9 x 8.8 |
| Cubic Feet |
| 5.38 |
| Container Load Quantity |
| • 20’: 200 • 40’: 420 • 40’ H: 450 |
| Mounting |
| Standard: 28” tool-less slide rail |
| SKU Information | Description |
|
XE1-2KTS0-01 |
2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W 2U single power supply, rail, 2x 4-port 12Gb SATA/SAS backplane with SFF-8643 connector |
|
XE1-2KTS0-02 (Standard) |
2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, rail, 2x 4-port 12Gb SATA/SAS backplane with SFF-8643 connector |
|
XE1-2KTS0-03 |
2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, rail, 2x 4-port 12Gb SATA/SAS backplane with SFF-8643 connector |
| FRU Information | |
| Part Number | Description |
|
H5521T200007 |
26" tool-less slide rail |
* All specifications are subject to change without notice.
| Datasheet | IPC-C2KTS-R55-12G-LP Datasheet |
|
|
|
| Product Images | IPC-C2KTS-R55-12G-LP (Front 45 Degrees) |
|
|
|
| Product Images | IPC-C2KTS-R55-12G-LP (Front) |
|
|
|

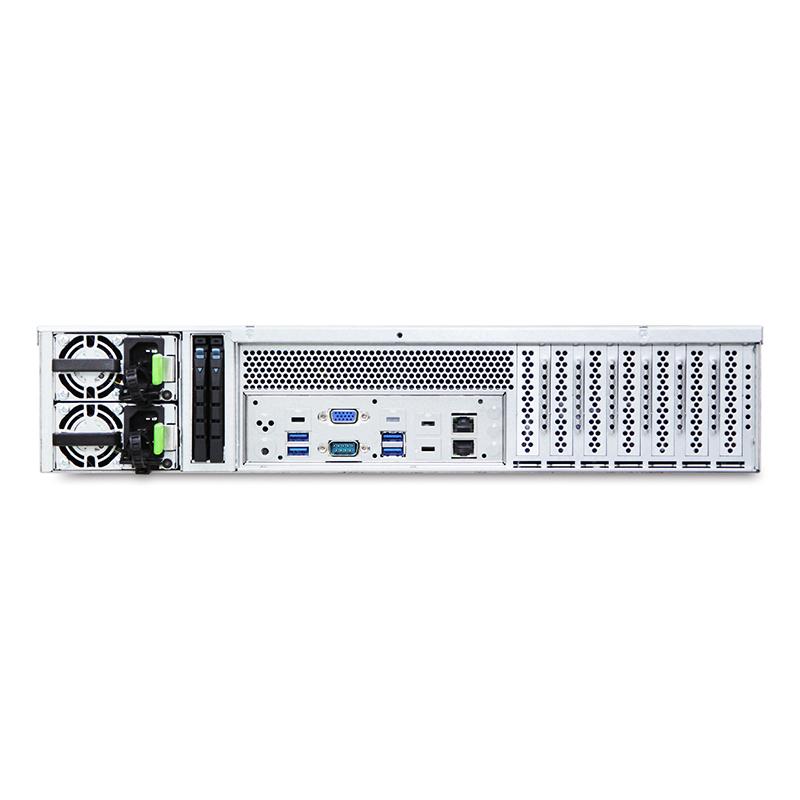

| Product Images | IPC-C2KTS-R55-12G-LP (Top&Rear) |
