• 2U 24 hot swap bays for dual-port NVMe SSDs (U.2)
• High-availability storage server optimized for mission-critical, enterprise-level storage applications
• Fully redundant, fault-tolerant system supporting hot swappable controller nodes and storage drives
• Two compute nodes, Active-Active configuration, each supporting two Intel® Xeon® Scalable Processors
• 1 PCIe x16 , 1 PCIe x8 , 1 x OCP Mezzanine x16 slots per node provide direct links to CPU
• PCIe NTB link between nodes for communication and fail-over
• Customizable to meet OEM/ODM requirements
HA202-PV is a 2U 24-Bay NVMe storage server solution that provides high-availability with accelerated performance. HA202-PV comes with two AIC Pavo Server Boards (one board per node), each supporting dual Intel® Xeon® Scalable Processors. Both nodes process I/O, and provide simultaneous and balanced access to the logical devices, which significantly increases overall cluster performance. When failure occurs, the secondary node automatically takes over the devices, client connections, and all processes/services of the system. By eliminating SPOFs (single points of failure) and designed for redundancy and end-to-end data protection, the HA202-PV provides protection from storage system down time and loss of revenue when access to data resources and critical business applications are in-interruptible. Its support of NVMe SSDs allows for super-fast data access, and is optimized for mission-critical, enterprise-level storage applications.
| Dimensions (W x D x H) (with chassis ears) |
| • mm : 438.6 x 930 x 88 • inches : 17.2 x 36.6 x 3.5 |
Motherboard (per node) |
| AIC Server Board Pavo |
Processor |
| Processor Support : Two Intel® Xeon® Scalable Processors |
| UPI Speeds : 9.6 GT/s, 10.4 GT/s |
| Socket Type : Socket P0 (LGA-3647 Socket) |
Chipset Support |
| Intel® Lewisburg C620 series PCH |
System Memory |
| • DDR4 2666 ECC RDIMM • Total 16 memory slots; 6 channel per CPU (4 x 1DPC + 2 x 2DPC per CPU) |
Front Panel |
| System power on |
LEDs |
| A : • Power (Secondary) • Warning |
| B : • Power (Primary) • Warning |
Drive Bays |
| External : 24 x 2.5" hot swap |
Backplane |
| 1 x 24-port dual loop NVMe backplane |
Expander Boards |
| 2 x 64-port Broadcom/PLX 9765 PCIe switch board |
Expansion Slots (PCIe 3.0) (per node) |
| • 1 x PCIe Gen3 x16 • 1 x PCIe Gen3 x16 (x8 mode) • 1 x OCP Mezzanine Card V2.0 |
On-board Devices |
|
SATA • Lewisburg PCH on-chip solution IPMI Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor Network Controllers • Intel® PCH (Lewisburg) Integrated 10GbE LAN Controller with dual SFP+ rear connectors Graphics Aspeed AST2500 Advanced PCIe Graphics & |
Rear I/O (per node) |
|
LAN: • 2 x 10GbE SFP+ USB: 2 x USB 3.0 Type-A connectors VGA: 1 x external VGA port Serial Port: 1 x external Audio jack for COM port |
Power Supply |
| 1300W 1+1 redundant power supply 80+ Platinum |
System Cooling (per node) |
| 2 x 60x56mm fan modules |
Server Management |
| • IPMI 2.0 • KVM over IP • Media redirection • Temperature, fan, voltage, PSU sensor monitor • System temperature • System ID / System fail indicator • Remote Power on/off/reset • SEL message alarm through mail • SNMP support • Intel NM • HTML5 • Redfish |
Environmental Specifications |
| • Storage Temperature : -10°C(14°F) - 60°C(140°F) • Operating Temperature : 0°(32°F) - 35°C(95°F) • System relative humidity : 5% - 95% non-condensing |
Gross Weight (w/PSU & Rail) |
| • kgs : 41 • lbs : 90 |
Packaging Dimensions (W x D x H) |
| • mm : 590 x 1150 x 330 • inches : 23.2 x 45.3 x 13 |
Mounting |
| Standard : 28" tool-less slide rail |
| SKU Information | Description |
|
XP1-A202PV01 (Standard) |
2U 24-bay NVMe storage server, 2x canister, 12G EOB 24 port backplane, 1300W redundant power supply platinum, Pavo, Intel® Xeon® Scalable processors, DDR4 RDIMM x16, Intel PCH C622, 2x 10G SFP+, MAX I/O x64, OCP MEZZ V2, with 2 set BBU, 4x CPU heatsinks, 28" slide rail, w/o bezel |
|
XP1-A202PV02 (Optional) |
2U 24-bay NVMe storage server, 2x canister with 2x 2.5" HDD cage, 12G EOB 24 port backplane, 1300W HRP platinum, Pavo, Intel® Xeon® Scalable processors, DDR4 RDIMM x16, Intel PCH C622, 2x 10G SFP, MAX I/O x64, OCP MEZZ V2, 4x CPU heatsinks, 28" slide rail, w/o bezel, w/o BBU |
| FRU Information | ||
| Standard Parts List | Part Number | Description |
| Fan | FC-000000144 | 6056 fan module |
| Backplane | BBP-HD20025A | 24-port dual loop NVMe backplane |
| Riser Card | BRC-PE20010A | 2U main riser card |
| Expander board | BDB-PEG0003A | 2x 64-port Broadcom/PLX 9765 PCIe switchboard |
| Power Supply | PR-000000100 | 1300W platinum redundant power supply |
| Slide rail | H5531S200001 | 28" tool-less slide rail |
| Optional Parts List | Part Number | Description |
| Front Bezel | M06-00394-02 | Front bezel |
| BBU | DE-000000014 | Alis battery pack |
| Datasheet | HA202-PV Datasheet |
|
|
|
| Product Images | HA202-PV (Front 45 Degrees) |
|
|
|
| Product Images | HA202-PV (Front) |
|
|
|

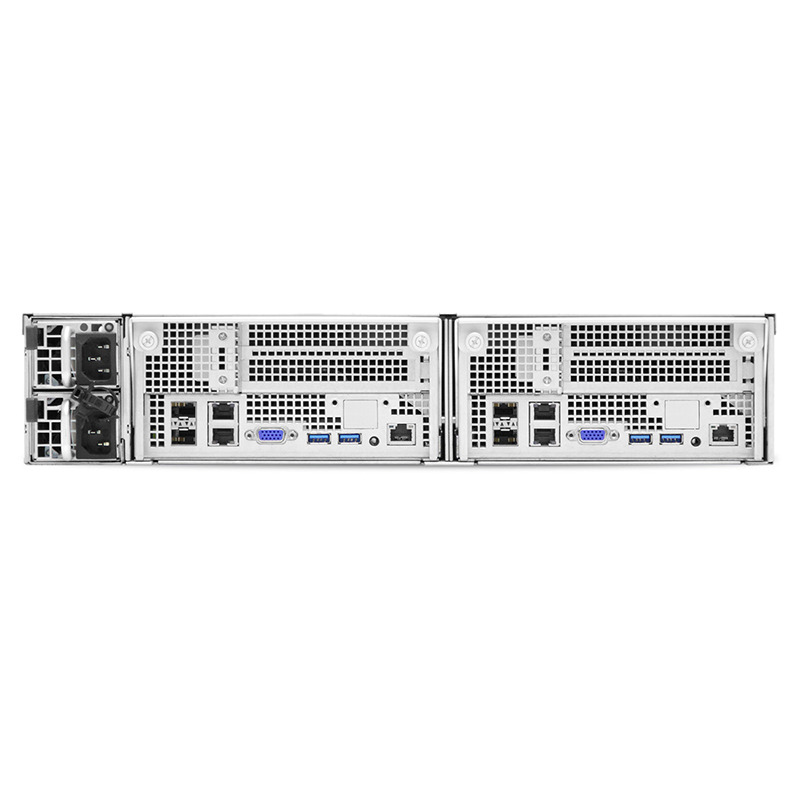

| Product Images | HA202-PV (Top&Rear) |
| User Manual/AVL/Firmware | HA202-PV |
|
|
