2U 6G Storage Chassis 8 x 3.5 Hot-Swap + 2 x 2.5" Internal + 1 x 5.25 Slim Optical with an 650W Redundant PSU (Rails Included) * 7 x Low Profile

PCICASE Model No: IPC-C2KH-BAR65-LP

Manufacturer Model No: RSC-2KH

UK Stock

Key Features

Up to 10 x 3.5” hot swap drive trays
Front access USB port
Optimised to use 3 x PCI Cards via Riser Card (Please see Optional Products for details)
3 x easy swap middle fans for superior cooling
650W 1+1 hot swap redundant 80+ Silver for redundancy and power efficency
Rear access power supply alarm reset button

Features And Benefits

The IPC-C2KH-BAR65-3PCI is a H-series 2U 8-bay SAS/SATA storage server chassis. This environmentally friendly solution features high-efficiency power supply, SPGC pre-plated steel with minimal paint, and tool-less ball-bearing mounting rail, offering a cost-effective solution ideally suited for a broad range of applications.

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 700 x 88.8
• inches : 19 x 27.5 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SPGC cold-rolled steel

Color
Front Panel : Black

Cooling
Middle : 3 x 80x38mm easy swap fans

Power Supply
• 650W 1+1 hot swap redundant 80+ GOLD

Expansion Slot
• 3 full height via riser card (Please Optional Product for details)

Front Panel
• Power on/off
• System reset
• 1 x USB port

LED Indicators
• Power
• LAN
• Drive

System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays
External : 8 x 3.5” hot swap (up to 10) & 1 x Slim DVD-ROM
Internal : 2 x 2.5”

Backplanes
2 x 4-port 6Gb SAS backplanes with single SFF-8087 connector on each

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs : 26.9
• lbs : 59.3

Package Dimension (W x D x H)
• mm : 614 x 945 x 298
• inches : 24.2 x 37.2 x 11.7

Cubic Feet
6.1

Container Load Quantity
• 20’ : 155
• 40’ : 320
• 40’ H : 385

Mounting
Standard : 28” tool-less slide rail
* All specifications are subject to change without notice.

Get in touch

Give us a call to find out more about our products

Inside the UK
0870 300 3388

Outside the UK
+44 1908 272770

Or send us an email
pcisales@pcicase.co.uk

Datasheet	IPC-C2KH-BAR65-LP Datasheet
	IPC-C2KH Datasheet.pdf

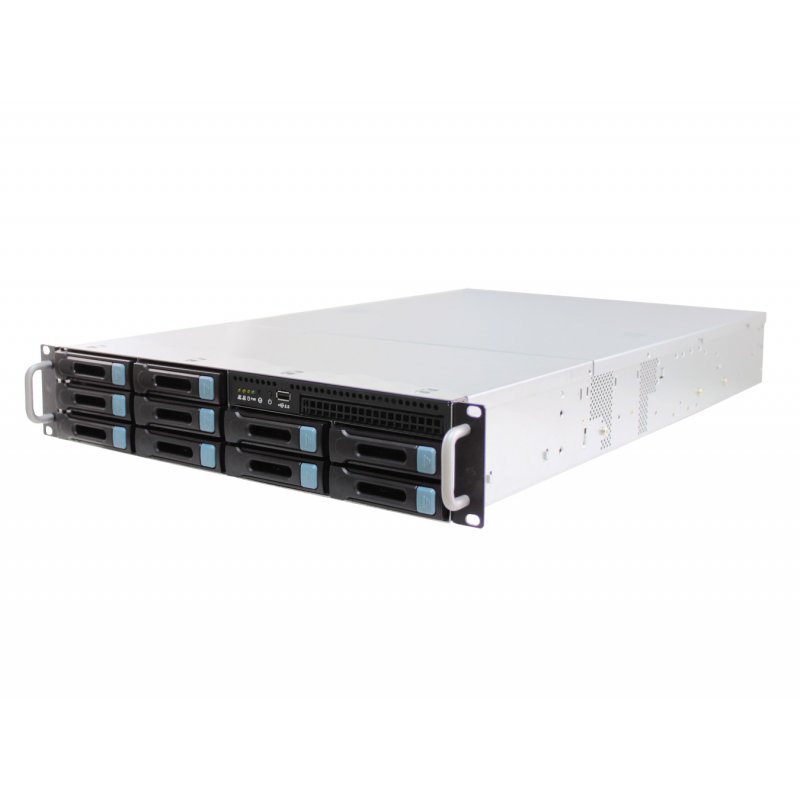

Product Images	IPC-C2KH-BAR65-LP (Front 45 Degrees)

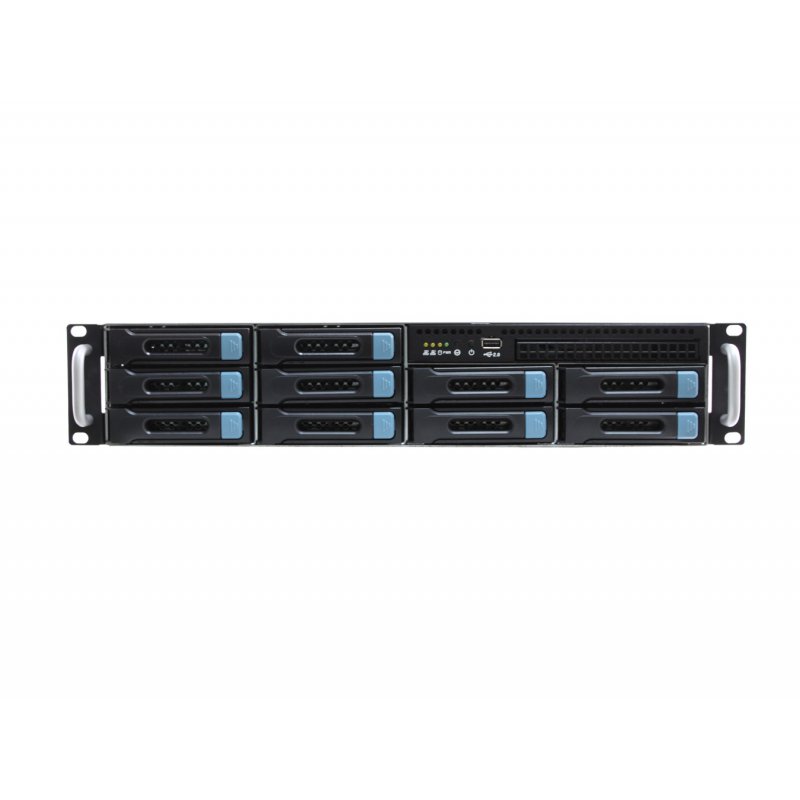

Product Images	IPC-C2KH-BAR65-LP (Front)

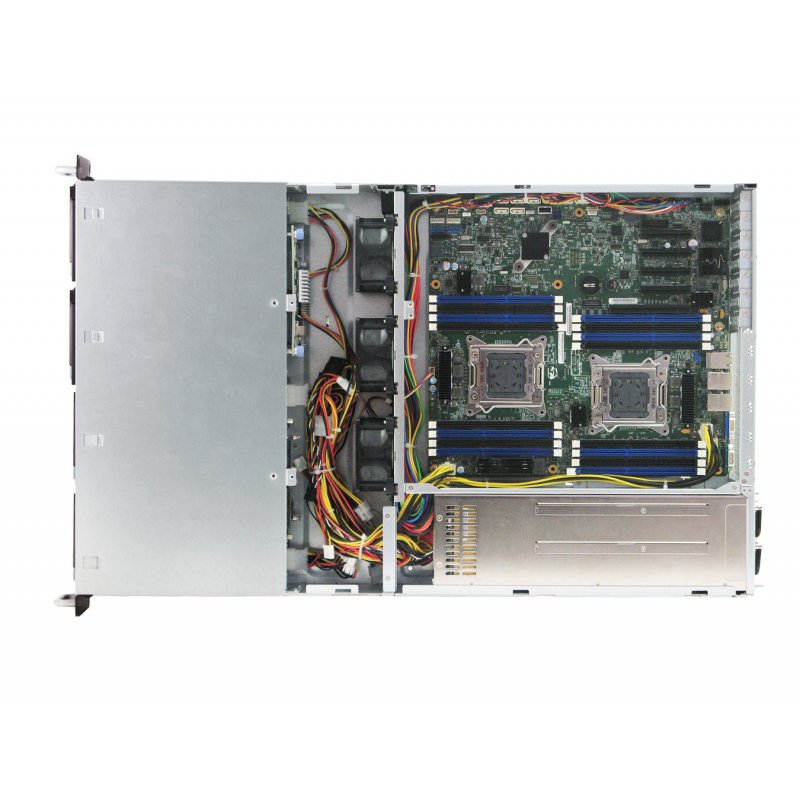

Product Images	IPC-C2KH-BAR65-LP (Top)

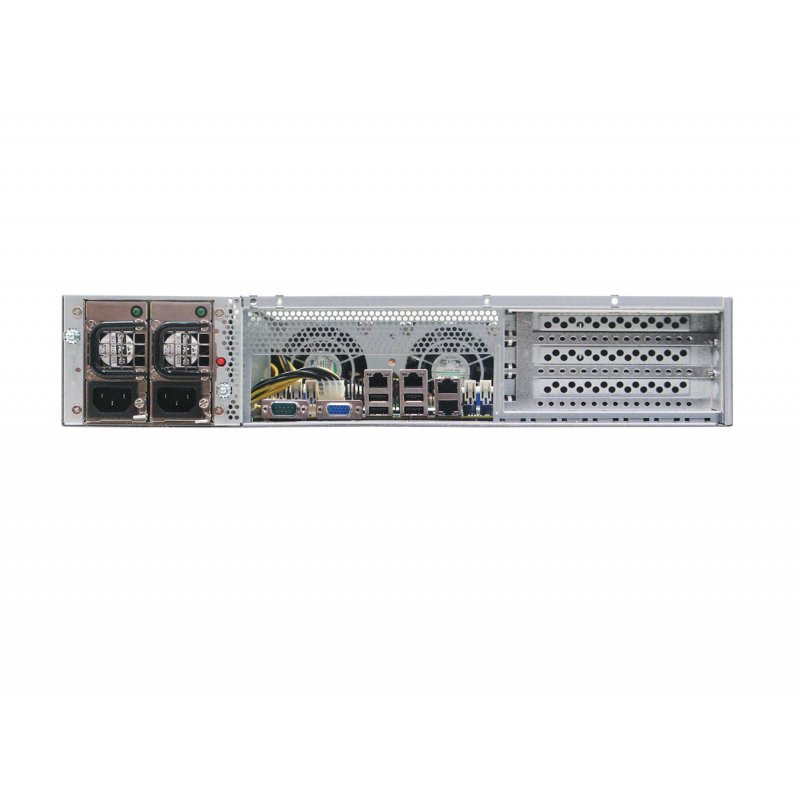

Product Images	IPC-C2KH-BAR65-LP (Rear)
