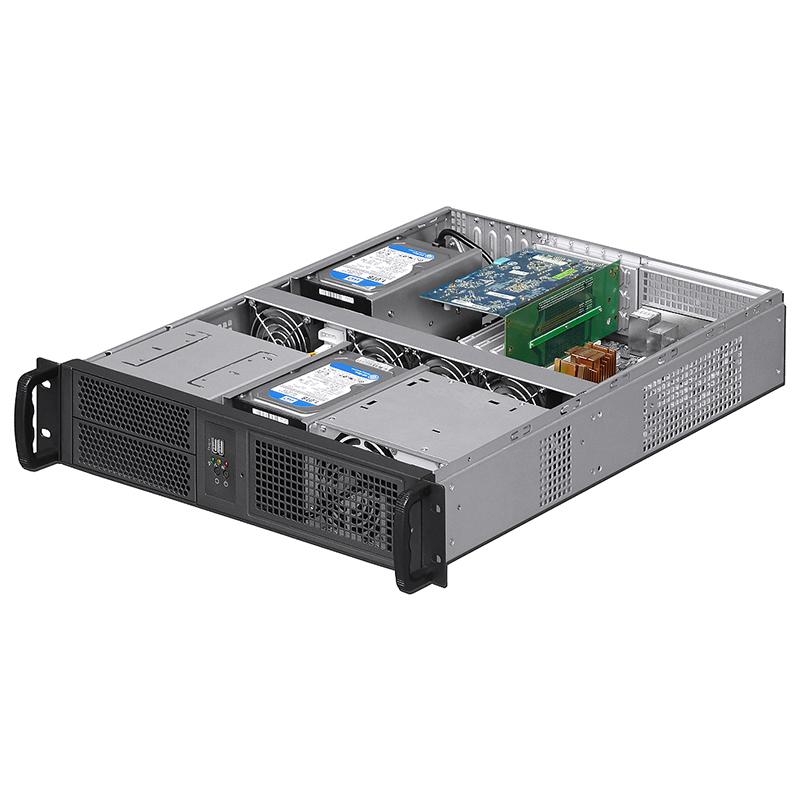

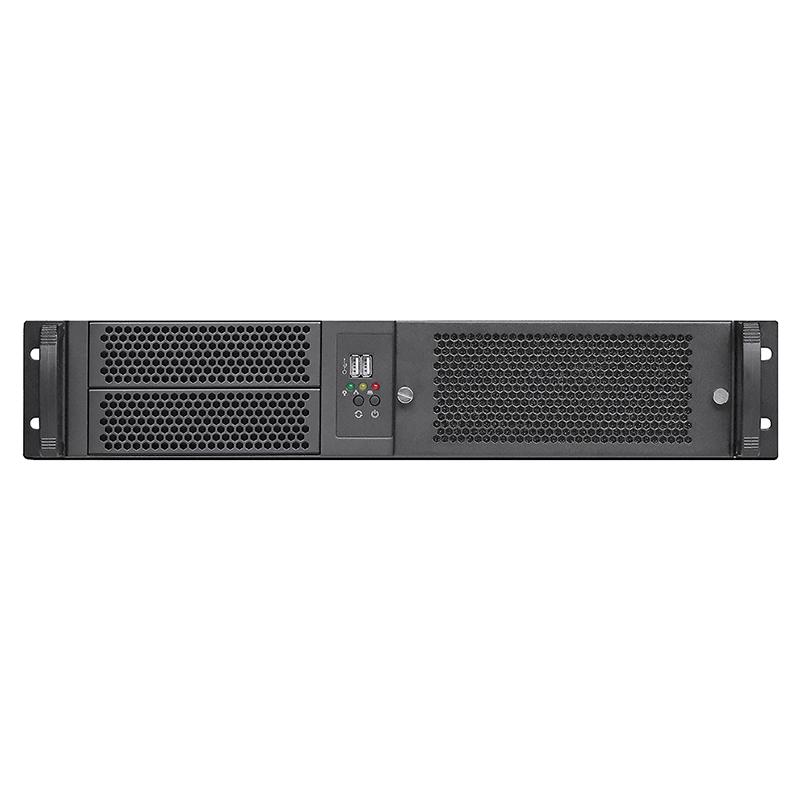

2U Ultra Cool Server Chassis with 2x5.25 external bays + 6x 3.5" internal bays

PCICASE Model No: TSC-E266B

Coming Soon

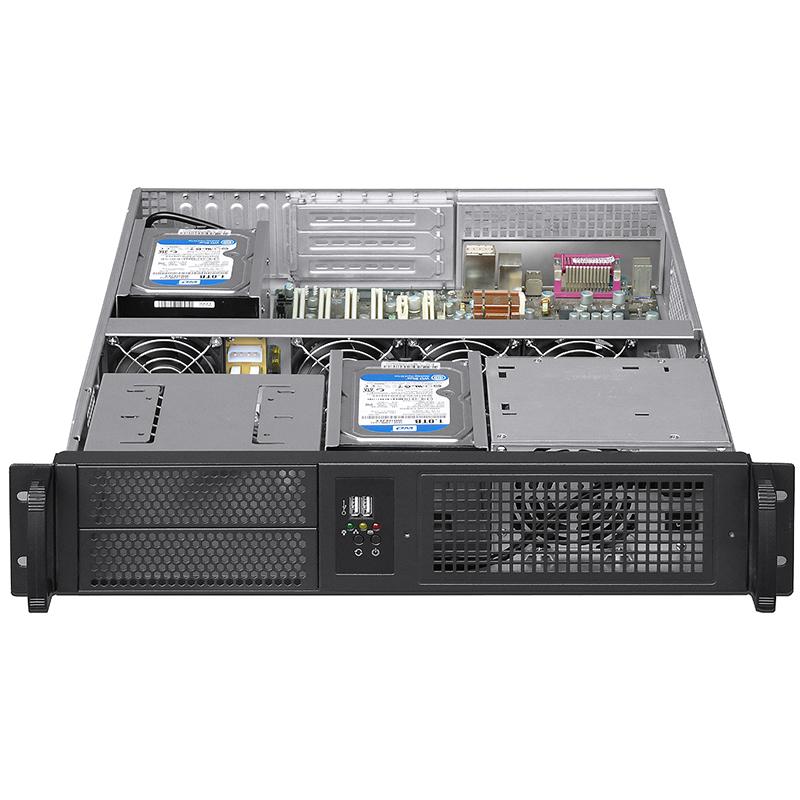

Drive Bays

8 drive bays: 2 x 5.25" external & 6 x 3.5" internal

HDD Drive bay equipped with anti-vibration function

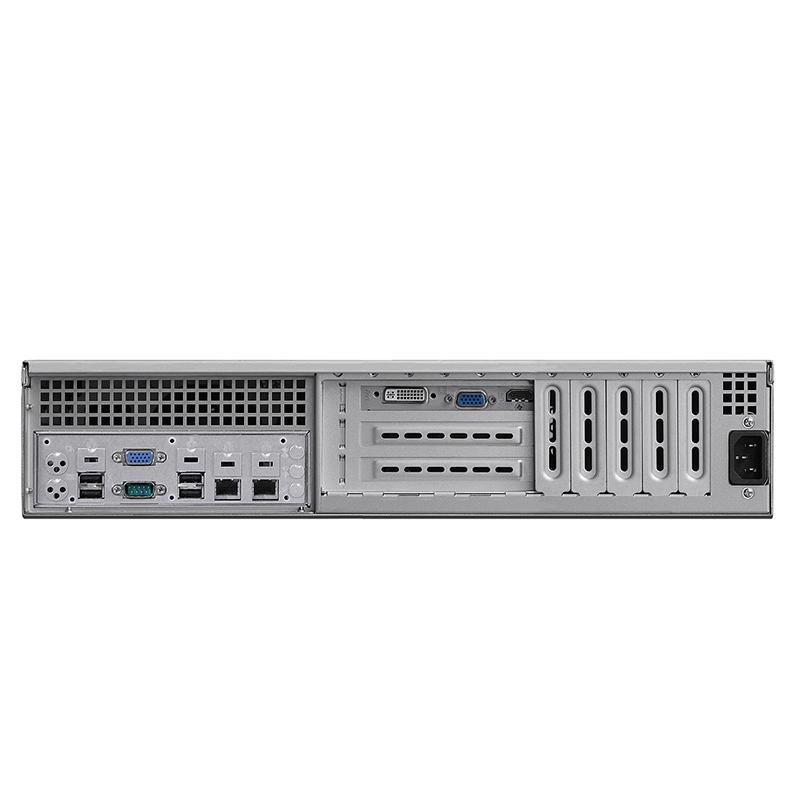

Rear Panel

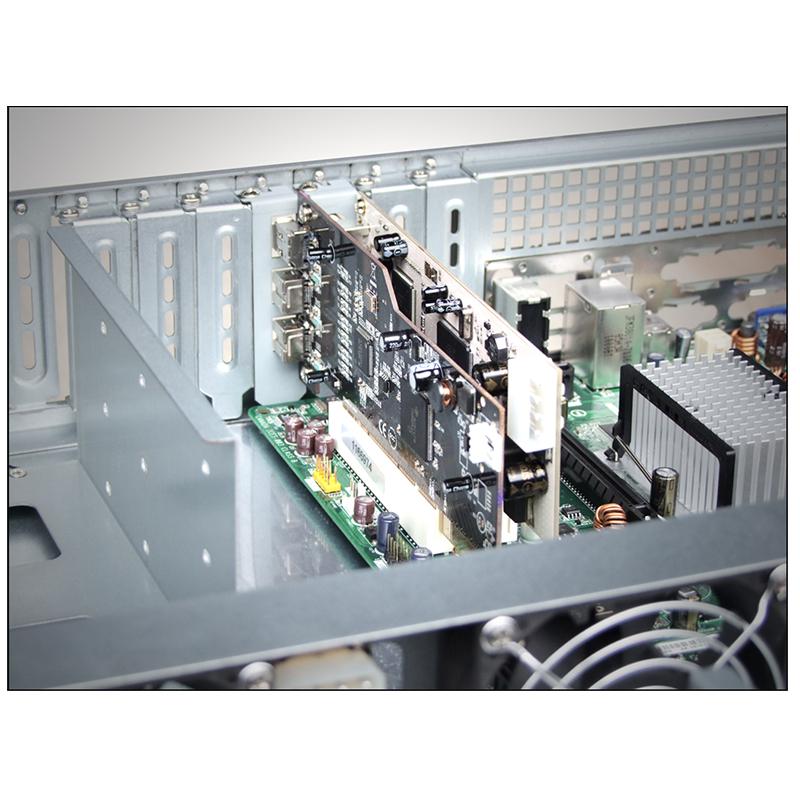

Support patented 3 slot full high risers or 7 slot Low Profile cards (max. 250mm long)

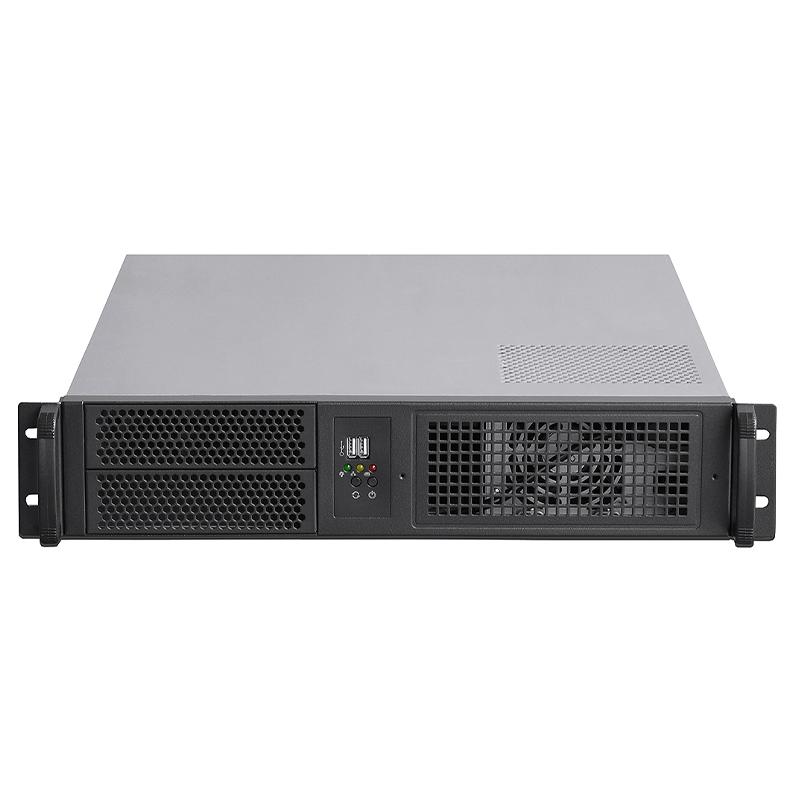

Front Panel

Scratch-resistant black textured paint

USB: 2off USB 3.0 ports

LED Indicators: LAN/HDD/Power

Air Filter Assembly (RHS) - Option

Cooling
4off 80mm x 25mm 2-ball-bearing fans
With fan connector PCB in the middle fan wall

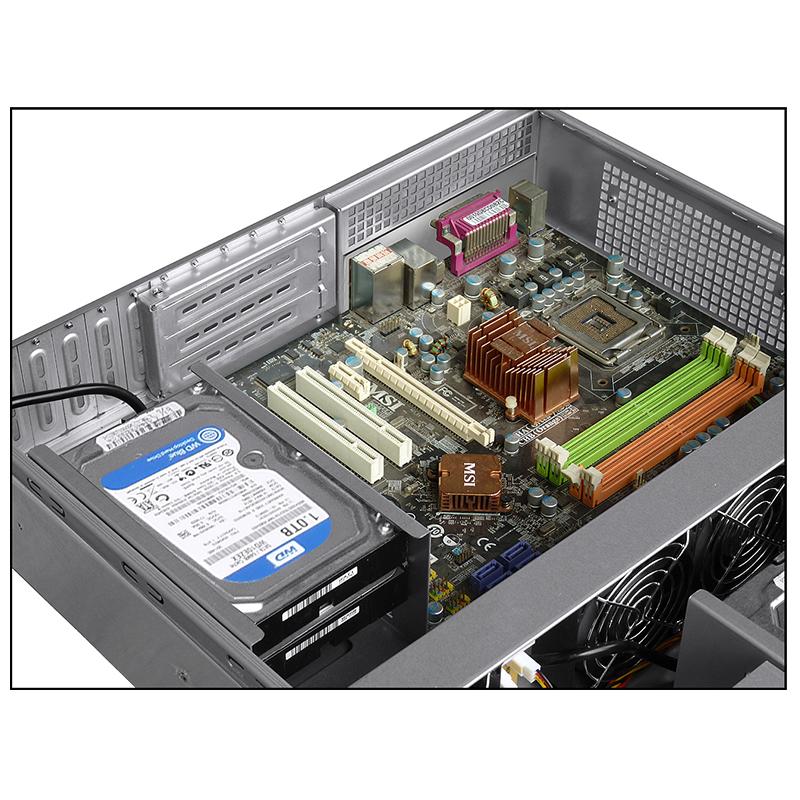

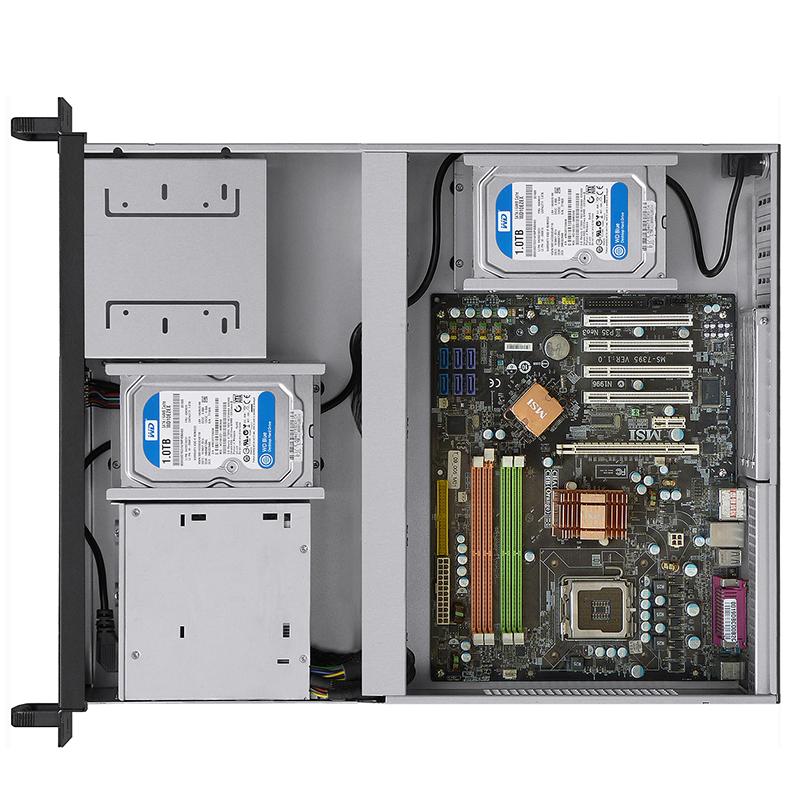

System Board
MB: ATX/SSI CEB (12"×10"), ATX(12"x9.6"), Micro-ATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

Power Supply:
Supports PS2 power supply, with 80mm fan version recommended (max. psu depth: 160mm)

Accessory Kit
Accessory: Screw x43, #6 MB stand-off x10, LPF bracket x6, LPF cover x1

Mounting:

Please see Optional Product for details

Chassis:

Material Specification: 1.2mm~2.0mm SGCC

Industry Standard: EIA-RS310D

Weight & Dimensions:

Chassis Weight: NW 8 KGM, GW 10 KGM, 2.46 CUFT

Chassis dimension: 19" x 2U x 550mm (21.65" deep)

Package Dimensions:

Carton size at 685 x 565 x180 mm

Rails

Part code: TSC-NJ600

Power Supplies (PS2 8cm Fan)

500W Quiet 85+ PS2 Power Supply with 8cm fan
Part code: CRS-C2050-85-08

Backplane Modules/Mobile Racks

2.5" HDD BACKPLANE MODULE (12GB/S)

1 x 3.5" to 2 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Trayless Design

Part code: N-20SS

1 x 5.25" to 4 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-49SS

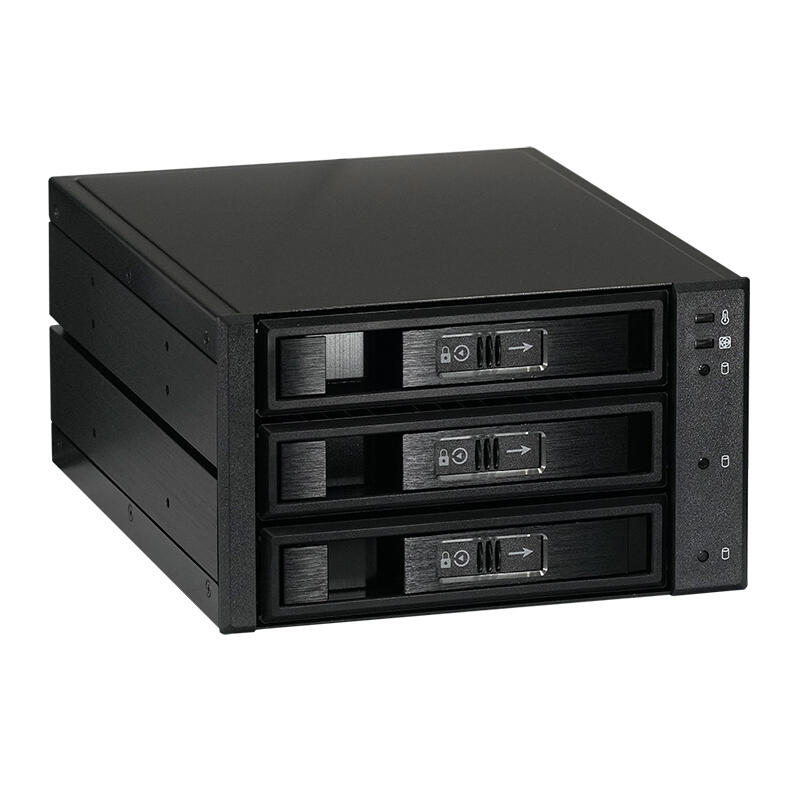

2 x 5.25" to 3 x 3.5" 12G + 6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design.

1 x 5.25" drive bay to 2x2.5" SFF hot swap bays, supporting 2NVMe PCIe SSDs

Part code: N-29NVMe-15

1 x 5.25" drive bay ,supporting 4x2.5" NMVe U.2 HDD(up to 15mm)

Part code: N-49NVMe

2.5" HDD BACKPLANE MODULE (6GB/S)

1 x 5.25" to 2 x 2.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design
Part code: IPC-BR-SAS12-G

3.5" HDD MOBILE RACK (12GB/S)

1 x 5.25" to 1 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-16TM

3.5" HDD MOBILE RACK (6GB/S)

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Black)
Part code: ISG-AN-D11-Black

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Blue)
Part code: ISG-AN-D11-Blue

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Red)
Part code: ISG-AN-D11-Red

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Silver)
Part code: ISG-AN-D11-Silver

Bay Convertors

1 x 5.25" Dynamic Conversion Bracket.
Part code: IPC-SDFD135225

2 x 5.25" to 3 x HDD Bracket For C2T
Part code: IPC-SB1034

Riser Cards

1U FIXED RISER CARDS

1U 32bit Fixed Risercard
Part code: IPC-SSC004

1U PCI-E x 16 Fixed Risercard
Part code: IPC-SSC038

1U PCI-E x 8 Fixed Risercard
Part code: IPC-SSC045

1U RIBBON RISER CARDS

1U 32bit Ribbon Risercard
Part code: IPC-SSC006-5H

1U PCI-E x 1 Ribbon Risercard
Part code: GS-RC1U-PCIE1FL

1U PCI-E x 16 Ribbon Risercard
Part code: GS-RC1U-PCIE16FL

1U PCI-E x 4 Ribbon Risercard
Part code: GS-RC1U-PCIE4FL

1U PCI-E x 8 Ribbon Risercard
Part code: GS-RC1U-PCIE8FL

2U FIXED/RIBBON RISER CARDS

2U 1 x PCI-E x 16 + 2 x 32bit Fixed/Ribbon Risercard
Part code: IPC-SSC033-5

2U 2 x 64bit 3.3V Fixed/Ribbon Risercard
Part code: IPC-SSC009

2U 3 x PCI-32bit Fixed/Ribbon Risercard
Part code: IPC-SSC010

2U PCI-E x16 x 8 x 8 Fixed/Ribbon Risercard
Part code: GS-RC2U-PCIE1688

2U RIBBON RISER CARDS

2U 3 x PCI-32bit Ribbon Risercard

Part code: IPC-SSC014-5

Heatsinks (Active/Passive)

1U ACTIVE CPU COOLERS

1U Active CPU Cooler (AM2/AM3 Socket)
Part code: CJ-JAC7209C

1U Active CPU Cooler (LGA 1156/1155/1150/1151)
Part code: CJ-JACLL03C

1U Active CPU Cooler (LGA1366/1356)
Part code: CJ-JACLB13C

1U Active Heatsink with Fan (Socket 478)
Part code: CJ-CE2QC

1U Active Heatsink With Side Flow Fan (LGA-775)
Part code: CJ-JACL511C

1U Active Heatsink With Side Flow Fan (Socket LGA 2011)
Part code: CJ-JACLR02C-0

1U PASSIVE CPU COOLERS

1U Passive CPU Cooler (K8)
Part code: CJ-JAC0807C

1U Passive CPU Cooler (LGA 1150/1151/1155/1156)
Part code: CJ-BK1156P

1U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B04C

1U Passive Heatsink (LGA-775)
Part code: CJ-950918-1

2U ACTIVE CPU COOLERS

2U Multi-Socket Active CPU Cooler (Intel LGA-1366/1356/1151/1150/1155/1156/775 compatible)
Part code: CJ-JYC9L06AGC-A

2U Active CPU Cooler With Side Fan Socket LGA 2011 Narrow
Part code: CJ-JYC1R38ATPTC

2U PASSIVE CPU COOLERS

2U Passive CPU Cooler (LGA 1151/1150/1156/1155)
Part code: CJ-JAC0L11A

2U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B40A
