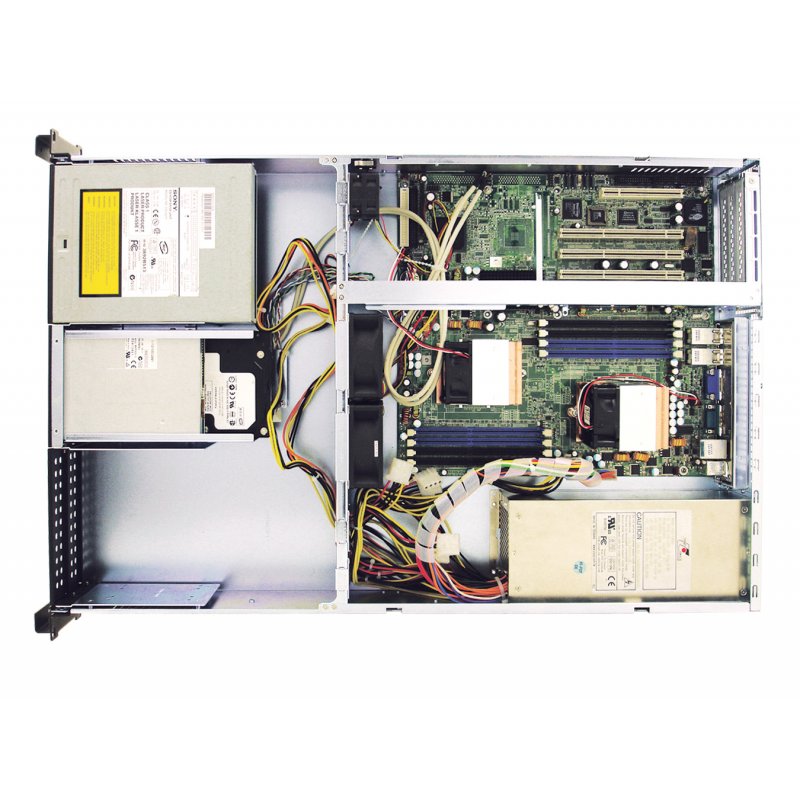

2U Rugged Long Chassis 4 x 5.25" External 1 x 3.5" External + 1 x 3.5" Internal (PCI Version)

Dimensions (W x D x H) (with chassis ears)

• mm : 482.6 x 685.8 x 88.8
• inches : 19 x 27 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SGCC cold-rolled steel
Color
Black
Cooling
Standard :
• Middle : 2 x 80x32mm + 1 x 40x28mm easy swap fans
Add-on :
• Middle : 3 x 40x28mm fans for upgrade
Power Supply
Please see Optional Product for details. * Industrial PSU Only

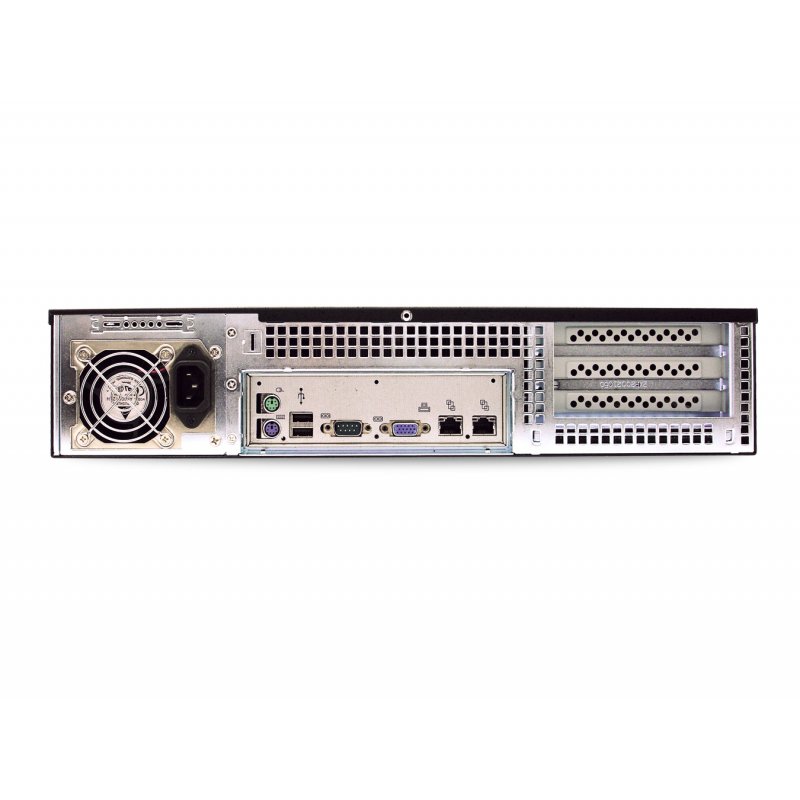

Expansion Slots
• 3 full height via Riser Card (Please see Optional Product for details)

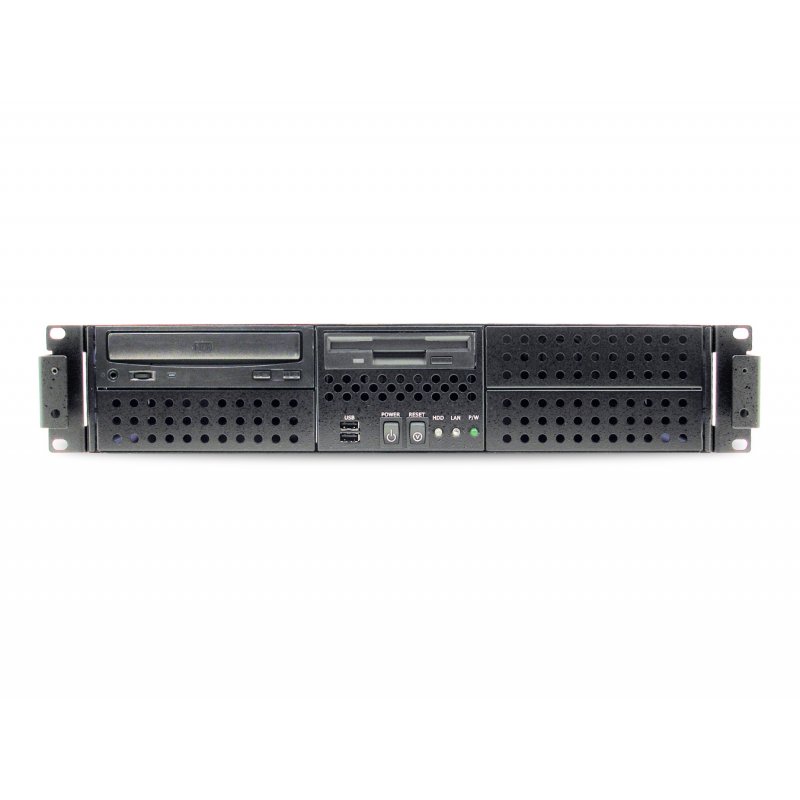

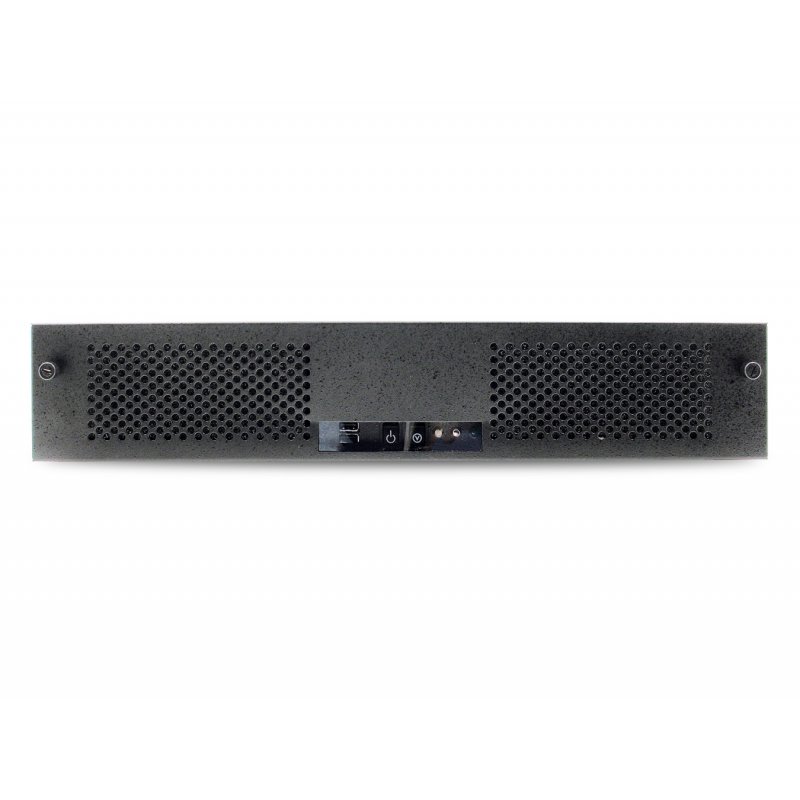

Front Panel
• Power on/off
• System reset
• 2 x USB ports
LED Indicators
• Power
• LAN
• Drive
System Board
Up to 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays
• External : 4 x 5.25” & 1 x 3.5”
• Internal : 1 x 3.5”
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/o PSU & Rail)
• kgs : 15
• lbs : 33
Package Dimension (W x D x H)
• mm : 588 x 852 x 259
• inches : 23.1 x 33.5 x 10.2
Cubic Feet
4.6
Container Load Quantity
• 20’ : 205
• 40’ : 425
• 40’ H : 510
Mounting
Please see Optional Product for details.
* All specifications are subject to change without notice.



Rails

AIC 2U-4U 26inch Slider Rails for Extended Chassis

Part code: IPC-SY002H

Power Supplies (Redundant/Single)



REDUNDANT

---

2/3U 800W x 2 Short Industrial Redundant PSU 92+ Platinum with Pmbus

Part code: PIZ2080R-90-ACB

2/3U 800W x 2 Extra Short Industrial Redundant PSU 92+ Platinum with Pmbus

Part code: PIZ2080R-90-ACB-ES

---

2/3U 800W x 2 Extra Short Industrial Redundant PSU 95+ Titanium with Pmbus

Part code: PIZ2080R-95-ACB-ES

2/3U 1300W x 2 Extra Short Industrial Redundant PSU 95+ Titanium with Pmbus

Part code: PIZ21300R-95-ACB-ES

SINGLE

2U 500W Industry single PSU 80+ Bronze
Part code: PIZ2050S-85

---

2U 550W Industry single PSU 85+ Bronze

Part code: PIZ2055S-85-ACB

2U 650W Industry single PSU 90+ Gold
Part code: PIZ2065S-90

---

2U 650W Single 80+ Gold PSU
Part code: CPS-6512-2A1

Backplane Modules/Mobile Racks

 2.5" HDD BACKPLANE MODULE (12GB/S)

1 x 3.5" to 2 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Trayless Design

Part code: N-20SS

---

1 x 5.25" to 4 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-49SS

---

1 x 5.25" drive bay to 2x2.5" SFF hot swap bays, supporting 2NVMe PCIe SSDs

Part code: N-29NVMe-15

1 x 5.25" drive bay ,supporting 4x2.5" NMVe U.2 HDD(up to 15mm)

Part code: N-49NVMe

---

2.5" HDD BACKPLANE MODULE (6GB/S)

3.5" HDD MOBILE RACK (12GB/S)

1 x 5.25" to 1 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-16TM

Bay Convertors


1 x 5.25" Dynamic Conversion Bracket.
Part code: IPC-SDFD135225

---



2 x 5.25" to 3 x HDD Hard Drive Cooler
Part code: CCSS06B

Riser Cards



1U FIXED RISER CARDS

1U 32bit Fixed Risercard
Part code: IPC-SSC004

---

1U PCI-E x 16 Fixed Risercard
Part code: IPC-SSC038

---

1U PCI-E x 8 Fixed Risercard
Part code: IPC-SSC045

---



1U RIBBON RISER CARDS

1U 32bit Ribbon Risercard
Part code: IPC-SSC006-5H

Front Panel

Heatsinks (Active/Passive)

1U Active CPU Cooler (AM2/AM3 Socket)
Part code: CJ-JAC7209C

---





1U PASSIVE CPU COOLERS

1U Passive CPU Cooler (K8)
Part code: CJ-JAC0807C

---

1U Passive CPU Cooler (LGA 1150/1151/1155/1156)
Part code: CJ-BK1156P


---

1U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B04C


---

1U Passive Heatsink (LGA-775)
Part code: CJ-950918-1


---



2U ACTIVE CPU COOLERS



2U Multi-Socket Active CPU Cooler (Intel LGA-1366/1356/1151/1150/1155/1156/775 compatible)
Part code: CJ-JYC9L06AGC-A

2U Active CPU Cooler With Side Fan Socket LGA 2011 Narrow
Part code: CJ-JYC1R38ATPTC

2U PASSIVE CPU COOLERS

2U Passive CPU Cooler (LGA 1151/1150/1156/1155)
Part code: CJ-JAC0L11A

---



2U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B40A


---
