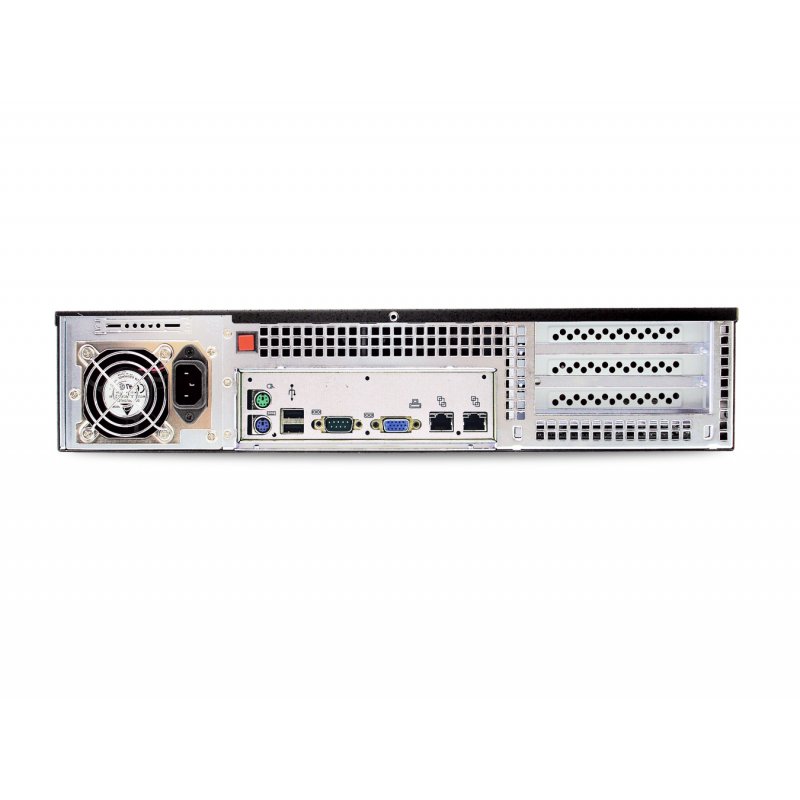

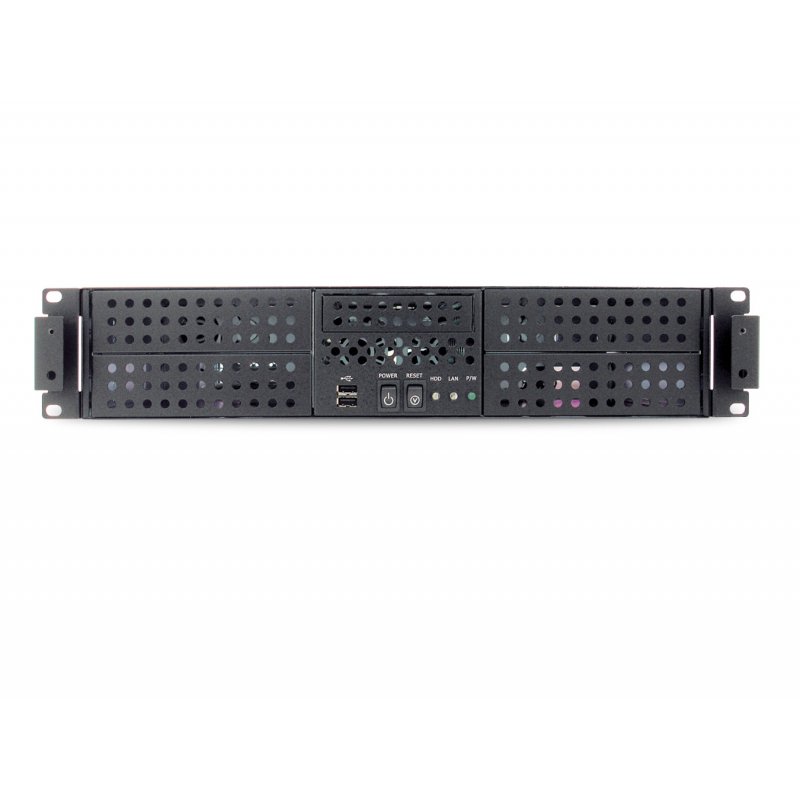

2U Rugged Medium Chassis 4 x 5.25" External + 1 x External 3.5" + 1 x Internal 3.5" (PCI Version)

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 575.4 x 88.8
• inches : 19 x 22.7 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Black

Cooling
Standard :
• Middle : 2 x 80x25mm + 1 x 40x28mm easy swap fans
Add-on :
• Middle : 3 x 40x28mm fans

Power Supply
Please see Optional Product for details *Industrial PSU Only

Expansion Slots
• 3 full height via Riser Card (please see Optional Product for details)

Front Panel
• Power on/off
• System reset
• 2 x USB ports

LED Indicators
• Power
• LAN
• Drive

System Board
Up to 12”(W) x 10.5”(D) ATX/SSI CEB compliant MB

Drive Bays
• External : 4 x 5.25” & 1 x 3.5”
• Internal : 1 x 3.5”

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/o PSU & Rail)
• kgs : 13
• lbs : 28.7

Package Dimension (W x D x H)
• mm : 588 x 764 x 272
• inches : 23.1 x 30 x 10.7

Cubic Feet
3.7

Container Load Quantity
• 20’ : 255
• 40’ : 525
• 40’ H : 635

Mounting
(Please see Optional Product for details)

Rails

AIC 2U-4U 20inch Slider Rails for Short/Midsize Chassis
Part code: IPC-SY001H

AIC 2U-4U 26inch Slider Rails for Extended Chassis

Part code: IPC-SY002H

Power Supplies (Redundant/Single)

REDUNDANT

2/3U 800W x 2 Short Industrial Redundant PSU 92+ Platinum with Pmbus

Part code: PIZ2080R-92-ACB

2/3U 800W x 2 Extra Short Industrial Redundant PSU 92+ Platinum with Pmbus

Part code: PIZ2080R-92-ACB-ES

2/3U 800W x 2 Extra Short Industrial Redundant PSU 95+ Titanium with Pmbus

Part code: PIZ2080R-95-ACB-ES

2/3U 1300W x 2 Extra Short Industrial Redundant PSU 95+ Titanium with Pmbus

Part code: PIZ21300R-95-ACB-ES

 SINGLE

2U 500W Industry single PSU 80+ Bronze

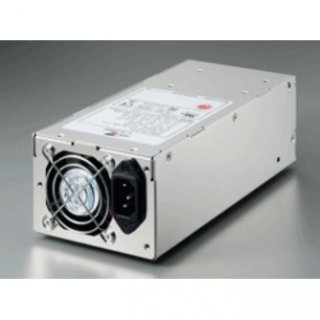

Part code: PIZ2050S-85

2U 550W Industry single PSU 85+ Bronze

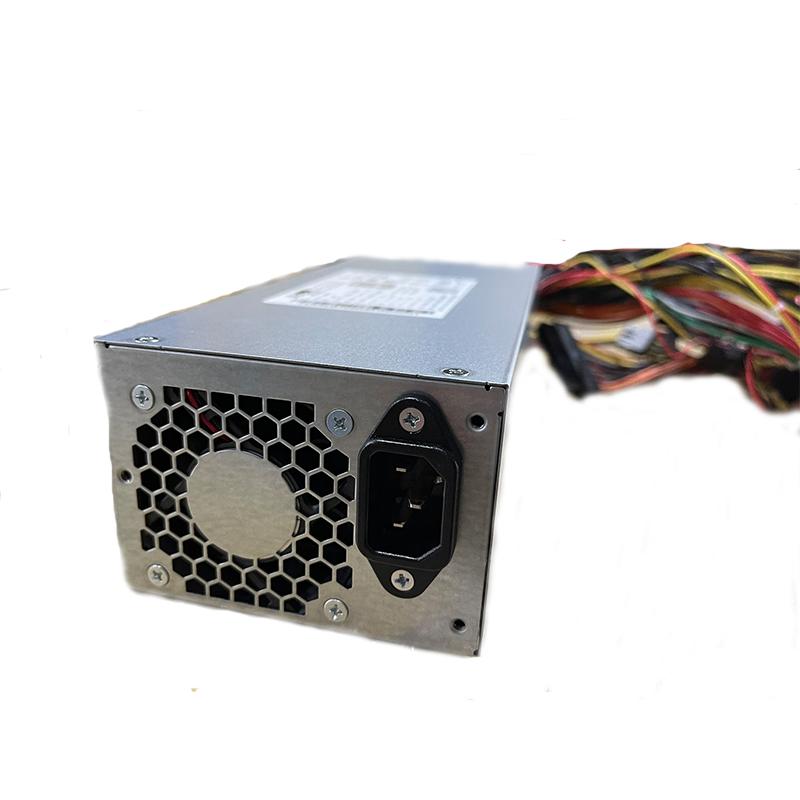

Part code: PIZ2055S-85-ACB

2U 650W Industry single PSU 90+ Gold

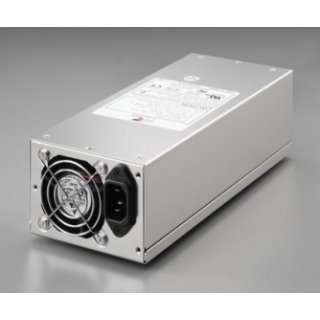

Part code: PIZ2065S-90

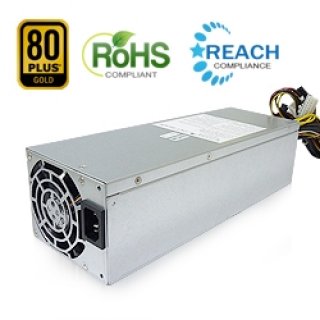

2U 650W Single 80+ Gold PSU
Part code: CPS-6512-2A1


Backplane Modules/Mobile Racks

 2.5" HDD BACKPLANE MODULE (12GB/S)

1 x 3.5" to 2 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Trayless Design

Part code: N-20SS

1 x 5.25" to 4 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-49SS

1 x 5.25" drive bay to 2x2.5" SFF hot swap bays, supporting 2NVMe PCIe SSDs

Part code: N-29NVMe-15

1 x 5.25" drive bay ,supporting 4x2.5" NMVe U.2 HDD(up to 15mm)

Part code: N-49NVMe

2.5" HDD BACKPLANE MODULE (6GB/S)

---

3.5" HDD BACKPLANE MODULE (12GB/S)

2 x 5.25" to 3 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design.

Part code: N-36TM

3.5" HDD MOBILE RACK (12GB/S)

1 x 5.25" to 1 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-16TM

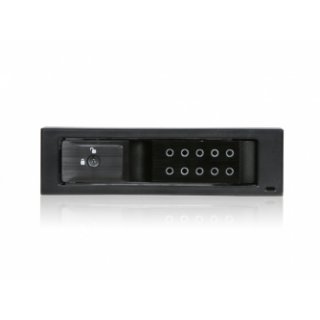

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Black)
Part code: ISG-AN-D11-Black

---

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Blue)

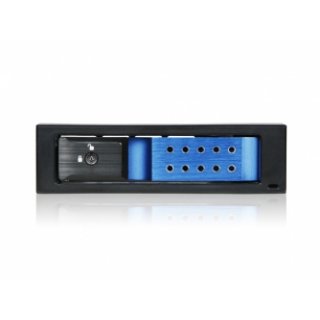

Part code: ISG-AN-D11-Blue

---

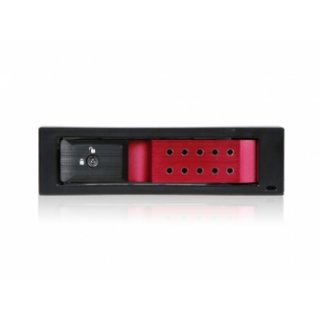

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Red)
Part code: ISG-AN-D11-Red

---

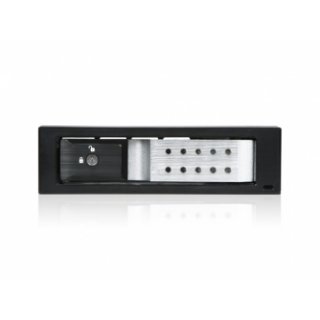

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Silver)
Part code: ISG-AN-D11-Silver


Bay Convertors

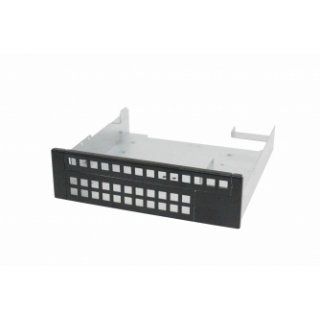

1 x 5.25" Dynamic Conversion Bracket.
Part code: IPC-SDFD135225

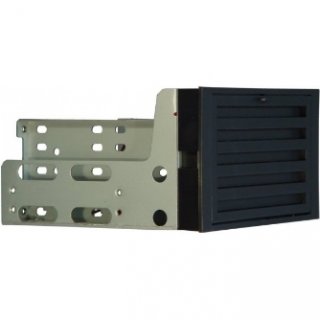

2 x 5.25" to 3 x HDD Hard Drive Cooler
Part code: CCSS06B

Riser Cards

1U FIXED RISER CARDS

1U 32bit Fixed Risercard
Part code: IPC-SSC004

1U PCI-E x 16 Fixed Risercard
Part code: IPC-SSC038

1U PCI-E x 8 Fixed Risercard
Part code: IPC-SSC045

1U RIBBON RISER CARDS

1U 32bit Ribbon Risercard
Part code: IPC-SSC006-5H

---

1U PCI-E x 1 Ribbon Risercard
Part code: GS-RC1U-PCIE1FL

---

1U PCI-E x 16 Ribbon Risercard
Part code: GS-RC1U-PCIE16FL

---

1U PCI-E x 4 Ribbon Risercard
Part code: GS-RC1U-PCIE4FL

1U PCI-E x 8 Ribbon Risercard
Part code: GS-RC1U-PCIE8FL

2U FIXED/RIBBON RISER CARDS

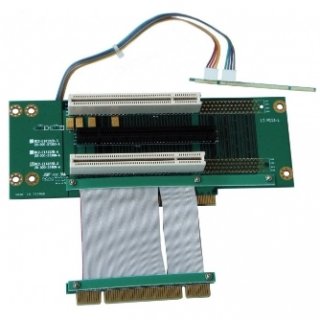

2U 1 x PCI-E x 16 + 2 x 32bit Fixed/Ribbon Risercard
Part code: IPC-SSC033-5

---

2U 2 x 64bit 3.3V Fixed/Ribbon Risercard

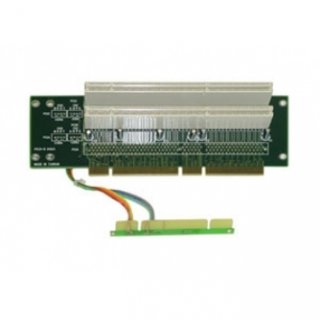

Part code: IPC-SSC009


---

2U 3 x PCI-32bit Fixed/Ribbon Risercard

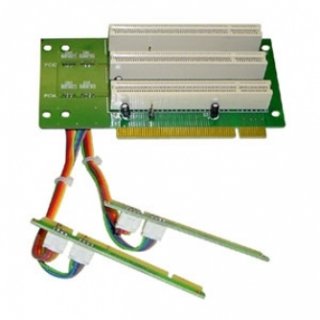

Part code: IPC-SSC010


---

2U PCI-E x16 x 8 x 8 Fixed/Ribbon Risercard
Part code: GS-RC2U-PCIE1688

---



2U RIBBON RISER CARDS



2U 3 x PCI-32bit Ribbon Risercard

Part code: IPC-SSC014-5





Front Panel

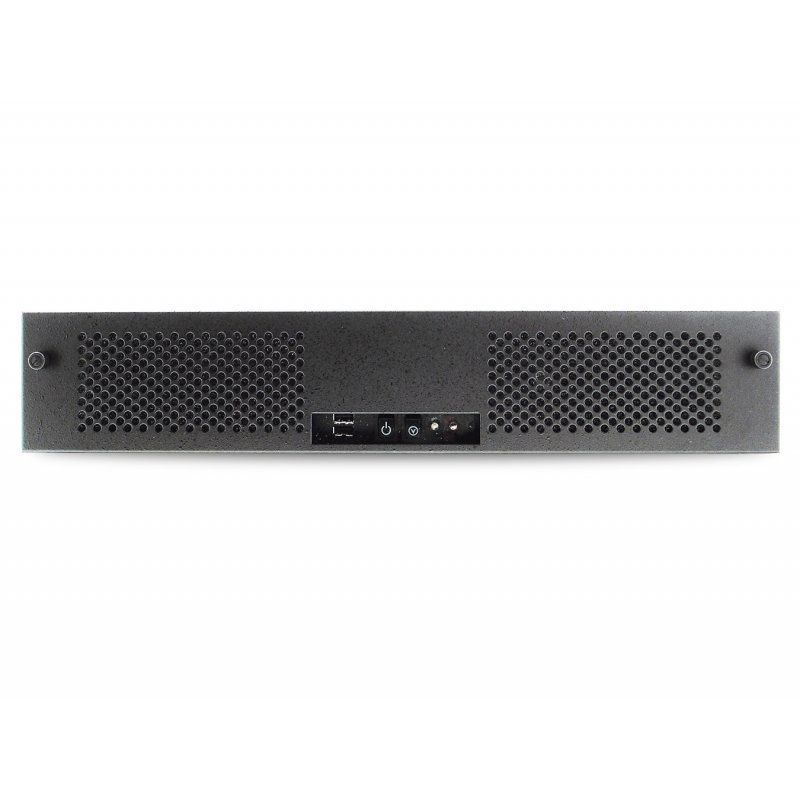

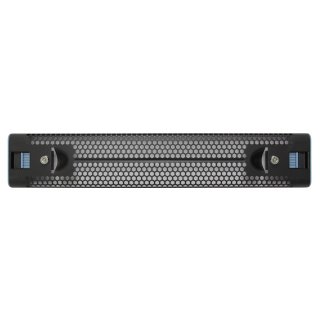

2U Mesh Front Panel Kit

Part code: IPC-FP-2F-XP-R

Heatsinks (Active/Passive)



1U ACTIVE CPU COOLERS

1U Active CPU Cooler (AM2/AM3 Socket)
Part code: CJ-JAC7209C

---



1U Active CPU Cooler (LGA 1156/1155/1150/1151)
Part code: CJ-JACLL03C

---

1U Active CPU Cooler (LGA1366/1356)
Part code: CJ-JACLB13C

---

1U Active Heatsink with Fan (Socket 478)
Part code: CJ-CE2QC


---

1U Active Heatsink With Side Flow Fan (LGA-775)
Part code: CJ-JACL511C


---

1U Active Heatsink With Side Flow Fan (Socket LGA 2011)
Part code: CJ-JACLR02C-0

---



1U PASSIVE CPU COOLERS

1U Passive CPU Cooler (K8)
Part code: CJ-JAC0807C

---

1U Passive CPU Cooler (LGA 1150/1151/1155/1156)
Part code: CJ-BK1156P


---

1U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B04C


---

1U Passive Heatsink (LGA-775)
Part code: CJ-950918-1


---



2U ACTIVE CPU COOLERS



2U Multi-Socket Active CPU Cooler (Intel LGA-1366/1356/1151/1150/1155/1156/775 compatible)
Part code: CJ-JYC9L06AGC-A

---



2U Active CPU Cooler With Side Fan Socket LGA 2011 Narrow
Part code: CJ-JYC1R38ATPTC







---





2U PASSIVE CPU COOLERS

2U Passive CPU Cooler (LGA 1151/1150/1156/1155)
Part code: CJ-JAC0L11A

---



2U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B40A
