• Flexible front I/O and rear I/O application options
• 4 x easy swap fans for superior cooling
• Supports GPU card with 2U riser card
• Supports up to 4 x 2.5” external hot swap drive bays
• Includes a redundant PSU 80+ Platinum
• Two front access USB 3.0 ports
• Short-depth design for space critical applications
• Supports 2 post or 4 post rack deployment
The IPC-C2E-BAR8-G3-PCI chassis is AIC's first model focused on the Edge-Computing appliance sector. Its flexibility to support both front and rear I/O is its biggest feature enabling it to be used in many scenarios. The clever design of the chassis allows for certain adjustments/changes to be made in the field to suit the enviroment during installation by field engineers. The 450mm short depth makes it easy to install into many different cabinets and racks.
Key Features
• Flexible front I/O and rear I/O application options
• 4 x easy swap fans for superior cooling
• Supports GPU card with 2U riser card
• Supports up to 4 x 2.5” external hot swap drive bays
• Includes a redundant PSU 80+ Platinum
• Two front access USB 3.0 ports
• Short-depth design for space critical applications
• Supports 2 post or 4 post rack deployment
| Dimensions (W x D x H) |
| • mm : 438 x 450 x 88 • inches : 17.2 x 17.7 x 3.5 |
| Industry Standard |
| EIA-RS310D |
| Material |
| Heavy-duty preplated SPGC cold-rolled steel |
| Color |
| Only Black Available |
| Cooling |
| Standard : • 4 x 60x38mm easy swap fans |
| Power Supply |
| Standard: • 800W 1+1 redundant PSU 80+ Platinum |
| Expansion Slot |
| Standard: • 1 x PCIe x16 Gen3 single slot + 1 x PCIe x8 Gen4 single slot Options: • 1 x PCIe x16 Gen4 dual slot + 1 x PCIe x8 Gen4 single slot • 7 x low profile slots |
| Front Panel |
| • System power on/off • System reset • 2 x USB ports |
| LED Indicators |
| • Power status • LAN activity • Drive activity |
| System Board |
| Up to 12”(W) x 13”(D) EATX compliant MB |
| Drive Bays |
| External : 4 x 2.5” |
| Backplanes |
| 2pcs dual ports SATA BP to support 4 x SATA |
| Storage Temperature |
| 0ºC(32ºF) ~ 50ºC(122ºF) |
| Humidity |
| 5%~95% non-condensing |
| Gross Weight (w/ PSU; w/o Rail) |
| • kgs: 13 • lbs: 28.5 |
| Package Dimension (W x D x H) |
| • mm : 655 x 580 x 244 • inches : 25.8 x 22.8 x 9.6 |
| Cubic Feet |
| 3.2 |
| Container Load Quantity |
| • 20’ : 295 • 40’ : 625 • 40’ H : 720 |
| Mounting |
| Option : • 20” slide rail |
| SKU Information | Description |
| XE1-2E000-01 | 2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 2x full-height slots,1x low profile slot rear window, with 1x PCIe Gen3 x16 slot riser card (RC-PE2U23-TY), 1x PCIe Gen4 x8 slot riser card (RC-PE1U34-TY), w/o rail |
| XE1-2E000-02(Standard) | 2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 2x full-height slots, 1x low profile slot rear window, with 1x PCIe Gen4 x16 slot + 1x PCIe Gen4 x8 slot riser card (shared/RC-PE2U22-TY), 1x PCIe Gen4 x8 slot riser card (RC-PE1U34-TY), w/o rail |
| XE1-2E000-03 | 2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 7 low profile slots rear window, w/o rail |
| XE1-2E000-04 | 2U external 4x 2.5" NVMe hot-swap (w/o slimline cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 7 low profile slots rear window, w/o rail |
| XE1-2E000-05 | 2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Titanium redundant power supply, 7 low profile slots rear window, w/o rail |
| XE1-2E000-06 | 2U external 4x 2.5" NVMe hot-swap (w/o slimline cable), 4x 6038 fan, 800W 1+1 Titanium redundant power supply, 7 low profile slots rear window, w/o rail |
| FRU Information | |
| Part Number | Description |
| H5541S100001 | 1U 20" slide rail GSLIDE-4101-36 (for 1U, RMC-2E, J2012-03, J2024-06, J2112-01 & J2124-01) |
| PH-A00000104 | 2U 1+1 550W redundant power supply Housing |
| PM-000000083 | 2U 1+1 550W redundant power supply Module |
| PH-A00000105 | 2U 1+1 800W redundant power supply Housing |
| PM-000000084 | 2U 1+1 800W redundant power supply Module |
| FC-000000338 | 6038 fan module |
| Datasheet/Manual | IPC-C2E-BR8-G4-PCI Datasheet/Manual |
| Product Images | IPC-C2E-BR8-G4-PCI_Front 45 |
|
|
|
| Product Images | IPC-C2E-BR8-G4-PCI_Front |
|
|
|
| Product Images | IPC-C2E-BR8-G4-PCI_Front_2 |
|
|
|

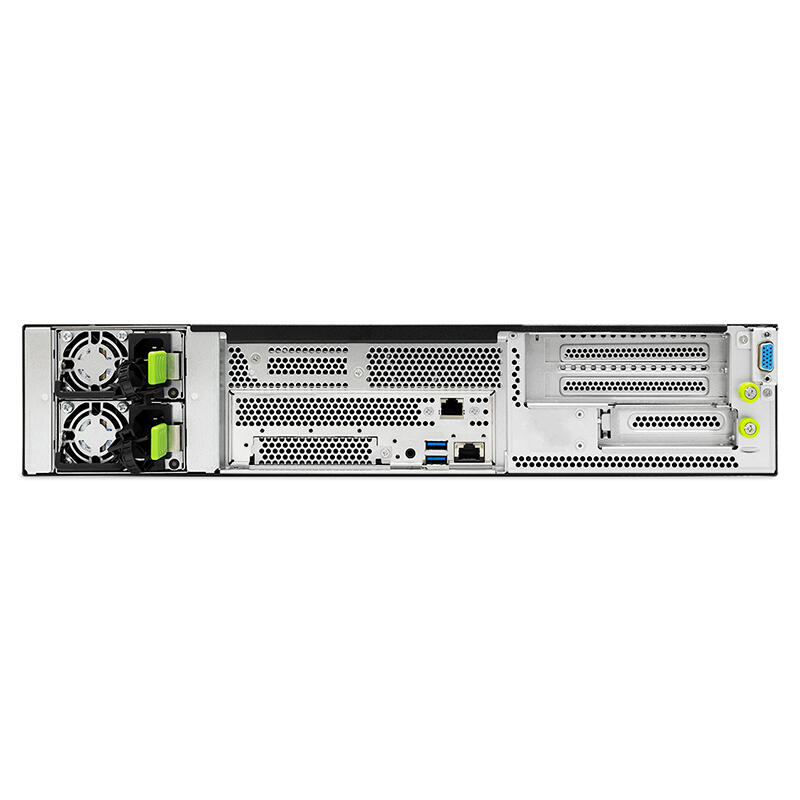

| Product Images | IPC-C2E-BR8G4-PCI_Rear |
 IPC-C2E-BAR8-G4-PCI_Rear_800_x_800.jpg |
|
| Product Images | IPC-C2E-BR8-G4-PCI_TopOpen |
|
|
