2U Short Chassis with Swappable Front or Rear IO Access-800Wx2 Red't platinum PSU with 7x low profile slots rear window

PCICASE Model No: IPC-C2E-BAR8-LP
Manufacturer Model No: XE1-2E000-03
UK Stock
Key Features

• Flexible front I/O and rear I/O application options
• 4 x easy swap fans for superior cooling
• Supports up to 4 x 2.5” external hot swap drive bays
• Includes a redundant PSU 80+ Platinum
• Two front access USB 3.0 ports
• Short-depth design for space critical applications
• Supports 2 post or 4 post rack deployment

Features And Benefits

The IPC-C2E-BAR8-LP chassis is AIC's first model focused on the Edge-Computing appliance sector. Its flexibility to support both front and rear I/O is its biggest feature enabling it to be used in many scenarios. The clever design of the chassis allows for certain adjustments/changes to be made in the field to suit the enviroment during installation by field engineers. The 450mm short depth makes it easy to install into many different cabinets and racks.



Key Features
• Flexible front I/O and rear I/O application options
• 4 x easy swap fans for superior cooling
• Supports GPU card with 2U riser card
• Supports up to 4 x 2.5” external hot swap drive bays
• Includes a redundant PSU 80+ Platinum
• Two front access USB 3.0 ports
• Short-depth design for space critical applications
• Supports 2 post or 4 post rack deployment

Dimensions (W x D x H)
• mm : 438 x 450 x 88
• inches : 17.2 x 17.7 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Only Black Available
Cooling
Standard :
• 4 x 60x38mm easy swap fans
Power Supply
Standard:
• 800W 1+1 redundant PSU 80+ Platinum
Expansion Slot
Standard:
• 1 x PCIe x16 Gen3 single slot + 1 x PCIe x8 Gen4 single slot
Options:
• 1 x PCIe x16 Gen4 dual slot + 1 x PCIe x8 Gen4 single slot
• 7 x low profile slots
Front Panel
• System power on/off
• System reset
• 2 x USB ports
LED Indicators
• Power status
• LAN activity
• Drive activity
System Board
Up to 12”(W) x 13”(D) EATX compliant MB
Drive Bays
External : 4 x 2.5”
Backplanes
2pcs dual ports SATA BP to support 4 x SATA
Storage Temperature
0ºC(32ºF) ~ 50ºC(122ºF)
Humidity
5%~95% non-condensing
Gross Weight (w/ PSU; w/o Rail)
• kgs: 13
• lbs: 28.5
Package Dimension (W x D x H)
• mm : 655 x 580 x 244
• inches : 25.8 x 22.8 x 9.6
Cubic Feet
3.2
Container Load Quantity
 20’ : 295
 40’ : 625
 40’ H : 720
Mounting
Option :
 20” slide rail
SKU Information Description
XE1-2E000-01 2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 2x full-height slots,1x low profile slot rear window, with 1x PCIe Gen3 x16 slot riser card (RC-PE2U23-TY), 1x PCIe Gen4 x8 slot riser card (RC-PE1U34-TY), w/o rail
XE1-2E000-02 2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 2x full-height slots, 1x low profile slot rear window, with 1x PCIe Gen4 x16 slot + 1x PCIe Gen4 x8 slot riser card (shared/RC-PE2U22-TY), 1x PCIe Gen4 x8 slot riser card (RC-PE1U34-TY), w/o rail
XE1-2E000-03(Standard) 2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 7 low profile slots rear window, w/o rail
XE1-2E000-04  2U external 4x 2.5" NVMe hot-swap (w/o slimline cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 7 low profile slots rear window, w/o rail
XE1-2E000-05 2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Titanium redundant power supply, 7 low profile slots rear window, w/o rail
XE1-2E000-06 2U external 4x 2.5" NVMe hot-swap (w/o slimline cable), 4x 6038 fan, 800W 1+1 Titanium redundant power supply, 7 low profile slots rear window, w/o rail
FRU Information
Part Number Description
H5541S100001 1U 20" slide rail GSLIDE-4101-36 (for 1U, RMC-2E, J2012-03, J2024-06, J2112-01 & J2124-01)
PH-A00000104 2U 1+1 550W redundant power supply Housing
PM-000000083 2U 1+1 550W redundant power supply Module
PH-A00000105 2U 1+1 800W redundant power supply Housing
PM-000000084 2U 1+1 800W redundant power supply Module
FC-000000338 6038 fan module
Datasheet/Manual IPC-C2E-BAR8-LP Datasheet/Manual


 IPC-C2E-BAR8-LP_Datasheet.pdf

IPC-C2E-BAR8-LP_User_Manual.pdf

Product Images IPC-C2E-BAR8-LP Front 45





Product Images                                          IPC-C2E-BAR8-LP_Front


 IPC-C2E-BAR8_Front_800



Product Images IPC-C2E-BAR8-LP Front_2

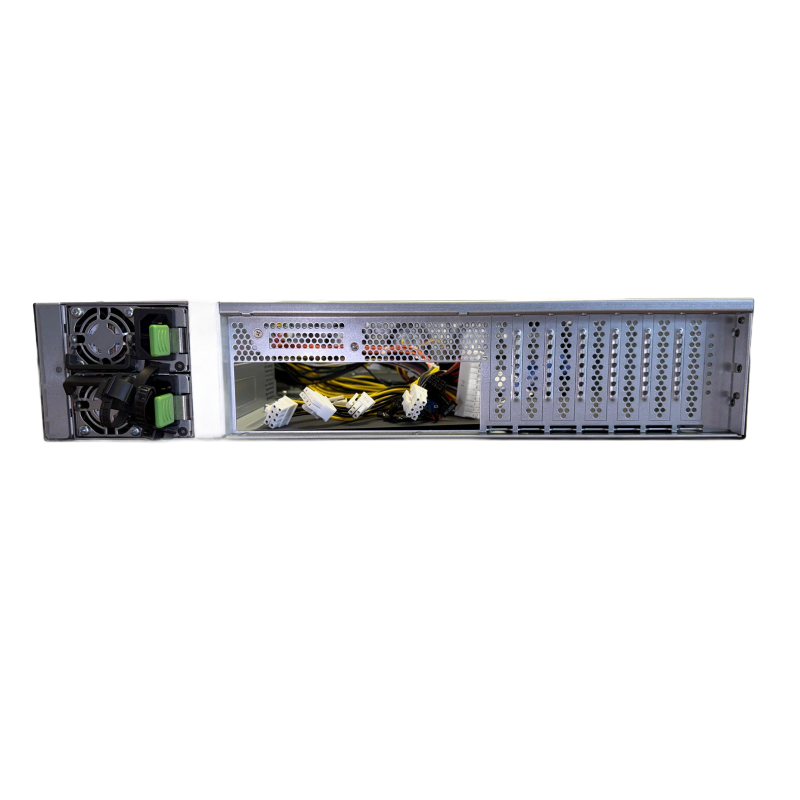

Product Images IPC-C2E-BAR8-LP_Rear

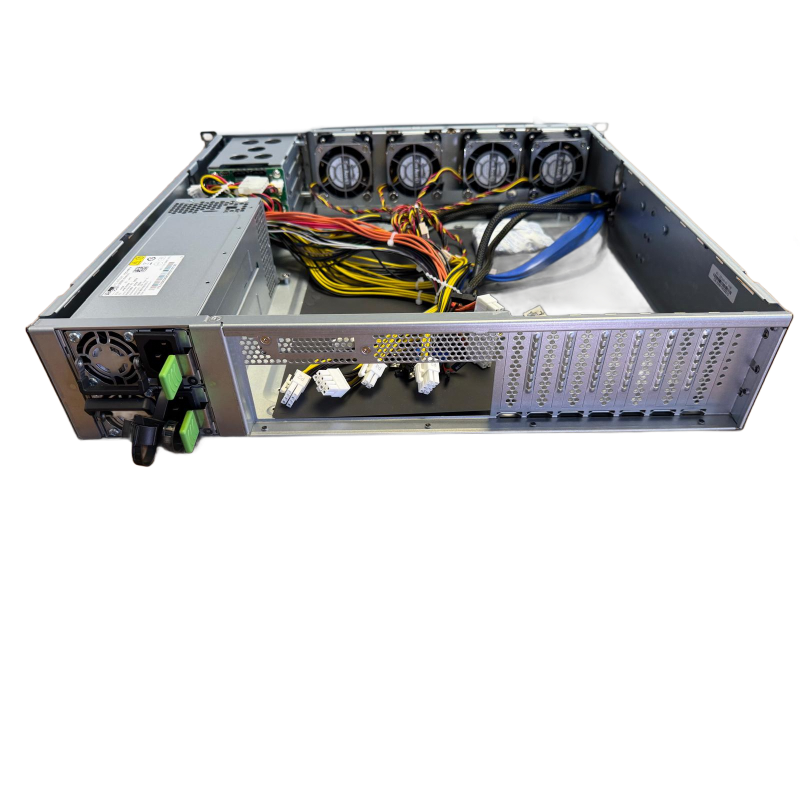

Product Images IPC-C2E-BAR8-LP_TopOpen
