2U short depth with AIC Capella Motherboard supports 4th Gen AMD EPYC™ Processors (Codename “Genoa”)

PCICASE Model No: EB202-CP

Manufacturer Model No: XP1-E202CP12

Please Call Sales

Features & Benefits

Preliminary
• Supports E1.S, E3.S (2 types of EDSFF) and U.2 form factor as Open Bay design
• Supports 4th Gen AMD EPYC™ Processors (Codename “Genoa”)
• Short-depth design for space critical applications
• 3 PSU Options: single, redundant/single and DC input
• Supports up to 2 GPU cards
• Full drive removal with one lever
• Front-to-back airflow and hot swap reduandant fans to provide optimal thermal conditions

EB202-CP
Features & Benefits
EB202-CP performance in a short-depth form factor, it is ideal for 5G, low-latency, and computing edge applications. Supports Zen4 AMD EPYC™ 9004 series processors with PCIe Gen5 extension design. It supports Gen5 hot swappable EDSFF, can equip eight Gen5 E1.S/E3.S or four Gen4 U.2 NVMe, quickly remove all storage(8bay), achieve an extra layer of security.

Key Features
• Supports E1.S, E3.S (2 types of EDSFF) and U.2 form factor as Open Bay design
• Supports 4th Gen AMD EPYC™ Processors (Codename “Genoa”)
• Short-depth design for space critical applications
• 3 PSU Options: single, redundant/single and DC input
• Supports up to 2 GPU cards
• Full drive removal with one lever
• Front-to-back airflow and hot swap reduandant fans to provide optimal thermal conditions

Dimensions (W x D x H)

• mm : 438 x 558.8 x 87.2
• inches : 17 x 22 x 3.4

Motherboard

Code Name - Capella

Processor

Processor Support :
4th Gen AMD EPYC™ Processors (Codename “Genoa”)

CPU Interconnection: AMD Genoa 320/280W Top

Socket Type : SP5

Chipset Support

AMD Zen4 Genoa EPYC

System Memory

• DDR5 4800 MHz
• Total 8 memory slots

Front Panel

Power switch, Reset button, ID button, 2 x USB 2.0

LEDs

Front panel:
• Power status, HDD status, Lan LED, BMC Alert LED, ID LED

SSD status:
• Green light : running
• Flashing green light : reading
• Amber light : no function, customize
• Blue light : no function, customize

PSU:
• Constant bright green light : system running
• Red light : power has issue
• Flashing green light : has power but system does not turned on

Drive Bays

External :
Options:
• E1.S 8-bay
• E3.S 8-bay
• U.2 8-bay

Backplane

• 1 x 8-port E1.S/E3.S backplane
• 1 x 8-port U.2 backplane (option)

Expansion Slots (PCIe 5.0)

• 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear)
• 1 x OCP 3.0 Mezz. PCIe Gen5 x16
• 4 x MCIO (x16) support total 64 lanes PCIe Gen5
• 2 M.2 22110 PCIE Gen5 x4

System BIOS

BIOS Type :
AMI / SPI (Serial Peripheral Interface)
FLASH interface

BIOS Features :
• ACPI
• PXE
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SR-IOV
• CXL
• Secure Boot
• TPM
• PCIe Hotplug

On-board Devices

SATA :
2 x SATA3 7pin (support RAID 0/1) share with M.2 SATA3

IPMI :
IPMI 2.0 compatible BMC with iKVM support / AST2600 (eSPI)

Network Controllers :
• Broadcom BCM5720 for BMC shared NIC management and Data transfer
• Realtek RTL8211F GbE for BMC dedicate management port (NCSI shared NIC - reserved BCM5720)

Graphics :
1920X1200 32bpp@60Hz

Rear I/O

LAN:
1 x RJ45 for Dedicated BMC management

USB:
2 x USB 3.0 Type A connectors

Serial Port:
1 x COM (for audio jack)

Display:
1 x Mini display port

Power Supply

1200W 1+1, 12V single power-in 3 PSU options:
• Training simulation - single PSU
• Edge applications - redundant/single
• Edge applications and vehicle - DC input

System Cooling

Low noise/low power fans, 4 x 6056 fans, supports fan redundancy, 2 x 4028 fans in back of EDSFF drive backplane

System Management

• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support

Environmental Specifications

• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing

* All specifications are subject to change without notice.

Standard SKU: XP1-E202CP12
2U 4-bay U.2 PCIe Gen.4 backplane, 1200W 1+1 redundant 80+ Platinum, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel

Datasheet

EB202-CP_Datasheet

Size : 1 MB

Download

Product Images

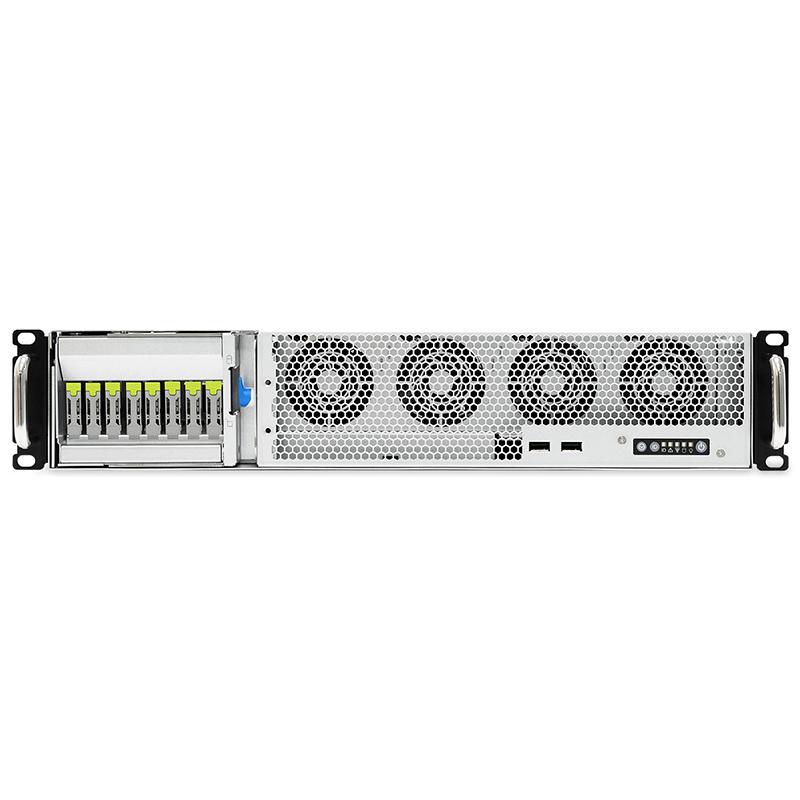

EB202-CP(E1.S)_Front45	Size : 154 KB	Download
EB202-CP(E1.S)_Front	Size : 174 KB	Download

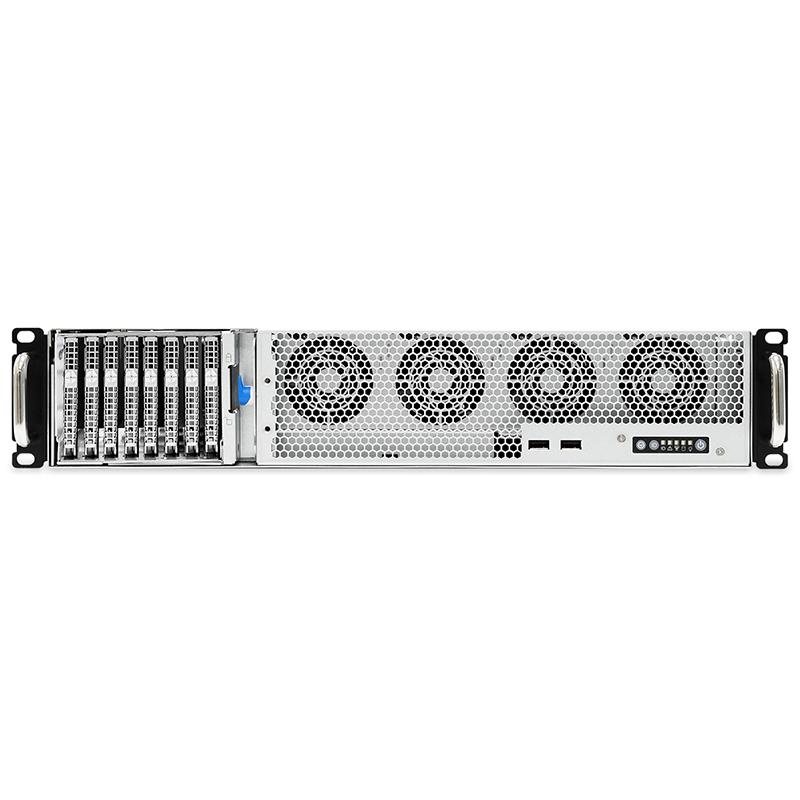

EB202-CP(E3.S)_Front	Size : 178 KB	Download

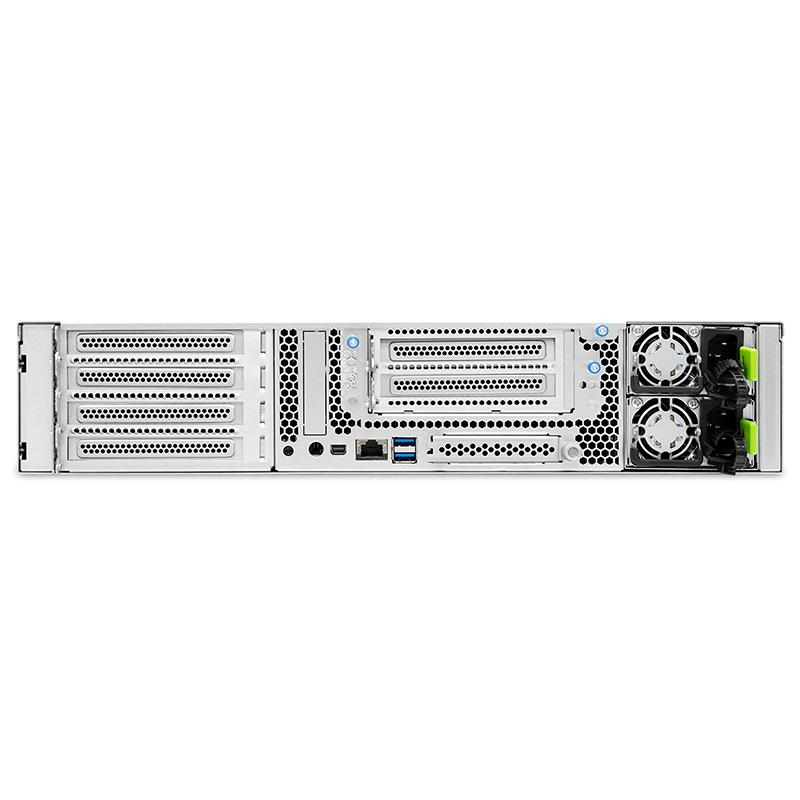

EB202-CP_Rear	Size : 183 KB	Download

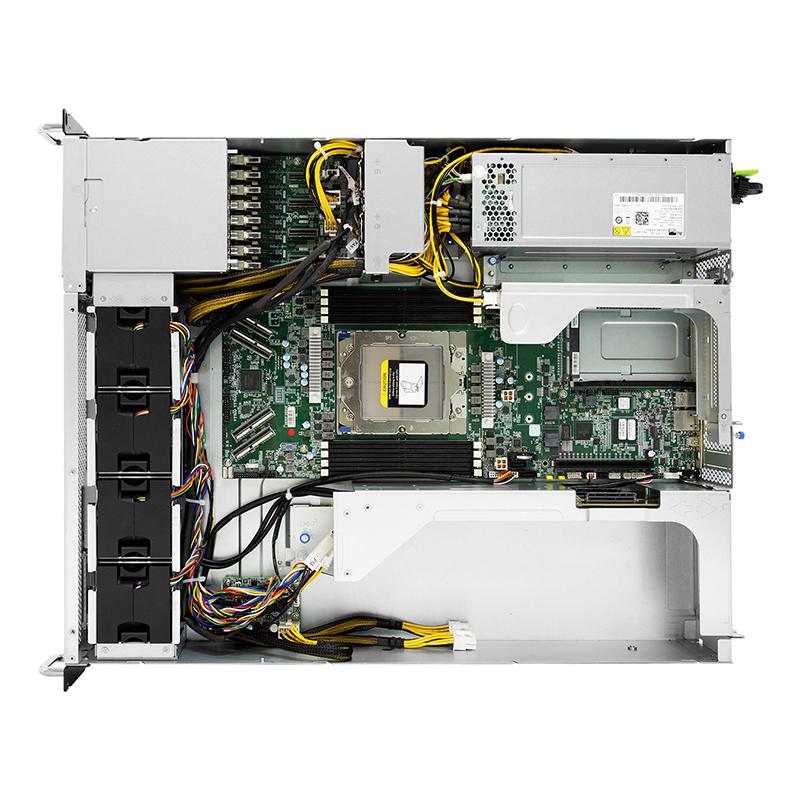

EB202-CP_Top View	Size : 373 KB	Download

AVL

EB202-CP_MB AVL	Size : 141 KB	Download
EB202-CP_System AVL	Size : 146 KB	Download

SKU Information	Description
XP1-E202CP01	2U 8-bay E1.S PCIe Gen.5 backplane, 1600W 1+1 redundant 80+ Platinum, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel
XP1-E202CP02	2U 8-bay E3.S PCIe Gen.5 backplane, 1600W 1+1 redundant 80+ Platinum, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel
XP1-E202CP03	2U 4-bay U.2 PCIe Gen.4 backplane, 1600W 1+1 redundant 80+ Platinum, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel
XP1-E202CP06	2U 4-bay U.2 PCIe Gen.4 backplane, 1600W 1+1 redundant 80+ Titanium, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel
XP1-E202CP09	2U 4-bay U.2 PCIe Gen.4 backplane, 1200W 1+1 redundant DC -48V, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel
XP1-E202CP12 (standard)	2U 4-bay U.2 PCIe Gen.4 backplane, 1200W 1+1 redundant 80+ Platinum, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel
