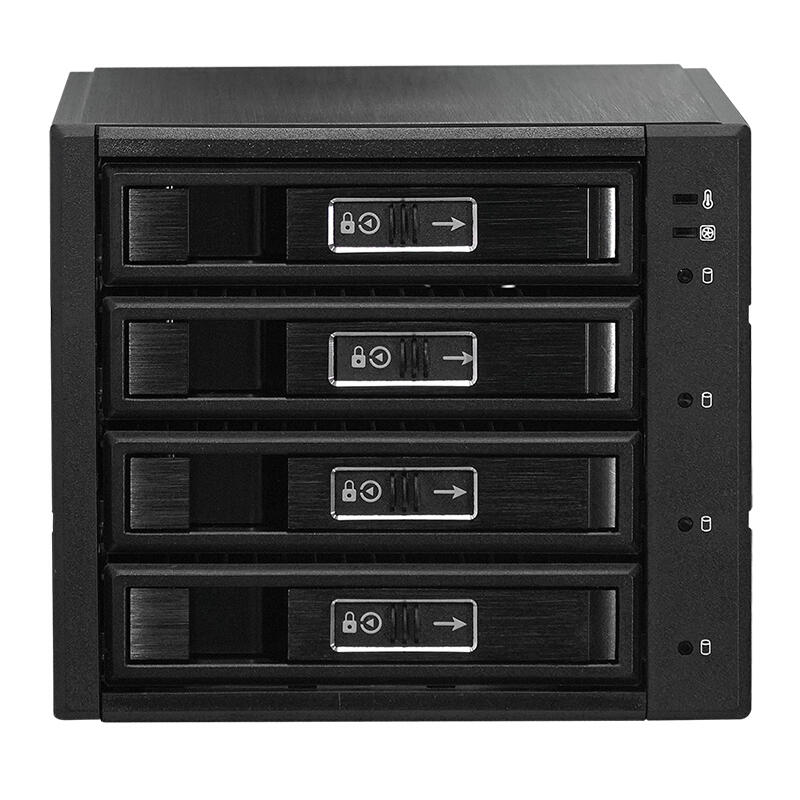

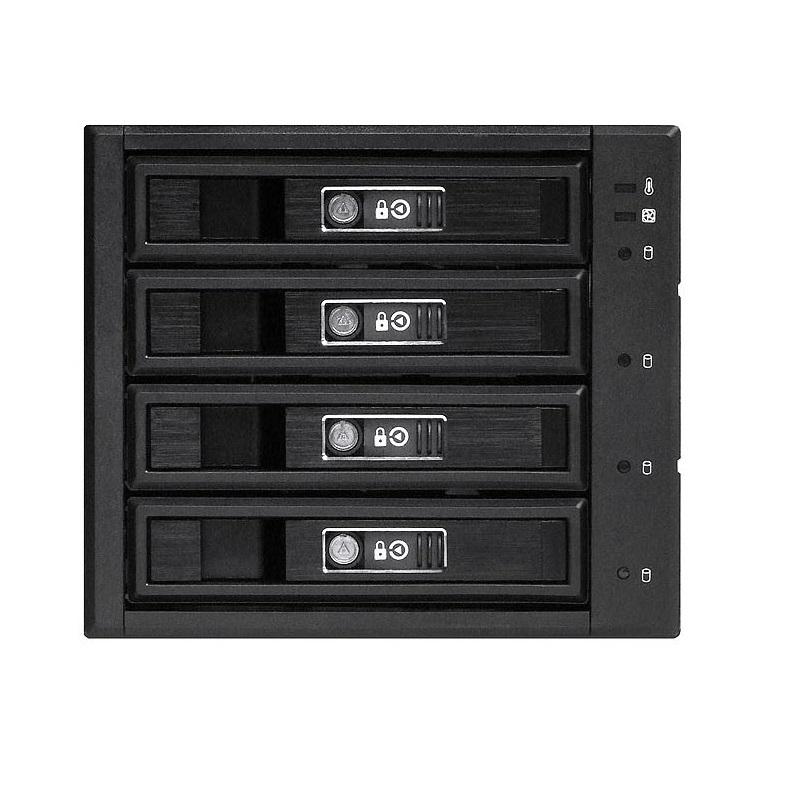

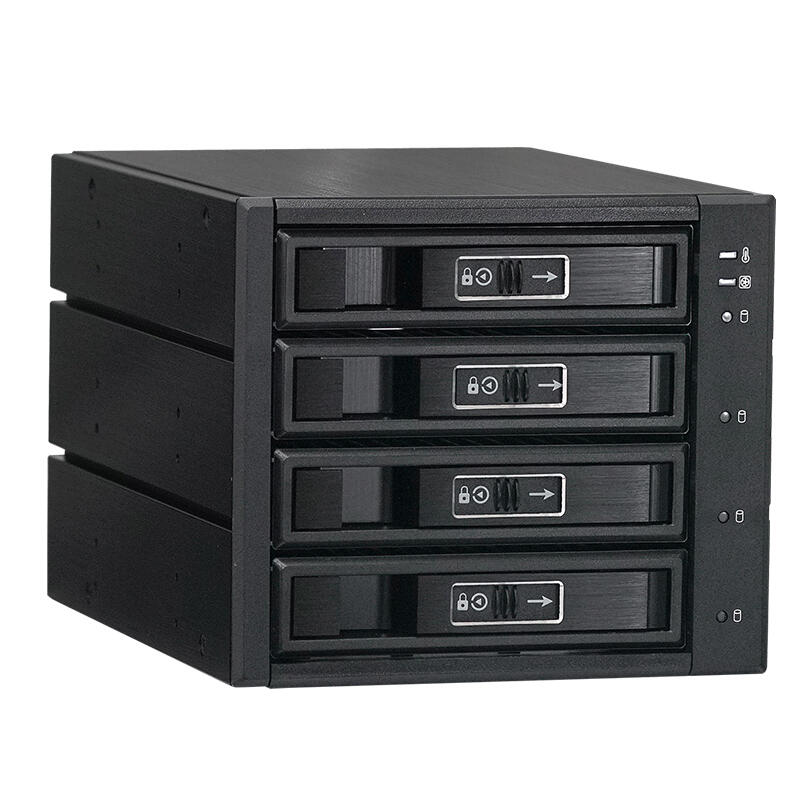

3 x 5.25" to 4 x 3.5" 12G + 6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design.

PCICASE Model No: N-46TM
Manufacturer Model No: N-46TM
UK Stock
Key Features
  • Converts 3 x 5.25" Bay for 4 x 3.5" HDD Hot-Swap
  • Key Locking For Added Security
  • 6 Gb/s Via SATA Cable

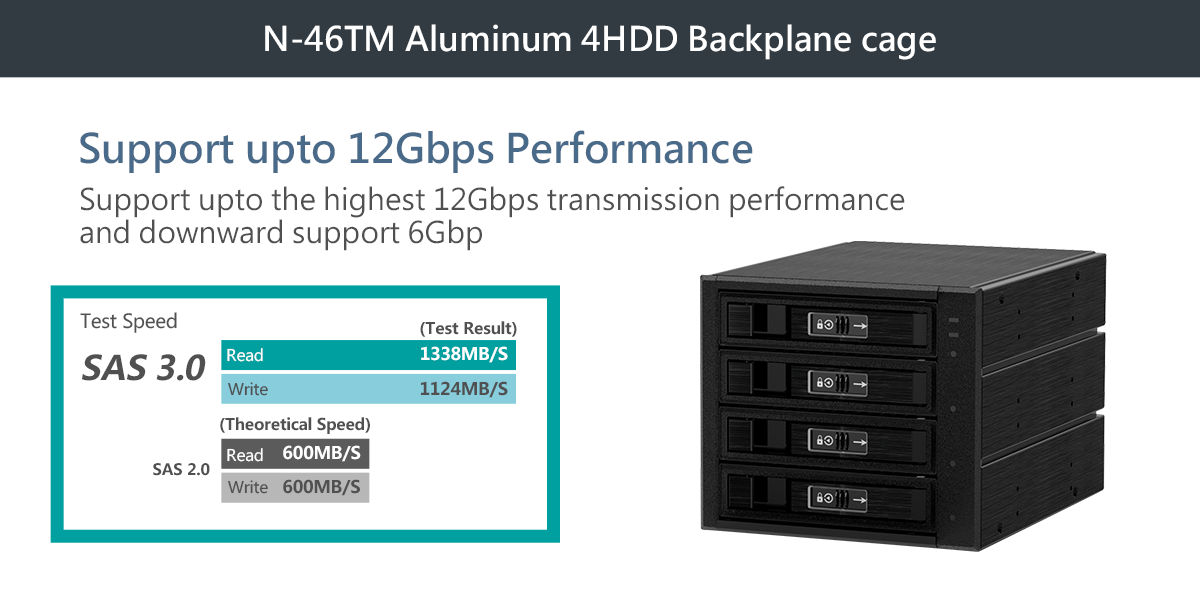

  • 12 Gb/s Via SATA to 8643 Fly Out Cable






N-46TM Specification

Form Factor 3 X 5.25 Drive Bay
Support HDD Type 4 X 3.5” SATA I, II, III & SAS I, II, III (12Gbps) HDD/ SSD

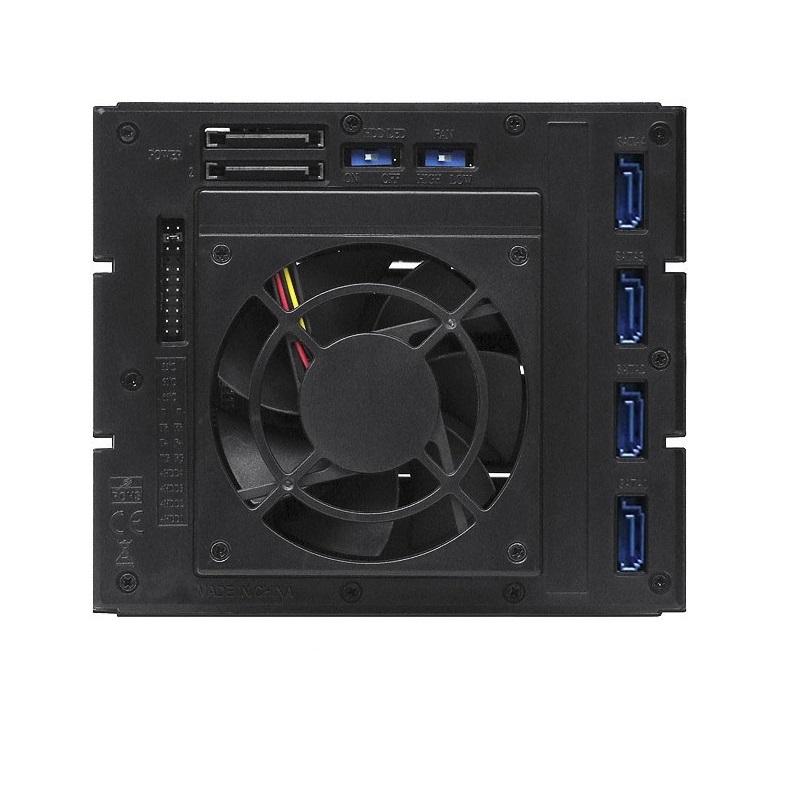

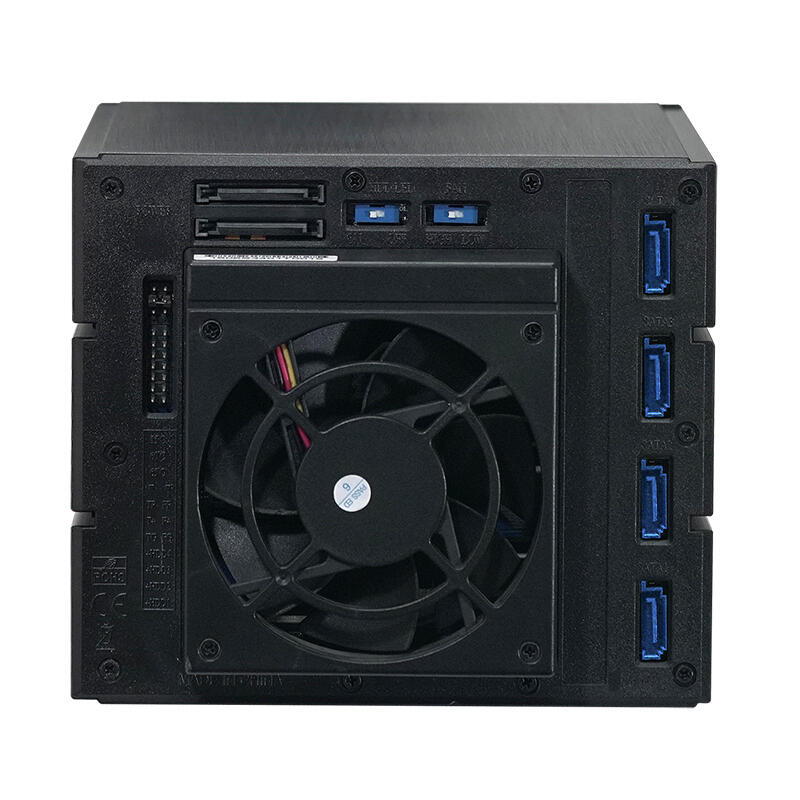

Interface

7pin SATA Connector X 4

15pin SATA Power Connector X 2

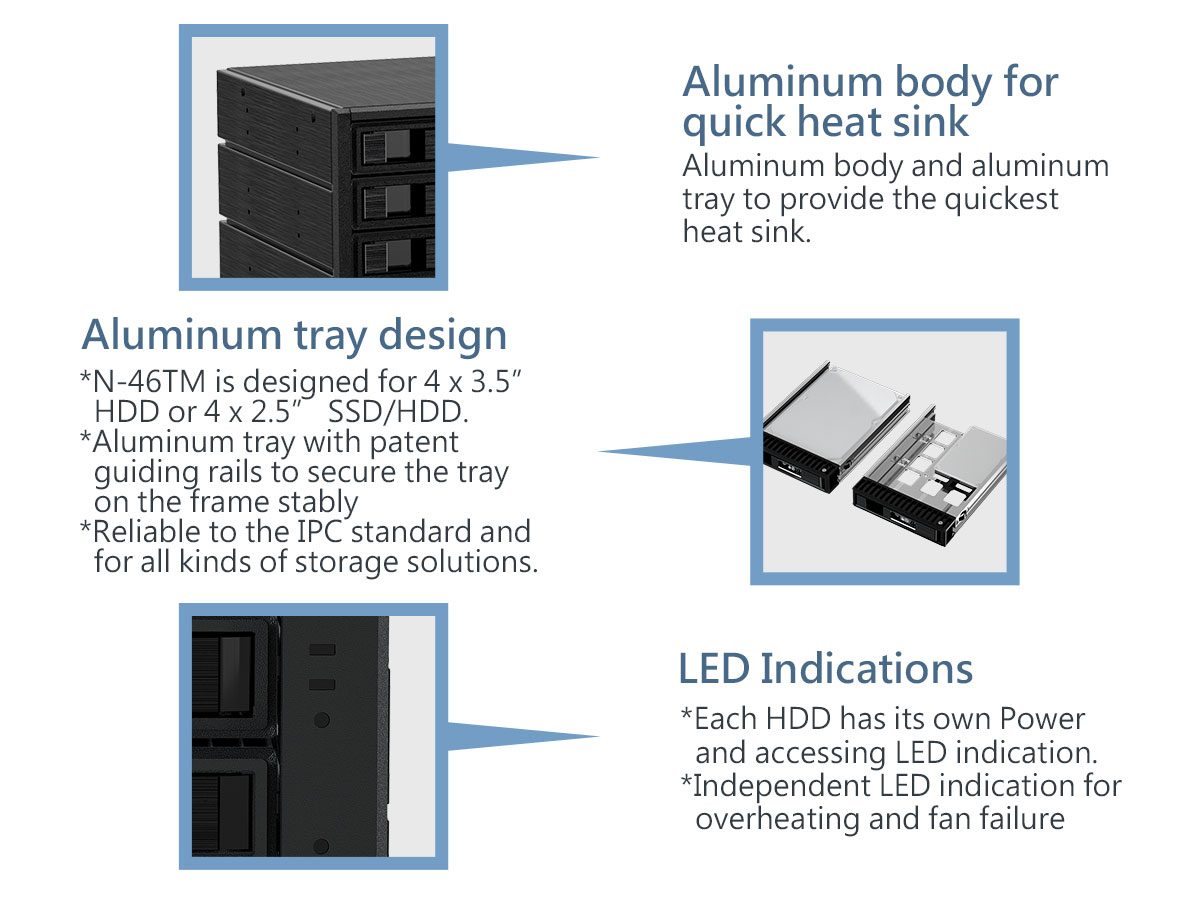

LED Indication

Power On- Green

HDD Access- Orange Blinking

Fan Failure- Red

Overheating- Red

LED Indicating On/Off Switch
Security Design Metal Key Lock

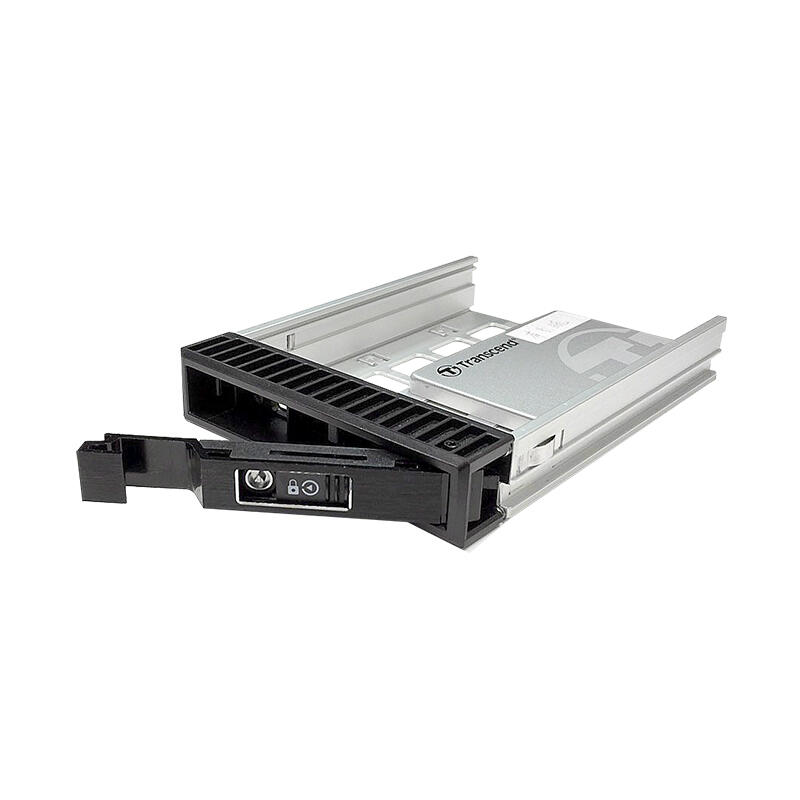

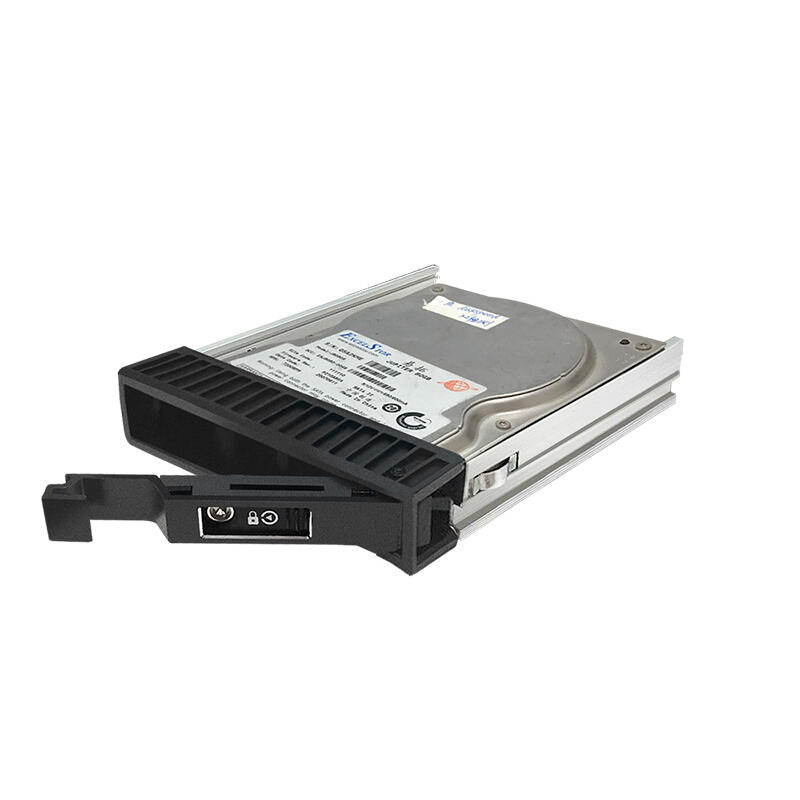

Material Aluminum Body And HDD Tray
Fan 8 Cm Fan X 1
Operating System Windows/ Linux/Mac
Product Dimension 145.8(L) X 211.2(W) X 125.5(H) Mm
Product Weight 1.88kg
