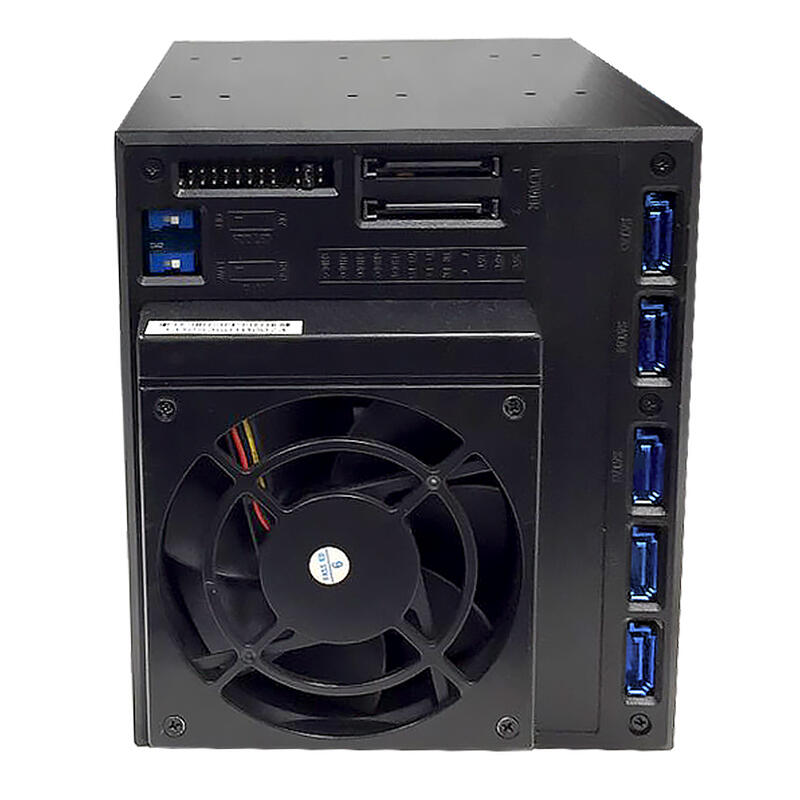

3 x 5.25" to 5 x 3.5" 12G + 6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design.

PCICASE Model No: N-56TM
Manufacturer Model No: N-56TM
UK Stock
Key Features
  • Converts 3 x 5.25" Bay for 5 x 3.5" HDD Hot-Swap
  • Key Locking For Added Security
  • 1 x 8cm Fan For Effective Cooling
  • 6 Gb/s Transfer Rate via SATA Cable
  • 12 Gb/s Via SATA to 8643 Fly-out Cable

N-56TM Specification

Form Factor 3 X 5.25 Drive Bay
Support HDD Type 4 X 3.5” SATA I, II, III & SAS I, II, III (12Gbps) HDD/ SSD
Interface

7pin SATA Connector X 5

15pin SATA Power Connector X 2
LED Indication

Power On- Green

HDD Access- Orange Blinking

Fan Failure- Red

Overheating- Red

LED Indicating On/Off Switch
Security Design Metal Key Lock
Material Aluminum Body And HDD Tray
Fan 8 Cm Fan X 1
Operating System Windows/ Linux/Mac
Product Dimension 145.8(L) X 211.2(W) X 126.0(H) Mm
Product Weight 1.13kg
