4U 24x SAS 12Gbs bay system with provides high availability in an active-active configuration. It comes with two AIC Server Boards (one board per node), each supporting dual Intel® Xeon® Scalable family (ICE LAKE) processors.

PCICASE Model No: HA401-TU
Manufacturer Model No: XP1-A401TU05
7-28 Day Delivery

Key Features
• 4U 2-Node high-availability storage server supports 24 hot swap 3.5” SAS drive bays

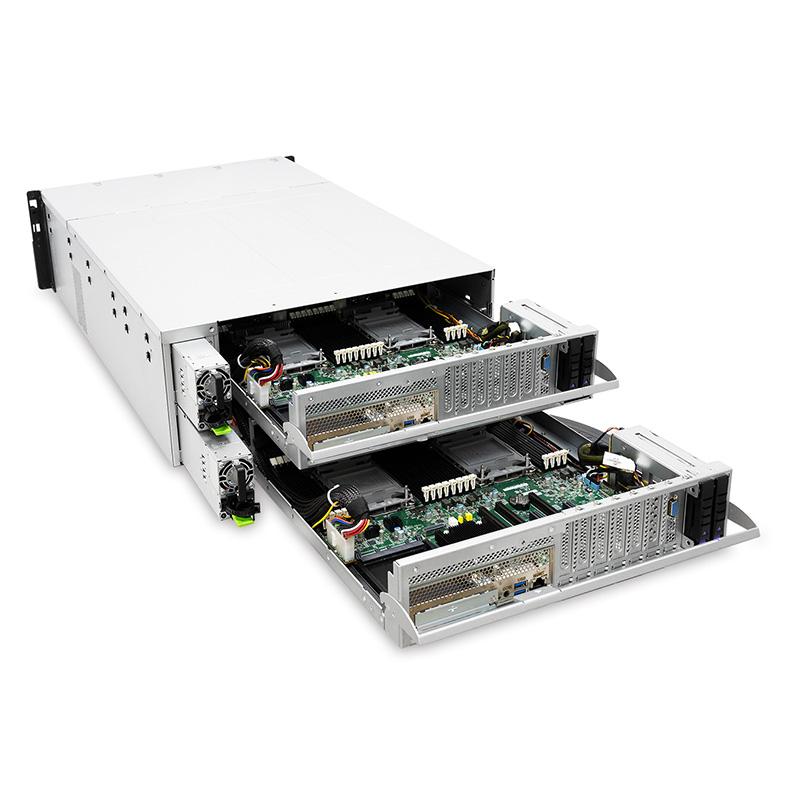

• Fully redundant, fault-tolerant system supporting hot-swappable compute nodes and storage drives
• Two compute nodes, Active-Active configuration, each supporting 3rd Gen Intel® Xeon® Scalable Processors (Ice lake CPU)
• 10GbE, PCIe NTB or SAS link between nodes for communication and fail-over
• Built-in Broadcom 35X48 SAS/SATA expander per node
• Intel® Trusted Platform Module (TPM) header to support Intel® Trusted Execution Technology (TXT)
• 5 x PCIe 4.0 slots + 1 x OCP 3.0

HA401-TU

Features & Benefits

HA401-TU is a 4U 24x SAS 12Gbs bay system with provides high availability in an active-active configuration. It comes with two AIC Server Boards (one board per node), each supporting dual Intel® Xeon® Scalable family (ICE LAKE) processors. Both nodes process I/Os and provide simultaneous and balanced access to the logical devices, which increases overall cluster performance significantly. When failover occurs, the secondary node automatically takes over the devices, client connections, and all processes/services of the system. It provides protection from loss of revenue when access to data resources and critical business applications are disrupted. The HA401-TU eliminates SPOFs (single point of failures). It is optimized for mission-critical, enterprise-level storage applications.

Key Features
• 4U 2-Node high-availability storage server supports 24 hot swap 3.5” SAS drive bays
• Fully redundant, fault-tolerant system supporting hot-swappable compute nodes and storage drives
• Two compute nodes, Active-Active configuration, each supporting 3rd Gen Intel® Xeon® Scalable Processors (Ice lake CPU)
• 10GbE, PCIe NTB or SAS link between nodes for communication and fail-over
• Built-in Broadcom 35X48 SAS/SATA expander per node
• Intel® Trusted Platform Module (TPM) header to support Intel® Trusted Execution Technology (TXT)
• 5 x PCIe 4.0 slots + 1 x OCP 3.0

Dimensions (W x D x H)
• mm : 438 x 705 x 174.5
• inches : 17.2 x 27.7 x 6.8

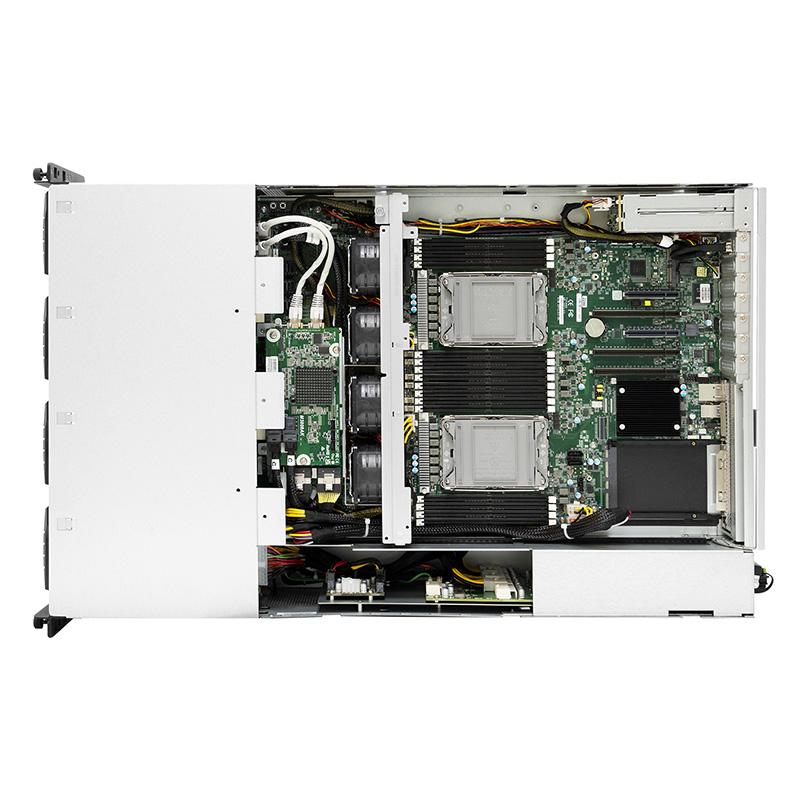

Motherboard
AIC Server Board Tucana
Processor
Processor Support :
3rd Gen Intel® Xeon® Scalable Processors (Ice Lake)
*Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.
UPI Speeds: 10.4 / 11.2 GT/s
Socket Type : Socket P+ (LGA-4189)
Chipset Support
Intel® C621A Chipset
System Memory
• DDR4 3200/2933MHz RDIMM/LRDIMM
• Total 16 memory slots; 8 channel per CPU (1DPC)
Front Panel
System Power on/off, Node Power & Warning LEDs
LEDs
Power, LAN, Drive and Alert
Drive Bays
External :
• 24 x 3.5" hot swap
• 2 x 2.5" hot swap (rear, optional)
Internal :
• 2 x M.2(NGFF)/M-Key/2280
Expansion Slots  (PCIe 4.0)
• 3 x PCIe X16 slots HHHL(LP) + 1 x OCP 3.0
• 2 x PCIe X8 slots HHHL(LP)
Expansion Board
1 x 48-port 12Gb SAS expander board
System BIOS

BIOS Type:
AMI UEFI BIOS
• SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe hotplug
On-board Devices
SATA/SAS :
Lewisburg PCH on-chip solution supports 12 x SATA 6.0 Gb/s
• 2 x SATA 7pin
• 8 x SATA by Slimline + 2 x SATA by M.2 (supports both SATA/PCIe by PCH HSIO)
IPMI :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
Network Controllers :
• Realtek RTL8211E GbE for BMC dedicated management port (NCSI shared NIC - reserved for OCP & I210 by jumper setting)
• Intel I210 GbE for BMC shared NIC management port by onboard connector (NCSI shared NIC - reserved for OCP V3.0)
Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

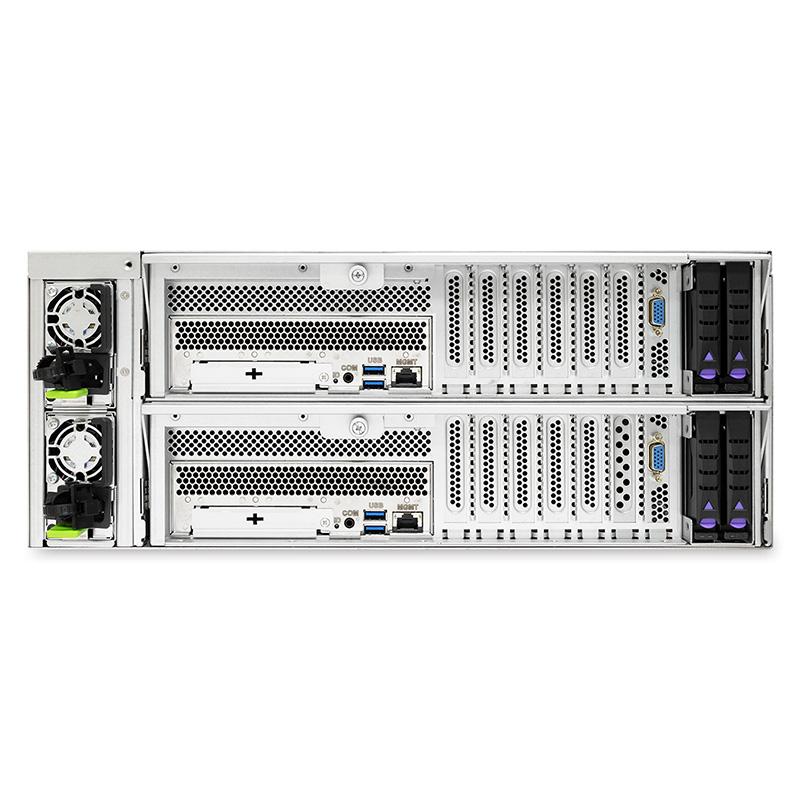

Rear I/O
LAN:
1 x GbE dedicated IPMI
USB:
2 x USB 3.0 double-stack Type A connectors
VGA:
1 x external DB-15 VGA port
Serial Port:
1 x external COM port phone jack
Power Supply
• 1200W 1+1 CRPS RPSU 80+ Platinum (~165W processors) by CPU/NVMe supporting wattage SKU options
• 1600W 1+1 CRPS RPSU 80+ Platinum/AC TO DC/1U/100-240V
System Cooling
8 x 60x38mm easy swap fans
System Management
• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID/System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• Intel NM
Environmental Specifications
• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage Operating Humidity : 5%~95% non-condensing
Gross Weight (w/PSU & Rail)
• kgs : 47
• lbs : 104
Packaging Dimensions (W x D x H)
• mm : 605 x 1030 x 404
• inches : 23.8 x 40.6 x 15.9
Mounting
Standard : 36" slide rail

* All specifications are subject to change without notice.

HA401-TU_Datasheet Size : 1 MB  Download
HA401-TU_Front45 Size : 173 KB  Download
HA401-TU_Front Size : 230 KB  Download
HA401-TU_Rear Size : 320 KB  Download
HA401-TU_TopOpen Size : 371 KB  Download
HA401-TU_Rear45 Size : 272 KB  Download
HA401-TU_AVL Size : 171 KB  Download
HA401-TU_BIOS_Tuch0040 Size : 8 MB  Download
HA401-TU_BMC_SKU2_SKU5_HA401TU010502 Size : 31 MB  Download
HA401-TU_Intel_Chipset_Tucana Size : 3 MB  Download
HA401-TU_Intel_Ethernet_Tucana Size : 82 MB  Download
HA401-TU_Intel_Graph_Driver_Tucana Size : 3 MB  Download
HA401-TU_Intel_VROC_and_ RSTe_Tucana Size : 77 MB  Download
HA401-TU_User's Manual Size : 14 MB  Download
SKU Information Description
XP1-A401TU01

4U 24-bay high availability storage server, 24x 12G SATA/SAS hot-swap 3.5/2.5" bay, 2x canister, 1200W 1+1 Platinum redundant power supply, 8x 6038 fan, 36" slide rail, w/o bezel
Per canister node: Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4 (HHHL), 2x PCIe x8 Gen.4 (HHHL), 1x OCP 3.0 x16 Gen.4, , 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 2x 2.5" hot-swap SATA
XP1-A401TU02

4U 24-bay high availability storage server, 24x 12G SATA/SAS hot-swap 3.5/2.5" bay, 2x canister, 1200W 1+1 Platinum redundant power supply, 8x 6038 fan, 36" slide rail, w/o bezel
Per canister node: Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4 (HHHL), 2x PCIe x8 Gen.4 (HHHL), 1x OCP 3.0 x16 Gen.4, , 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 2x 2.5" hot-swap PCIe Gen.4 NVMe
XP1-A401TU03 4U 24-bay high availability storage server, 24x 12G SATA/SAS hot-swap 3.5/2.5" bay, 2x canister, 1200W 1+1 Platinum redundant power supply, 8x 6038 fan, 36" slide rail, w/o bezel
Per canister node: Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4 (HHHL), 2x PCIe x8 Gen.4 (HHHL), 1x OCP 3.0 x16 Gen.4, , 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 2x 8644 mini SAS HD external ports

XP1-A401TU04

 4U 24-bay high availability storage server, 24x 12G SATA/SAS hot-swap 3.5/2.5" bay, 2x canister, 1600W 1+1 Platinum redundant power supply, 8x 6038 fan, 36" slide rail, w/o bezel
Per canister node: Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4 (HHHL), 2x PCIe x8 Gen.4 (HHHL), 1x OCP 3.0 x16 Gen.4, , 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 2x 2.5" hot-swap SATA

XP1-A401TU05

(Standad)

 4U 24-bay high availability storage server, 24x 12G SATA/SAS hot-swap 3.5/2.5" bay, 2x canister, 1600W 1+1 Platinum redundant power supply, 8x 6038 fan, 36" slide rail, w/o bezel
Per canister node: Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4 (HHHL), 2x PCIe x8 Gen.4 (HHHL), 1x OCP 3.0 x16 Gen.4, , 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 2x 2.5" hot-swap PCIe Gen.4 NVMe
XP1-A401TU06 4U 24-bay high availability storage server, 24x 12G SATA/SAS hot-swap 3.5/2.5" bay, 2x canister, 1600W 1+1 Platinum redundant power supply, 8x 6038 fan, 36" slide rail, w/o bezel
Per canister node: Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4 (HHHL), 2x PCIe x8 Gen.4 (HHHL), 1x OCP 3.0 x16 Gen.4, , 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 2x 8644 mini SAS HD external ports
