Key Features
• High-density storage server chassis
• Tool-less design for easy maintenance:
- 60 tool-less top-loading 3.5” drive trays with built-in light pipe for drive status LED
- Tool-less top cover
- Tool-less drive backplane sliding mechanism
• Hot swap cooling fans and 80+ redundant power supply
• Supports up to 2 x 2.5” hot swap drives for OS
• Supports single drive power cycle setting
IPC-C4H-R1600-12G is a 4U 60-Bay high density storage server chassis with tool-less design features. Unlike typical 4U server chassis which accommodate 24 or 36 drives, IPC-C4H-R1600-12G supports 60 top-loading 3.5” drive trays to save rack space and lower power consumption. It is suitable for cold storage which requires the capacity for vast amount of data but allows slower data retrieval and response time. Some suitable applications include media storage, medical imaging, email archiving, public or private cloud storage and data warehousing. Tool-less features on drive trays, top cover and backplane sliding mechanism make assembly and maintenance quick and easy. (Power supply is included. Motherboard is not included.)
Key Features
• High-density storage server chassis
• Tool-less design for easy maintenance:
- 60 tool-less top-loading 3.5” drive trays with built-in light pipe for drive status LED
- Tool-less top cover
- Tool-less drive backplane sliding mechanism
• Hot swap cooling fans and 80+ redundant power supply
• Supports up to 2 x 2.5” hot swap drives for OS
• Supports single drive power cycle setting
| Dimensions (W x D x H) |
| • mm : 435 x 950 x 177 • inches : 17 x 37.4 x 7 |
| Industry Standard |
| EIA-RS310D |
| Material |
| Heavy-duty preplated SPGC cold-rolled steel |
| Color |
| Front Panel : Black |
| Cooling |
| • Middle : 4 x 80x38mm PWM & low-power consumption hot swap fans • Rear : 2 x 60x38mm PWM easy swap fans |
| Power Supply |
| • Standard : 1600W 1+1 redundant PSU 80+ Platinum |
| Expansion Slots |
| 7 full height |
| Front Panel |
| • System power on/off • System reset • 2 x USB 3.0 ports |
| LED Indicators |
| • Power • LAN • Drive • Alert |
| System Board |
| 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB |
| Drive Bays |
| External : 2 x 2.5” hot swap Internal : 60 x 3.5” hot swap |
| Backplanes |
| 3 x 20-port 12Gb SAS backplanes with 28-PHY expander chip and 2 SFF-8643 connectors on each |
| Storage Temperature |
| 0°C(32°F) ~ 50°C(122°F) |
| Humidity |
| 5% ~ 95% non-condensing |
| Gross Weight (w/ PSU & Rail) (excluding pallet) |
| • kgs : 43 • lbs : 94.8 |
| Package Dimension (W x D x H) |
| • mm : 603 x 1240 x 454 • inches : 23.7 x 48.8 x 17.9 |
| Cubic Feet |
| 8.8 |
| Container Load Quantity |
| • 20’ : 97 • 40’ : 199 • 40’ H : 240 |
| Mounting |
| Standard : 25” tool-less slide rail Option : Cable Management Kit |
| SKU Information | Description |
|
XE1-4H000-01 |
4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1600W CRPS redundant power supply (200V~240V), rear 10x HDD dummy, 3x 20-port SAS 12G expander controller on backplane (35X series), 25" slide rail, pallet |
|
XE1-4H000-02 |
4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1600W CRPS redundant power supply (200V~240V), rear 6x 2.5" SATA/SAS + 4x NVMe external hot-swap drive bays, 3x 20-port SAS 12G expander controller on backplane (35X series), 25" slide rail, pallet |
|
XE1-4H000-05 (Standard) |
4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1600W CRPS redundant power supply (100V~240V), rear 10x HDD dummy, 3x 20-port SAS 12G expander controller on backplane (35X series), 25" slide rail, pallet |
|
XE1-4H000-06 |
4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1600W CRPS redundant power supply (100V~240V), rear 6x 2.5" SATA/SAS + 4x NVMe external hot-swap drive bays, 3x 20-port SAS 12G expander controller on backplane (35X series), 25" slide rail, pallet |
| FRU Information | |
| Part Number | Description |
| M03-00362-01 | 6038 fan module |
| M06-00128-16 | 8038 fan module |
| H5533T100001 | 25” tool-less slide rail |
| BBPKHD40012B | 20 port 12G SAS backplane with LSI 35x28 expender on board (usage 3 pcs) |
| BBP-HD10003A | 2 port SATA/SAS backplane (for external : 2 x 2.5” hot-swap) |
| PM-000000010 | 1600W CRPS power supply module |
| PH-000000080 | 1600W CRPS power supply housing |
| H56-7604-001 | cable arm |
| M06-00362-18X01 | separate order 10-bay (4x NVMe+ 6x SATA) |
| M06-00362-19X01 | separate order 10-bay SATA/SAS for standard |
| M06-00362-20X01 | separate order 10-bay NVMe for standard |
* All specifications are subject to change without notice.
| Datasheet | IPC-C4H-R1400-12G Datasheet |
|
|
|
| User Manual | IPC-C4H-R1400-12G User Manual |
|
|
|
| Product Images | IPC-C4H-R1400-12G (Front 45 Degrees) |
|
|
|
| Product Images | IPC-C4H-R1400-12G (Front) |
|
|
|
| Product Images | IPC-C4H-R1400-12G (Top) |
|
|
|

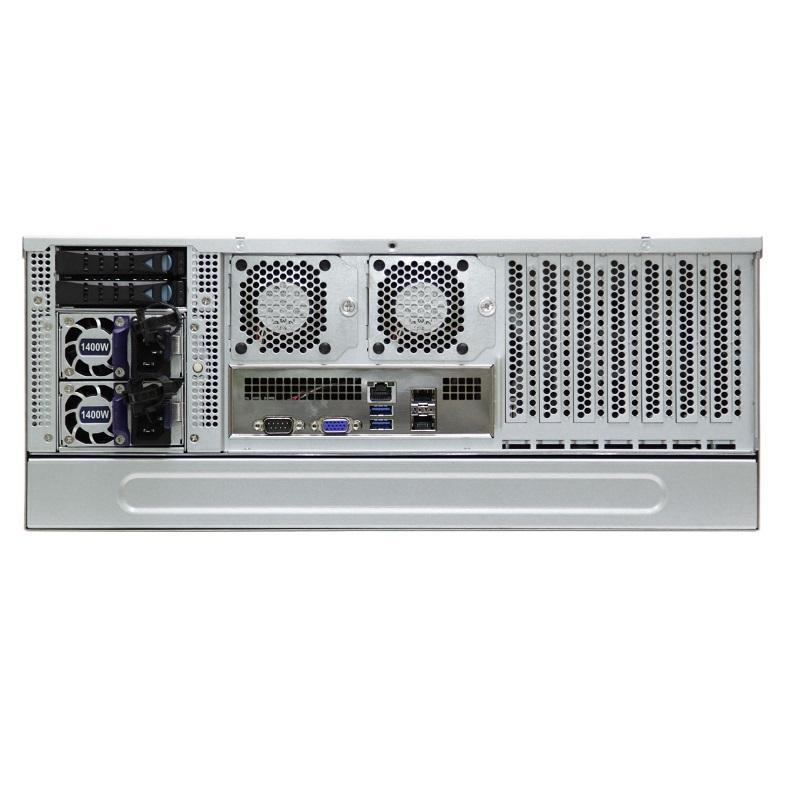

| Product Images | IPC-C4H-R1400-12G (Rear) |
|
|
