Features & Benefits

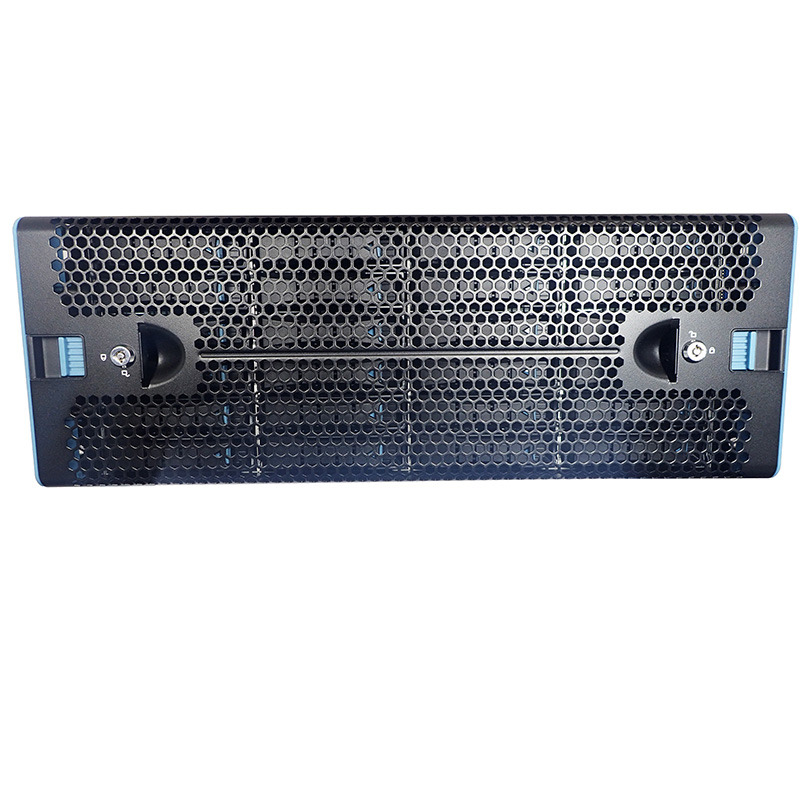

IPC-C4ET-R12-EOB-12G is a T series 4U 24-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C4ET-R12-EOB-12G supports quick installation and easy maintenance. This tool-less design solution also features 3 x hot swap fans designed to minimize rotational vibration and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)
Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Comes with a redundant PSU 80+ Platinum
• Two front access USB 3.0 portsm
| Dimensions (W x D x H) |
• mm: 430 x 680 x 174.3
• inches: 16.9 x 26.8 x 6.9 |
| Industry Standard |
| EIA-RS310D |
| Material |
| Heavy-duty preplated SPGC cold-rolled steel |
| Color |
| Front Panel: Black |
| Cooling |
| Middle: 3 x 120x25mm PWM hot swap fans |
| Power Supply |
| 1200W 1+1 redundant PSU 80+ Platinum |
| Expansion Slots |
| 7 full height |
| Front Panel |
| System power on/off, System reset and 2 x USB 3.0 ports |
| LED Indicators |
| Power, LAN, Drive and Alert |
| System Board |

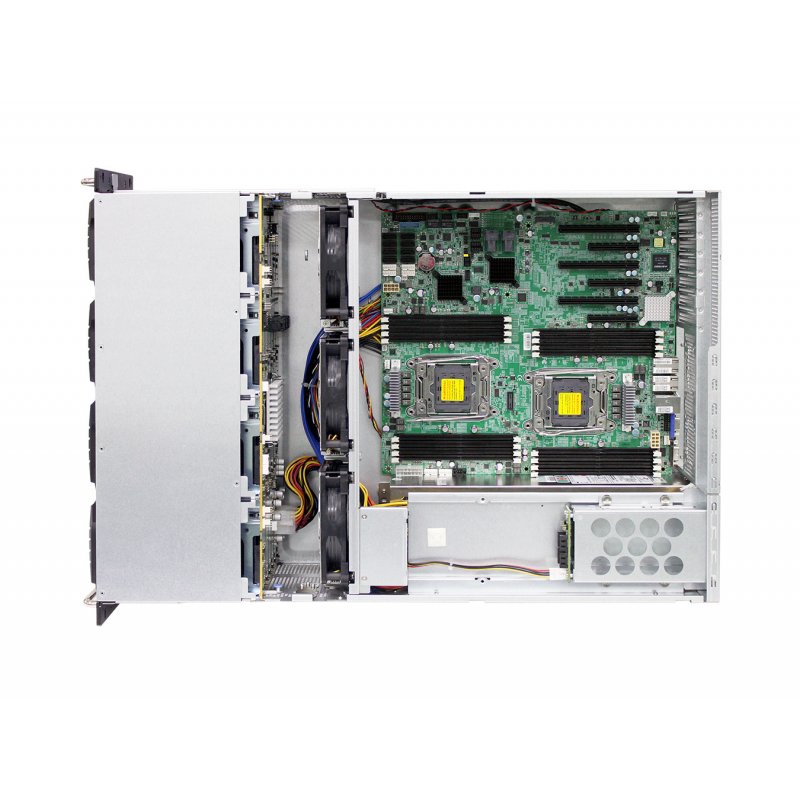

| 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB |
| Drive Bays |
• External: 24 x 3.5” hot swap
Options choose 1:
• Internal: 2 x 2.5”
• External: 2 x 2.5” hot swap |
| Backplane |
| 1 x 24-port 12Gb SATA/SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors |
| Storage Temperature |
| 0°C(32°F) ~ 50°C(122°F) |
| Humidity |
| 5% ~ 95% non-condensing |
| Gross Weight (w/ PSU & Rail) |
• kgs: 37
• lbs: 81.6 |
| Package Dimension (W x D x H) |
• mm: 645 x 835 x 310
• inches: 25.4 x 32.9 x 12.2 |
| Cubic Feet |
| 8.3 |
| Container Load Quantity |
• 20’: 150
• 40’: 315
• 40’ H: 345 |
| Mounting |
| Standard: 28” tool-less slide rail |
| SKU Information |
Description |
|
XE1-4ET00-01
(Standard)
|
4U 24x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS redundant power supply, 2x 2.5" hot-swap OS, rail, 4U24 SAS 12G expander controller on backplane (3X series) |
| XE1-4ET00-02 |
4U 24x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPSredundant power supply, 2x 2.5" hot-swap OS, rail, 4U24 SAS 12G passive backplane support 4x NVMe |
|
XE1-4ET00-07
(Standard)
|
4U 24x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS redundant power supply, 2x 2.5" hot-swap OS, rail, 4U24 SAS 12G expander controller on backplane (35X series) |
| FRU Information |
|
| Part Number |
Description |
| M06-00201-14 |
12025 fan module |
| H5521T200005 |
28" Tool-less slide rail |
| BBPJHD40001A |
24-bay 12G EOB backplane |
| PH-C00000010 |
1200W CRPS power supply housing |
| PM-A00000118 |
1200W CRPS power supply module |
|
M06-00201-17
(Optional)
|
Suitable for RSC-4ET & RSC-4ETS/RSC-4BT(4ET DOOR ASS,Y) |
