Key Features
• 4U 8 GPU server supports maximum 8 dual-slot GPU cards with up to 450W each
• Supports 3rd Gen. Intel® Xeon® Scalable processors (Ice Lake)
• Intel® C621A Chipset to provide 5+ years product life cycle
• 4 x NVMe + 8 x SAS/SATA hot swappable drive bays
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal condition
CB401-TU, a 4U GPGPU server, supports 3rd Gen Intel® Xeon® Scalable Processors with PCIe 4.0 extension design, 12 hot-swappable drive bays (4 NVMe + 8 SATA/SAS), maximum 8 dual-slot GPGPU cards with up to 450W each, ideal for GPGPU applications.
Key Features
• 4U 8 GPU server supports maximum 8 dual-slot GPU cards with up to 450W each
• Supports 3rd Gen. Intel® Xeon® Scalable processors (Ice Lake)
• Intel® C621A Chipset to provide 5+ years product life cycle
• 4 x NVMe + 8 x SAS/SATA hot swappable drive bays
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal condition

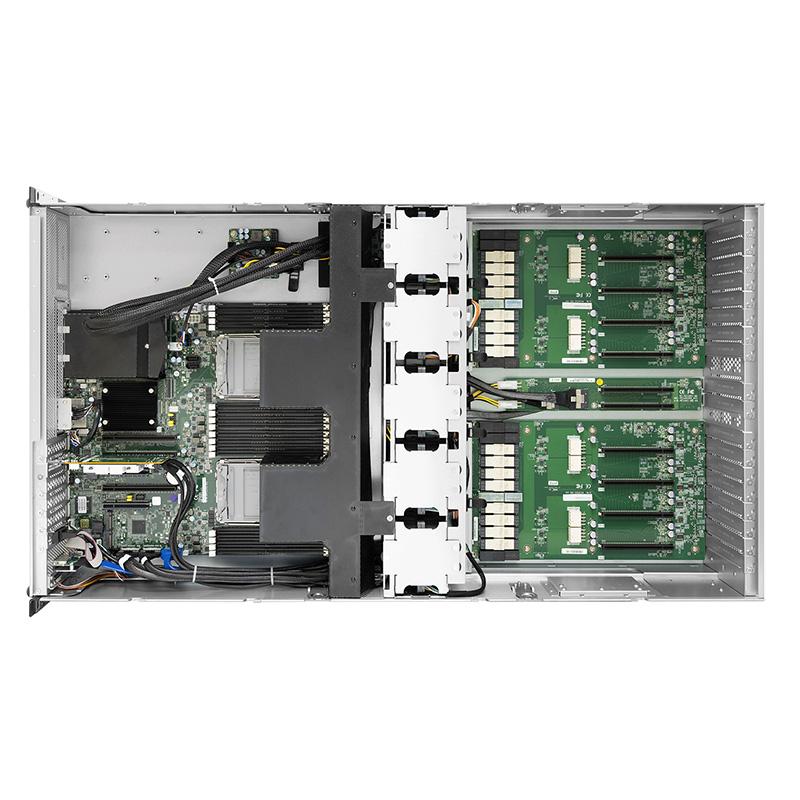

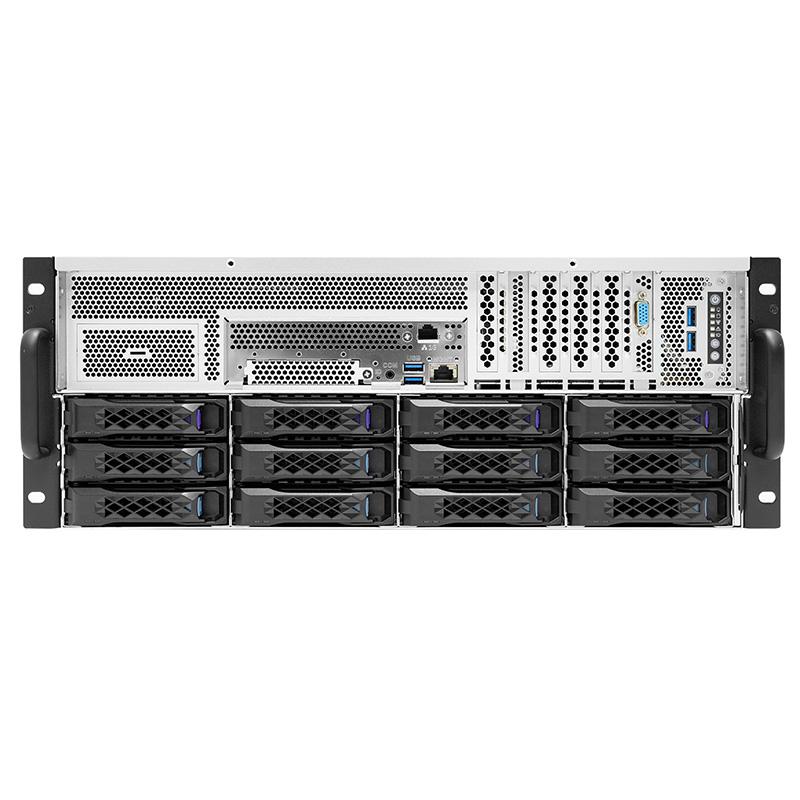

| Dimensions (W x D x H) | ||||
| • mm : 435 x 830 x 175 • inches : 17.1 x 32.7 x 6.9 |
||||
| Motherboard | ||||
| AIC Server Board Tucana | ||||
| Processor | ||||
| Processor Support : • 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake) |
||||
| CPU Interconnection : 11.2 GT/s | ||||
| Socket Type : Socket P+ (LGA-4189) | ||||
| System Memory | ||||
| • 8 x memory channels per CPU (1DPC) • 16 x DIMM slots support: DDR4 3200/2933MHz RDIMM/LRDIMM - up to 512GB RDIMM SRx4 (16Gb) - up to 1024GB RDIMM DRx4 (16Gb) - up to 4096GB RDIMM 3DS 8Rx4 (16Gb) - up to 2048GB LRDIMM QRx4 (16Gb) - up to 4096GB LRDIMM 3DS 8Rx4 (16Gb) • Intel® Optane™ DC Persistent Memory (Barlow Pass) support |
||||
| Front Panel | ||||
| System power on /off, System reset, ID button | ||||
| LEDs | ||||
| Power status, Drive activity, LAN activity, System alert, System ID | ||||
| Drive Bays | ||||
| External : 3.5" hot swap x 12 | ||||
| Internal : 2 x M.2/M-Key/2280 | ||||
| Backplane(s) | ||||
| • 1 x 4-port PCIe Gen4 NVMe backplane • 2 x 4-port SAS/SATA backplane |
||||
| Expansion Slots | ||||
| PCIe 4.0 : Front • 2 x PCIe X16 slots (HHHL) • 2 x PCIe X8 slots (HHHL) • 1 x OCP 3.0 * 1 x PCIe X16 slot occupied by retimer card Rear • 8 x16 slots (FHFL)/ dual slot • 2 x16 slots (FHHL) |
||||
| System BIOS | ||||
| BIOS Type : AMI UEFI BIOS |
||||
| BIOS Features : • ACPI • PXE • WOL • AC loss recovery • IPMI 2.0 KCS interface • SMBIOS • Serial console redirection • BIOS Boot Specification • BIOS Recovery Mode • SRIOV • iSCSI • TPM • PCIe Hotplug |
||||
| On-board Devices | ||||
| SAS/SATA : Intel® C621A PCH on-chip solution • 8 x SATA 6.0 Gb/s (by 2 x mini-SAS) • 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin) Optional SAS 3008/3108 modules (on OCP) |
||||
| IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support |
||||
| Network Controllers : • Realtek RTL8211E GbE for BMC dedicated management port • Intel I210 GbE for BMC shared NIC management port by onboard connector (NCSI shared NIC - reserved for OCP V3.0) |
||||
| Graphics : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • PCIe VGA/2D Controller • 1920x1200@60Hz 32bpp |
||||
| Front I/O | ||||
|

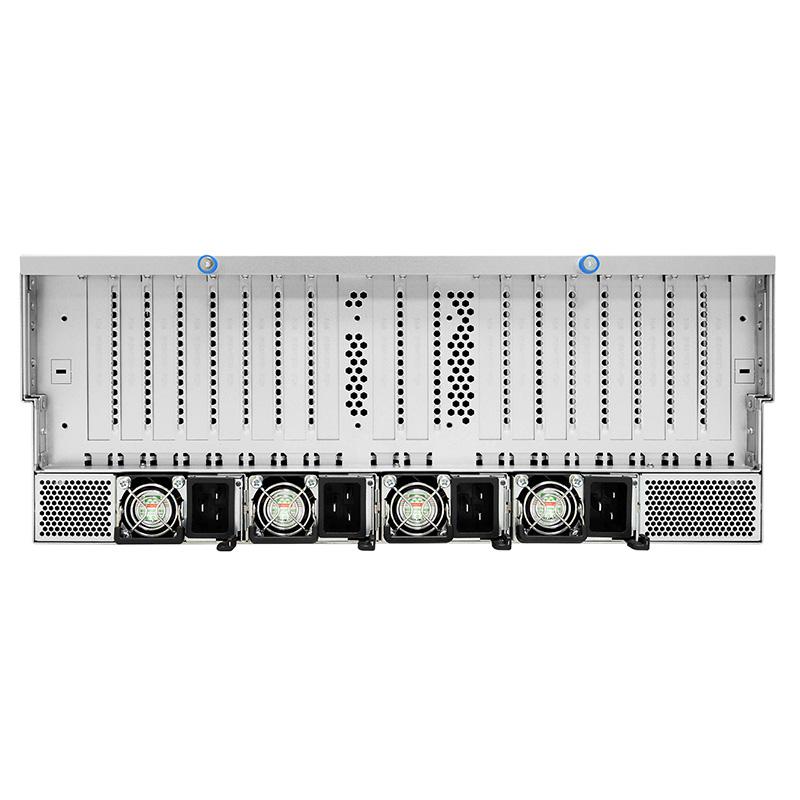

||||
| Power Supply | ||||
| 3200W 2+2 redundant power supply 80+ Titanium | ||||
| System Cooling | ||||
| 9 x 80 x 56mm easy swap fans | ||||
| System Management | ||||
| • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support • HTML5 • Redfish |
||||
| Environmental Specifications | ||||
| • Storage temperature: -10°C(14°F) ~ 60°C(140°F) • Operating temperature: 0°C(32°F) ~ 35°C(95°F) • Storage operating humidity: 5%~95% non-condensing |
||||
| Gross Weight (w/PSU & Rail) | ||||
| • kgs : 71 • lbs : 156.5 |
||||
| Packaging Dimensions (W x D x H) | ||||
| • mm : 625 x 1130 x 454 • inches : 24.6 x 44.5 x 17.9 |
||||
| Mounting | ||||
| Standard : 43” tool-less slide rail |
* All specifications are subject to change without notice.
| CB401-TU_Datasheet | Size : 1 MB | Download |
SKU InformationDescription
XP1-C401TU02
4U 12-bay 8 GPU/FPGA server, 4x 3.5"/2.5" NVMe/SAS/SATA + 8x 3.5"/2.5" SAS/SATA hot-swap (Passive BP), 2000W 3+1 Platinum redundant power supply, 9x 8056 easy-swap fan, FIO Tucana motherboard, Intel Lewisburg Xeon 3, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 2x PCIe x16 HHHL Gen.4 (front), 2x PCIe x8 HHHL Gen.4 (front), 2x PCIe x16 FHHL Gen.4 (rear), EATX, 2x CPU heatsink (270W), 28" slide rail, w/o bezel
XP1-C401TU04-Standard
4U 12-bay 8 GPU/FPGA server, 4x 3.5"/2.5" NVMe/SAS/SATA + 8x 3.5"/2.5" SAS/SATA hot-swap (Passive BP), 3200W 2+2 Titanium redundant power supply, 9x 8056 easy-swap fan, FIO Tucana motherboard, Intel Lewisburg Xeon 3, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 2x PCIe x16 HHHL Gen.4 (front), 2x PCIe x8 HHHL Gen.4 (front), 2x PCIe x16 FHHL Gen.4 (rear), EATX, 2x CPU heatsink (270W), 28" slide rail, w/o bezel
