4U BLACK ENTERPRISE SHORT-DEPTH SERVER CHASSIS

PCICASE Model No: TSC-E430e

Coming Soon

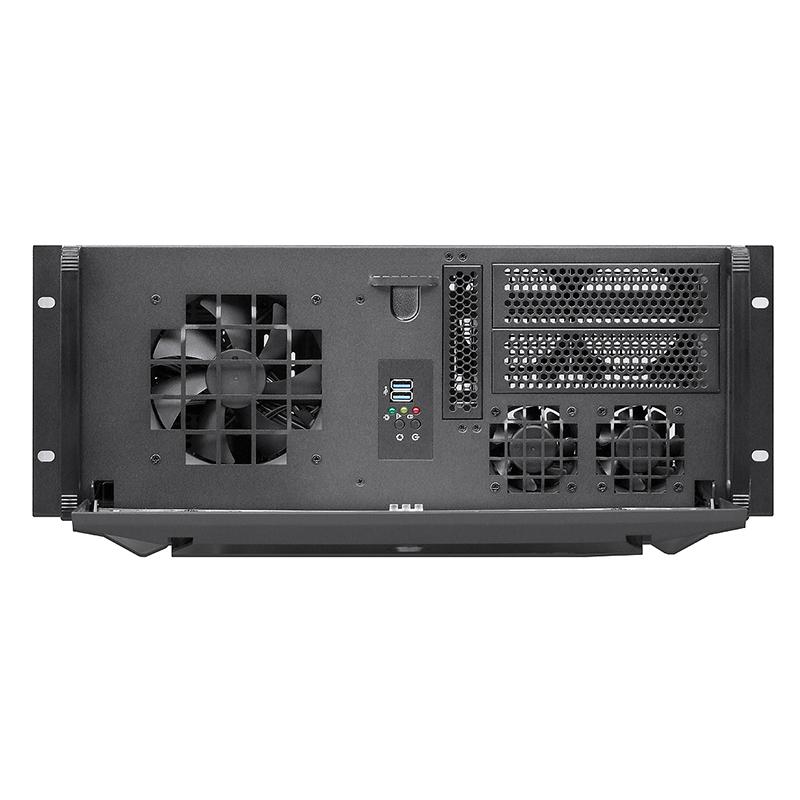

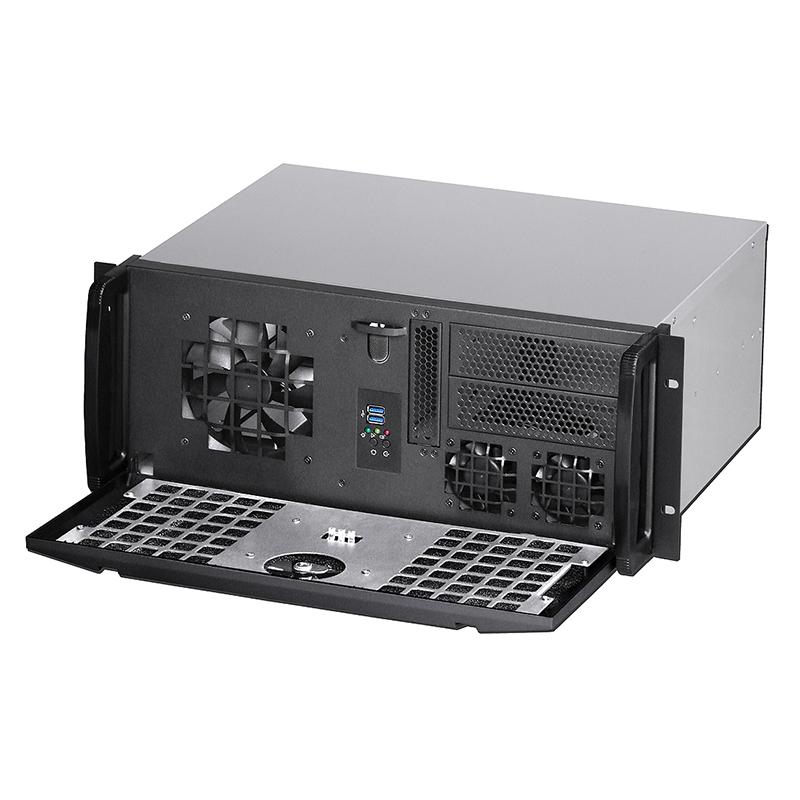

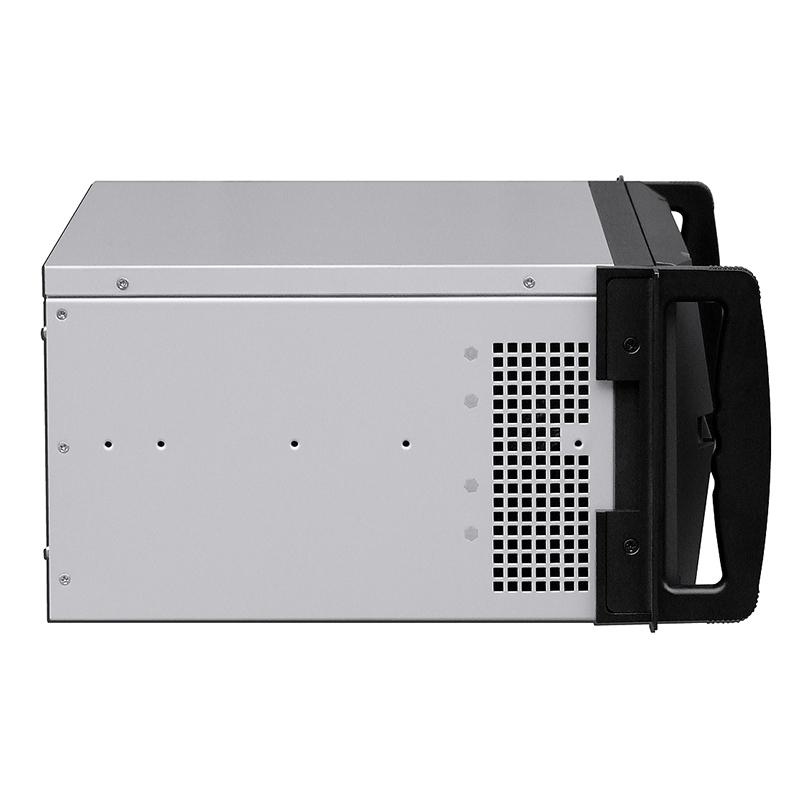

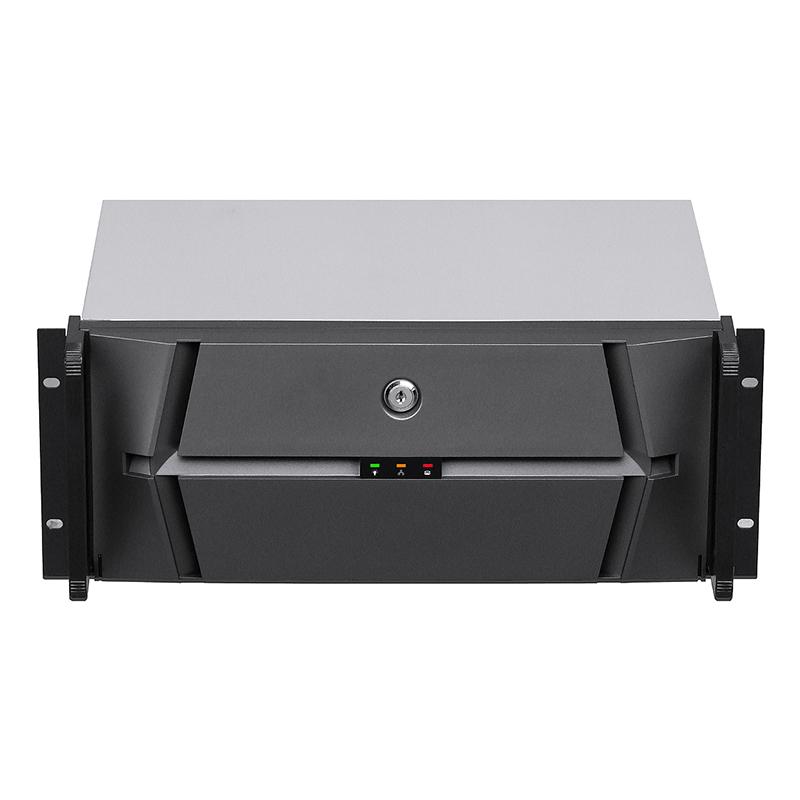

The stealth stylish architecture of the front door design, with stable and low noise fans, in line with good ventilation and dust protection requirements, suitable for the server cooling environment, global quality assurance and warranty for three years. One of the advantages of this E430e server is that the depth is only 300mm, the front can be installed two 5.25" ODD devices, this space can also be equipped with a number of hotswap HDD mobile racks, also this chassis can also install one 3.5" or two 2.5" SSD/HDD. The sheet metal mechanism design using 1.2mm thickness SGCC ultra-high strength material, all sheet metal cut-off surface are smooth folding design to ensure free-damage to hands or fingers, the front of the security door design can also ensure data security, to avoid improper disc burning or USB drive replication data causing security vulnerabilities. In addition to the general standard 12" x 9.6" ATX motherboard, this model can also be installed MicroATX or Mini-ITX motherboard, suitable for a variety of system environments.

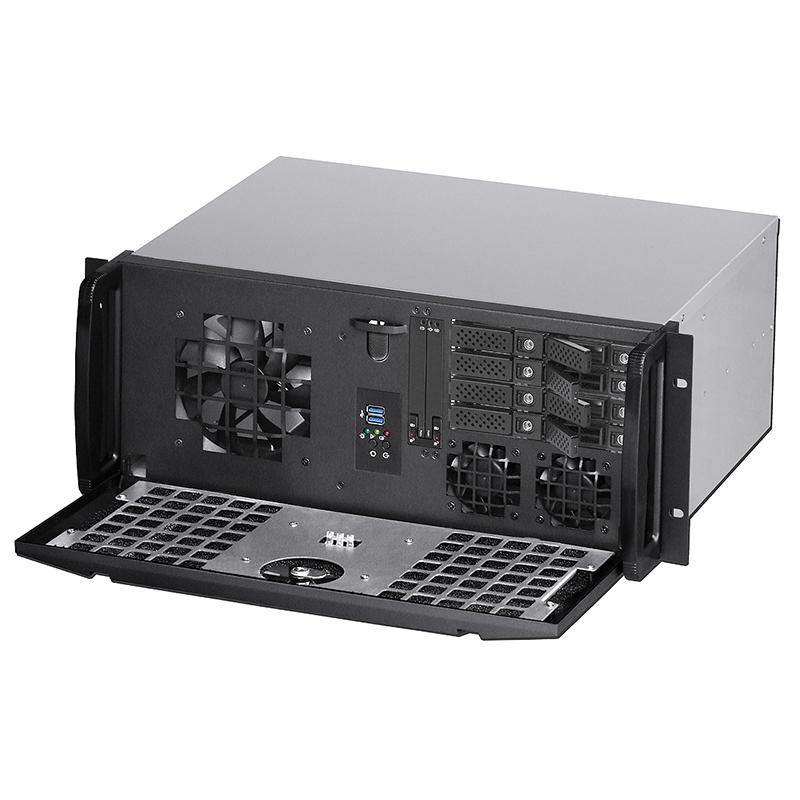

* Drive Space: two 5.25" ODD bay, one 3.5" FDD/HDD bay or two 2.5" SSD/HDD

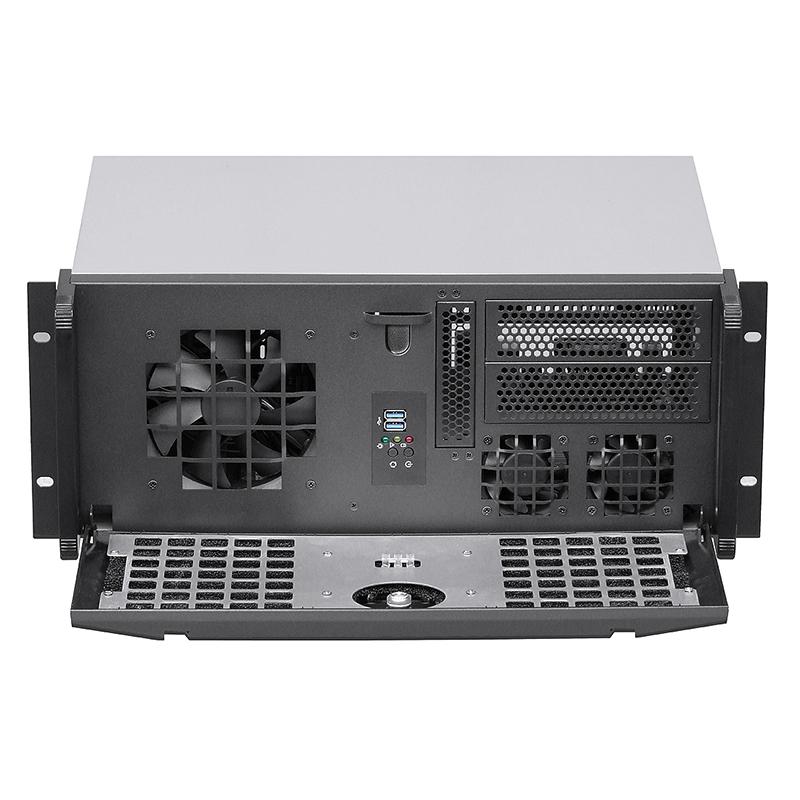

* Standard with two USB3.0 ports at front bezel (behind the front security door)

* Standard with one brand new 120mmx25mm intake fan at front

* Standard with two brand new 60mmx25mm intake fans at front

* Build-in two ABS screwless 80mmx25mm fan brackets at rear panel (fans are option)

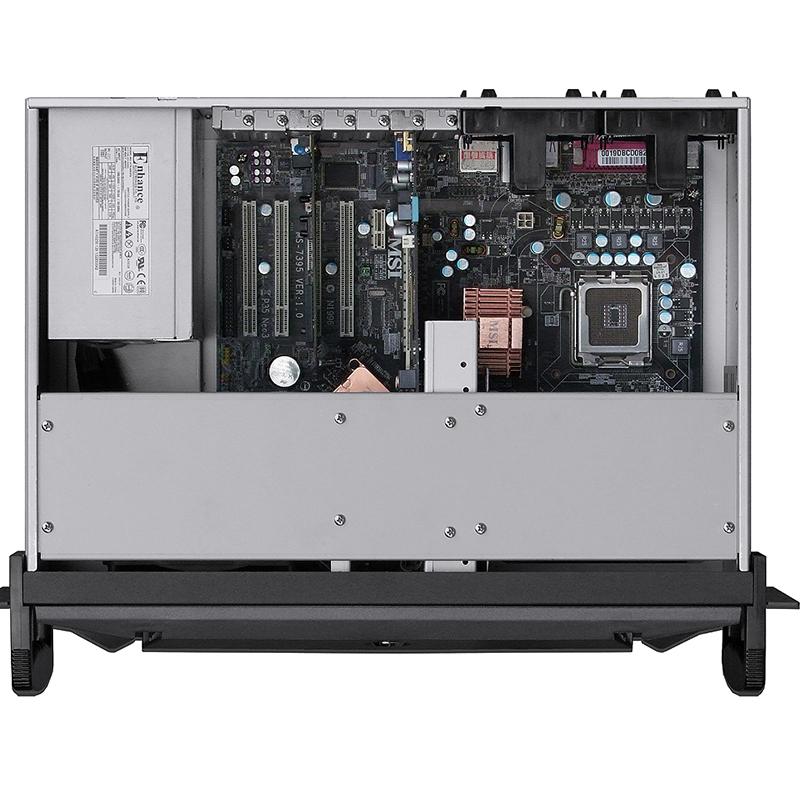

* Compatible motherboard: ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

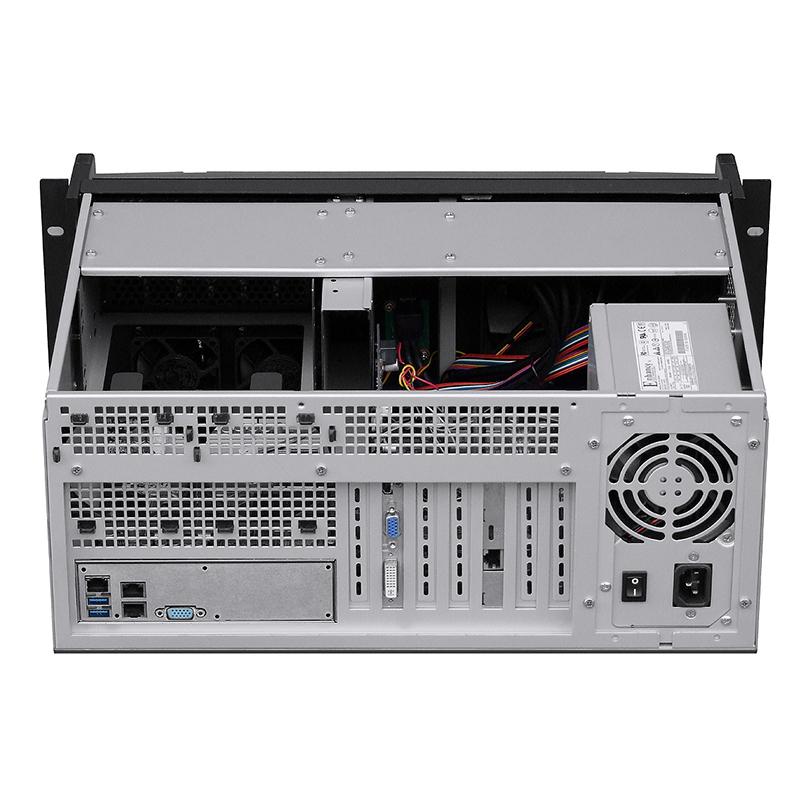

* 8cm or 12cm-14cm fan version standard PS2 PSU compatible (depth at 140~200mm)

* Support PIST2040/2050 series 400W~500W PS2 Mini Redundant PS (depth 174mm)

* Support PIST1060/1070/1080 series 600W~800W PS2 Mini Redundant PS (depth 199mm)

* Support 7 slot full height expansion cards (maximum available depth at 255mm)

* Standard paint: scratch-resistant black textured at front

* build-in electronics in global 3 years warranty

* Chassis dimension: 19" x 4U x 300mm (11.81" deep)

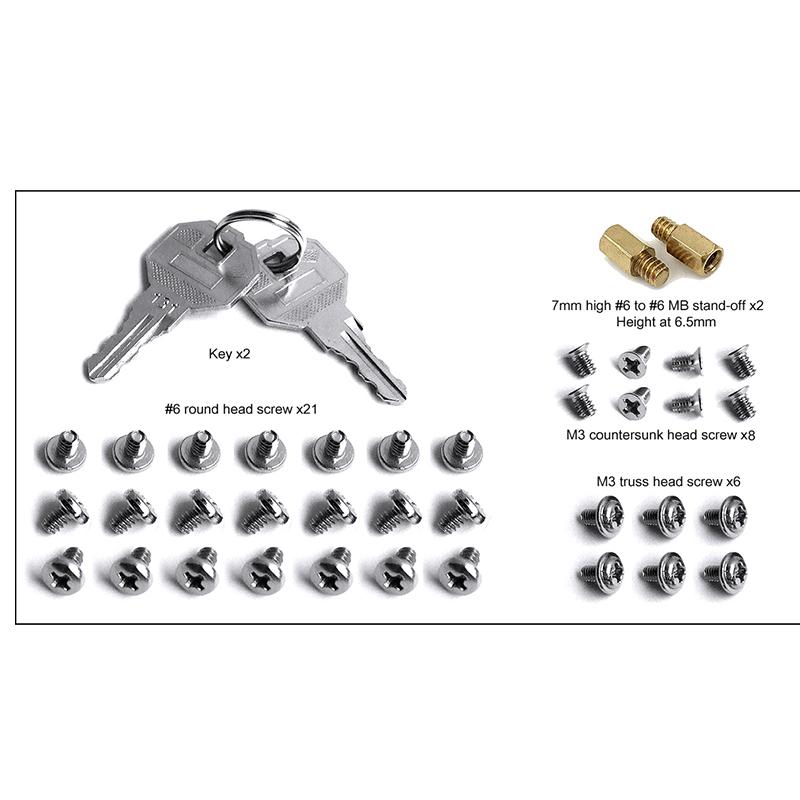

* Accessory: MB stand-off x2, #6 round x21, M3 countersunk x8, M3 truss x6, 2 keys

* Package: NW 8 KGM, GW 9 KGM, 2.21 CUFT (carton size at 43x56x26cm)

* Note 1: Suggest to release the rear panel + PS2 PSU first during system integration

* Note 2: If the 7th slot installed with card, uninstall the front FDD/HDD bracket

* Note 3: If no any 5.25" ODD installed at front, max. CPU cooler height at 150mm

* Note 4: If one 5.25" ODD installed at front, max. CPU cooler height at 100mm

* Note 5: If all two 5.25" ODD installed at front, max. CPU cooler height at 50mm

Rails

Part code: TSC-NJ600

Power Supplies (Redundant/Single)

MINI-REDUNDANT

400W x 2 Mini Redundant PSU 80+ (Short Depth)
Part code: PIST2040-EPSH-80

500W x 2 Mini Redundant PSU 80+ (Short Depth)
Part code: PIST2050-EPSH-80-N

500W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1050-EPSH-80-N

600W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1060EPSH-80-N

700W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1070-EPSH-80-N

800W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1080-EPSH-80-N

SINGLE

500W Quiet PS2 85+ Bronze PSU with 8cm fan.

Part code: CRS-C2050-85-08

850W Fully Modular PS2 80+ Gold PSU with 12 cm fan

Part code: CRS-C40850-90

1200W Fully Modular 92+ PS2 Platinum PSU with 14 cm fan.

Part code: CRS-C401200-92

750W Modular PS2 80+ Gold PSU with 14 cm fan.
Part code: CRS-C9075-14-UK

850W Modular PS2 80+ Gold PSU with 14 cm fan.
Part code: CRS-C9085-14-UK

Backplane Modules/Mobile Racks

2.5" HDD BACKPLANE MODULE (12GB/S)

1 x 3.5" to 2 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Trayless Des ign

Part code: N-20SS

1 x 5.25" to 4 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-49SS

1 x 5.25" drive bay to 2x2.5" SFF hot swap bays, supporting 2NVMe PCIe SSDs

Part code: N-29NVMe-15

1 x 5.25" drive bay ,supporting 4x2.5" NMVe U.2 HDD(up to 15mm)

Part code: N-49NVMe

2.5" HDD BACKPLANE MODULE (6GB/S)

1 x 5.25" to 2 x 2.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design
Part code: IPC-BR-SAS12-G

3.5" HDD BACKPLANE MODULE (12GB/S)

2 x 5.25" to 3 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design.

Part code: N-36TM

3x 5.25" to 4 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design.

Part code: N-46TM

3x 5.25" to 5 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design.

Part code: N-56TM

3.5" HDD BACKPLANE MODULE (6GB/S)

3 x 5.25" to 4 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Black)
Part code: ISG-AN-D34-Black

3 x 5.25" to 4 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Silver)
Part code: ISG-AN-D34-Silver

3.5" HDD MOBILE RACK (12GB/S)

1 x 5.25" to 1 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-16TM

3.5" HDD MOBILE RACK (6GB/S)

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Black)
Part code: ISG-AN-D11-Black

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Blue)
Part code: ISG-AN-D11-Blue

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Red)
Part code: ISG-AN-D11-Red

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Silver)
Part code: ISG-AN-D11-Silver

Bay Convertors

1 x 5.25" Dynamic Conversion Bracket.
Part code: IPC-SDFD135225

Data Cables

External 1x SFF-8644 - 1 x SFF-8088 1M

Part code: IPC-SCB-ML22

External 1x SFF-8644 - 1 x SFF-8088 2M

Part code: IPC-SCB-ML21

External 2x SFF-8644 1M

Part code: IPC-SCB-ML23

External 2x SFF-8644 2M

Part code: IPC-SCB-ML20

External SAS cable SFF-8088 x2 50cm

Part code: IPC-SCB-ML13

External SAS cable SFF-8470 to SFF-8088 50cm

Part code: IPC-SCB-ML12

Internal SAS cable 2 x SFF-8643 50cm

Part code: IPC-SCB-ML24

Internal SAS cable 50cm SFF-8087 to SFF-8484

Part code: IPC-SCB-ML11

Internal SAS Cable 50cm SFF8087 to 4x 7-pin SATA/SAS (Internal Mini SAS to SATA Reverse Cable)

Part code: IPC-SCB-ML08

Internal SAS cable 55cm SFF-8484 to 4x SATA/SAS

Part code: IPC-SCB-ML07

Internal SAS/SATA cable 50cm (2x SFF-8087)

Part code: IPC-SCB-ML09

Internal SAS/SATA Cable 50cm 4x SATA/SAS to SFF8087

Part code: IPC-SCB-ML10
