4U Rugged Medium Chassis 3 x 5.25" + 1 x 3.5" External + 4 x 3.5" Internal.

PCICASE Model No: IPC-C4S-BH

Manufacturer Model No: RMC-4S (AIC SKU: XE1-4S000-01)

UK Stock

Key Features

Rugged design to meet most applications.
Front access dual USB ports
Removable & washable air filter
Superior cooling through front air intake - 2 x front cooling fans
Hold down bar to ensure that add-on cards are locked into positions
Single PS2 or Mini Redundant power supply
Supports both ATX M/B and SBC (14 slots)

Features And Benefits

The IPC-C4S-BH is the core of the 4U rack-mount chassis, showing the most resemblance to a desktop computer chassis. It is designed to fit all standard desktop components yet its depth is kept within 20”. Many patented designs make this chassis the best choice in its class.

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 505 x 177
• inches : 19 x 19.9 x 7

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Black

Cooling
Standard :
• Front : 2 x 92x25 mm fans
Add-ons :
• Rear : 2 x 60x25mm exhaust fans
• Rear : 2 x 60x38mm exhaust fans

Power Supply
PS2 Single or Mini Redundant power supplier - Please see Optional Product for details

Expansion Slots
• 7 x PCI Slots (Full Height, Full Length). (Standard Specification)
• 14 x Slot Single Board Computing (a.k.a. SBC) rear panel. (See Optional Product)

Front Panel
• Power on/off
• System reset
• 2 x USB ports

LED Indicators
• Power
• Drive

System Board
• MB Version : Up to 12”(W) x 10.5”(D) ATX/SSI CEB compliant MB
(or 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB by adding an optional MB bracket)
• BP Version : (SBC) 14-slot

Drive Bays
• External : 3 x 5.25” & 1 x 3.5”
• Internal : 2 x 3.5” (up to 4)

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/o PSU & Rail)
• kgs : 16
• lbs : 35.2

Package Dimension (W x D x H)
• mm : 587 x 625 x 354
• inches : 23.1 x 24.6 x 14

Cubic Feet
5

Container Load Quantity
• 20’ : 190
• 40’ : 390
• 40’ H : 470

Mounting
Please see Optional Product For Details
* All specifications are subject to change without notice.

Datasheet	IPC-C4S-BH Datasheet
	IPC-C4S-BH Datasheet.pdf

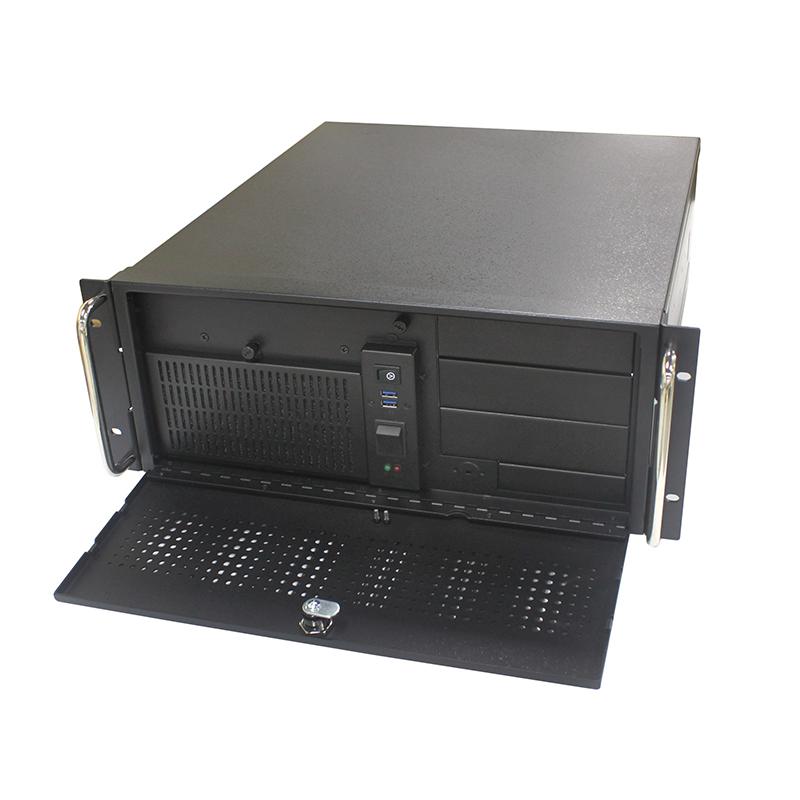

Product Images	IPC-C4S-BH (Front 45 Degrees)
	IPC-C4S-BH_Front_45
Product Images	IPC-C4S-BH (Front Door)

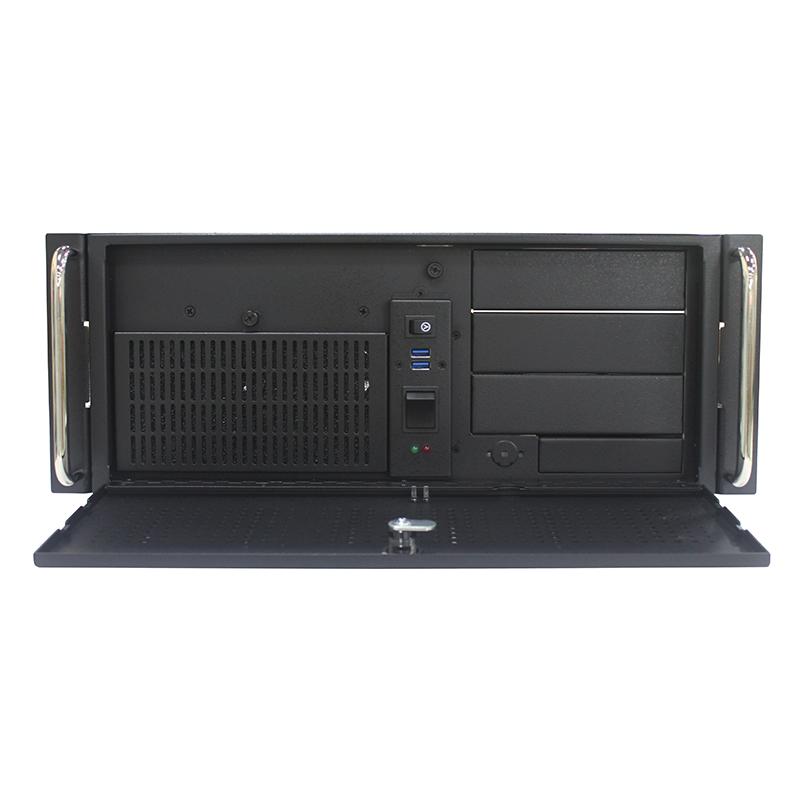

	IPC-C4S-BH_Front
Product Images	IPC-C4S-BH (Front Door Opened)
	IPC-C4S-BH_Front door opened

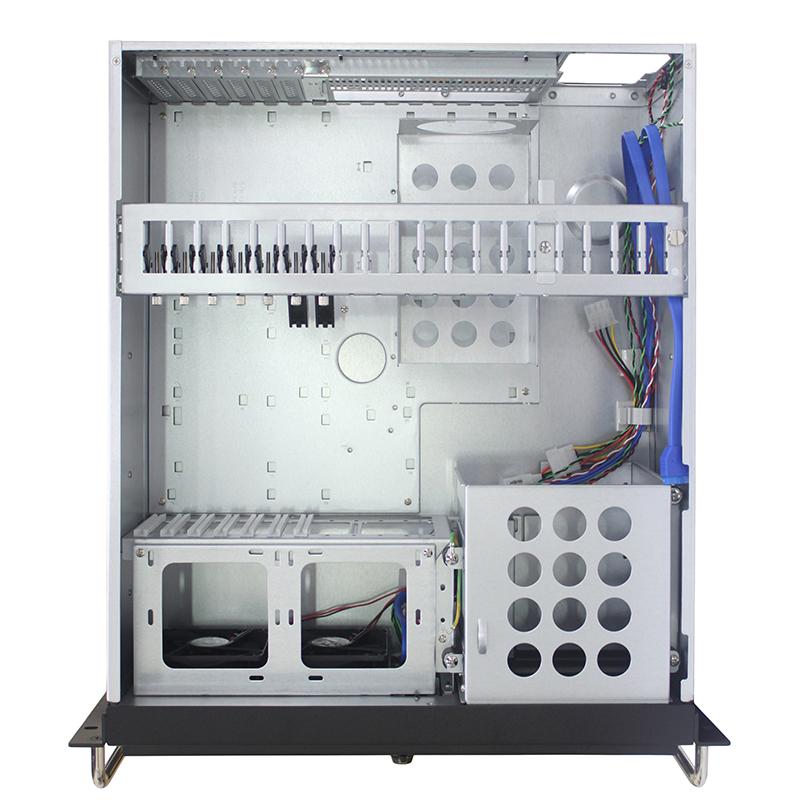

Product Images	IPC-C4S-BH (Top)
	IPC-C4S-BH_Top_Open
Product Images	IPC-C4S-BH (Rear)

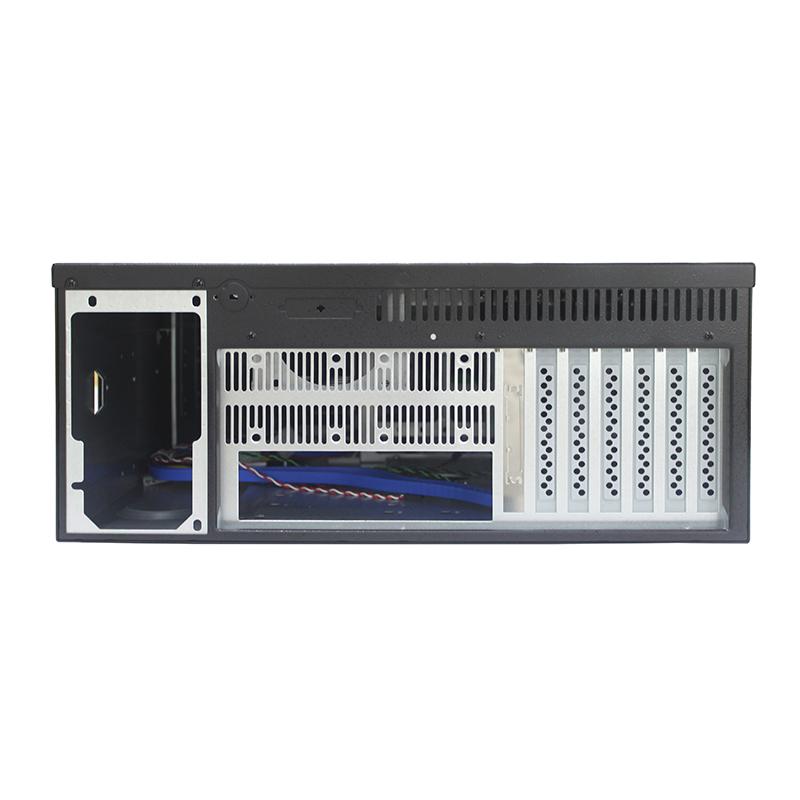

	IPC-C4S-BH_Rear

Rails

AIC 2U-4U 26inch Slider Rails for Extended Chassis
Part code: IPC-SY002H

AIC 2U-4U 20inch Slider Rails for Short/Midsize Chassis
Part code: IPC-SY001H

Fans

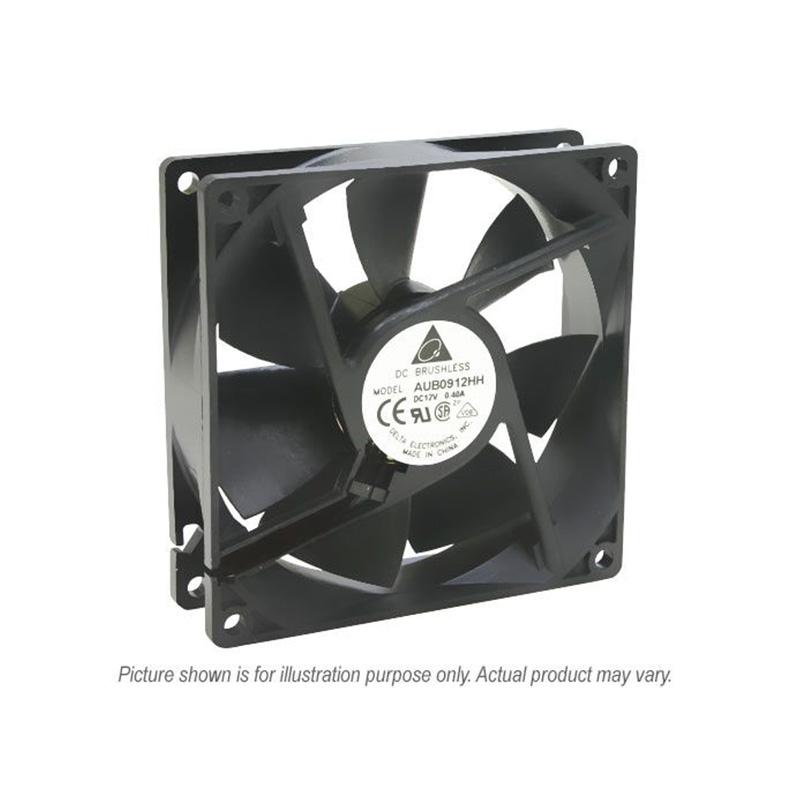

Delta 92mmx92mmx25mm 128CFM Fan

Part Code : IPC-SF0925

Power Supplies (Redundant/Single)

MINI-REDUNDANT

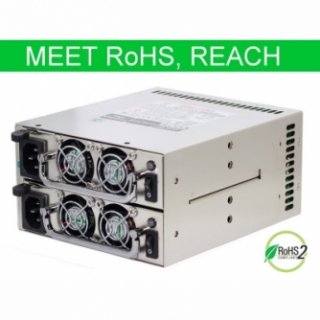

400W x 2 Mini Redundant PSU 80+ (Short Depth)
Part code: PIST2040-EPSH-80

500W x 2 Mini Redundant PSU 80+ (Short Depth)
Part code: PIST2050-EPSH-80-N

500W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1050-EPSH-80-N

600W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1060EPSH-80-N

700W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1070-EPSH-80-N

800W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1080-EPSH-80-N

2/3U 800W x 2 Extra Short Industrial Redundant PSU 92+ Platinum with Pmbus

Part code: PIZ2080R-92-ACB-ES

2/3U 800W x 2 Extra Short Industrial Redundant PSU 95+ Titanium with Pmbus

Part code: PIZ2080R-95-ACB-ES

2/3U 1300W x 2 Extra Short Industrial Redundant PSU 95+ Titanium with Pmbus

Part code: PIZ21300R-95-ACB-ES

SINGLE

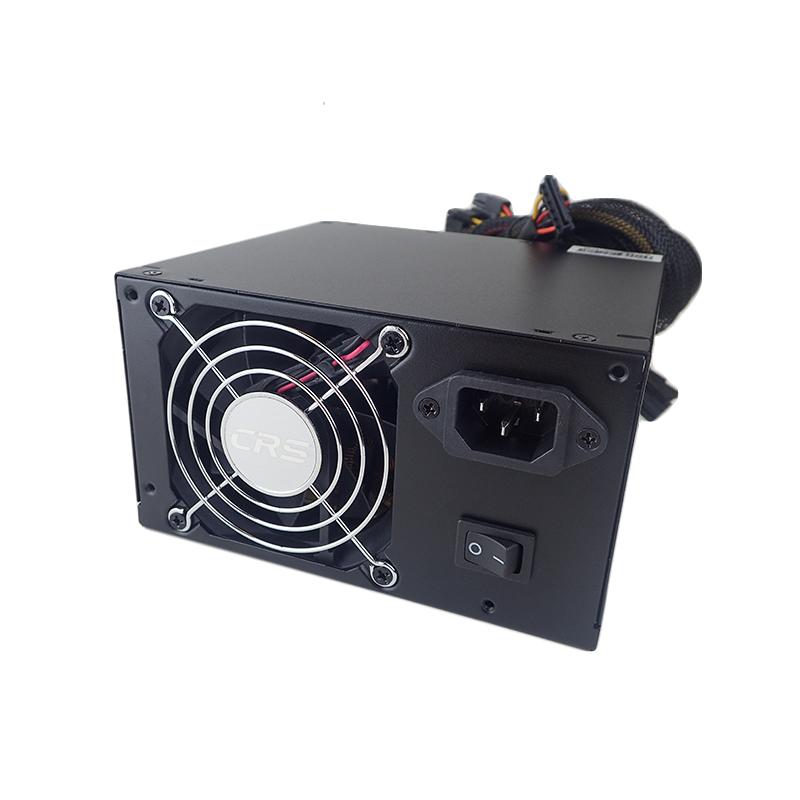

500W Quiet PS2 85+ Bronze PSU with 8cm fan.

Part code: CRS-C2050-85-08

850W Fully Modular PS2 80+ Gold PSU with 12 cm fan

Part code: CRS-C40850-90

1200W Fully Modular 92+ PS2 Platinum PSU with 14 cm fan.

Part code: CRS-C401200-92

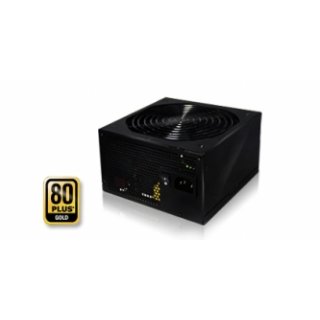

750W Modular PS2 80+ Gold PSU with 14 cm fan.
Part code: CRS-C9075-14-UK

850W Modular PS2 80+ Gold PSU with 14 cm fan.
Part code: CRS-C9085-14-UK

Backplane Modules/Mobile Racks

2.5" HDD BACKPLANE MODULE (12GB/S)

1 x 3.5" to 2 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Trayless Des ign

Part code: N-20SS

1 x 5.25" to 4 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-49SS

1 x 5.25" drive bay to 2x2.5" SFF hot swap bays, supporting 2NVMe PCIe SSDs

Part code: N-29NVMe-15

1 x 5.25" drive bay ,supporting 4x2.5" NMVe U.2 HDD(up to 15mm)

Part code: N-49NVMe

2.5" HDD BACKPLANE MODULE (6GB/S)

1 x 5.25" to 2 x 2.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design
Part code: IPC-BR-SAS12-G

3.5" HDD BACKPLANE MODULE (12GB/S)

2 x 5.25" to 3 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design.

Part code: N-36TM

3x 5.25" to 4 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design.

Part code: N-46TM

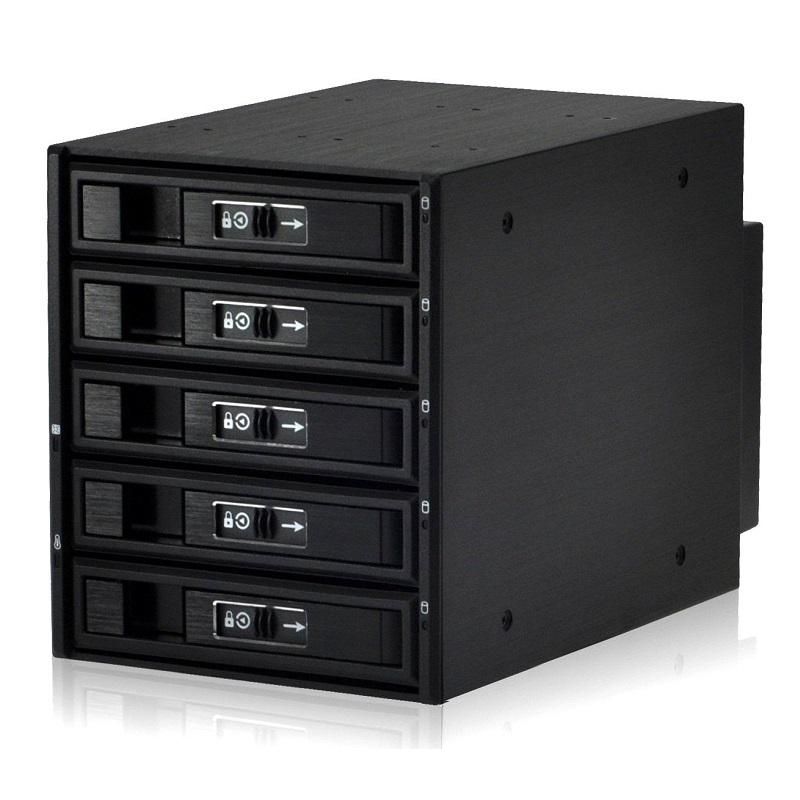

3x 5.25" to 5 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design.

Part code: N-56TM

3.5" HDD BACKPLANE MODULE (6GB/S)

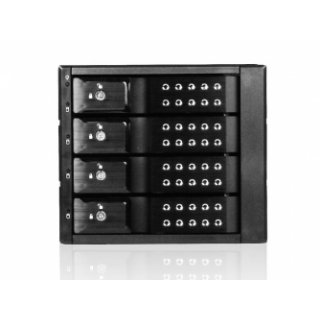

3 x 5.25" to 4 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Black)
Part code: ISG-AN-D34-Black

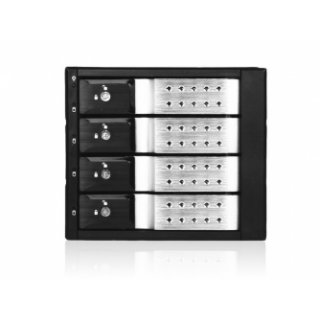

3 x 5.25" to 4 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Silver)
Part code: ISG-AN-D34-Silver

3.5" HDD MOBILE RACK (12GB/S)

1 x 5.25" to 1 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-16TM

3.5" HDD MOBILE RACK (6GB/S)

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Black)
Part code: ISG-AN-D11-Black

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Blue)
Part code: ISG-AN-D11-Blue

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Red)
Part code: ISG-AN-D11-Red

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Silver)
Part code: ISG-AN-D11-Silver

Bay Convertors

1 x 5.25" Dynamic Conversion Bracket.
Part code: IPC-SDFD135225

2 x 5.25" to 3 x HDD Hard Drive Cooler

Part code: CCSS06B

Rear Panel

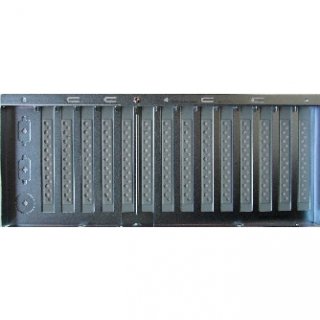

14-Slot Passive Rear Panel for IPC Range

Part code: IPC-SB1010

Data Cables

External 1x SFF-8644 - 1 x SFF-8088 1M

Part code: IPC-SCB-ML22

External 1x SFF-8644 - 1 x SFF-8088 2M

Part code: IPC-SCB-ML21

External 2x SFF-8644 1M

Part code: IPC-SCB-ML23

External 2x SFF-8644 2M

Part code: IPC-SCB-ML20

External SAS cable SFF-8088 x2 50cm

Part code: IPC-SCB-ML13

External SAS cable SFF-8470 to SFF-8088 50cm

Part code: IPC-SCB-ML12

Internal SAS cable 2 x SFF-8643 50cm

Part code: IPC-SCB-ML24

Internal SAS cable 50cm SFF-8087 to SFF-8484

Part code: IPC-SCB-ML11

Internal SAS Cable 50cm SFF8087 to 4x 7-pin SATA/SAS (Internal Mini SAS to SATA Reverse Cable)

Part code: IPC-SCB-ML08

Internal SAS cable 55cm SFF-8484 to 4x SATA/SAS

Part code: IPC-SCB-ML07

Internal SAS/SATA cable 50cm (2x SFF-8087)

Part code: IPC-SCB-ML09

Internal SAS/SATA Cable 50cm 4x SATA/SAS to SFF8087

Part code: IPC-SCB-ML10

Heatsinks (Active/Passive)

1U ACTIVE CPU COOLERS

1U Active CPU Cooler (AM2/AM3 Socket)
Part code: CJ-JAC7209C

1U Active CPU Cooler (LGA 1156/1155/1150/1151)
Part code: CJ-JACLL03C

1U Active CPU Cooler (LGA1366/1356)
Part code: CJ-JACLB13C

1U Active Heatsink with Fan (Socket 478)
Part code: CJ-CE2QC

1U Active Heatsink With Side Flow Fan (LGA-775)
Part code: CJ-JACL511C

1U Active Heatsink With Side Flow Fan (Socket LGA 2011)
Part code: CJ-JACLR02C-0

1U PASSIVE CPU COOLERS

1U Passive CPU Cooler (K8)
Part code: CJ-JAC0807C

1U Passive CPU Cooler (LGA 1150/1151/1155/1156)
Part code: CJ-BK1156P

1U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B04C

1U Passive Heatsink (LGA-775)
Part code: CJ-950918-1

2U ACTIVE CPU COOLERS

2U Multi-Socket Active CPU Cooler (Intel LGA-1366/1356/1151/1150/1155/1156/775 compatible)
Part code: CJ-JYC9L06AGC-A

2U Active CPU Cooler With Side Fan Socket LGA 2011 Narrow
Part code: CJ-JYC1R38ATPTC

2U PASSIVE CPU COOLERS

2U Passive CPU Cooler (LGA 1151/1150/1156/1155)
Part code: CJ-JAC0L11A

2U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B40A
