4U Rugged Short Chassis 4 x 5.25" External + 1 x 3.5" External + 2 x 3.5" Internal.

PCICASE Model No: IPC-C4B-N

Manufacturer Model No: RMC-4B

UK Stock

Key Features

Rugged design to meet most applications.
Short depth design for space critical applications
Supports Single PS2 and Mini Redundant Power Supplies
4 x 5.25" allows a wide scope of configurations despite short depth
2 x 92mm industrial grade ball-bearing fans
Optional additional 2 x 60mm rear exhaust fans for efficent cooling
Ideal for ATX M/B or Single Board Computing (14 slots)

FEatures And Benefits

The IPC-C4B is designed with 17.7” depth to meet the requirements of Telecom, Military and Appliance Applications. Full length cards are still supported even at shortened depth.

Please Note

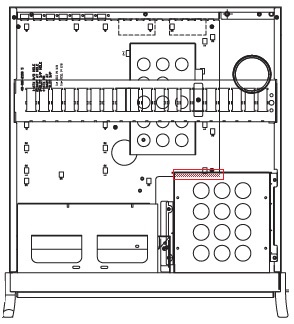

Currently some E-ATX motherboard layouts do conflict with the 5.25" bay (indicated in red) due to component height restrictions. Should you consider using a E-ATX motherboard, we suggest using IPC-C4S-BH or alternatively, please contact a member of staff on 01908 272770 for additional advice.

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 449.58 x 177.8
• inches : 19 x 17.7 x 7

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Black

Cooling
• Front : 2 x 92mm ball-bearing fans
• Rear : Optional additional 2 x 60mm rear exhaust fans for efficent cooling

Power Supply
PS2 Single or Mini Redundant power supplier - Please see Optional Product for details

Expansion Slots
• 7 x PCI Slots (Full Height, Full Length). (Standard Specification)
• 14 x Slot Single Board Computing (a.k.a. SBC) rear panel. (See Optional Product)

Front Panel
• Power on/off
• System reset
• 2 x USB ports

LED Indicators
• Power
• Drive

System Board
• MB Version : Up to 12”(W) x 10.5”(D) ATX/SSI CEB compliant MB
(or 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB by adding an optional MB bracket)

Drive Bays
• External : 4 x 5.25” & 1 x 3.5”
• Internal : 2 x 3.5” (up to 4)

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/o PSU & Rail)
• kgs : 17
• lbs : 37.4

Package Dimension (W x D x H)
• mm : 620 x 580 x 340
• inches : 24 x 23 x 14

Cubic Feet
4.3

Container Load Quantity
• 20’ : 238
• 40’ : 477
• 40’ H : 545

Mounting
Please see Optional Product For Details
* All specifications are subject to change without notice.

Datasheet	IPC-C4B Datasheet
	IPC-C4B Datasheet.pdf

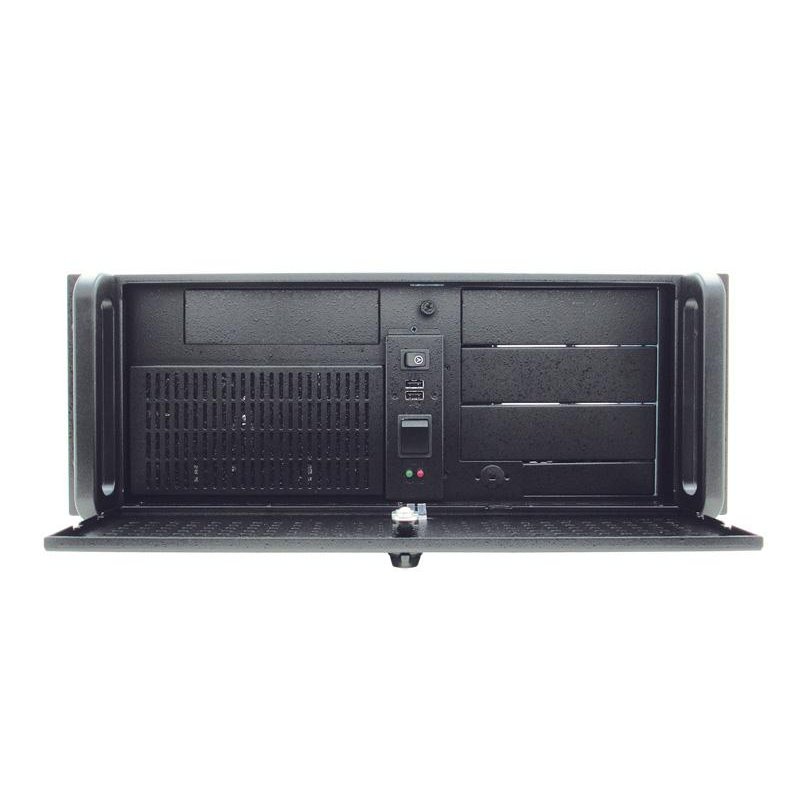

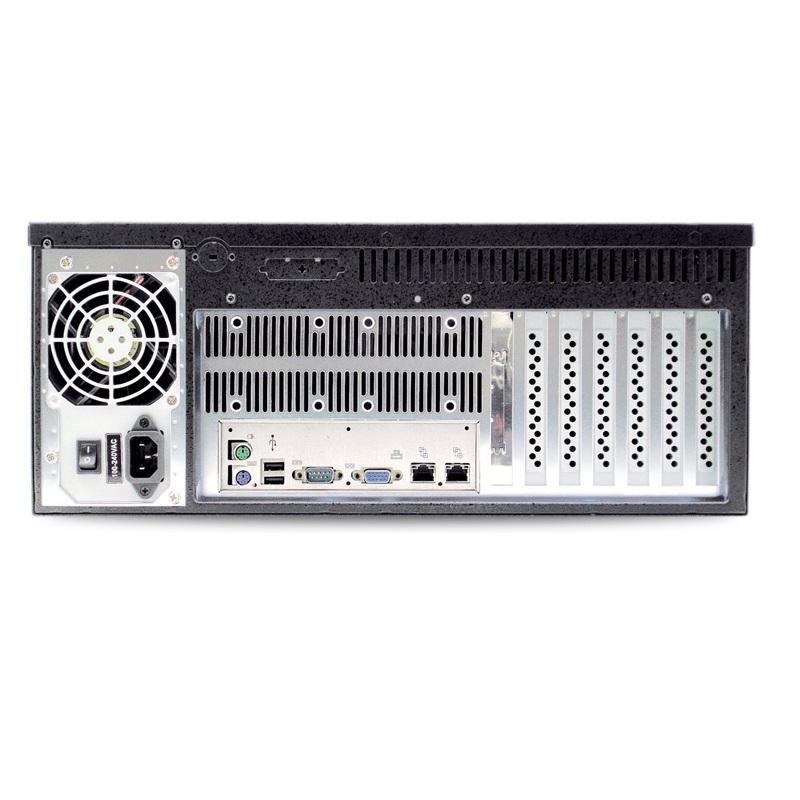

Product Images	IPC-C4B (Front 45 Degrees)
Product Images	IPC-C4B (Front)

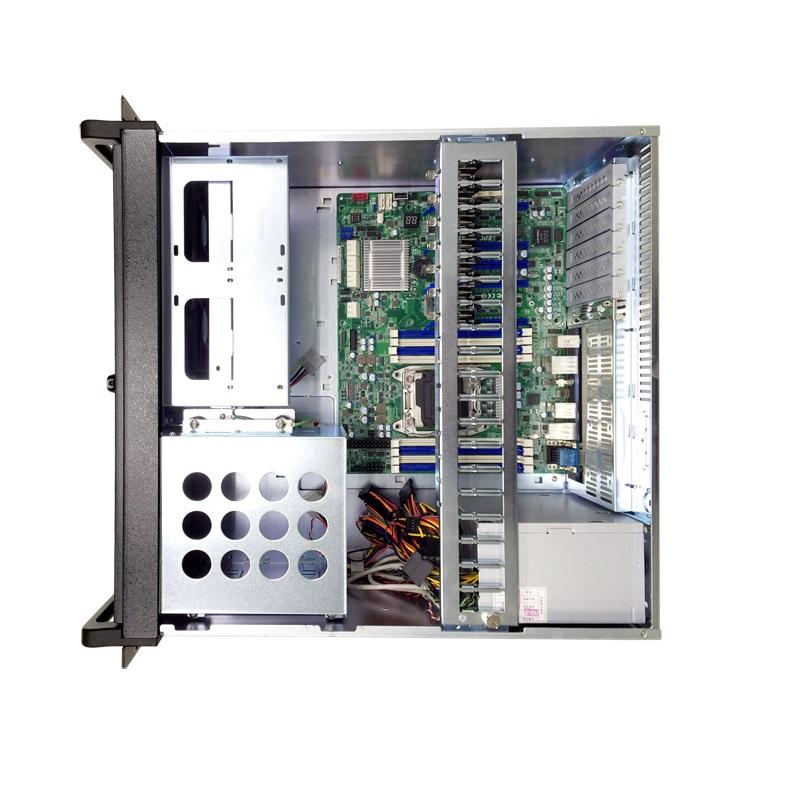

Product Images	IPC-C4B (Top)

Rails

AIC 2U-4U 26inch Slider Rails for Extended Chassis
Part code: IPC-SY002H

AIC 2U-4U 20inch Slider Rails for Short/Midsize Chassis
Part code: IPC-SY001H

Fans

Delta 92mmx92mmx25mm 128CFM Fan

Part Code : IPC-SF0925

Power Supplies (Redundant/Single)

MINI-REDUNDANT

400W x 2 Mini Redundant PSU 80+ (Short Depth)
Part code: PIST2040-EPSH-80

500W x 2 Mini Redundant PSU 80+ (Short Depth)
Part code: PIST2050-EPSH-80-N

500W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1050-EPSH-80-N

600W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1060EPSH-80-N

700W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1070-EPSH-80-N

800W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1080-EPSH-80-N

2/3U 800W x 2 Extra Short Industrial Redundant PSU 92+ Platinum with Pmbus

Part code: PIZ2080R-92-ACB-ES

2/3U 800W x 2 Extra Short Industrial Redundant PSU 95+ Titanium with Pmbus

Part code: PIZ2080R-95-ACB-ES

2/3U 1300W x 2 Extra Short Industrial Redundant PSU 95+ Titanium with Pmbus

Part code: PIZ21300R-95-ACB-ES

SINGLE

500W quiet 85+ Bronze PS2 Power Supply with 8cm fan

Part code: CRS-C2050-85-08

850W Fully Modular PS2 80+ Gold PSU with 12 cm fan

Part code: CRS-C40850-90

1200W Fully Modular 92+ PS2 Platinum PSU with 14 cm fan.

Part code: CRS-C401200-92

750W Modular PS2 80+ Gold PSU with 14 cm fan.
Part code: CRS-C9075-14-UK

850W Modular PS2 80+ Gold PSU with 14 cm fan.
Part code: CRS-C9085-14-UK

Backplane Modules/Mobile Racks

2.5" HDD BACKPLANE MODULE (12GB/S)

1 x 3.5" to 2 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Trayless Design

Part code: N-20SS

1 x 5.25" to 4 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-49SS

1 x 5.25" drive bay to 2x2.5" SFF hot swap bays, supporting 2NVMe PCIe SSDs

Part code: N-29NVMe-15

1 x 5.25" drive bay ,supporting 4x2.5" NMVe U.2 HDD(up to 15mm)

Part code: N-49NVMe

2.5" HDD BACKPLANE MODULE (6GB/S)

1 x 5.25" to 2 x 2.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design
Part code: IPC-BR-SAS12-G

3.5" HDD BACKPLANE MODULE (12GB/S)

2 x 5.25" to 3 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design.

Part code: N-36TM

3x 5.25" to 4 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design.

Part code: N-46TM

3x 5.25" to 5 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design.

Part code: N-56TM

3.5" HDD BACKPLANE MODULE (6GB/S)

3 x 5.25" to 4 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Black)
Part code: ISG-AN-D34-Black

3 x 5.25" to 4 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Silver)
Part code: ISG-AN-D34-Silver

3.5" HDD MOBILE RACK (12GB/S)

1 x 5.25" to 1 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-16TM

3.5" HDD MOBILE RACK (6GB/S)

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Black)
Part code: ISG-AN-D11-Black

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Blue)
Part code: ISG-AN-D11-Blue

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Red)
Part code: ISG-AN-D11-Red

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Silver)
Part code: ISG-AN-D11-Silver

Bay Convertors

1 x 5.25" Dynamic Conversion Bracket.
Part code: IPC-SDFD135225

2 x 5.25" to 3 x HDD Hard Drive Cooler

Part code: CCSS06B

Front Panel

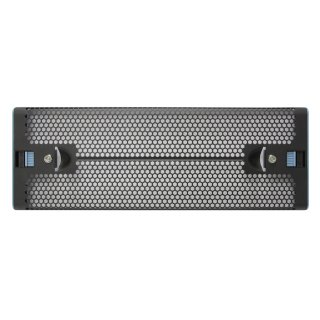

4U Mesh Front Panel Kit
