Key Features
• Based on Broadcom Atlas 88096 PCIe Gen4 Switch Solution
• 450mm short-depth system design
• High-efficiency/wattage redundant power supply
• High-performance and low noise swappable system fans
• BMC for system remote monitoring
• Extended PCIe slot pitch for better air cooling flow
• 4U height PCIe card carrier design for top insertion power input Gaming GPU cards
• Modular backplane design options for different applications
• PCIe X16 GPU / PCIe X8 Add-on cards / PCIe X4 NVMe

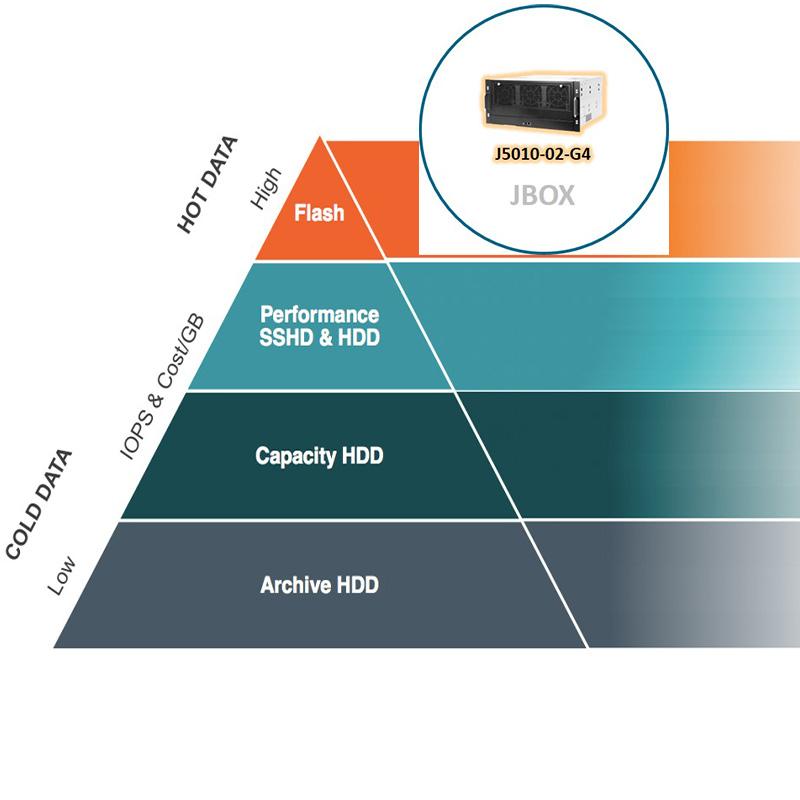

J5010-02-G4-20 is a highly compact Gen4 PCIe JBOX with PCIe switch and 2 sets of SFF-8644 for host uplink. Featuring the PCIe Gen4 switch, Broadcom Altas PEX88096, this product provides agile performance and productivity.

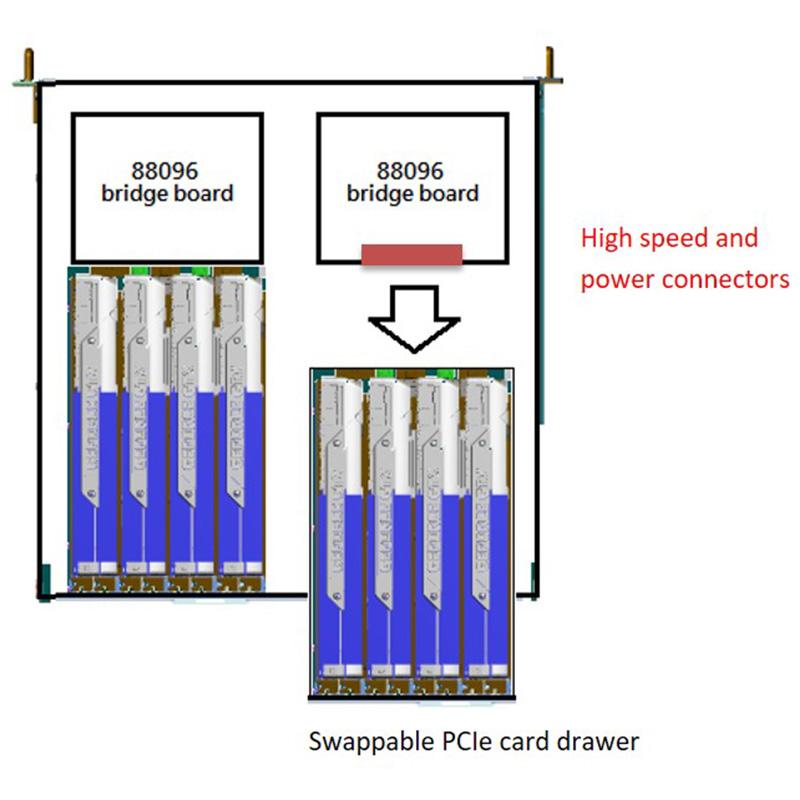

|CPU/Host connect to JBOX through re-timer card and high speed cables
|32x PCIe lanes upstream(to CPU/Host) + 64x PCIe Lanes downstream
(to devices) each PCIe SW
|ASPEED AST2520 BMC module (monitor PSU and fans status)

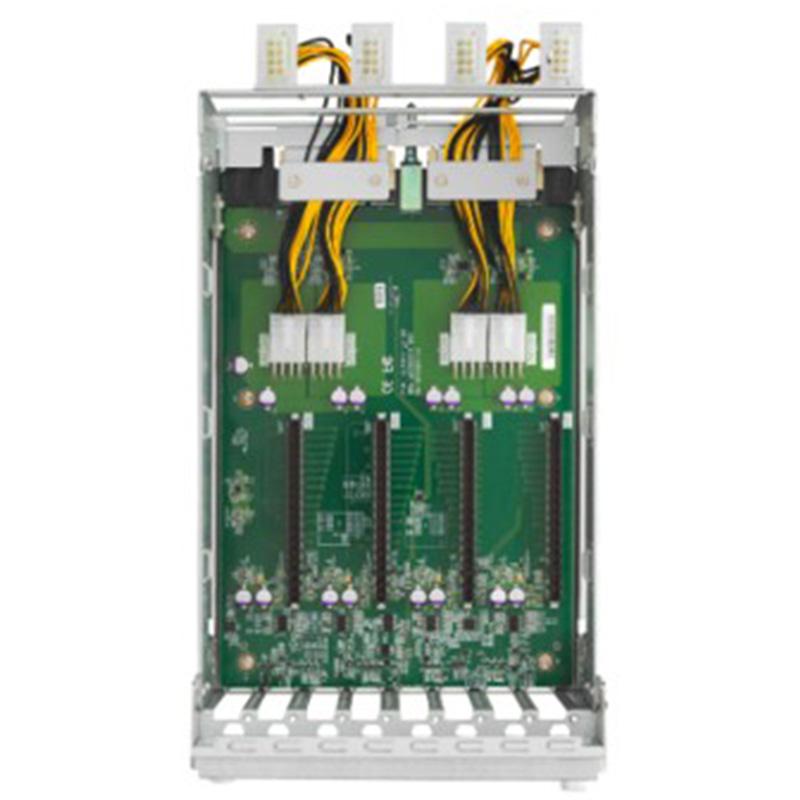

|Backplane options for X16 GPU/ x8 PCIe devices
|12V high current connectors to supply GPU power
(up to 350W each port)
|X1 link for PCIe Fabric management (switch feature configure)
Key Features
• Based on Broadcom Atlas 88096 PCIe Gen4 Switch Solution
• 450mm short-depth system design
• High-efficiency/wattage redundant power supply
• High-performance and low noise swappable system fans
• BMC for system remote monitoring
• Extended PCIe slot pitch for better air cooling flow
• 4U height PCIe card carrier design for top insertion power input Gaming GPU cards
• Modular backplane design options for different applications
• PCIe X16 GPU / PCIe X8 Add-on cards / PCIe X4 NVMe
| General |
| PCI Switches Chip: • Broadcom Atlas/PEX88096/PCIe Gen4 Switch |

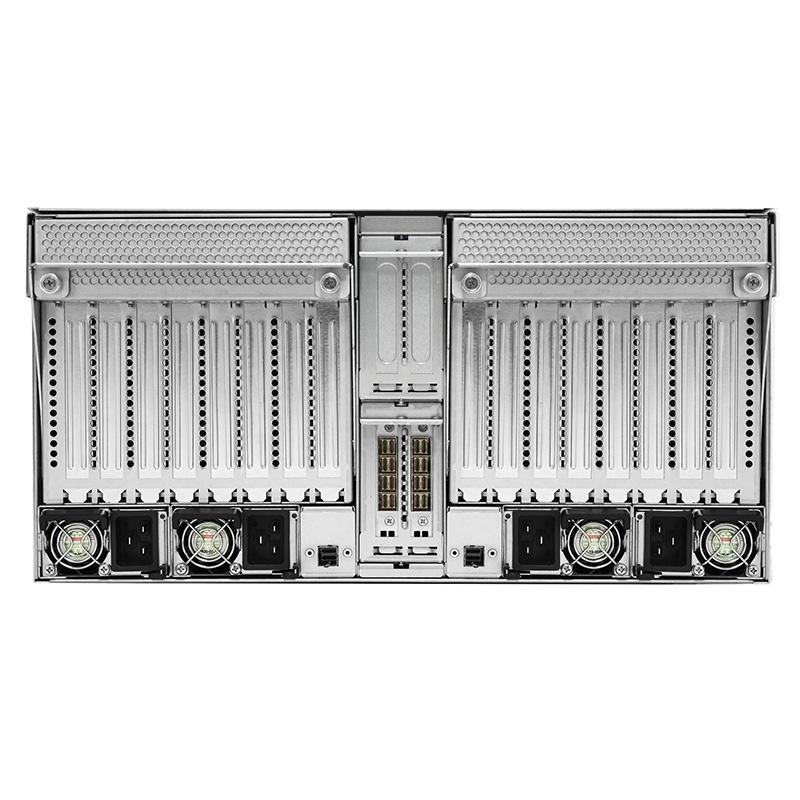

| Host/Expansion Interface: • 2 x sets of 4 SFF-8644 for Host uplink |
| PCIe card Supported |
| Form Factor: • Supports 8 x full-height, full-length dual slot/dual-width cards • 2 x PCIe X16 HHHL add-on cards • 2 x PCIe X1 link for PCIe switch management |
| BMC |
| ASPEED AST2520 BMC module IPMI 2.0 compliance |
| Hot-swap & Redundancy |

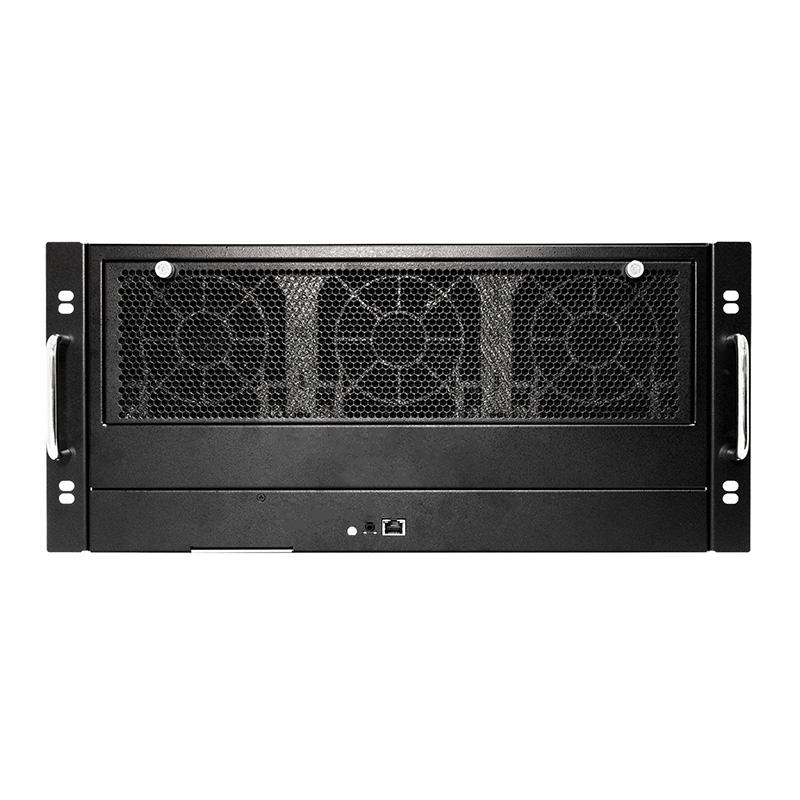

| Cooling: • 6 x 12038 PWM fans |
| Power Supply: • 2000W dual 1+1 hot-swap redundant 80+ Platinum |
| Power Entry: AC Inlet • 2000W module C14 |
| Electrical & Environment |
| Universal A/C Input: • 2000W module AC90-240V |
| Operating Environment: • Operating temperature: 0° - 35°C • System relative humidity: 20% - 80% |
| Non-operating Environment: • Operating altitude condition: 0 ~ 10K ft • Storage temperature: -20° ~ 60°C • System relative humidity: 10% - 90% |
| Physical Specification |
| Dimensions (W x D x H): • mm: 435 x 450 x 219 • inches: 17.1 x 17.7 x 8.6 |
| Gross Weight (w/ PSU, Rail; w/o Pallet, Disks): • kgs: 34.5 • lbs: 76.1 |
| Packaging Dimension (W x D x H): • mm: 615 x 830 x 448 • inches: 24.2 x 32.7 x 17.6 |
| Mounting: • Standard: 26” tool-less slide rail |
Optional parts:
IPC-BC- PEX88032(Broadcom PEX88032 re-timer card with bracket)--suitable for software developer only
IPC-BC- PEX88T32(Broadcom PEX88T32 re-timer card with bracket)--recommended for server side and expanding bandwidth on JBOX side.
IPC-PT- PS8926(Parade PS8926 re-timer card with bracket)
IPC-SCB-ML23-PCIEG4(8644 PCIe G4 1M cable)
IPC-SCB-ML20-PCIEG4(8644 PCIe G4 2M cable)
* All specifications are subject to change without notice.
| SKU Information | Description |
| XJ1-50102-01(STD) | 5U JBOX with dual 4x double slots FHFL PCIe Gen.4 add-in cards slots, dual 4x SFF-8644 (4 lanes) PCIe host connection, dual 2000W 1+1 redundant power supply, 26" slide rail |
| XJ1-50102-02 | 5U JBOX with dual 8x single slots FHFL PCIe Gen.4 add-in cards slots, dual 4x SFF-8644 (4 lanes) PCIe host connection, dual 1200W 1+1 redundant power supply, 26" slide rail |
