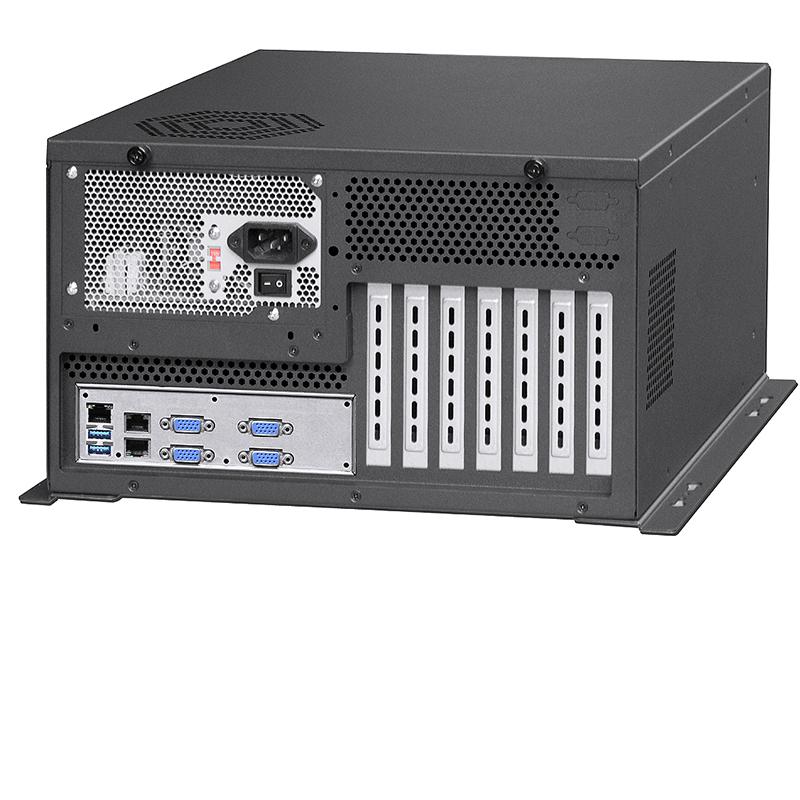

A server with multi-function, DeskTop, MiniTower, and wall-mounted

PCICASE Model No: TSC-ATX-100B
UK Stock
Key Feature

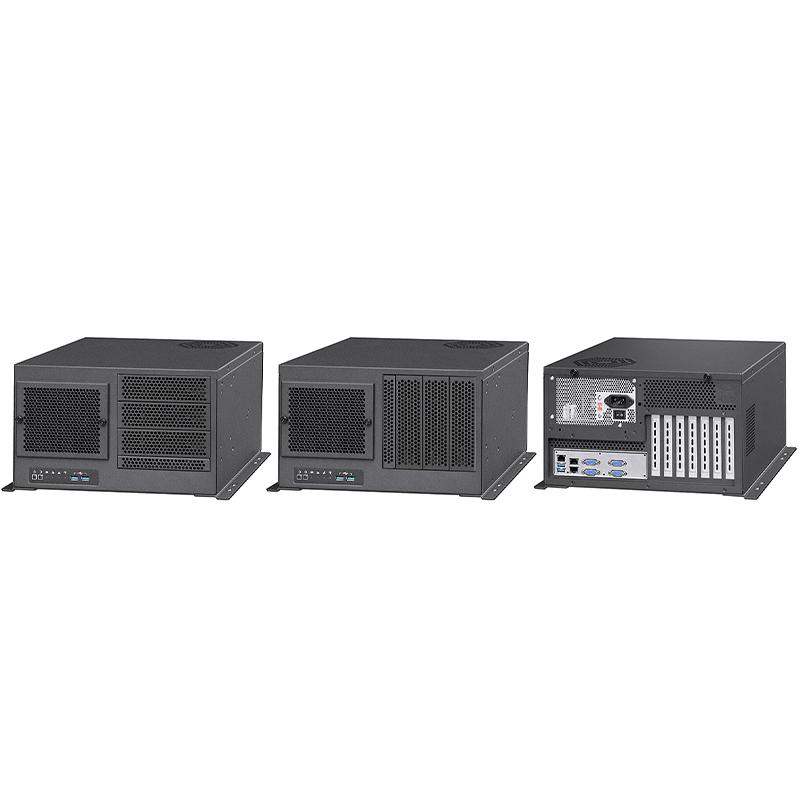

  • Compatible with DeskTop, MiniTower, and wall-mounted platform solution
  • Compatible MB: ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
  • GPU computing uses up to 3 RTX 3070 or 3 RTX 3080, or 2 RTX 3090 GPU graphic cards compatible
  • 8cm or 12cm~14cm fan version PS2 PS or RPS compatible
  • SGCC 1.0mm high grade sheet metal thickness as durable & rugged mechanism
  • 7-slot full height & size expansion cards at max. 360mm (if 120mmx25mm fan installed)

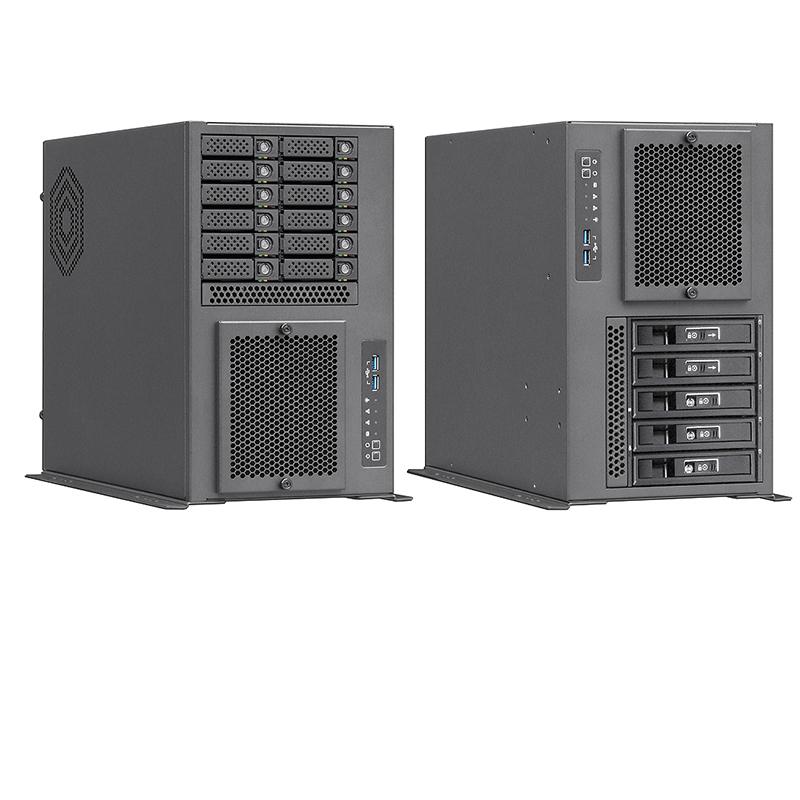

GPU and NAS Cloud Storage solution recommended. A server with multi-function architecture, DeskTop, MiniTower, and wall-mounted environment are all suitable. GPU computing uses up to 3 RTX 3070 or 3 RTX 3080, or 2 RTX 3090 GPU graphic cards compatible. In terms of heat dissipation, a 120mmx25mm silent fan with 59CFM air flow as standard, or a 120mmx38mm two-ball bearing cooling fan with 155CFM air flow can be installed as an option. Standard storage capacity can be installed with 3 sets of 5.25" ODD that can rotate 90 degrees and 2 sets of 2.5" U.2 SSD, it can also choose to install a variety of hot-swappable HDD trays. Standard ATX 7-slot motherboard and PS2 single or redundant power supply can be installed.

Genaral Specification:

* Model No: TSC-ATX-100B

* Drive bay: Three 90- degree rotatable 5.25" ODD and two 2.5" SSD or U.2 SSD

* SGCC 1.0mm high grade sheet metal thickness as durable & rugged mechanism

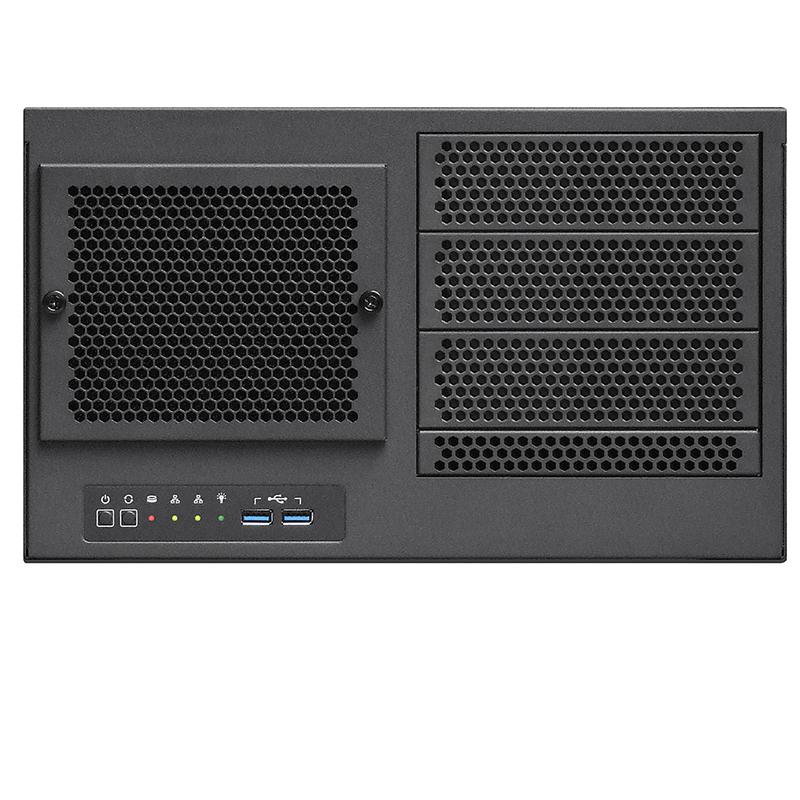

* Front shield by 12cm dust filter with captive hand screws

* One 120mmx25mm silent cooling fan behind dust filter (fan part# D12SM-12, CFM @59)

* Two USB 3.0 ports and control devices at front bezel (USB 2.0 also compatible)

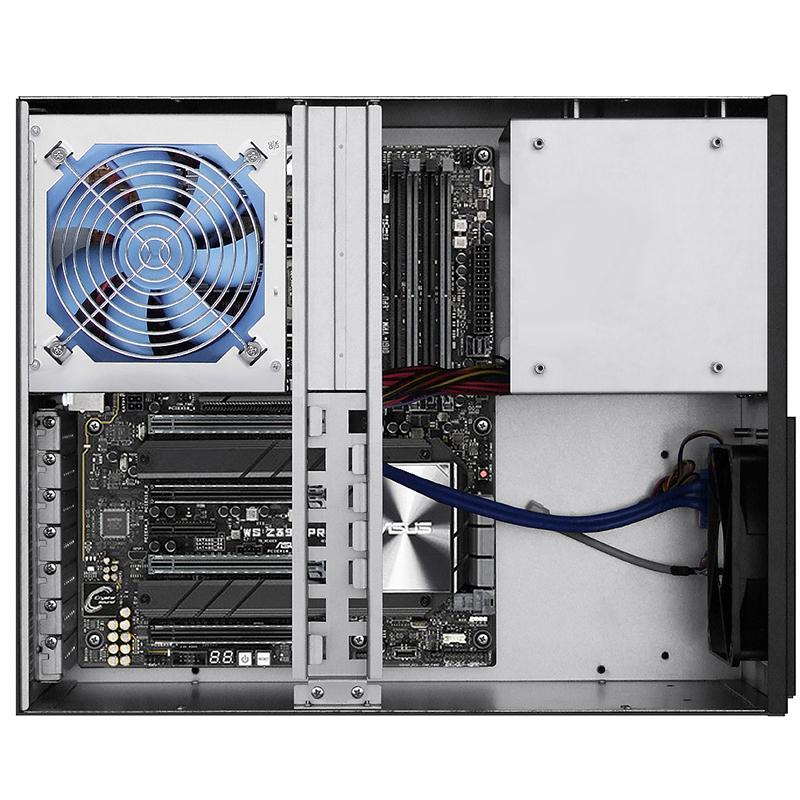

* Upward & downward hold-down card clamp with height adjustable clamps x7

* 7-slot full height & size expansion cards at max. 360mm (if 120mmx25mm fan installed)

* 7-slot full height & size expansion cards at max. 340mm (if 120mmx38mm fan installed)

* Compatible MB: ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

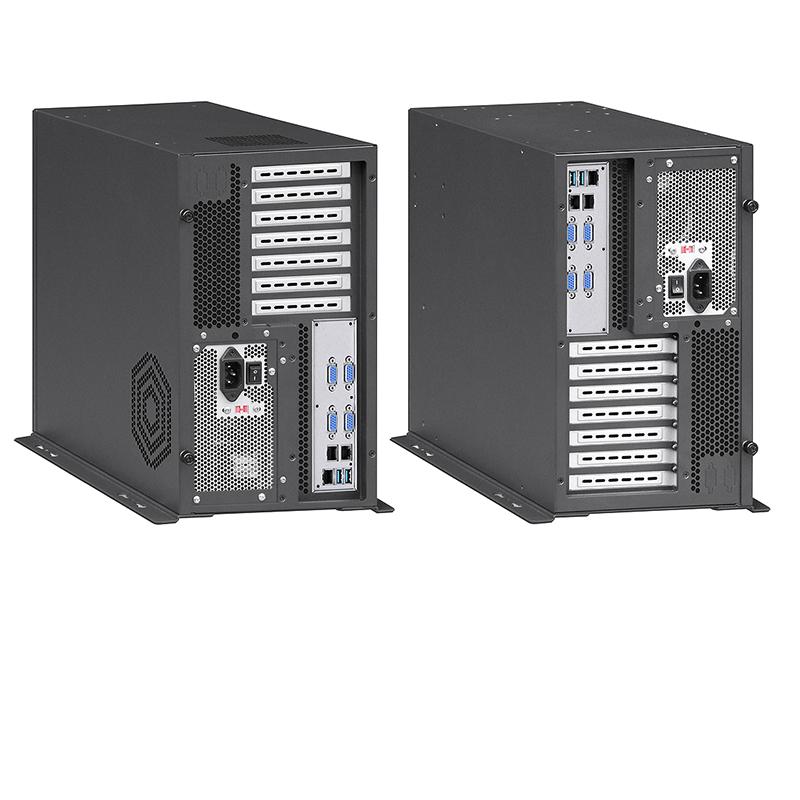

* Compatible with DeskTop, MiniTower, and wall-mounted platform solution

* Black wallmount kit as option (part# TSC-ATX-100B-wall-BK, one pair)

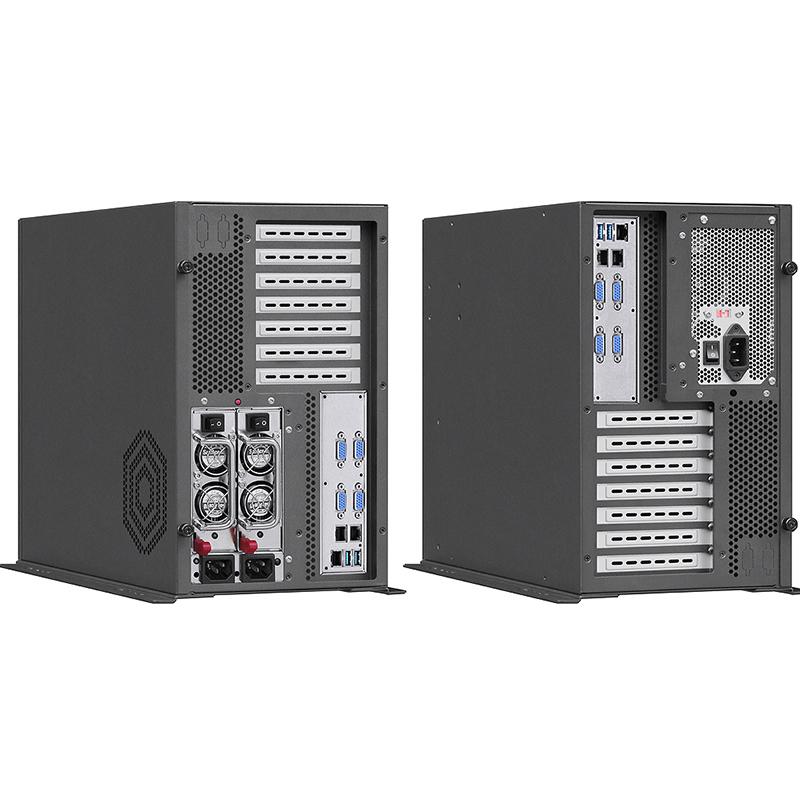

* 8cm or 12cm~14cm fan version PS2 PS or RPS compatible (max. depth at 200mm)

* Standard paint: scratch-resistant Black textured or scratch-resistant Beige RAL 9018

* Chassis dimension: D.410 x W.330 x H.196 /mm

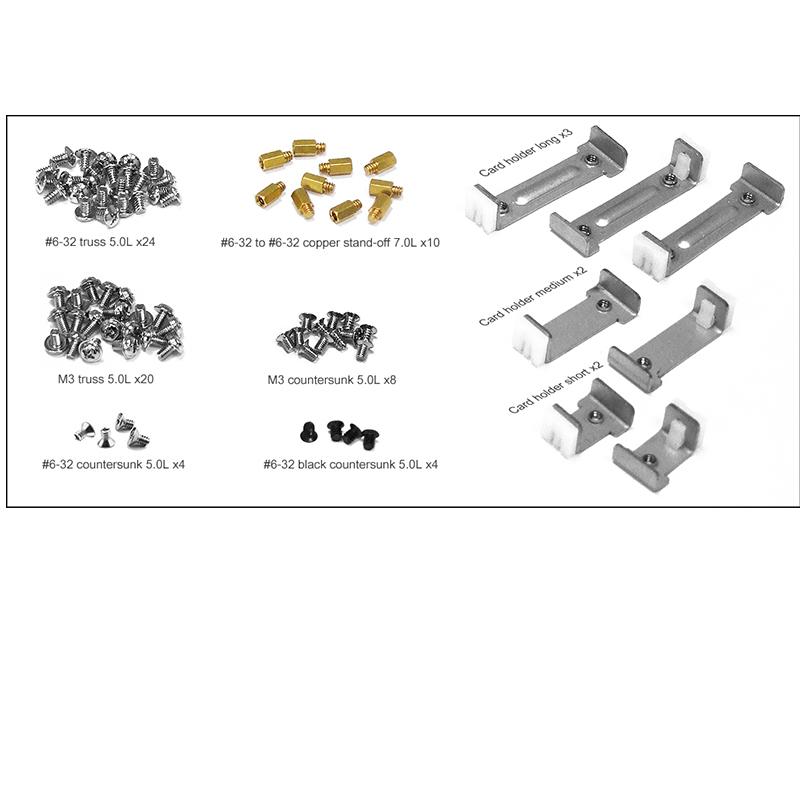

* Accessory: #6 & M3 screw x60, #6 MB stand-off x10, hold-down card clamp x7

* Package: NW 6.77KG, GW 7.96KG, 2.70 CUFT (carton size at 53.5x44.5x32cm)

* Optional products:

 Wall mounting bracket: TSC-ATX-100B-Wall-BK

 Convertor Bays: TSC-25-35-BK

                             TSC-2525TO3HDBK

                             TSC-3525TO5HDBK

Fans: TSC-SF12038

Single PS2 PSU : PS2 - PCI Case

Mini Redundnat PSU : Mini Redundant - PCI Case

Backplane Modules: https://www.pcicase.co.uk/products/backplane-modules-mobile-racks

* Optional products:

 Wall mounting bracket: TSC-ATX-100B-Wall-BK

 Convertor Bays: TSC-25-35-BK

                             TSC-2525TO3HDBK

                             TSC-3525TO5HDBK

Fans: TSC-SF12038

Single PS2 PSU : PS2 - PCI Case

Mini Redundnat PSU : Mini Redundant - PCI Case

Backplane Modules: https://www.pcicase.co.uk/products/backplane-modules-mobile-racks
