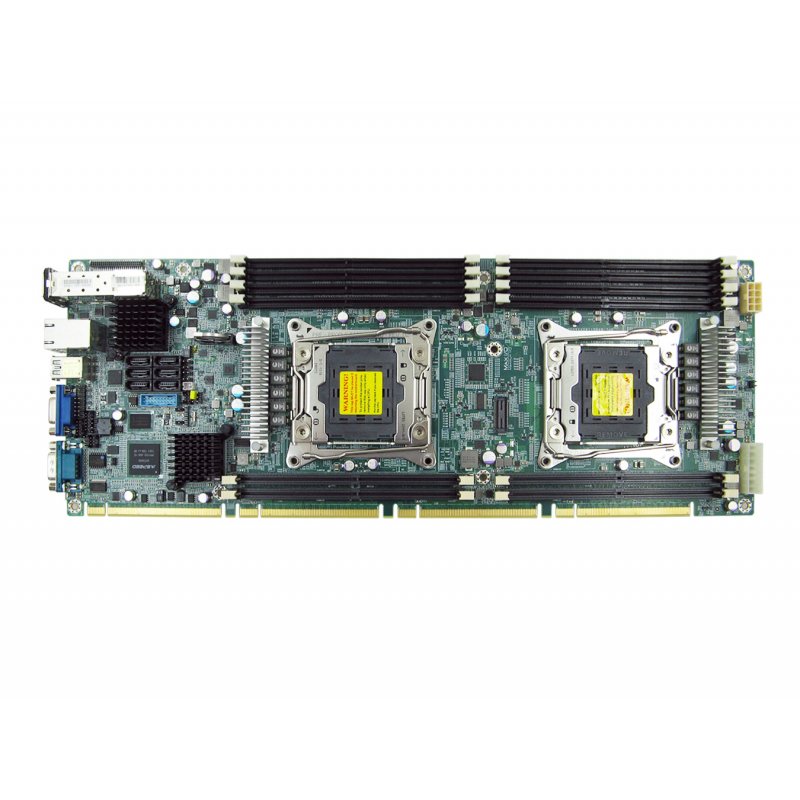

AIC Phoenix Server Board that supports Dual Intel Xeon Processors E5-2600 v3

PCICASE Model No: IPC-MB-PHOENIX
Manufacturer Model No: PSG-M-PHDPWLBG-110
Key Features
  • Supports two Intel® Xeon® Processors E5-2600 v3 and next generation Product Family for significantly increased server performance
  • 5+ years of product life cycle (based on chipset roadmap) Baseboard Management Controller (BMC)
  • IPMI 2.0 Spec
  • iKVM, Media redirection, SMASH support
  • KCS (keyboard controller style), IOL (IPMI over LAN), SOL (Serial over LAN) interface
  • Temperature, voltage and fan speed monitoring
  • Smart fan speed control
  • System identification, fan fail alarm, system status alarm LED
  • Remote power ON/OFF/Reset
  • RMCP+ SNMP, DHCP in IOL support
  • AES-128 encryption in RMCP+
  • Max I/O™ native PCI Express provides up to 64 lanes of user-definable PCI Express v 3.0
  • Rackmount Technology Extension (RTX) form factor utilizes full internal chassis height for optimal I/O configurations
  • Dual 10 GbE SFP+ for increased networking bandwidth
Features And Benefits

The Phoenix series server board offers compelling performance and improved power efficiency, which is optimized for efficient performance platforms (storage, security and communications infrastructure).
By implementing the next-generation 22nm/14nm Intel® Xeon® Processor E5-2600 v3 and next generation Product Family, fully integrated microarchitecture with AIC-patented MAX I/O™ technology and QuickPath extension (QPX), Phoenix series server board delivers unmatched performance, providing 2S support with four channels of DDR4 2133/2400 per socket; and unparalleled capability to further maximize all available I/O bandwidth, pushing the boundaries of Gen3 PCI Express.
Featured with ground breaking technologies including Intel® Next Generation Microarchitecture and Instruction Set (including AVX 2.0), Energy Efficient Turbo, Increased Intel® QPI link speeds up to 9.6GT/s and DDR4 memory, the Phoenix series server board enables next generation server solutions with an incredible leap in performance.

Motherboard Dimensions
• mm : 424.2 x 157.5
• inches : 16.7 x 6.2

Processor Support
Two Intel® Xeon® Processors E5-2600 v3 and next generation Product Family

QPI Speeds
9.6 GT/s, 8 GT/s, 7.2 GT/s

Socket Type
Socket R3 (FCLGA2011-3)

System Chipset
Intel® C612 Chipset

System Memory
• Four(4) memory channels per CPU socket, two(2) channels with 2DPC + two(2) channels with 1DPC
• Twelve(12) DIMM slots support:
DDR4 2400/2133 RDIMM/LRDIMM
- Up to 96GB RDIMM SRx4
- Up to 384GB RDIMM DRx4
- Up to 768GB LRDIMM QRx4
- Up to 1536GB LRDIMM 3DS 8Rx4

Expansion Slots
4 x PCIe x16 Gold-finger connectors provide 64 user define-able lanes of PCIe Gen3

System BIOS
BIOS Type :
• Insyde UEFI BIOS
• SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
• SRIOV
• PCIe Hotplug
• iSCSI
• TPM
• PCIe NTB

On-board Devices
SATA :Built-in SATA controller with RAID support on Intel® C612 chipset
IPMI : Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support

Network Controller
• Intel® 82599ES 10 GbE Controller, dual port, SFP+, PCIe v2.0 (5.0GT/s)
• Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
• Intel® Ethernet Network Connection I217-LM, single port GbE, 1 Gbps
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

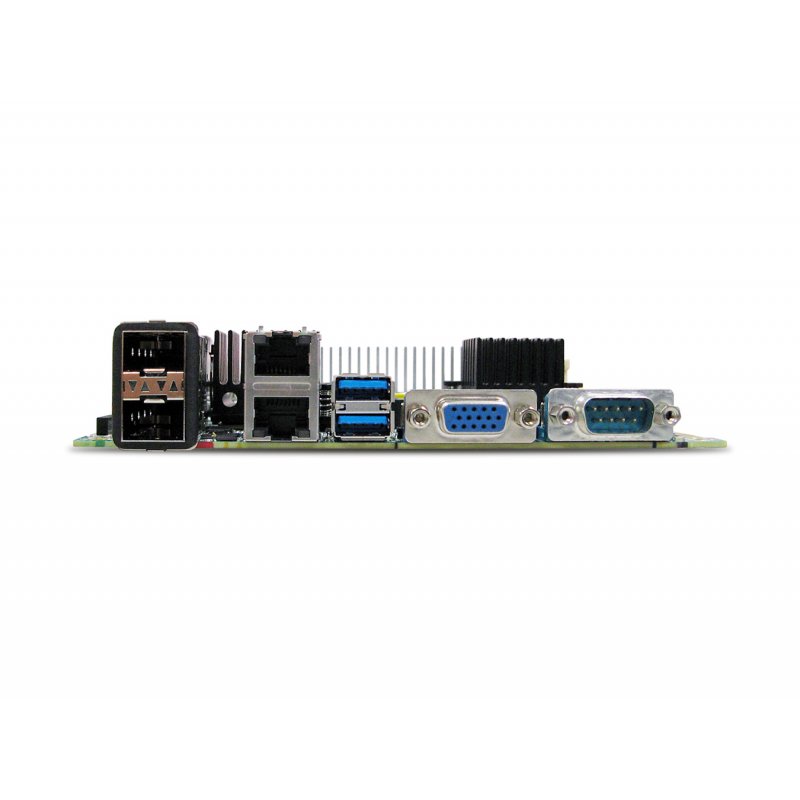

Input/Output
Serial ATA :
6 x SATA3 ports
LAN :
• 2 x SFP+
• 2 x RJ45
USB :
• 2 x USB 3.0 Type A connectors
• 1 x USB internal pin-header to support 2 x USB 3.0 + 2 x USB 2.0
VGA :
• 1 x external VGA port
• 1 x internal VGA pin-header
Serial Port :
• 1 x external DB-9 serial port
• 1 x internal DB-9 serial pin-header
Others :
Debug display pin-header, GPIO port
* All specifications are subject to change without notice.

User Manual Phoenix User Manual


 Phoenix_UserManual.pdf


Datasheet Phoenix Datasheet


 Phoenix_Datasheet_201708.pdf
