SB202-TU, a 2U 12-bay storage server solution. It supports 3rd Gen Intel® Xeon® Scalable Processors with PCIe 4.0 extension design

PCICASE Model No: SB202-TU

Manufacturer Model No: SB202-TU(XP1-S202TU01)

7-28 Day Delivery

Key Features
• 2U 12-Bay storage server with SATA/SAS3/NVMe drives support
• Supports 3rd Gen. Intel® Xeon® Scalable processors (Ice Lake)
• Intel® C621A Chipset to provide 5+ years product life cycle
• Onboard Baseboard Management Controller for system management and IPMI control
• Dedicated BMC management port
• Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions

Features & Benefits

SB202-TU, a 2U 12-bay storage server solution. It supports 3rd Gen Intel® Xeon® Scalable Processors with PCIe 4.0 extension design. It has Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions and Onboard Baseboard Management Controller for system management and IPMI control.

Dimensions (W x D x H)

• mm : 430 x 680 x 88.2
• inches : 17 x 26.8 x 3.5

Motherboard

Code Name - Tucana

Processor

Processor Support :
• 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake)
• Supports CPU TDP up to 270W
*Use over 165W CPU, please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.

CPU Interconnection: QPI Speeds 11.2 GT/s

Socket Type : Socket P+ (LGA-4189)

Chipset Support

Intel® C621A Chipset

System Memory

• 8 x memory channels per CPU, 1 x DIMM per channel
• 16 x DIMM slots support: DDR4 REG ECC 3200/2933/2666
• Intel® Optane™ Persistent Memory 200 (Barlow Pass) support

Front Panel

System power on/off, System ID, System reset, 1x USB 3.0 Type A

LEDs

Power status, System alert, LAN activity, Drive activity, System ID

Drive Bays

External :
• 12x 3.5"/2.5" SAS/SATA hot-swap (EOB BP)
• 2 x 2.5” hot swap (rear)
Internal :
• 2 x M.2(NGFF)/M-Key/2280

Expansion Slots (PCIe 4.0)

• 3 x PCIe X16 slots (HHHL) + 1 x OCP 3.0
• 2 x PCIe X8 slots (HHHL)

System BIOS

• AMI UEFI BIOS
• SPI (Serial Peripheral Interface) FLASH Interface

BIOS Features :
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot
• BIOS Recovery Mode
• SRIOV
• iSCSI
• TPM
• PCIe NTB

On-board Devices

SATA / SAS :
Intel® C621A PCH on-chip solution
• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS)
• 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
Optional SAS 3008/3108 modules (on OCP)

IPMI :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support

Network Controllers :
• Realtek® RTL8211EL single port 1000 Mbps Ethernet PHYceiver for dedicated

Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

Rear I/O

LAN: 1 x GbE RJ45 dedicated to BMC management

USB:
2 x USB 3.0 double-stack Type A connectors

VGA:
1 x external DB-15 VGA port

Serial Port:
1 x external COM port phone jack

Power Supply

1200W 1+1 redundant power supply 80+ Platinum
• AC INPUT : 100~240V,50/60Hz,10-5A

System Cooling

6 x 60x38mm easy swap fans

System Management

IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• Intel NM

Environmental Specifications

• Storage temperature: -10°C(14°F) ~ 60°C(140°F)
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing

Gross Weight (w/PSU & Rail)

• kgs : 26
• lbs : 57.3

Packaging Dimensions (W x D x H)

• mm : 605 x 920 x 322
• inches : 23.8 x 36.2 x 12.7

Mounting

Standard : 28" tool-less slide rail

SKU Information	Description
XP1-S202TU01 (Standard)	2U 12x 3.5"/2.5" SAS/SATA hot-swap (EOB BP), 2x 2.5" SATA hot-swap, 6x 6038 fan, Acbel 1200W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 28" slide rail, w/o bezel
XP1-S202TU02 (Optional)	2U 4x 3.5"/2.5" NVMe + 8x 3.5"/2.5" SAS/SATA hot-swap (Passive BP), 2x 2.5" SATA hot-swap, 6x 6038 fan, Acbel 1200W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 28" slide rail, w/o bezel
XP1-S202TU03 (Optional)	2U 8x 3.5"/2.5" NVMe + 4x 3.5"/2.5" SAS/SATA hot-swap (Passive BP), 2x 2.5" SATA hot-swap, 6x 6038 fan, Acbel 1200W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 28" slide rail, w/o bezel
XP1-S202TU04 (Optional)	2U 12x 3.5"/2.5" tri-mode (Passive BP), 2x 2.5" SATA hot-swap, 6x 6038 fan, Acbel 1200W redundant power supply platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 2x 1G NIC onboard (with one dedicate IPMI), 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), with 1x PCIe Gen.4 x16 retimer card, 28" slide rail, w/o bezel

* All specifications are subject to change without notice.

Datasheet	SB202-TU Datasheet
	SB202-TU_Datasheet.pdf
Product Images	SB202-TU (Front 45 Degrees)

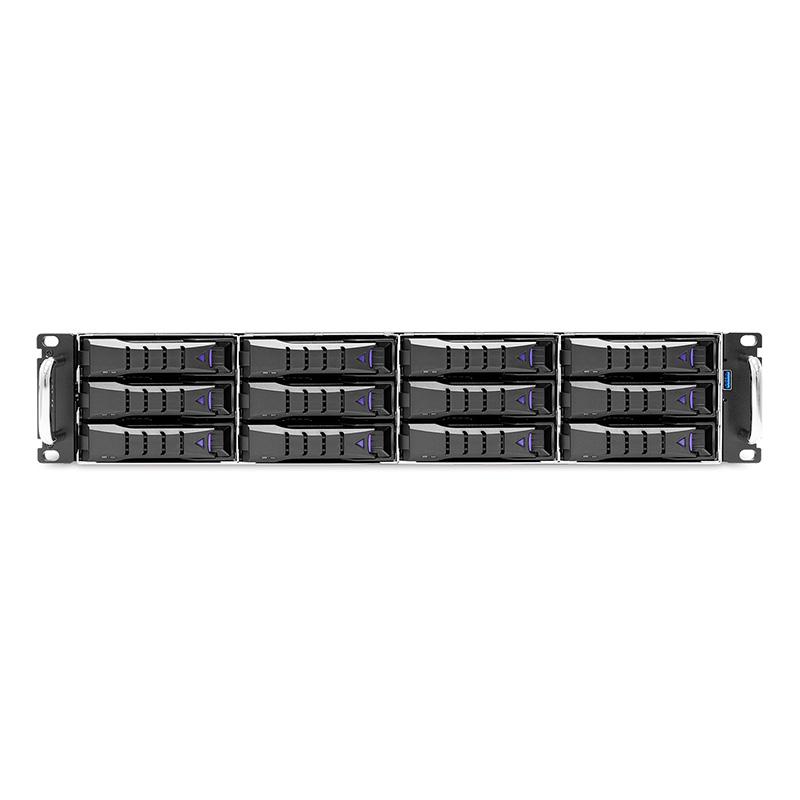

Product Images	SB202-TU (Front)

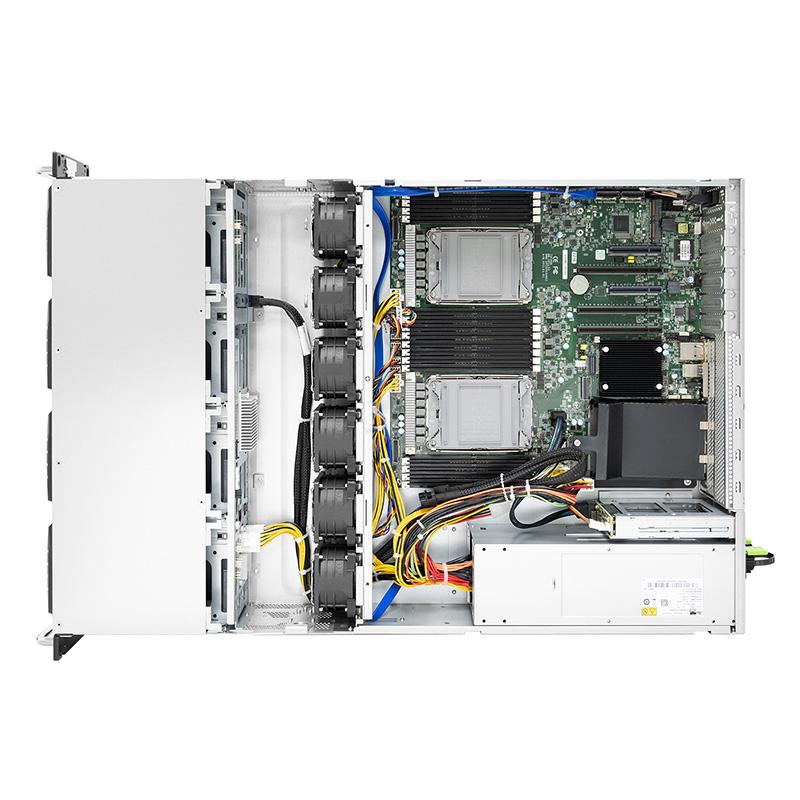

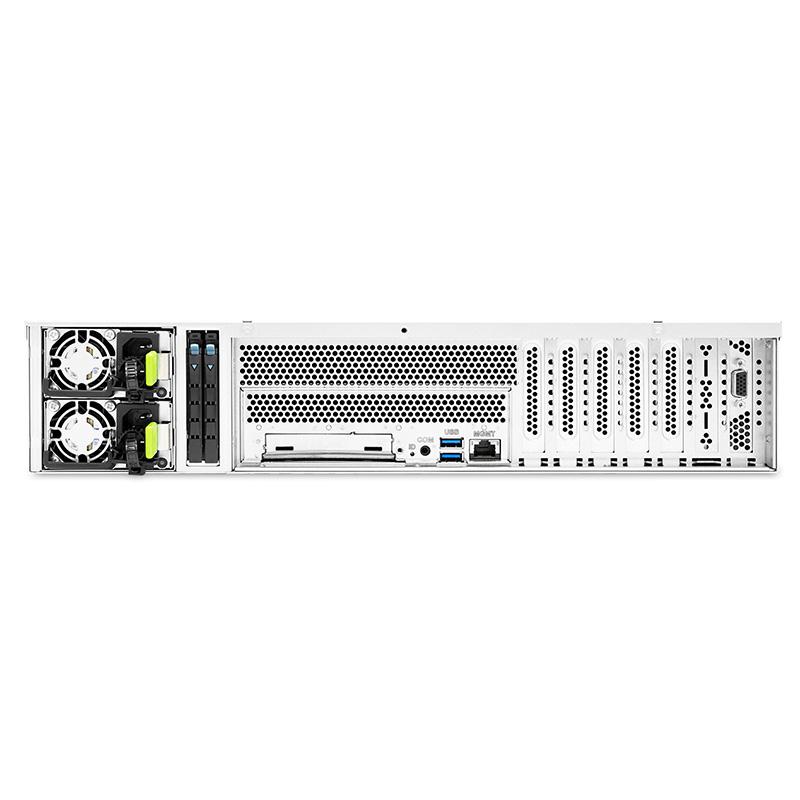

Product Images	SB202-TU (Top&Rear)
	SB202-TU_TopOpen.jpg SB202-TU_Rear.jpg
User Manual/AVL	SB202-TU
	SB202-TU_Manual SB202-TU_AVL
